Allen-Bradley 1793-OB16P Digital Output Module | 16-Channel I/O for CompactLogix PLC

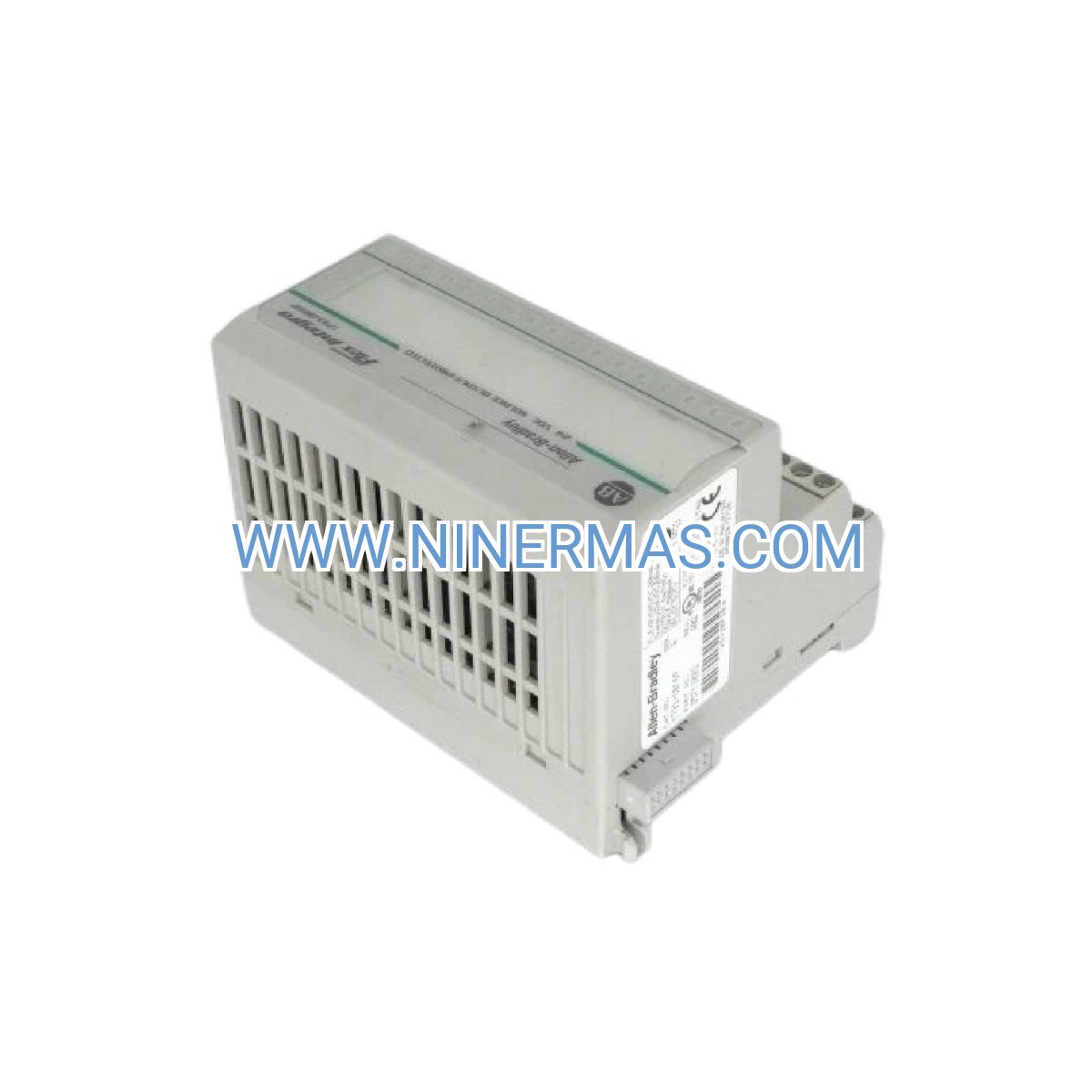

Allen-Bradley 1793-OB16P Digital Output Module (Industrial-Grade I/O Control Solution)

The Allen-Bradley 1793-OB16P is a high-performance digital output module designed for CompactLogix and Flex I/O distributed control systems. Through 16 individually isolated output channels and advanced solid-state switching technology, it delivers precise on/off control for solenoid valves, motor starters, indicator lights, and relay-driven devices in demanding industrial environments.

Engineered for factory automation, process control, machine building, and material handling applications, this module addresses critical challenges including signal interference, output overload protection, wiring complexity, and system downtime during maintenance. It is widely adopted by control system integrators, OEM machine builders, plant maintenance teams, and automation engineers across manufacturing, packaging, water treatment, and energy sectors.

Featuring hot-swappable design, diagnostic LEDs, and compatibility with RSLogix programming software, the 1793-OB16P offers rapid deployment, simplified troubleshooting, and flexible configuration options. Standard models ship from stock; custom I/O configurations and technical consultation are available upon request. Contact our application engineers with your system voltage, load current requirements, and control logic specifications for tailored solutions.

Core Features & Technical Advantages

• 16 Isolated Digital Outputs
  Each channel provides optical isolation up to 1500V AC, preventing ground loops and protecting upstream controllers from electrical noise and voltage spikes in harsh industrial settings.
• 0.5A Current Rating Per Point
  Supports direct drive of pilot relays, small contactors, and LED indicators without external amplification, reducing component count and panel space requirements.
• Hot-Swap Capability
  Module replacement during system operation without powering down the entire rack, minimizing production interruptions and enabling proactive maintenance scheduling.
• Comprehensive Diagnostics
  Individual channel status LEDs and fault reporting via backplane communication allow rapid identification of open loads, short circuits, and power supply issues, cutting troubleshooting time by up to 60%.
• Wide Voltage Compatibility
  Operates with 10-30V DC field power supply, accommodating standard 12V and 24V industrial control circuits commonly found in North American and European installations.

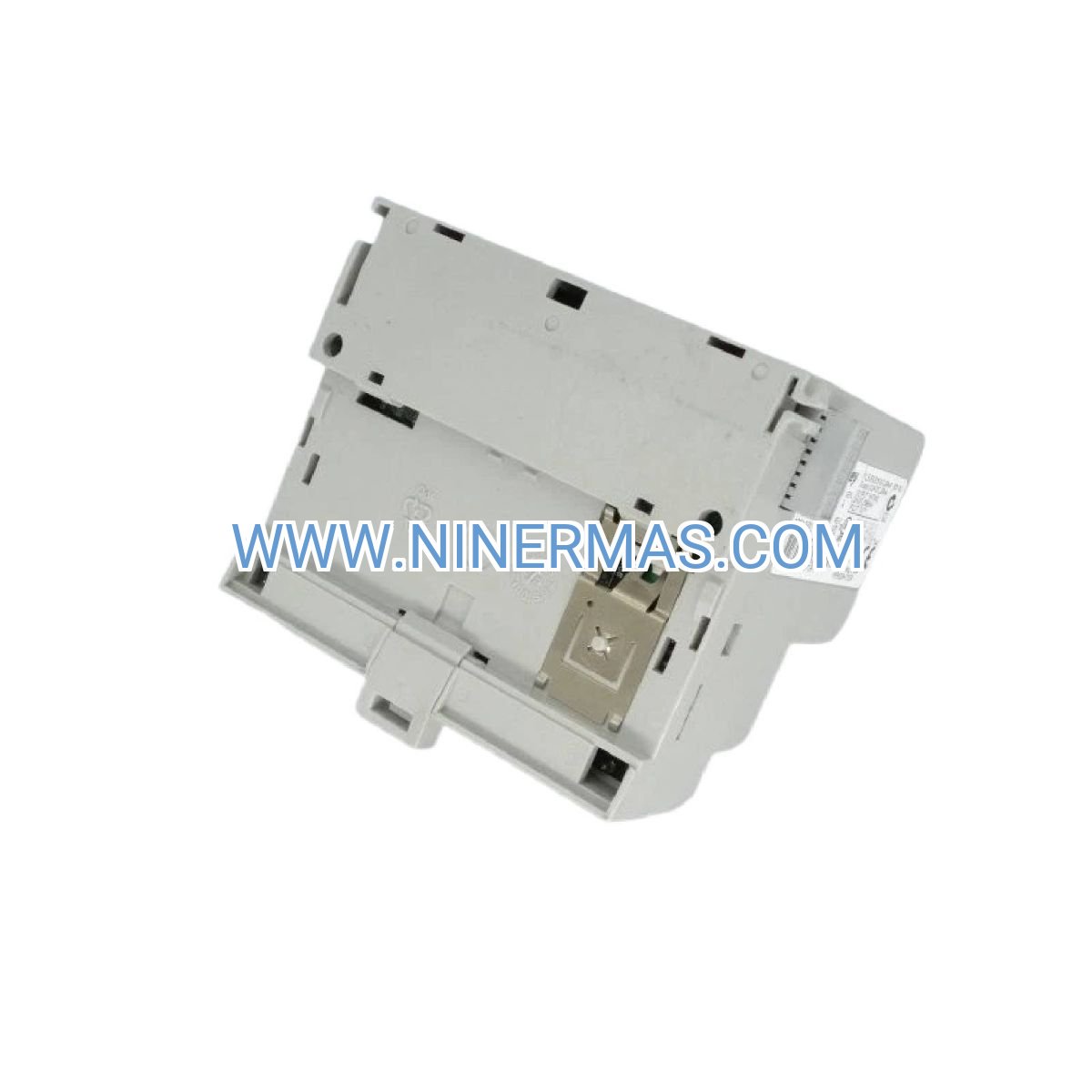

• Compact DIN-Rail Mounting
  Space-efficient form factor (35mm DIN rail compatible) fits standard control cabinets and allows high-density I/O configurations in limited enclosure space.

Typical Application Scenarios

This module is engineered for applications demanding reliable switching control, real-time response, and long-term operational stability, including:

• Automated Manufacturing Lines
  Controls pneumatic actuators, conveyor motors, and part ejectors in automotive assembly, electronics production, and food processing plants where cycle times are measured in milliseconds.
• Process Control & SCADA Systems
  Interfaces with motor starters, valve actuators, and alarm annunciators in chemical plants, water treatment facilities, and oil & gas installations requiring 24/7 uptime and regulatory compliance.
• Packaging & Material Handling Equipment
  Drives labeling heads, diverter gates, and sorting mechanisms in high-speed packaging lines, distribution centers, and parcel sorting systems handling thousands of units per hour.
• Building Automation & HVAC Control
  Manages damper actuators, pump starters, and fan control relays in commercial HVAC systems, cleanrooms, and critical facility infrastructure where energy efficiency and remote monitoring are priorities.
• Machine Tool & Robotics Integration
  Provides discrete output signals to tool changers, coolant pumps, and safety interlocks in CNC machining centers, robotic welding cells, and automated assembly stations.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, the following parameters are provided for design reference and procurement planning:

Selection Recommendations: When specifying this module, consider maximum simultaneous output load (sum of all active channels should not exceed module power budget), field wiring distance (voltage drop over long cable runs), and environmental conditions (temperature, vibration, EMI exposure). For systems requiring more than 16 outputs, multiple modules can be installed in the same rack with sequential addressing. If you need assistance with I/O mapping, load calculations, or panel layout, please provide your application details—our engineering team will recommend the optimal configuration and compatible accessories (terminal blocks, cables, power supplies).

Extended Functionality & System Integration

• RSLogix 5000 Programming Support
  Fully compatible with Rockwell Automation's Studio 5000 / RSLogix 5000 development environment, enabling ladder logic, structured text, and function block programming with built-in Add-On Instructions (AOI) for simplified code reuse.
• EtherNet/IP & DeviceNet Connectivity
  When installed in a CompactLogix chassis with appropriate communication adapters, supports real-time I/O data exchange over industrial Ethernet and fieldbus networks for distributed control architectures.
• Removable Terminal Blocks
  Screw-type or spring-clamp terminal options (sold separately) allow pre-wiring and quick module replacement without disturbing field connections, reducing commissioning time by up to 40%.
• Conformal Coating Option
  Available with protective coating for harsh environments (high humidity, corrosive gases, dust) commonly found in wastewater treatment, mining, and outdoor installations—consult factory for part number suffix.

Delivery, Warranty & Technical Support

Standard catalog modules typically ship within 3-5 business days from regional distribution centers; custom-configured or coated versions require 10-15 business days lead time. All products include a minimum 12-month manufacturer warranty covering defects in materials and workmanship under normal operating conditions.

Comprehensive technical documentation is provided with each shipment, including: detailed datasheet with electrical characteristics, installation manual with wiring diagrams and DIN-rail mounting instructions, quick-start guide for RSLogix configuration, and troubleshooting flowchart for common fault conditions. Remote technical support via email and phone is available during business hours; on-site commissioning assistance and training can be arranged for large projects (subject to location and scope).

For replacement parts, firmware updates, or obsolescence notifications, register your product serial number through our online portal to receive proactive service alerts and access to updated documentation.

Frequently Asked Questions (FAQ)

Q: How do I connect the 1793-OB16P digital output module to my existing CompactLogix PLC system?
A: The module installs directly onto a 1793 Compact I/O chassis or Flex I/O rack via the backplane connector—no external communication wiring required. Field devices connect to the removable terminal block using 14-22 AWG wire. Ensure your chassis power supply can provide sufficient 5V DC backplane current (150mA per module) and that your field power supply matches the 10-30V DC specification. Configuration is performed in RSLogix 5000 by adding the module to your I/O tree and assigning output tags.

Q: What is the maximum number of outputs I can control with one 1793-OB16P module?
A: Each module provides 16 independent output channels. For applications requiring more outputs, install additional modules in adjacent slots—a standard 1793 chassis supports up to 8 I/O modules, allowing 128 digital outputs in a single rack. Modules are addressed sequentially and appear as separate data blocks in your controller program.

Q: What energy savings can I expect, and what conditions are necessary to achieve them?
A: While this is a digital output module (not a variable frequency drive), energy efficiency is achieved through precise on/off control that eliminates unnecessary actuator operation. In applications like pneumatic valve control or pump sequencing, users report 15-25% reduction in compressed air consumption and motor runtime compared to continuous-run or timer-based systems. Savings depend on duty cycle optimization, proper load sizing, and integration with energy management logic in your PLC program.

Q: What are the environmental requirements for installation? What is the IP protection rating?
A: The module is rated IP20, designed for installation inside a NEMA 12 or IP54-rated control enclosure that protects against dust and moisture. Operating temperature range is 0-60°C (32-140°F) with 5-95% relative humidity (non-condensing). For outdoor or washdown environments, specify a conformal-coated version and ensure the enclosure meets IP65 or higher. Avoid installation near high-frequency welders, large motor drives, or other EMI sources without proper shielding and grounding.

Q: Can I monitor and control this module remotely? Which communication protocols are supported?
A: Yes—when the module is installed in a chassis with an EtherNet/IP adapter (e.g., 1769-AENTR) or DeviceNet scanner, all output states and diagnostic data are accessible via the network. This enables remote monitoring through SCADA systems, mobile HMI apps, or cloud-based analytics platforms. The module supports standard CIP (Common Industrial Protocol) objects, ensuring compatibility with Rockwell FactoryTalk, Ignition SCADA, and third-party OPC UA servers. For secure remote access, implement VPN or firewall rules per your IT security policy.

Request a Custom Solution

To receive a detailed selection guide, budget quotation, or application-specific technical support, please provide the following information: project name and industry sector, intended application (e.g., conveyor control, valve manifold), total number of outputs required, load type and current per channel, field power supply voltage, operating environment (temperature, humidity, vibration), and any special certifications needed (ATEX, IECEx, marine). Our application engineers will respond within one business day with a tailored recommendation, including module quantity, accessories, and estimated lead time.
