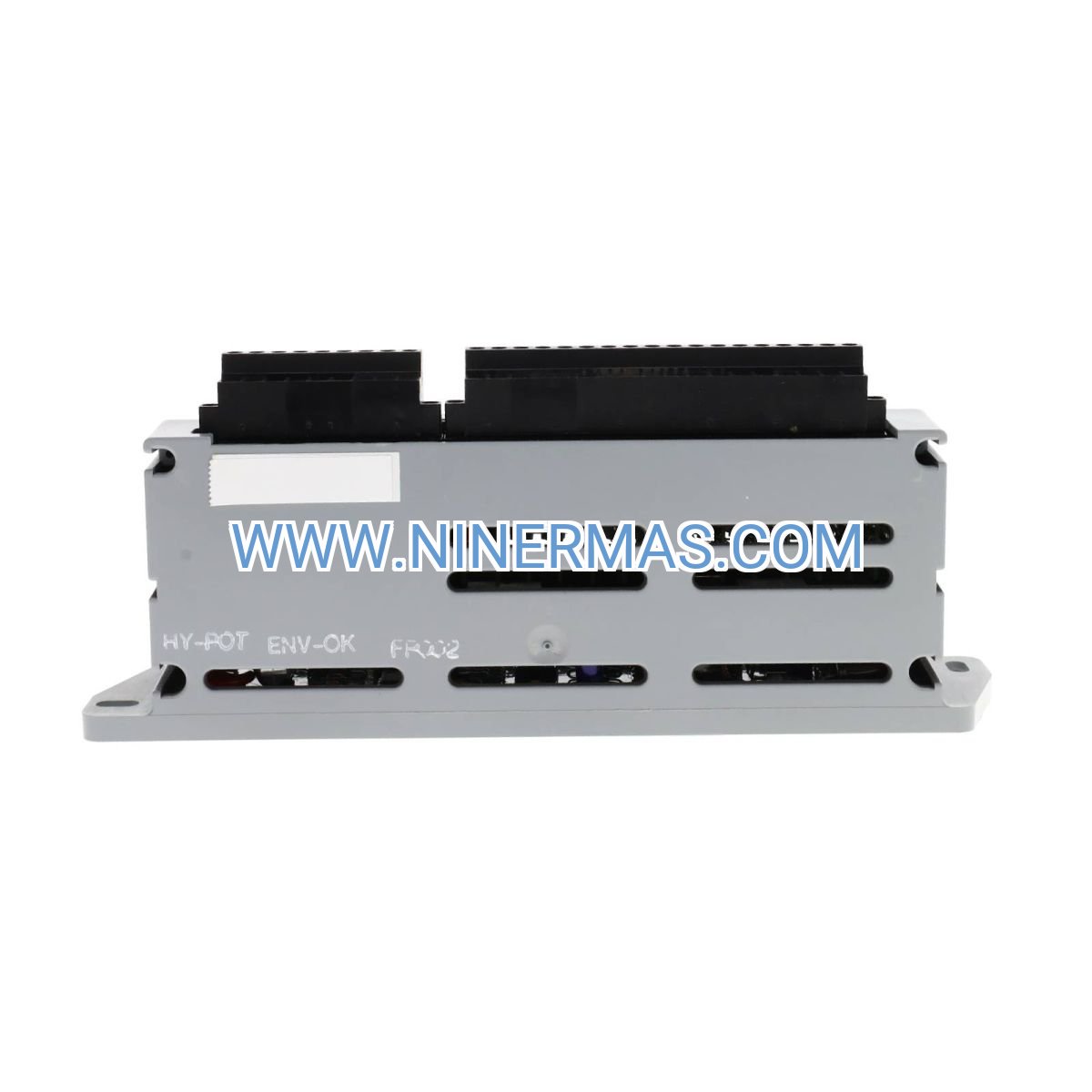

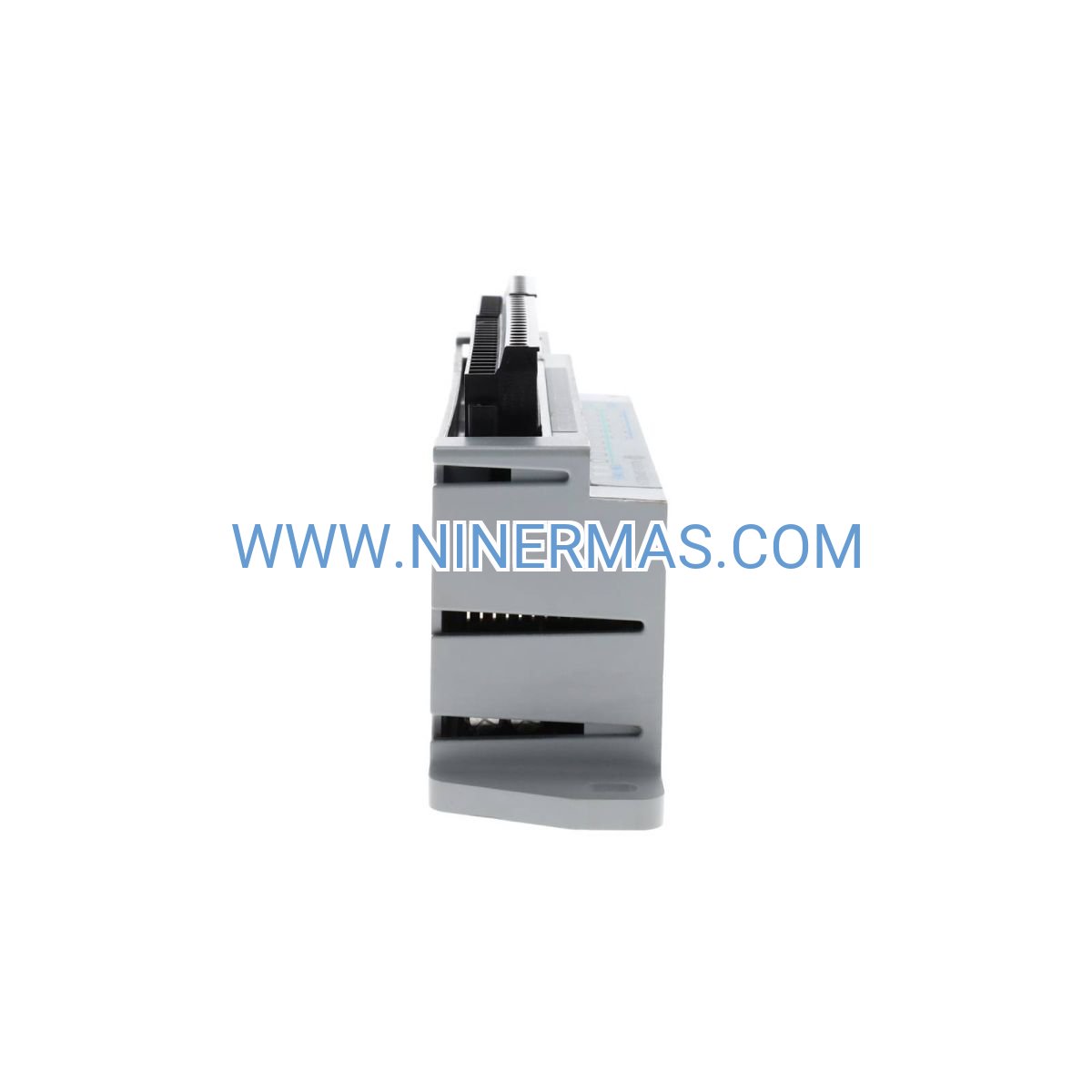

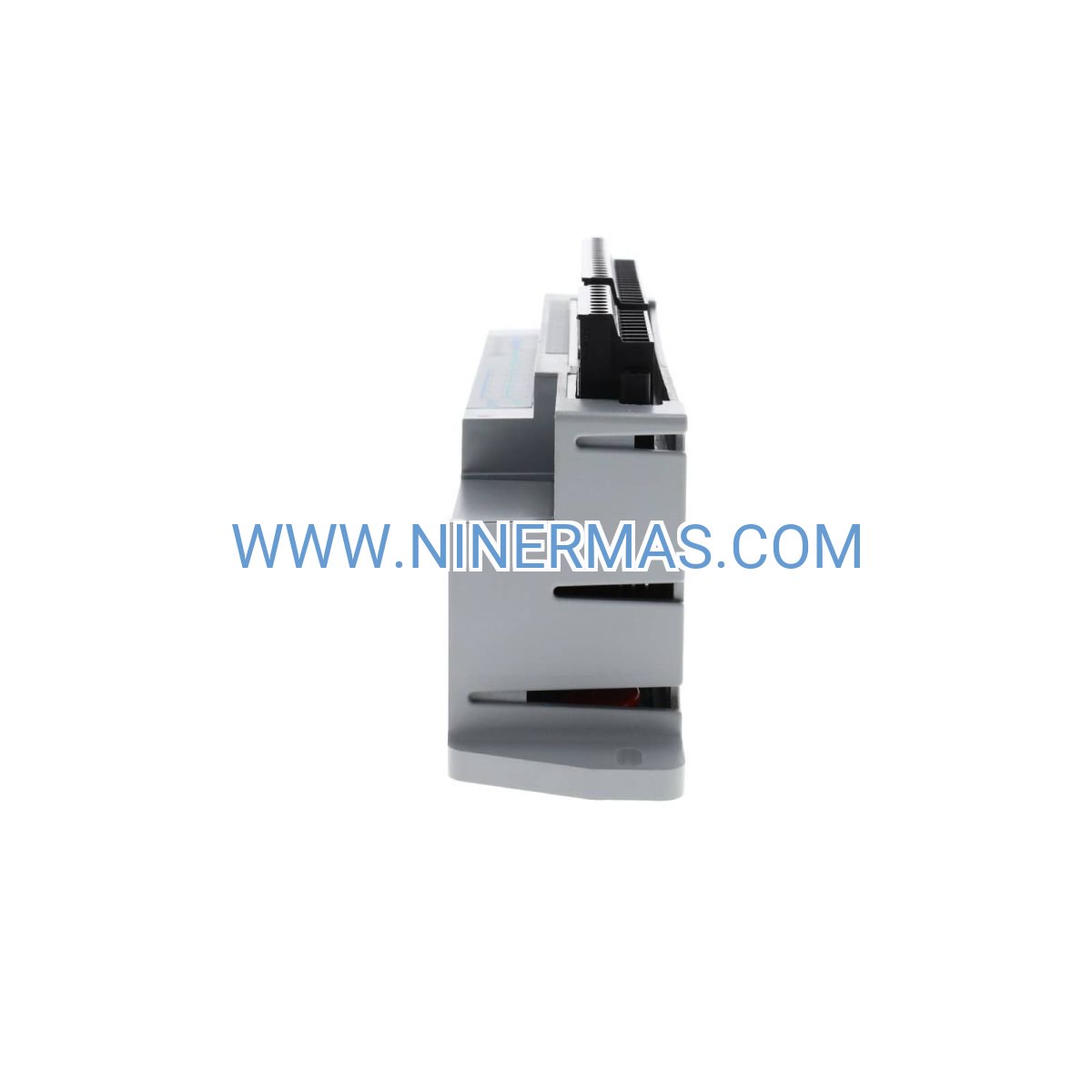

Allen-Bradley 1791-IOBB DeviceNet Block I/O Module (Industrial-Grade Input/Output Control System)

The Allen-Bradley 1791-IOBB Block I/O Module is a high-performance industrial control device designed for DeviceNet distributed I/O networks. Through modular architecture and hot-swappable technology, it enables flexible input/output signal acquisition and control, real-time data exchange, and seamless integration with PLC systems. This module delivers reliable performance in demanding industrial environments.

Ideal for manufacturing automation, process control, material handling systems, packaging lines, and assembly operations. It addresses challenges such as limited I/O expansion capacity, complex wiring requirements, difficult troubleshooting, and high installation costs in distributed control architectures.

With standardized design and customizable I/O configurations, this product offers compact footprint, hot-swap capability, diagnostic intelligence, and broad compatibility. Perfect for system integrators, automation engineers, OEM manufacturers, and plant maintenance teams. Contact our engineers for application-specific configuration and technical support.

Core Features & Advantages

DeviceNet Network Integration
Native DeviceNet communication protocol enables seamless connection to Allen-Bradley controllers and third-party devices. Supports multi-drop topology, reducing wiring complexity and installation time while improving system scalability.

Hot-Swappable Design
Field-replaceable modules allow maintenance without system shutdown. Reduces downtime by up to 85% compared to traditional fixed I/O systems, critical for continuous production environments requiring high availability.

Modular I/O Configuration
Supports flexible combination of digital input, digital output, analog input, and analog output modules. Accommodates 2 to 16 I/O points per module, allowing precise matching to application requirements without over-provisioning.

Comprehensive Diagnostic Capabilities
Integrated LED indicators provide real-time status for network communication, module health, and I/O point activity. Advanced diagnostics accessible via DeviceNet enable predictive maintenance and rapid fault isolation.

Compact DIN Rail Mounting
Space-efficient design with standard 35mm DIN rail compatibility. Typical installation density achieves 40% space savings versus traditional terminal block wiring, ideal for control cabinet optimization.

Industrial-Grade Reliability
Conformal-coated circuitry withstands harsh environments including temperature extremes (-40°C to +70°C), vibration, electrical noise, and humidity. MTBF exceeds 500,000 hours under rated conditions.

Typical Application Scenarios

This product is engineered for applications demanding distributed I/O architecture, flexible expansion, and high system availability, particularly in:

Automotive Manufacturing & Assembly Lines
Connects sensors, actuators, and safety devices across welding robots, conveyor systems, and quality inspection stations. Hot-swap capability minimizes production interruptions during module replacement or reconfiguration.

Food & Beverage Processing
Monitors temperature, pressure, flow, and level sensors in filling, mixing, and packaging equipment. IP20-rated enclosures with conformal coating meet sanitation requirements while resisting moisture and cleaning agents.

Material Handling & Warehousing
Controls sortation systems, automated storage/retrieval systems (AS/RS), and conveyor networks. Modular architecture simplifies system expansion as warehouse operations scale.

Water & Wastewater Treatment
Interfaces with pump controls, valve actuators, and instrumentation in lift stations, filtration systems, and chemical dosing applications. Diagnostic features enable remote monitoring and predictive maintenance.

Packaging & Palletizing Systems
Manages high-speed I/O for labeling machines, case erectors, and robotic palletizers. Deterministic DeviceNet communication ensures synchronized operation across distributed control points.

Technical Parameters & Selection Guide

To facilitate engineering design and product selection, we provide standard specifications for voltage ratings, I/O density, communication parameters, and environmental ratings. Custom configurations available for project-specific requirements.

Key Specifications:

• Network Protocol: DeviceNet (CAN-based, compliant with ODVA specifications)
• Communication Speed: 125 kbps, 250 kbps, 500 kbps (selectable via rotary switch)
• I/O Capacity: Supports 2 to 16 I/O points per base module (expandable with additional modules)
• Input Voltage Range: 10-30V DC (digital inputs), 0-10V DC or 4-20mA (analog inputs)
• Output Type: Sourcing/sinking digital outputs, 0-10V DC or 4-20mA analog outputs
• Power Supply: 24V DC nominal (18-30V DC operating range), typical consumption 150mA + I/O load
• Isolation: 500V AC optical isolation between I/O and network/logic circuits
• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Enclosure Rating: IP20 (for use in controlled environments or enclosed panels)
• Mounting: 35mm DIN rail (EN 50022 standard)
• Dimensions: Approximately 90mm (H) × 35mm (W) × 58mm (D) per module
• Certifications: UL, cUL, CE, C-Tick (compliant with global industrial standards)

Selection Recommendations:
When selecting the appropriate configuration, consider: required I/O point count and signal types, DeviceNet network speed and node addressing, available DC power budget, control cabinet space constraints, and environmental conditions (temperature, vibration, EMI). For assistance, provide application details including I/O list, network topology, and installation environment. Our engineering team will recommend optimized module combinations and provide technical documentation.

Extended Functionality

Advanced Diagnostic & Monitoring
Supports DeviceNet explicit messaging for detailed module diagnostics, I/O forcing for commissioning, and electronic data sheet (EDS) integration with RSNetWorx configuration software.

Flexible Power Distribution
Modular power distribution allows independent power zones for I/O modules, improving fault isolation and enabling mixed-voltage applications within a single system.

Integration with Studio 5000 Environment
Seamless configuration and monitoring through Rockwell Automation's Studio 5000 Logix Designer and FactoryTalk View HMI platforms, accelerating commissioning and reducing engineering time.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days; custom-configured systems require 10-15 business days depending on complexity and component availability.

Warranty: Comprehensive 24-month warranty covering manufacturing defects and component failures under normal operating conditions. Extended warranty programs available for critical applications.

Technical Support: Remote configuration assistance, on-site commissioning support (region-dependent), and access to application engineers for troubleshooting and optimization guidance.

Documentation Package: Complete technical documentation including electrical schematics, wiring diagrams, DeviceNet EDS files, installation manuals, and quick-start guides provided with each shipment. Digital resources available via online portal for ongoing reference.

Certifications & Compliance: All products manufactured to ISO 9001 quality standards and tested per IEC 61131-2 industrial controller equipment specifications. RoHS compliant and backed by global regulatory approvals.

Frequently Asked Questions (FAQ)

Q: How does the Allen-Bradley 1791-IOBB Block I/O module integrate with existing DeviceNet systems?
A: The 1791-IOBB connects directly to DeviceNet trunk or drop lines using standard M12 circular connectors or terminal block wiring. Configuration is performed via EDS file import into RSNetWorx software, where you assign node address (0-63) and communication speed. The module auto-detects installed I/O types and reports configuration to the DeviceNet scanner. Compatibility is ensured with all DeviceNet-compliant controllers including ControlLogix, CompactLogix, and MicroLogix platforms.

Q: What is the maximum number of I/O modules that can be connected in a single Block I/O system?
A: Each 1791-IOBB base module occupies one DeviceNet node address and supports up to 8 expansion I/O modules (depending on base model), providing up to 128 I/O points per node. A single DeviceNet network segment supports up to 64 nodes, enabling thousands of distributed I/O points. Practical limits depend on network scan time requirements and controller I/O capacity.

Q: What energy savings can be achieved with Block I/O compared to traditional centralized I/O systems?
A: Distributed Block I/O architecture reduces copper wiring by 60-75% compared to home-run wiring to centralized I/O racks, cutting material and installation labor costs. Lower voltage drop over shorter cable runs improves power efficiency by approximately 15-20%. Additionally, modular power distribution allows selective shutdown of unused I/O zones, further reducing standby power consumption in multi-zone systems.

Q: What are the environmental requirements for installing the 1791-IOBB module?
A: The module is rated IP20 and designed for installation inside NEMA-rated control enclosures or climate-controlled environments. Operating temperature range is -40°C to +70°C with 5-95% relative humidity (non-condensing). For harsh environments with dust, moisture, or corrosive atmospheres, install within IP54 or higher-rated enclosures with appropriate ventilation or climate control. Conformal coating provides additional protection against humidity and contaminants.

Q: Does the 1791-IOBB support remote monitoring and data acquisition via industrial IoT protocols?
A: While the 1791-IOBB natively communicates via DeviceNet, integration with IoT platforms is achieved through the connected PLC or gateway device. Allen-Bradley ControlLogix and CompactLogix controllers support EtherNet/IP, which can bridge DeviceNet I/O data to SCADA systems, cloud platforms, or MES applications using protocols such as OPC UA, MQTT, or Modbus TCP. Third-party DeviceNet-to-Ethernet gateways are also available for direct IoT connectivity.

Q: Can I mix different I/O module types (digital, analog, specialty) on the same Block I/O base?
A: Yes, the 1791-IOBB architecture supports heterogeneous I/O module combinations. You can install any compatible 1791 series modules including digital input, digital output, analog input, analog output, thermocouple, RTD, and specialty modules on the same base. The system automatically recognizes installed module types and configures data mapping accordingly. This flexibility allows optimized I/O density and cost-effectiveness for diverse application requirements.

Request Technical Support & Quotation

To receive detailed application engineering support, product selection guidance, or pricing information, please provide the following details: project name and industry, application description and control requirements, required I/O point count and signal types (digital/analog, input/output), DeviceNet network configuration and controller type, power supply specifications and environmental conditions, and installation timeline. Our application engineers will respond within 24 hours with customized recommendations and technical documentation.
