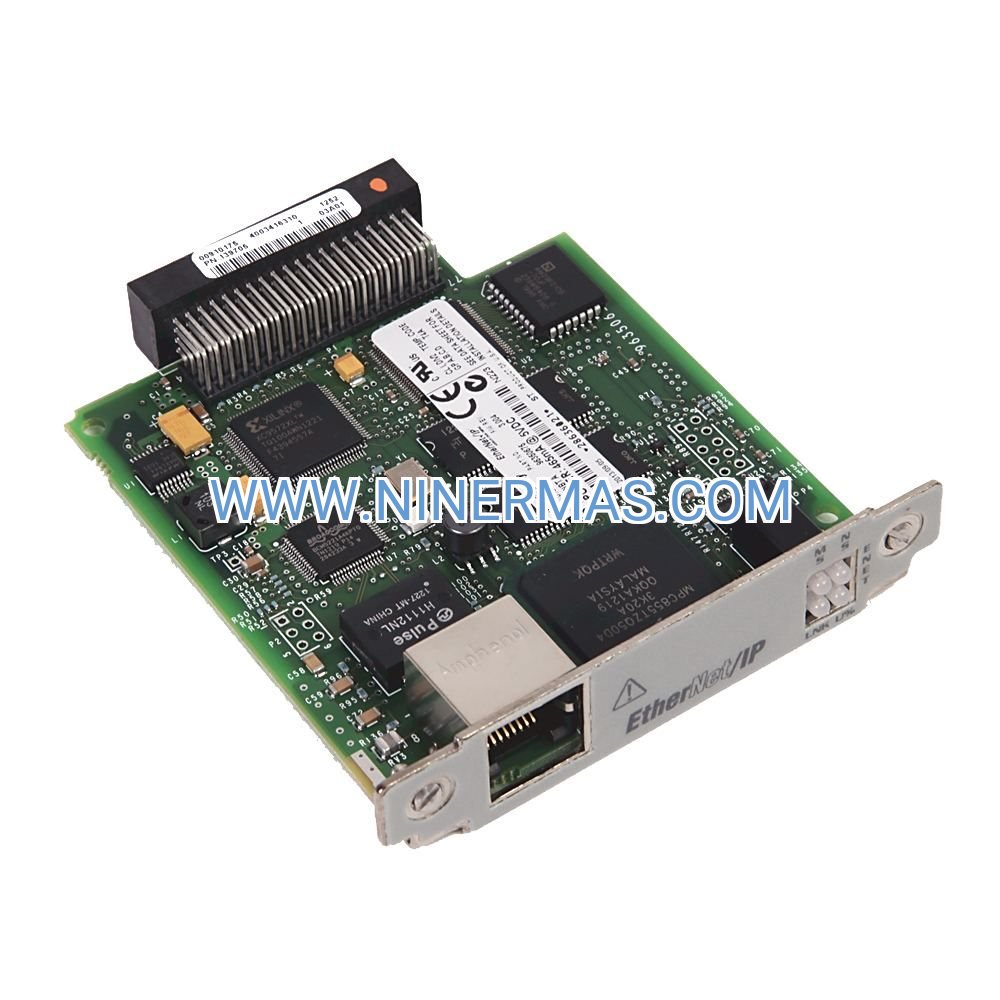

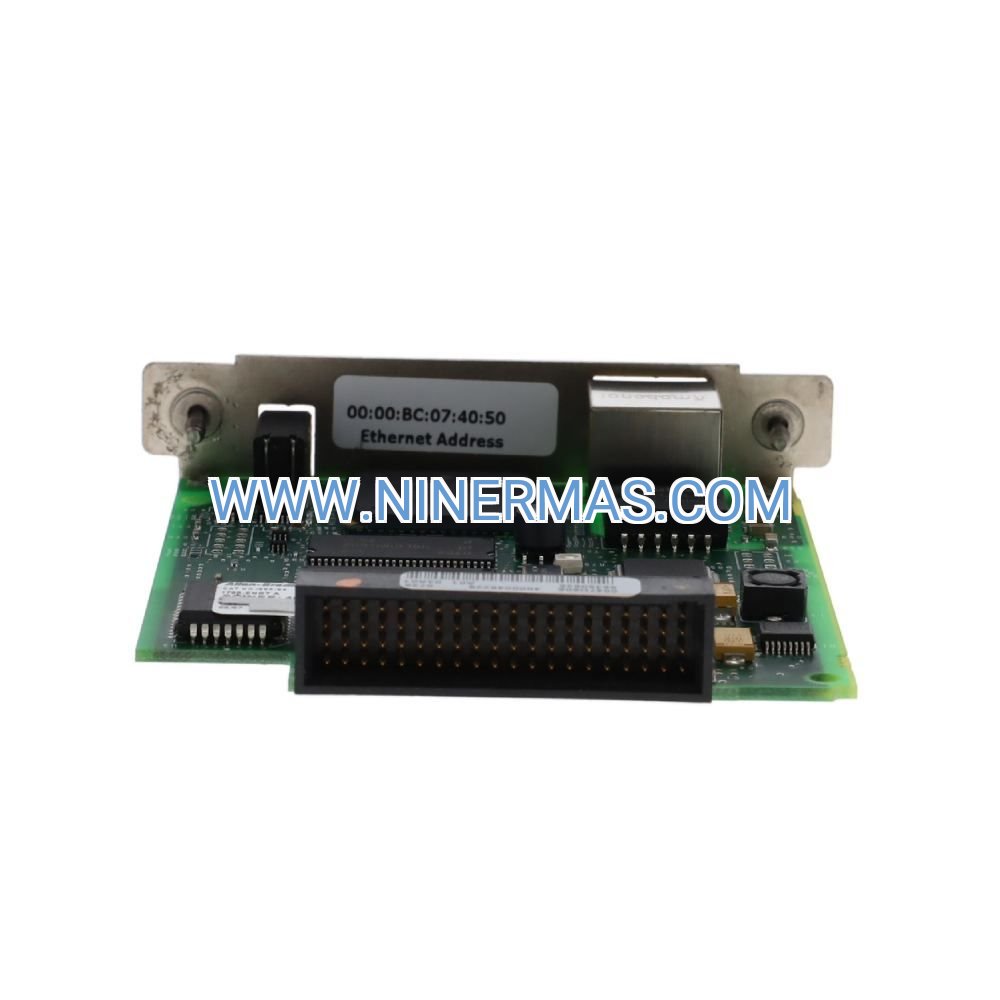

1788-ENBT FlexLogix Ethernet/IP Communication Interface (Industrial-Grade Network Daughtercard)

The 1788-ENBT represents a critical connectivity solution for FlexLogix-based automation architectures requiring deterministic Ethernet/IP communication. Engineered as a plug-in daughtercard module, this interface bridges FlexLogix 1788 controllers to enterprise-level industrial networks, enabling distributed control, real-time diagnostics, and seamless integration with SCADA, MES, and IoT platforms.

Designed for manufacturers and system integrators operating in process control, discrete manufacturing, and hybrid automation environments, the 1788-ENBT eliminates communication bottlenecks while maintaining the compact footprint advantages of the FlexLogix platform. Its hot-swappable architecture ensures continuous operation during maintenance cycles, directly reducing unplanned downtime costs.

With proven reliability across chemical processing, automotive assembly, packaging lines, and water treatment facilities, this module delivers the network performance demanded by mission-critical applications where communication latency and data integrity cannot be compromised.

Core Capabilities & Technical Advantages

→ Deterministic Ethernet/IP Protocol Support
Native implementation of ODVA-certified Ethernet/IP ensures predictable scan times and guaranteed message delivery for time-sensitive control loops, supporting CIP Sync for motion coordination and safety applications.

→ Hot-Swap Serviceability Without Process Interruption
Field-replaceable design allows technicians to exchange modules during live operation, eliminating costly production stoppages—critical for 24/7 continuous process industries where downtime costs exceed $10,000/hour.

→ Ultra-Low 2.33W Power Footprint
Minimal thermal dissipation (8.0 BTU/Hr) reduces cooling requirements in enclosed panels, enabling higher-density installations and lowering total energy consumption across multi-controller systems.

✓ Plug-and-Produce Configuration
Pre-configured network parameters and auto-discovery features reduce commissioning time by 50% compared to legacy serial communication modules, accelerating project ROI.

✓ Multi-Vendor Interoperability
Open Ethernet/IP standard ensures compatibility with drives, I/O blocks, HMIs, and sensors from 300+ certified manufacturers, protecting against vendor lock-in.

✓ Embedded Diagnostics & Network Visibility
Real-time monitoring of packet loss, connection status, and bandwidth utilization through RSLogix/Studio 5000 enables predictive maintenance strategies and faster fault isolation.

Industry-Specific Application Scenarios

Chemical & Pharmaceutical Batch Processing
Challenge: Recipe management systems require synchronized data exchange between multiple FlexLogix controllers managing reactors, mixers, and filling stations.
Solution: The 1788-ENBT enables coordinated batch execution across distributed controllers while maintaining FDA 21 CFR Part 11 audit trail compliance through centralized data logging.
Outcome: Batch cycle time reduction of 15-20% through optimized inter-controller communication.

Automotive Assembly Line Integration
Challenge: Legacy FlexLogix systems controlling welding robots and material handling need connectivity to modern MES platforms for real-time production tracking.
Solution: Retrofit existing controllers with 1788-ENBT modules to bridge OT/IT networks without replacing functional hardware.
Outcome: 40% reduction in integration costs versus full controller replacement; immediate OEE visibility.

Water/Wastewater Treatment SCADA Networks
Challenge: Remote pump stations and filtration systems require reliable communication over extended Ethernet infrastructure.
Solution: Deploy 1788-ENBT for robust Ethernet/IP connectivity supporting both local I/O control and remote SCADA polling.
Outcome: 99.7% network uptime; reduced site visit frequency by 60%.

Food & Beverage Packaging Lines
Challenge: High-speed packaging equipment demands microsecond-level synchronization between FlexLogix motion controllers and vision inspection systems.
Solution: Leverage 1788-ENBT's deterministic communication for coordinated motion profiles and reject mechanisms.
Outcome: Defect detection accuracy improved to 99.5%; line speed increased 12%.

Building Automation & HVAC Control
Challenge: Campus-wide chiller plants and air handling units need centralized monitoring without proprietary gateways.
Solution: Standardize on Ethernet/IP using 1788-ENBT for direct BACnet/IP integration via protocol converters.
Outcome: 25% energy savings through optimized load balancing; single-pane-of-glass monitoring.

Technical Specifications & Selection Criteria

Selection Guidelines:

• Choose 1788-ENBT when Ethernet/IP is the primary plant network standard
• For DeviceNet networks, consider 1788-DNBO alternative
• For ControlNet applications, specify 1788-CNCR module instead
• Verify network topology supports star/tree architecture (no daisy-chaining)
• Plan for redundant modules in critical control paths

Advanced Integration Features

IoT & Industry 4.0 Readiness
The 1788-ENBT serves as a foundational element for digital transformation initiatives. By exposing FlexLogix data to Ethernet/IP networks, organizations can implement edge computing gateways, cloud historians, and machine learning analytics without disrupting existing control logic. Compatible with FactoryTalk Analytics and third-party IIoT platforms via OPC UA bridging.

Cybersecurity Hardening Options
When deployed within segmented network architectures, the module supports defense-in-depth strategies including VLAN isolation, MAC address filtering, and encrypted VPN tunnels. Pair with Allen-Bradley Stratix managed switches for comprehensive industrial cybersecurity posture aligned with IEC 62443 standards.

Custom Configuration Services
Our engineering team provides pre-configured modules with customer-specific IP addressing, device profiles, and tested network parameters—reducing on-site commissioning to simple plug-and-verify procedures. Ideal for multi-site rollouts requiring standardized configurations.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical spares
Custom Configuration: 7-10 business days including factory testing and documentation
Warranty Coverage: 12-month manufacturer defect warranty; extended service contracts available
Technical Support: Lifetime access to application engineers via phone/email; remote commissioning assistance included
Documentation Package: Installation manual, wiring diagrams, sample RSLogix code, and network configuration templates provided with every order

Frequently Asked Questions

Q: Can the 1788-ENBT communicate with ControlLogix 1756 systems on the same network?
A: Yes, Ethernet/IP is platform-agnostic within the Allen-Bradley ecosystem. The 1788-ENBT can exchange data with ControlLogix, CompactLogix, and PanelView devices using standard MSG instructions and produced/consumed tags.

Q: What network infrastructure is required for optimal performance?
A: We recommend managed industrial Ethernet switches (Allen-Bradley Stratix series or equivalent) with IGMP snooping enabled, QoS prioritization for control traffic, and separate VLANs for control vs. enterprise networks. Avoid unmanaged consumer-grade switches in production environments.

Q: How does hot-swapping work without disrupting the control program?
A: The FlexLogix backplane maintains controller operation while the daughtercard is replaced. Network communication is temporarily interrupted (typically 5-15 seconds during module recognition), but the controller continues executing logic using last-known I/O states. Configure appropriate timeout handling in your application code.

Q: Is this module compatible with fiber optic network extensions?
A: The 1788-ENBT provides copper RJ45 connectivity. For fiber optic runs, use industrial media converters (e.g., 1783-BMS10CGL) to bridge copper-to-fiber segments. Ensure converters support 100 Mbps full-duplex operation.

Q: What diagnostic capabilities are available for troubleshooting network issues?
A: The module provides LED status indicators for power, network activity, and module health. Within RSLogix/Studio 5000, access real-time diagnostics including connection status, packet counters, error logs, and bandwidth utilization. Use the embedded web server (if supported by firmware) for advanced diagnostics.

Q: Can I use this module in hazardous location (Class I Div 2) installations?
A: The 1788-ENBT is suitable for Class I Division 2 environments when installed in appropriate enclosures. Verify that your complete system (chassis, power supply, enclosure) meets area classification requirements. Consult publication 1788-IN001 for detailed installation guidelines.

Ready to Upgrade Your FlexLogix Network Connectivity?

Contact our automation specialists today to discuss your specific application requirements, receive custom configuration quotes, or request technical documentation. Our team provides complimentary network architecture reviews to ensure optimal performance and scalability.

Order now for fast delivery or reach out for volume pricing on multi-unit deployments.
