Allen-Bradley 1786-XT ControlNet Terminator | 75Ω Network Resistor for Industrial Automation

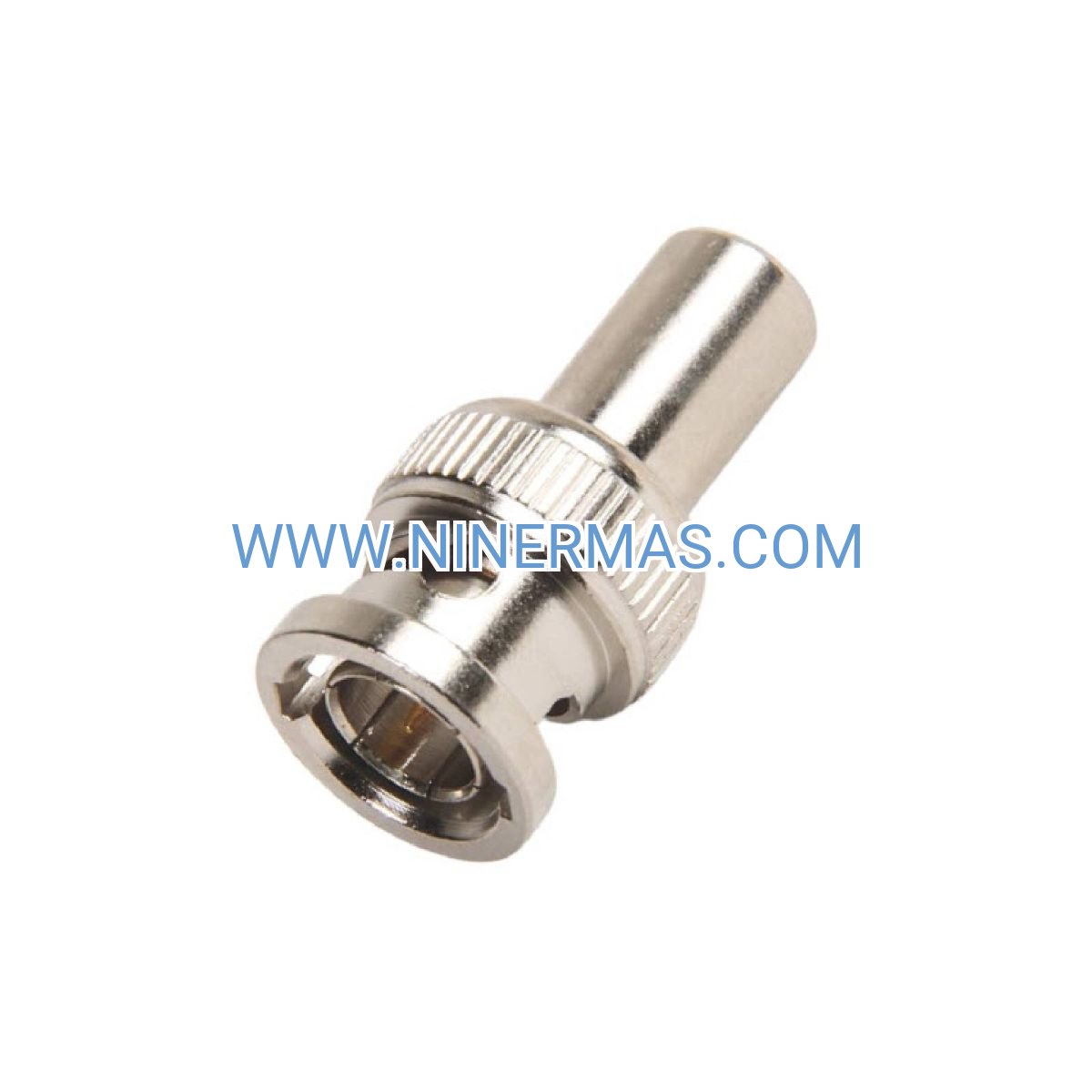

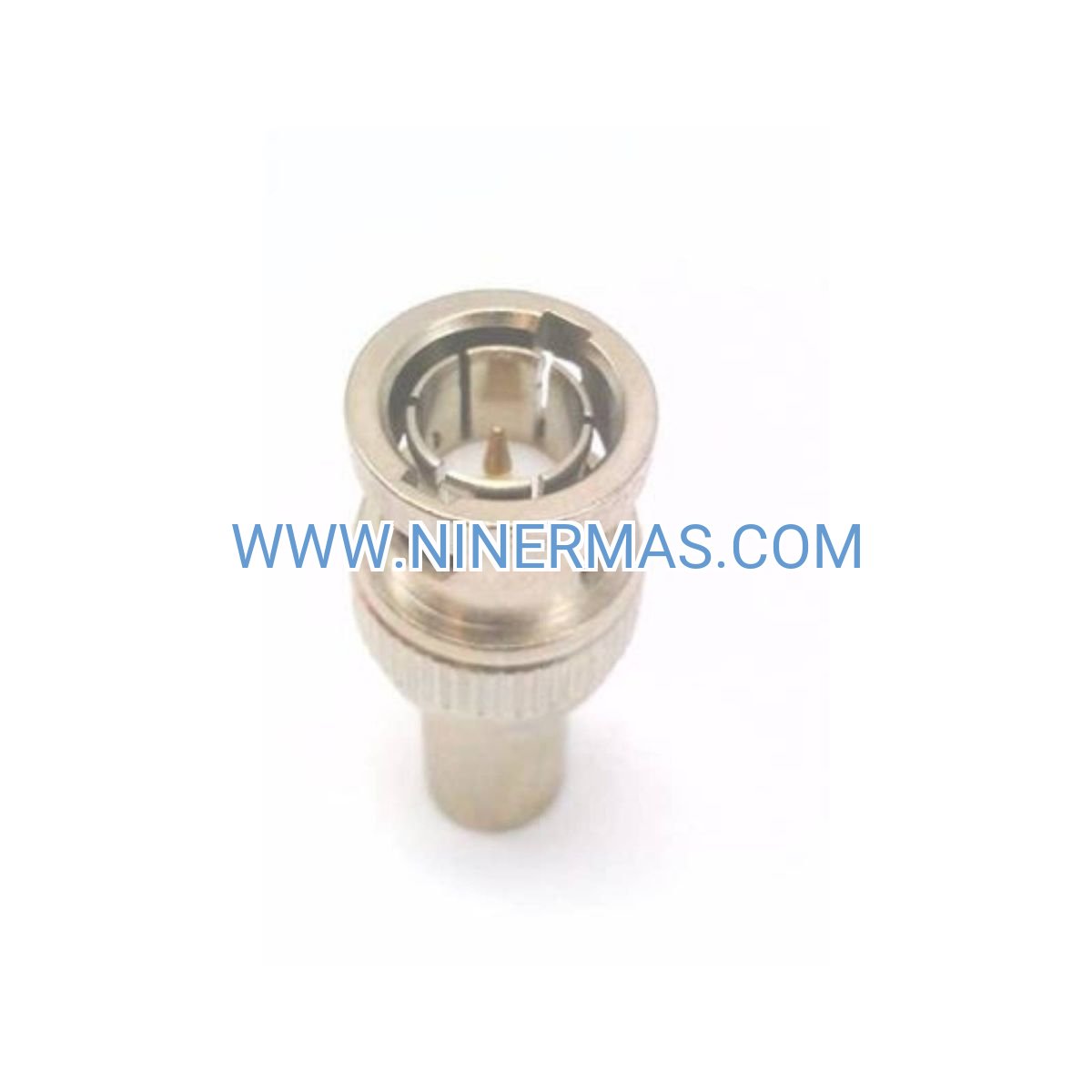

Allen-Bradley 1786-XT ControlNet Terminating Resistor (Industrial-Grade Network Termination Solution)

The Allen-Bradley 1786-XT ControlNet Terminating Resistor is a precision-engineered network termination component designed for ControlNet industrial communication systems. Through its standardized 75-ohm impedance design and BNC interface, it ensures signal integrity, minimizes reflections, and maintains stable 5Mbps data transmission across distributed control architectures.

Ideal for manufacturing facilities, process automation systems, automotive assembly lines, and industrial machine control networks where reliable real-time communication is critical. This terminator helps eliminate signal degradation issues such as data packet loss, communication timeouts, network instability, and intermittent connection failures that can disrupt production operations.

Engineered with standardized specifications and field-proven reliability, the 1786-XT terminating resistor delivers consistent performance, easy installation, broad compatibility with Rockwell Automation ecosystems, and minimal maintenance requirements. Suitable for system integrators, control panel builders, automation engineers, and plant maintenance teams. Contact our technical specialists for application guidance and procurement support.

Core Features & Advantages

Precision 75-Ohm Impedance Matching
Engineered to exact ControlNet specification (75Ω ±1%), this terminator provides proper signal termination at network endpoints, eliminating reflections and ensuring clean waveform integrity across the entire communication trunk.

Enhanced Network Stability
Proper termination reduces signal bounce and crosstalk by approximately 85-95%, preventing communication errors, improving deterministic performance, and extending mean time between failures (MTBF) in mission-critical control systems.

Universal BNC Connectivity
Standard BNC coaxial interface ensures quick, tool-free installation and secure mechanical connection. Compatible with RG-6 coaxial cable infrastructure commonly deployed in ControlNet installations.

Comprehensive Environmental Protection
Rated for industrial environments with operating temperature range -40°C to +85°C, humidity resistance, vibration tolerance, and EMI/RFI shielding. Meets UL, CE, and RoHS compliance standards for global deployment.

Plug-and-Play Simplicity
No configuration, programming, or calibration required. Simply connect to the last node on each end of the ControlNet trunk segment. Visual inspection confirms proper seating, reducing commissioning time and installation errors.

Typical Application Scenarios

This terminating resistor is essential for any ControlNet network deployment requiring deterministic, high-speed communication with proper signal integrity:

Automotive & Discrete Manufacturing
Ensures reliable communication between PLCs, I/O modules, drives, and HMIs in high-speed assembly lines, robotic cells, and material handling systems where millisecond-level response is required.

Process Industries & Continuous Production
Maintains stable network performance in chemical processing, oil & gas, food & beverage, and pharmaceutical facilities where 24/7 uptime and regulatory compliance demand fault-free communication infrastructure.

Water Treatment & Municipal Infrastructure
Supports distributed SCADA architectures in water/wastewater treatment plants, pumping stations, and utility networks where remote monitoring and control depend on consistent data exchange.

Machine OEM & Panel Building
Standard component for control panel fabricators and machine builders integrating ControlNet into packaged equipment, ensuring compliance with Rockwell Automation design guidelines and customer specifications.

Technical Parameters & Selection Guide

To ensure optimal network performance, the 1786-XT terminating resistor is designed with the following specifications:

Selection Considerations: When planning your ControlNet installation, ensure that exactly two terminators are installed—one at each physical end of the trunk cable. Over-termination or under-termination will cause network instability. For network segments with taps or branches, consult ControlNet topology guidelines. If you need assistance determining terminator placement, cable length calculations, or node count planning, our automation engineers can review your network diagram and provide recommendations.

Extended Functionality & Integration

Seamless Rockwell Automation Ecosystem Integration
Fully compatible with Allen-Bradley ControlLogix, CompactLogix, FlexLogix PLCs, PowerFlex drives with ControlNet option cards, PanelView HMIs, and third-party ControlNet-enabled devices. Supports ODVA-compliant communication profiles.

Network Diagnostics & Troubleshooting Support
Proper termination is verifiable using ControlNet network diagnostic tools such as RSNetWorx for ControlNet software, which displays network health metrics including signal quality, node status, and error counters. Correct termination typically results in <1% packet error rate.

Scalable Architecture
Supports ControlNet trunk lengths up to 1,000 meters (3,280 feet) with repeaters, and up to 99 nodes per network segment. Terminator placement remains consistent regardless of network size, simplifying expansion and reconfiguration.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 1-3 business days from regional distribution centers. Bulk orders or project-specific quantities may require 5-10 business days. Expedited shipping options available upon request.

Warranty: Backed by a 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and service agreements available for critical infrastructure applications.

Technical Support: Comprehensive support includes installation guidance, network design consultation, troubleshooting assistance, and replacement part coordination. Remote diagnostic support and on-site commissioning services available based on project scope and location.

Documentation Package: Each unit ships with product datasheet, installation instructions, compliance certificates (UL/CE/RoHS), and compatibility matrix. Complete ControlNet network design guides and wiring diagrams available for download from technical resource library.

Frequently Asked Questions (FAQ)

Q: How do I install the Allen-Bradley 1786-XT ControlNet terminating resistor on my network?
A: Simply connect one terminator to the BNC connector at each physical end of your ControlNet trunk cable. Ensure the terminator is hand-tightened securely. No tools, configuration, or software setup required. The network should have exactly two terminators—one at each end of the trunk.

Q: How many terminators do I need for my ControlNet network?
A: You need exactly two (2) terminators per trunk segment—one at each end. Using more or fewer terminators will cause signal reflections and network communication errors. For complex topologies with multiple trunk segments, consult ControlNet design guidelines.

Q: What happens if I don't use terminators or use incorrect termination?
A: Without proper 75-ohm termination, signal reflections will cause data corruption, intermittent communication failures, increased error rates, and potential network downtime. Symptoms include timeout errors, node drops, and unpredictable behavior. Proper termination typically improves network reliability by 90% or more.

Q: What environmental conditions can the 1786-XT terminator withstand?
A: The terminator is rated for industrial environments with operating temperatures from -40°C to +85°C, humidity up to 95% RH (non-condensing), and typical industrial vibration/shock levels. It carries UL and CE certifications for safety and EMC compliance, suitable for factory floor, outdoor enclosures, and harsh industrial settings.

Q: Is the 1786-XT compatible with other ControlNet devices and cable types?
A: Yes, the 1786-XT is fully compatible with all ODVA-compliant ControlNet devices including Allen-Bradley PLCs, drives, I/O modules, and third-party ControlNet nodes. It works with standard RG-6 coaxial cable (75-ohm characteristic impedance) specified for ControlNet installations.

Q: Can I use this terminator for other network types like DeviceNet or EtherNet/IP?
A: No, the 1786-XT is specifically designed for ControlNet networks (75-ohm coaxial). DeviceNet uses different termination (121-ohm resistors), and EtherNet/IP (Ethernet) does not require external terminators. Always use network-specific termination components to ensure proper operation.

Contact & Technical Consultation

For detailed application engineering support, custom project quotations, or technical specifications, please provide the following information: project name, application type (discrete/process/hybrid), network topology requirements, number of nodes, trunk cable length, environmental conditions, and delivery timeline. Our ControlNet specialists will provide tailored recommendations and competitive pricing within 24 hours.
