Allen-Bradley 1786-TPYS ControlNet Y-Tap Connector | Industrial Network Component | Rockwell Automation

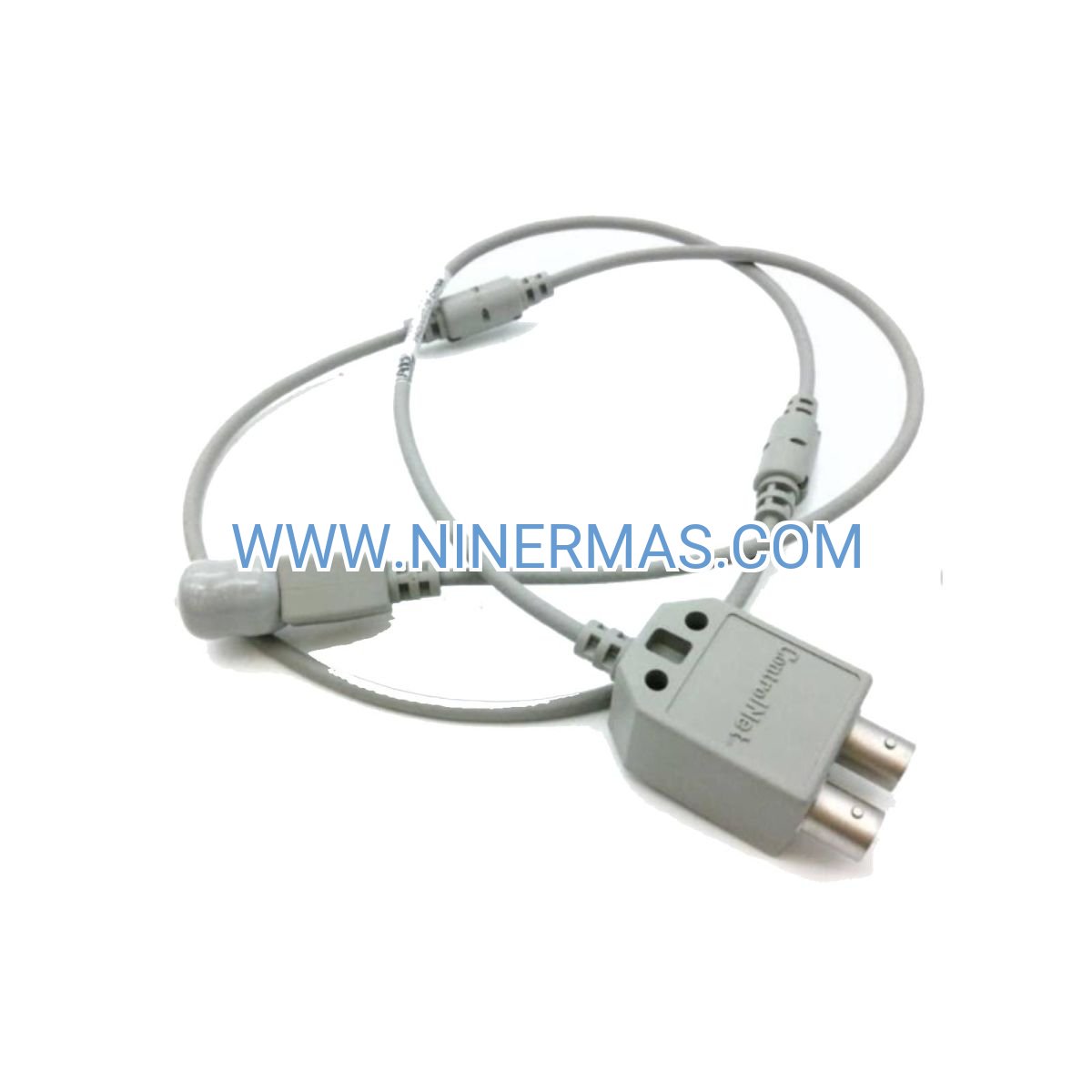

Allen-Bradley 1786-TPYS ControlNet Y-Tap Connector (Industrial-Grade Network Component)

The Allen-Bradley 1786-TPYS is a professional-grade coaxial Y-tap connector designed specifically for ControlNet industrial automation networks. Through precision-engineered 75-ohm impedance matching and advanced EMI shielding technology, it ensures reliable, high-speed data transmission across distributed control systems. This connector enables seamless network topology expansion while maintaining signal integrity in demanding industrial environments.

Ideal for manufacturing facilities, process automation systems, automotive production lines, food & beverage processing plants, and pharmaceutical manufacturing environments. It helps solve critical challenges including network expansion limitations, signal degradation over distance, electromagnetic interference in harsh environments, and the need for hot-swappable maintenance without system downtime.

Through standardized design and field-proven reliability, this product delivers superior EMI/RFI shielding performance, hot-swap capability for zero-downtime maintenance, precision impedance matching for optimal signal quality, and full compatibility with Rockwell Automation ControlLogix systems. Suitable for system integrators, plant engineers, automation OEMs, and facility maintenance teams. Contact our application engineers for network topology design assistance and technical specifications at sale@ninermas.com.

Core Features & Advantages

Precision Impedance Matching
Engineered with 75-ohm characteristic impedance to eliminate signal reflections and ensure maximum data throughput across ControlNet trunk lines, reducing packet loss and communication errors in time-critical control applications.

Advanced EMI/RFI Shielding
Multi-layer shielding construction provides superior protection against electromagnetic and radio frequency interference commonly found in industrial environments with VFDs, welding equipment, and high-power machinery, ensuring stable network performance.

Hot-Swap Capability
Supports live installation and removal without powering down the network segment, enabling maintenance activities during production runs and minimizing costly downtime in 24/7 manufacturing operations.

Robust Mechanical Design
Industrial-grade housing withstands vibration, temperature extremes (-40°C to +85°C), and exposure to oils, coolants, and cleaning agents typical in factory floor environments, ensuring long-term reliability.

Plug-and-Play Integration
Direct compatibility with Allen-Bradley ControlLogix, CompactLogix, and legacy PLC-5 systems using ControlNet protocol, simplifying network expansion and reducing commissioning time.

Diagnostic LED Indicators
Built-in visual status indicators provide real-time feedback on network activity and connection integrity, accelerating troubleshooting and reducing mean time to repair (MTTR).

Typical Application Scenarios

This connector is engineered for environments demanding high reliability, deterministic communication, and flexible network topology in industrial automation systems, especially:

Automotive Assembly & Welding Lines
Connects robotic welding cells, material handling systems, and quality inspection stations in high-EMI environments where signal integrity is critical for synchronized multi-axis motion control and real-time process data exchange.

Process Manufacturing & Batch Control
Enables distributed I/O expansion in chemical processing, pharmaceutical production, and food & beverage facilities where recipe management, batch tracking, and regulatory compliance require deterministic network performance and audit trails.

Packaging & Material Handling Systems
Supports high-speed conveyor synchronization, pick-and-place operations, and vision inspection systems in packaging lines where microsecond-level timing accuracy and coordinated motion are essential for throughput optimization.

Water/Wastewater Treatment Facilities
Connects remote pump stations, valve actuators, and SCADA systems across extended distances in municipal infrastructure where environmental exposure and lightning protection are critical design considerations.

Power Generation & Distribution
Integrates turbine controls, switchgear monitoring, and substation automation in utility applications requiring redundant network architectures and compliance with IEC 61850 communication standards.

Technical Parameters & Selection Guide

To facilitate system design and component selection, we provide comprehensive specifications for integration planning. Custom configurations available for specialized applications.

Selection Considerations:
When specifying this component, evaluate: maximum network segment length (up to 1000m with repeaters), number of nodes per segment (up to 99 devices), ambient temperature range at installation location, presence of high-EMI sources (VFDs, welding equipment), and required network update rate (NUT) for your application. For assistance with network topology design, cable sizing, or redundancy architecture, contact our ControlNet specialists with your system layout and I/O count.

Extended Capabilities

Redundant Network Support
Compatible with Allen-Bradley redundant ControlNet configurations using dual-channel media for mission-critical applications requiring failover protection and continuous operation during cable faults or connector failures.

Fiber Optic Conversion
Can be integrated with 1786-RPA/RPB fiber optic repeaters for extended distance applications (up to 3km between segments) or electrical isolation in high-voltage environments and lightning-prone outdoor installations.

Mixed-Media Bridging
Supports coexistence with EtherNet/IP networks through ControlLogix dual-port communication modules, enabling gradual migration strategies and integration with modern IoT/Industry 4.0 infrastructure.

Diagnostic Integration
Network health data accessible via RSNetWorx for ControlNet software, providing real-time monitoring of signal quality, node status, bandwidth utilization, and predictive maintenance alerts for proactive system management.

Delivery, Service & Quality Assurance

Lead Time & Availability:
Genuine Rockwell Automation components typically ship within 3-5 business days for stock items. Custom cable assemblies or bulk orders may require 10-15 business days. Expedited shipping available for critical downtime situations.

Warranty & Support:
All products include 24-month manufacturer warranty covering defects in materials and workmanship. Technical support includes remote diagnostics assistance, network troubleshooting guidance, and RSLogix/Studio 5000 configuration review. On-site commissioning support available in select regions (contact for coverage areas).

Documentation Package:
Each shipment includes: product datasheet with electrical specifications, installation quick-start guide, ControlNet network planning worksheet, cable termination best practices, and links to RSNetWorx configuration utilities. CAD models (STEP/IGES) and 3D panel layout files available upon request.

Compliance & Certifications:
UL Listed (File E10588), CE marked for EU machinery directive compliance, RCM certified for Australia/New Zealand, RoHS compliant for environmental regulations, and manufactured in ISO 9001:2015 certified facilities with full traceability.

Frequently Asked Questions (FAQ)

Q: How do I integrate the 1786-TPYS Y-tap connector into an existing ControlNet trunk line?
A: The Y-tap installs inline on the coaxial trunk cable using BNC-style connectors. Ensure the network is powered down or use hot-swap procedures if supported by your system configuration. Maintain proper termination (75-ohm terminators) at both ends of the trunk. Verify impedance continuity with a TDR (time-domain reflectometer) after installation to confirm signal integrity.

Q: What is the maximum number of Y-tap connectors allowed on a single ControlNet segment?
A: ControlNet specifications permit up to 99 nodes per segment, but practical limits depend on cable length, data update rates (NUT settings), and bandwidth allocation. For segments exceeding 48 nodes or 500 meters, consult RSNetWorx network planning tools to validate timing budgets and consider repeater placement.

Q: Can this connector be used in outdoor or wash-down environments?
A: The 1786-TPYS is rated IP20 and designed for enclosed panel mounting. For outdoor installations or IP65/IP67 requirements, use weatherproof enclosures with cable glands and desiccant breathers. For wash-down areas, specify stainless steel enclosures with NEMA 4X rating and use appropriate cable sealing methods.

Q: What cable type is required for proper impedance matching?
A: Use Belden 3084A or equivalent RG-6 type coaxial cable with 75-ohm impedance, dual-shield construction (foil + braid), and plenum rating if required by local electrical codes. Avoid mixing cable types within a segment, as impedance mismatches cause signal reflections and communication errors.

Q: Is remote monitoring and diagnostics supported?
A: Yes, when connected to a ControlLogix processor with ControlNet interface module (1756-CNB or 1756-CNBR), network health metrics are accessible via RSNetWorx for ControlNet software, FactoryTalk View HMI, or third-party SCADA systems using CIP (Common Industrial Protocol) messaging.

Q: What is the expected service life in continuous industrial operation?
A: With proper installation and environmental protection, MTBF exceeds 500,000 hours (57 years) under normal operating conditions. Connector mating cycles are rated for 500+ insertions. Regular inspection of cable strain relief and connector tightness during scheduled maintenance intervals is recommended.

Request Technical Support & Quotation

For detailed network topology design, product selection assistance, or volume pricing, please provide the following information to our automation specialists:

• Project name and application type (assembly line, process control, material handling, etc.)
• Total number of ControlNet nodes and I/O point count
• Maximum distance between furthest nodes
• Required network update time (NUT) and bandwidth allocation
• Environmental conditions (temperature range, EMI sources, enclosure type)
• Existing Rockwell Automation platform (ControlLogix series, CompactLogix, PLC-5)
• Timeline for procurement and commissioning

Our application engineers will provide customized recommendations including cable routing diagrams, parts lists with pricing, and configuration file templates for RSLogix/Studio 5000 programming.
