Allen-Bradley 1786-RPFS ControlNet Fiber Repeater | Short-Distance Network Extension Module

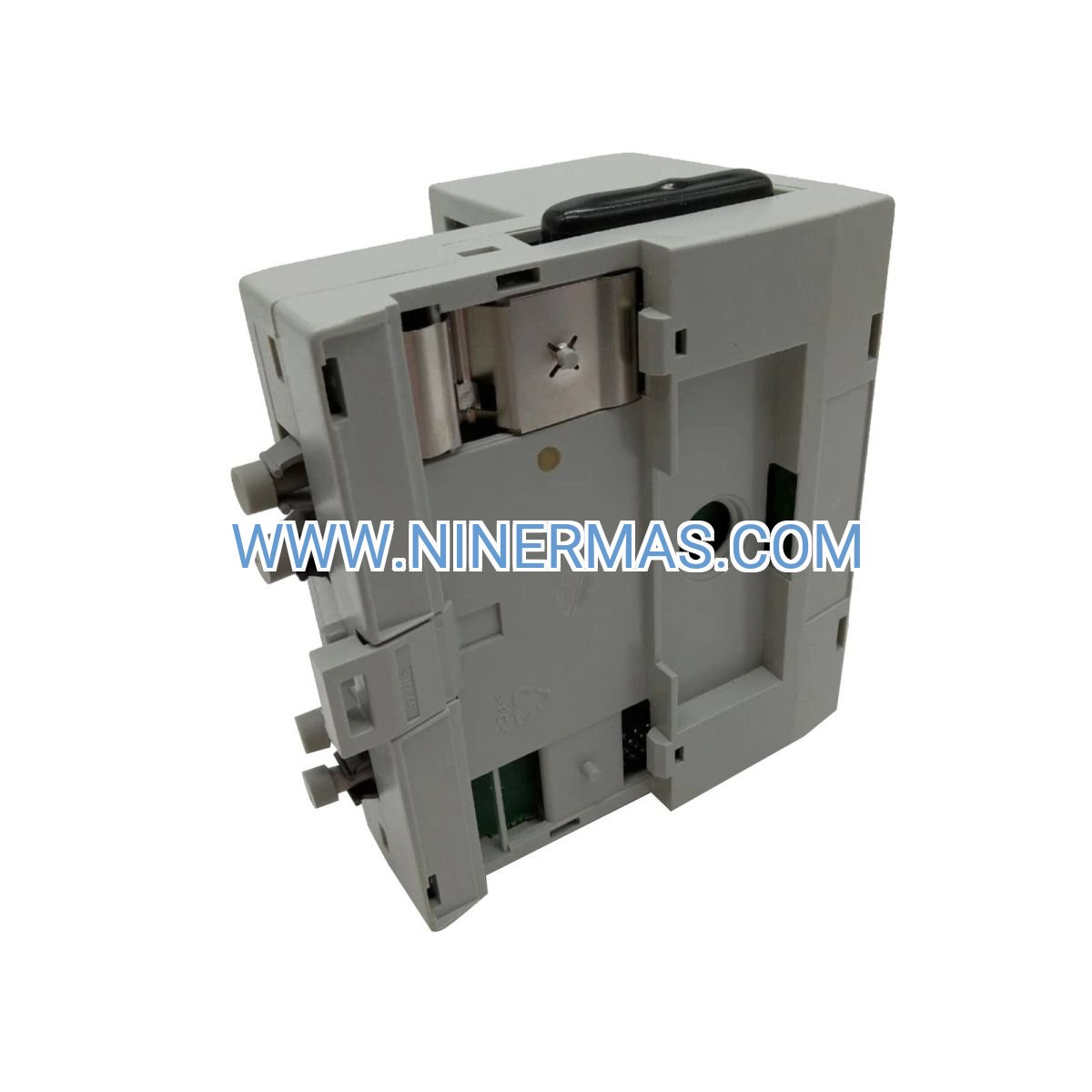

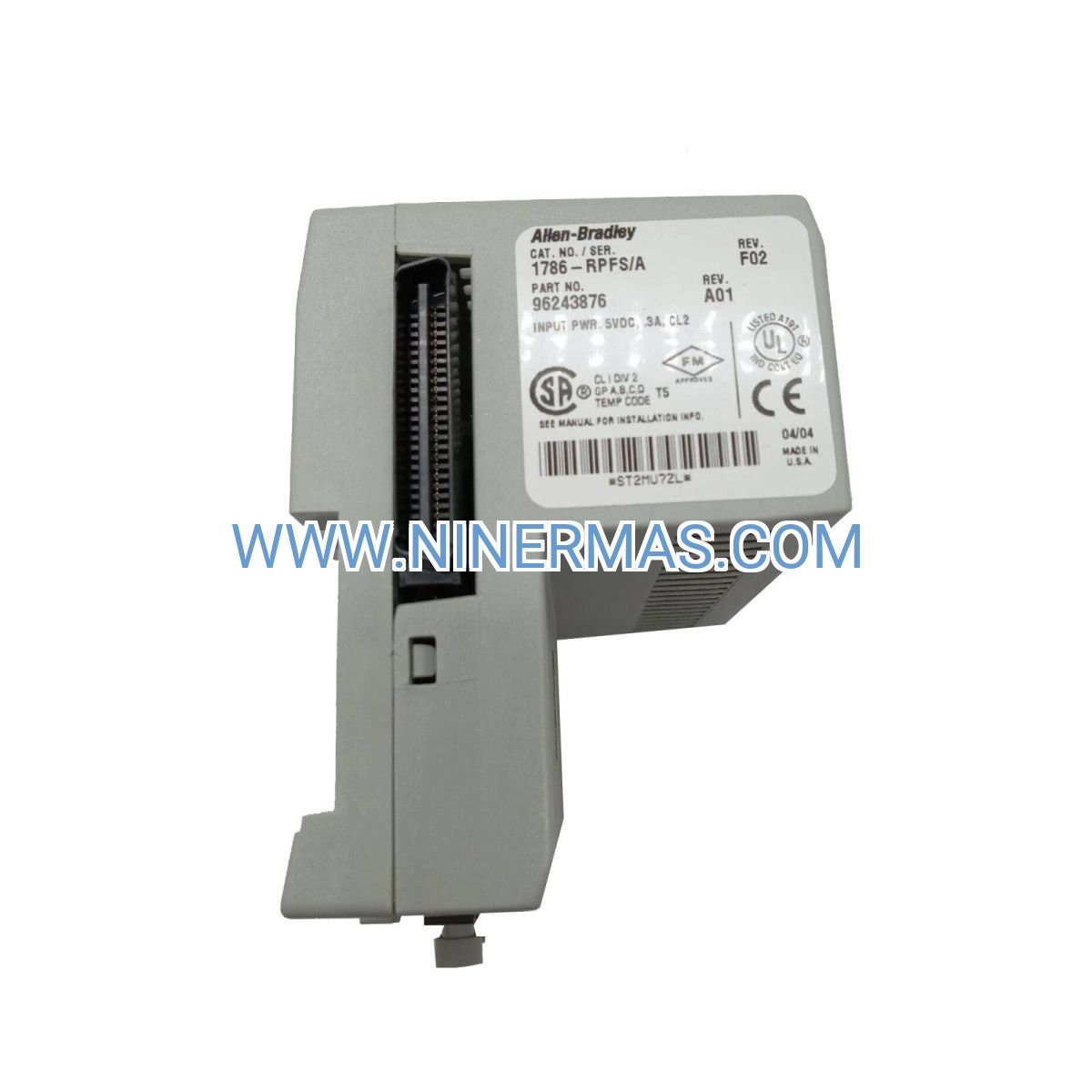

Allen-Bradley 1786-RPFS ControlNet Fiber Repeater Module (Short-Distance Network Extension Solution)

The Allen-Bradley 1786-RPFS is a short-distance fiber optic repeater module designed for ControlNet industrial networks. By regenerating and amplifying ControlNet signals over fiber optic cable, it extends network reach up to 3 kilometers (1.86 miles) between nodes while maintaining high-speed deterministic communication. This module leverages fiber optic technology to deliver superior electromagnetic interference (EMI) immunity, electrical isolation, and enhanced reliability in harsh industrial environments.

Ideal for manufacturing plants, process control systems, automotive assembly lines, and multi-building facilities, the 1786-RPFS addresses challenges such as distance limitations, electrical noise interference, ground loop issues, and the need for redundant network architectures. It seamlessly integrates into existing ControlNet infrastructures without requiring protocol conversion or additional gateways.

With standardized design and flexible configuration options, this repeater module offers plug-and-play installation, hot-swappable capability, diagnostic LED indicators, and compatibility with redundant media configurations. It is suitable for system integrators, automation engineers, OEM equipment manufacturers, and facility maintenance teams seeking to expand or upgrade their ControlNet networks. Contact our engineering team for application-specific selection guidance, technical documentation, and quotation support.

Core Features & Advantages

• Extended Network Distance
  Regenerates ControlNet signals to extend fiber optic segments up to 3 km, enabling communication across large facilities, multiple buildings, or outdoor installations while preserving real-time performance and data integrity.
• Superior EMI Immunity & Electrical Isolation
  Fiber optic transmission eliminates susceptibility to electromagnetic interference, radio frequency noise, and ground potential differences, ensuring stable operation in electrically noisy environments such as welding areas, motor control centers, and high-voltage substations.
• Redundant Media Support
  Compatible with ControlNet redundant media architecture, allowing dual-channel configurations for fault-tolerant networks. Automatic failover ensures continuous operation even if one fiber path is disrupted.
• Plug-and-Play Installation & Hot-Swap Capability
  Designed for DIN-rail or panel mounting with straightforward fiber connections (ST or SC connectors depending on variant). Hot-swappable design minimizes downtime during maintenance or module replacement.
• Comprehensive Diagnostic Indicators
  Front-panel LEDs provide real-time status for power, network activity, signal quality, and fault conditions, simplifying troubleshooting and reducing mean time to repair (MTTR).
• Robust Industrial-Grade Construction
  Built to withstand vibration, temperature extremes (-40°C to +70°C operating range), and contamination. Conformal-coated circuitry and rugged enclosure meet IP20 protection rating for industrial cabinet installation.

Typical Application Scenarios

The 1786-RPFS fiber repeater is engineered for environments demanding high reliability, extended reach, and immunity to electrical interference, including:

• Multi-Building Manufacturing Campuses
  Connects ControlNet networks across production buildings, warehouses, and utility areas separated by hundreds of meters, eliminating the need for copper cable distance limitations and reducing installation costs.
• Process Control & SCADA Systems
  Extends ControlNet backbone in oil & gas, water treatment, chemical processing, and power generation facilities where control rooms are remotely located from field equipment and electrical isolation is critical for safety.
• Automotive & Discrete Manufacturing
  Links assembly line controllers, robotic cells, and material handling systems across expansive factory floors, supporting high-speed I/O updates and coordinated motion control without latency or jitter.
• Harsh Electrical Environments
  Deployed in steel mills, foundries, mining operations, and heavy machinery areas where high-voltage equipment, arc welding, and motor drives generate severe EMI that would degrade copper-based networks.
• Redundant Network Architectures
  Integrated into mission-critical systems requiring 24/7 uptime, such as pharmaceutical production, food & beverage processing, and semiconductor fabrication, where dual-path fiber redundancy ensures fault tolerance.

Technical Specifications & Selection Guide

To facilitate design and procurement, key specifications for the 1786-RPFS module are outlined below. Custom configurations and extended-temperature variants are available upon request.

Selection Recommendations:
When specifying the 1786-RPFS, consider the following factors: total network span and number of repeaters required, fiber cable type and connector compatibility, redundancy requirements, ambient temperature and environmental conditions, available DC power supply, and cabinet space constraints. For complex topologies or multi-drop configurations, consult with a certified system integrator or provide site parameters to our engineering team for tailored recommendations and bill-of-materials (BOM) support.

Extended Capabilities

• Seamless Integration with Rockwell Automation Ecosystem
  Fully compatible with ControlLogix, CompactLogix, FlexLogix controllers, and other ControlNet-enabled devices. Supports RSNetWorx for ControlNet configuration software for network design, diagnostics, and performance monitoring.
• Scalable Network Topologies
  Supports linear, star, and tree topologies with multiple repeaters cascaded to achieve extended distances or branch architectures. Up to 99 nodes per ControlNet network segment.
• Future-Proof Investment
  Backward compatible with legacy ControlNet installations and forward compatible with newer Rockwell Automation platforms, protecting long-term infrastructure investments.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3–7 business days from stock. Custom configurations or bulk orders may require 2–4 weeks; expedited delivery available upon request.

Warranty: Backed by a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and service agreements available.

Technical Support: Comprehensive pre-sales and post-sales support including application engineering consultation, remote troubleshooting assistance, and on-site commissioning services (subject to location and terms). Access to firmware updates, technical bulletins, and product documentation via online portal.

Documentation Package: Each module ships with installation guide, wiring diagrams, dimensional drawings, and quick-start instructions. Full user manual, configuration examples, and CAD files available for download.

Quality & Compliance: Manufactured to ISO 9001 quality standards. Complies with UL 508, CE EMC Directive, and RoHS environmental regulations. Traceability documentation and certificates of conformance provided upon request.

Frequently Asked Questions (FAQ)

Q: How does the 1786-RPFS ControlNet fiber repeater integrate with existing copper-based ControlNet segments?
A: The 1786-RPFS connects to standard ControlNet coax or fiber taps via appropriate media interface modules. It regenerates signals between fiber segments and can bridge copper-to-fiber or fiber-to-fiber sections, allowing hybrid network designs that leverage both media types where optimal.

Q: What is the maximum number of 1786-RPFS repeaters that can be cascaded in a single ControlNet network?
A: ControlNet specifications allow up to 5 repeaters in series per network segment, though practical limits depend on total propagation delay and network performance requirements. For networks requiring more than 5 repeaters, consult network design guidelines or contact engineering support.

Q: What fiber optic cable type and connector are required for the 1786-RPFS module?
A: The module uses 62.5/125 µm multimode fiber optic cable with ST-style duplex connectors (some variants may use SC connectors—verify part number suffix). Cable must meet ControlNet fiber specifications for attenuation and bandwidth.

Q: Can the 1786-RPFS support redundant ControlNet media for high-availability applications?
A: Yes, the 1786-RPFS is fully compatible with ControlNet redundant media configurations. Dual repeaters and dual fiber paths provide automatic failover, ensuring continuous network operation even during single-point fiber or module failures.

Q: What are the environmental and installation requirements for the 1786-RPFS repeater?
A: The module operates from -40°C to +70°C and is rated IP20 for enclosed cabinet installation. It requires a 24V DC power supply (19.2–31.2V range) and DIN-rail or panel mounting. Ensure adequate ventilation and protection from moisture, corrosive gases, and direct sunlight.

Q: Does the 1786-RPFS support remote monitoring, diagnostics, or firmware updates?
A: The module provides local diagnostic LEDs for status indication. Network-level diagnostics and performance monitoring are available through RSNetWorx for ControlNet software. Firmware updates, if applicable, are performed via standard Rockwell Automation tools and procedures.

Request a Quote or Technical Consultation

To receive a detailed selection proposal, pricing quotation, or application-specific technical support, please provide the following information: project name and scope, application environment (industry and process type), required network distance and topology, number of nodes and repeaters, existing ControlNet infrastructure details, power supply specifications, and environmental conditions. Our application engineers will respond with a customized recommendation, bill of materials, and delivery timeline within one business day.
