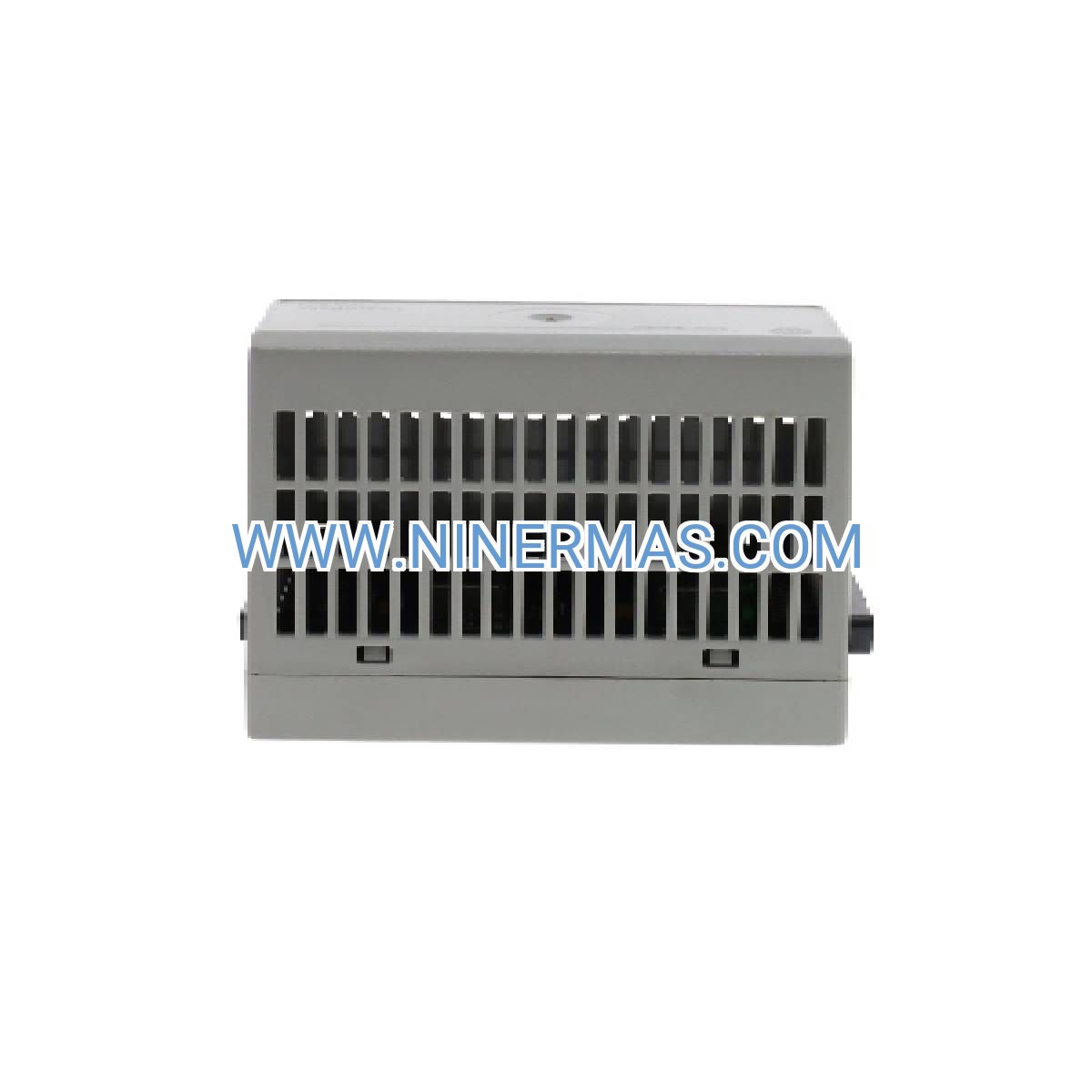

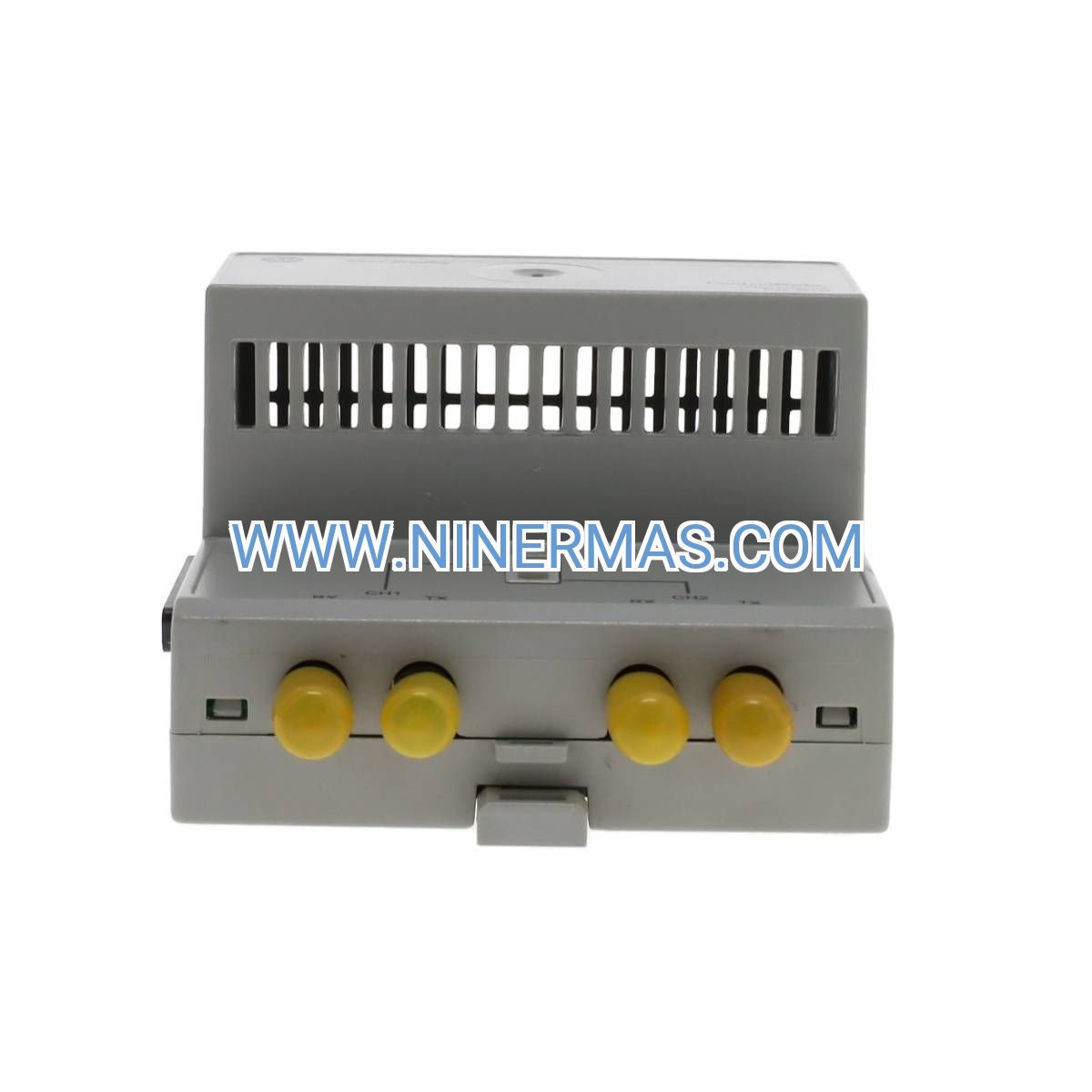

1786-RPFM ControlNet Fiber Ring Module (Industrial-Grade Communication Solution)

The 1786-RPFM represents a critical infrastructure component for industrial automation networks requiring deterministic, real-time communication over fiber optic media. Engineered for medium-distance applications, this ControlNet ring module delivers predictable message delivery across distributed control architectures, ensuring synchronized operation of PLCs, drives, I/O systems, and HMI devices in mission-critical environments.

Designed for manufacturers and system integrators facing challenges with electromagnetic interference, ground loop isolation, or extended network spans, the 1786-RPFM provides galvanic isolation and immunity to electrical noise. Target users include process engineers, automation technicians, and facility managers operating multi-zone production systems, power generation facilities, or infrastructure networks where cable runs exceed coaxial limitations.

Key advantages include ring topology redundancy for fault tolerance, hot-swappable maintenance capability, and seamless integration with existing Allen-Bradley control platforms. The module supports both scheduled (time-critical) and unscheduled (non-critical) traffic, optimizing bandwidth allocation for mixed-priority applications.

Core Features & Benefits

→ Deterministic Network Performance
Guaranteed 5 Mbps data throughput with predictable latency ensures synchronized motion control, coordinated I/O updates, and real-time process monitoring without packet collisions or timing jitter.

→ Redundant Ring Architecture
Self-healing network topology automatically reroutes traffic during cable breaks or module failures, maintaining continuous operation with sub-second failover times for high-availability systems.

→ Extended Distance Capability
Medium-range fiber transmission up to 3 kilometers (1.86 miles) bridges control zones across large facilities, eliminating the need for intermediate repeaters in campus-style installations.

→ EMI/RFI Immunity
Fiber optic technology eliminates susceptibility to electromagnetic interference from VFDs, welding equipment, or high-voltage switchgear, ensuring reliable communication in electrically harsh environments.

✓ Hot-Swap Serviceability
Field-replaceable design allows module exchange during operation without network shutdown, reducing maintenance windows and production downtime.

✓ Comprehensive Diagnostics
Front-panel LED indicators and RSNetWorx software integration provide real-time visibility into network health, optical power levels, and fault conditions for rapid troubleshooting.

Typical Application Scenarios

Automotive Manufacturing Lines
Synchronizes robotic welding cells, conveyor systems, and quality inspection stations across body shop and assembly areas. Solves the challenge of coordinating high-speed motion profiles while maintaining deterministic I/O updates for safety interlocks. Delivers reduced cycle times through precise timing control and eliminates communication delays that cause production bottlenecks.

Water & Wastewater Treatment Plants
Integrates distributed pump stations, valve actuators, and SCADA monitoring systems across multi-acre facilities. Addresses the pain point of long cable runs between process areas and control rooms while providing immunity to electrical noise from motor starters. Enables centralized control with real-time visibility into remote equipment status.

Power Generation Facilities
Links turbine control systems, generator protection relays, and auxiliary equipment monitoring across generation units. Overcomes the limitation of coaxial networks in high-EMI environments near transformers and switchgear. Provides the reliability required for critical infrastructure with redundant communication paths.

Food & Beverage Processing
Connects packaging lines, batch control systems, and material handling equipment in multi-building production complexes. Solves the challenge of maintaining network integrity during washdown procedures and temperature extremes. Delivers the deterministic performance needed for recipe management and synchronized filling operations.

Pharmaceutical Manufacturing
Coordinates cleanroom HVAC systems, process equipment, and environmental monitoring networks with validated communication protocols. Addresses regulatory requirements for audit trails and deterministic control while providing the isolation needed between classified areas.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1786-RPFM when your application requires medium-distance fiber connectivity (300m to 3km) in a ring topology. For shorter distances under 300 meters, consider the 1786-RPFS short-range module. For extended distances beyond 3km, evaluate the 1786-RPFRXL long-range variant. Verify fiber cable type compatibility and ensure adequate optical power budget for your specific cable length and splice count.

Extended Functions

IoT Integration Capability: The ControlNet network can bridge to Ethernet/IP networks via 1756-CNB or 1756-CNBR communication modules, enabling data collection for cloud-based analytics platforms, predictive maintenance systems, and enterprise MES integration.

Advanced Network Management: RSNetWorx for ControlNet software provides scheduled/unscheduled bandwidth configuration, network utilization monitoring, and topology mapping. Supports network update rates (NUT) from 2ms to 100ms for optimizing performance based on application requirements.

Customization Options: Available with factory-configured node addresses and pre-tested fiber assemblies for turnkey installation. Custom cable lengths and connector types available through authorized distributors for specialized applications.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-3 business days. Custom-configured modules or bulk orders may require 7-14 business days for preparation and testing.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to application engineers for network design consultation, troubleshooting assistance, and configuration guidance. Remote diagnostic support available during installation and commissioning phases.

Documentation Package: Each module includes installation quick-start guide, fiber connection diagrams, and safety compliance certificates. Complete user manual (Publication 1786-UM001) and RSNetWorx configuration examples available for download.

Frequently Asked Questions

What is the maximum number of nodes supported on a ControlNet fiber ring network?
ControlNet networks support up to 99 nodes per segment. The 1786-RPFM can participate in ring topologies with multiple modules, with total node count limited by network bandwidth allocation and update rate requirements.

How does the fiber ring module handle network redundancy during cable failures?
The ring topology provides automatic failover. When a fiber break occurs, the network reconfigures to a linear topology using the alternate path, typically within 50-100 milliseconds. Normal ring operation resumes automatically when the fault is cleared.

Can this module interface with existing ControlNet coaxial cable networks?
Yes, hybrid networks are supported. Use 1786-RPA or 1786-RPB coax repeaters in combination with fiber modules to create mixed-media topologies. Media converters enable seamless bridging between coax and fiber segments.

What fiber optic cable specifications are required for optimal performance?
Recommended: 62.5/125 μm multimode fiber for distances up to 2 km, or 9/125 μm single-mode fiber for maximum 3 km range. Use ST-style duplex connectors with proper polarity (transmit to receive crossover). Maintain optical power budget within -15 dBm to -28 dBm range.

Does the module support remote monitoring and diagnostics capabilities?
Yes, through RSNetWorx for ControlNet software. Monitor network utilization, node status, error counters, and optical signal strength remotely. SNMP integration available for enterprise network management systems.

What installation considerations apply for harsh industrial environments?
Mount in NEMA-rated enclosures when exposed to dust, moisture, or corrosive atmospheres. Ensure adequate ventilation for heat dissipation. Use strain relief on fiber cables and maintain minimum bend radius (typically 10× cable diameter). Ground the DIN rail mounting surface per NEC guidelines.

Take the Next Step

Ready to enhance your industrial network infrastructure with proven ControlNet fiber technology? Contact our automation specialists for application-specific guidance, network design consultation, or volume pricing. Request a technical datasheet or schedule a virtual demonstration to see the 1786-RPFM in action.

Related ControlNet Solutions:

• 1786-RPFS Short-Range Fiber Repeater – Ideal for distances under 300 meters
• 1786-RPFRXL Extended-Range Ring Module – For applications requiring 3-8 km fiber spans
