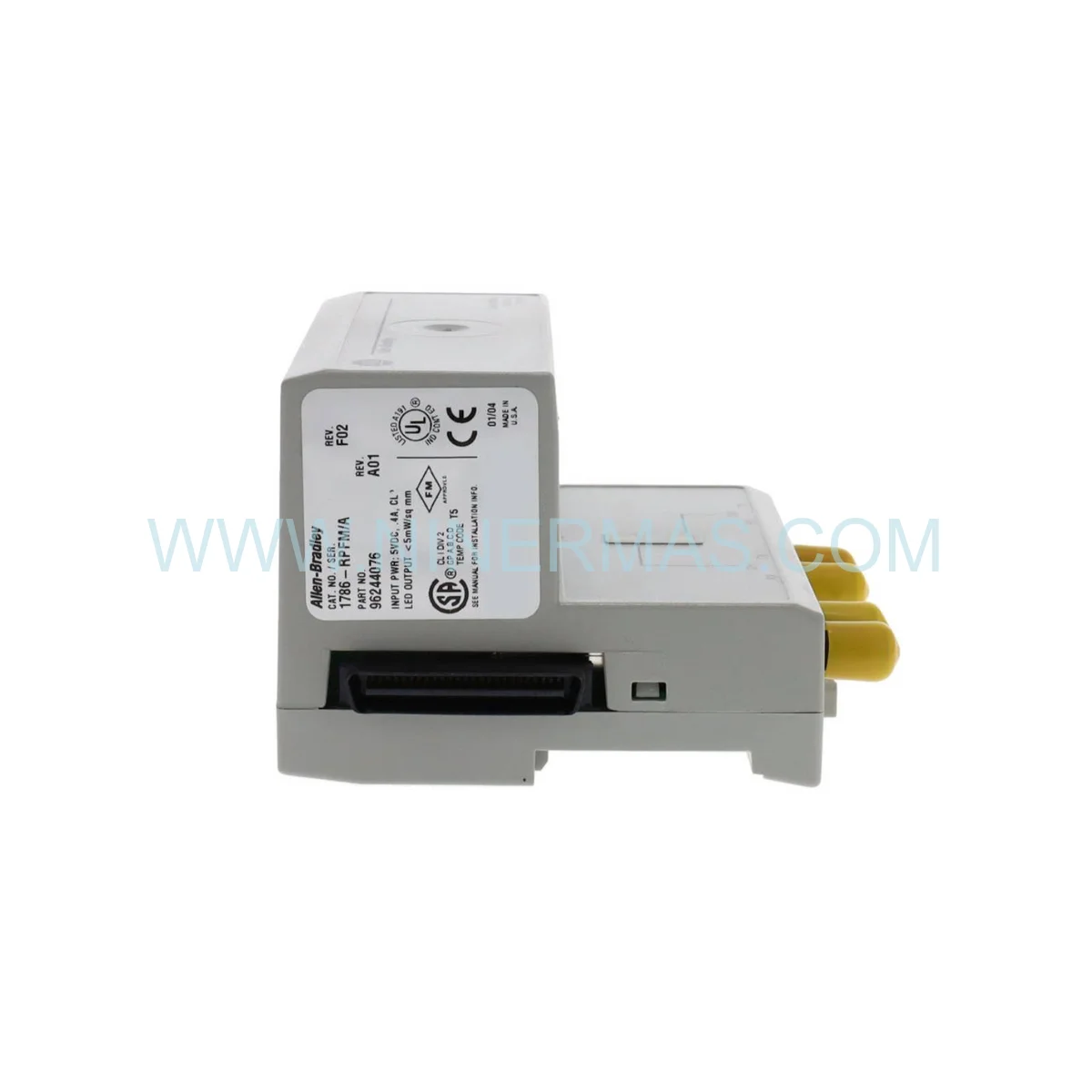

Allen-Bradley 1786-RPFM/A — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control infrastructure transitions, the Allen-Bradley 1786-RPFM/A stands out as a cornerstone component in any ControlNet modernization initiative. Its ability to extend fiber optic communication up to 3 kilometers per segment directly addresses one of the most persistent bottlenecks in aging distributed control architectures — signal degradation over distance. By integrating the 1786-RPFM/A into your existing network topology, facilities can achieve measurable performance gains without dismantling proven control logic or replacing entire PLC platforms.

The 1786-RPFM/A’s backward compatibility with legacy ControlNet infrastructure — including 1756 ControlLogix, 1747 SLC 500, and PLC-5 ecosystems — makes it an ideal bridge component in phased migration strategies. Rather than forcing a full system cutover, retrofit engineers can deploy this module to stabilize aging coaxial segments, introduce fiber redundancy, and progressively migrate nodes to modern network standards. This seamless integration capability dramatically reduces the risk of production downtime during transition windows.

From a total cost of ownership perspective, leveraging the 1786-RPFM/A as a retrofit enabler significantly lowers migration expenditure. Facilities avoid the capital outlay of full platform replacement while extending the operational lifespan of existing controllers, I/O racks, and SCADA infrastructure — a critical advantage for plants operating on multi-year capital planning cycles.

Upgrade Highlights & Compatibility

• ✅ Extended Fiber Reach: Up to 3 km per segment using multi-mode 62.5/125 μm or 50/125 μm fiber — eliminates distance constraints in campus-scale deployments
• Legacy Compatibility: Fully interoperable with 1786-series ControlNet adapters, ControlLogix 1756, SLC 500 1747, and third-party ControlNet devices
• ✅ Hot-Swap Capability: Built-in bypass circuitry enables module replacement without network disruption — zero unplanned downtime during hardware upgrades
• EMI/RFI Immunity: Fiber optic transmission eliminates electromagnetic interference in high-voltage switchyards, motor control centers, and variable frequency drive environments
• ✅ Deterministic Performance: Preserves ControlNet’s 5 Mbps scheduled communication model — no re-engineering of existing scan time configurations required
• Future-Proofing: ST-style fiber connectors and DIN-rail mounting ensure compatibility with next-generation network expansion plans

Modernization Use Cases & Success Stories

DCS Retrofit in Petrochemical Plants: A Gulf Coast refinery operating a legacy Distributed Control System (DCS) faced chronic communication faults across a 2.4 km coaxial ControlNet backbone. By deploying the 1786-RPFM/A as a fiber repeater at three strategic junction points, the retrofit team eliminated packet loss entirely, reduced network scan cycle variance by 40%, and extended the DCS operational lifespan by an estimated 8 years — deferring a $4M platform replacement project.

Turbine Supervisory Instrumentation (TSI) Modernization: A combined-cycle power plant required integration of new vibration monitoring nodes into an existing ControlNet-based TSI architecture spanning multiple turbine halls. The 1786-RPFM/A enabled seamless integration of the new monitoring endpoints without modifying the existing ControlNet scheduler configuration, achieving full Performance Enhancement within a single planned maintenance window.

Multi-Building Manufacturing Coordination: An automotive stamping facility used the 1786-RPFM/A to bridge three production buildings across a 1.8 km campus, synchronizing press line PLCs under centralized SCADA supervision. The retrofit solution replaced unreliable copper trunk segments, delivering a Hardware Upgrade that improved OEE by 12% through elimination of communication-induced production stoppages.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Part Number** | Allen-Bradley 1786-RPFM/A | | **Network Protocol** | ControlNet (5 Mbps, deterministic) | | **Fiber Type Supported** | Multi-mode 62.5/125 μm or 50/125 μm | | **Maximum Segment Distance** | Up to 3 km (1.86 miles) | | **Connector Interface** | ST-style fiber optic | | **Power Supply** | 24V DC via ControlNet tap | | **Operating Temperature** | 0°C to 60°C (32°F to 140°F) | | **Mounting Standard** | DIN-rail compatible | | **Hot-Swap Support** | Yes — bypass circuitry included | | **Legacy Platform Compatibility** | 1756 ControlLogix, 1747 SLC 500, PLC-5 | | **Lifecycle Status** | Active / Available for Retrofit Supply | | **Retrofit Role** | Fiber backbone extension & coaxial replacement | | **Diagnostics** | Front-panel LED: network activity, fiber link, module status | | **Country of Origin** | United States |

Supply Chain & Deployment Support

Original & Factory Sealed Stock: All 1786-RPFM/A units are sourced as genuine Allen-Bradley components, supplied in original manufacturer packaging with full traceability documentation. No refurbished or counterfeit risk.

Expedited Global Logistics: Recognizing that retrofit projects operate on compressed timelines, we maintain ready inventory with expedited international shipping to support emergency replacement scenarios and planned maintenance windows across Asia-Pacific, Europe, and the Americas.

Technical Support for Legacy Hardware: Our engineering team provides pre-deployment compatibility assessments, network topology review, and post-installation commissioning guidance — ensuring your 1786-RPFM/A retrofit delivers the expected Performance Enhancement from day one.

Documentation Package: Includes installation guide, firmware revision notes, ControlNet design checklist, and fiber cable specification reference — everything your retrofit team needs for a successful System Migration.

Retrofit FAQ — Upgrade Guide

Q1: Can the 1786-RPFM/A be installed in an existing ControlNet segment without reconfiguring the network scheduler?
Yes. The 1786-RPFM/A operates transparently within the ControlNet physical layer. It does not require changes to the NUT (Network Update Time), scheduled connections, or unscheduled messaging parameters. Your existing RSNetWorx for ControlNet configuration remains fully intact after installation.

Q2: What fiber cable specifications are required for a 3 km deployment?
The module supports multi-mode fiber at 62.5/125 μm or 50/125 μm with ST-style connectors. For maximum 3 km reach, use OM1 (62.5/125 μm) or OM2 (50/125 μm) grade cable with insertion loss 3.5 dB per segment. Single-mode fiber is not supported by this module.

Q3: Is the 1786-RPFM/A compatible with both old and new ControlLogix chassis generations?
Yes. The 1786-RPFM/A maintains Legacy Compatibility across the full ControlNet ecosystem — from original 1756-L1 ControlLogix processors through current 1756-L8x series, as well as 1747 SLC 500 and legacy PLC-5 platforms. No firmware upgrade to existing controllers is required.

Q4: Can this module replace a failed coaxial repeater in an emergency without a planned outage?
The hot-swap bypass circuitry allows the 1786-RPFM/A to be installed and removed while the ControlNet network remains operational. However, transitioning from coaxial to fiber topology requires a brief network reconfiguration step. For true zero-downtime replacement of a like-for-like fiber repeater, no outage is needed.

Q5: What are the alternative or substitute part numbers if 1786-RPFM/A is unavailable?
The 1786-RPFM/A (medium-distance, multi-mode fiber) is distinct from the 1786-RPFS/A (short-distance) and 1786-RPFRL/A (long-distance, single-mode). Substitution requires verification of fiber type, distance requirements, and connector compatibility. Our technical team can assist with retrofit-specific part selection to ensure Seamless Integration.

Q6: How does the 1786-RPFM/A support communication between legacy DCS nodes and modern Ethernet-based supervisory systems?
The 1786-RPFM/A extends the ControlNet physical layer, enabling legacy DCS nodes to maintain deterministic communication while higher-level integration to Ethernet/IP or OPC-UA supervisory platforms is handled by gateway devices (e.g., 1788-EN2DN or third-party protocol converters). This layered approach is the foundation of a low-risk, phased System Migration strategy.
