ControlNet Media Toolkit 1786-CTK | Industrial Network Diagnostic & Testing Solution

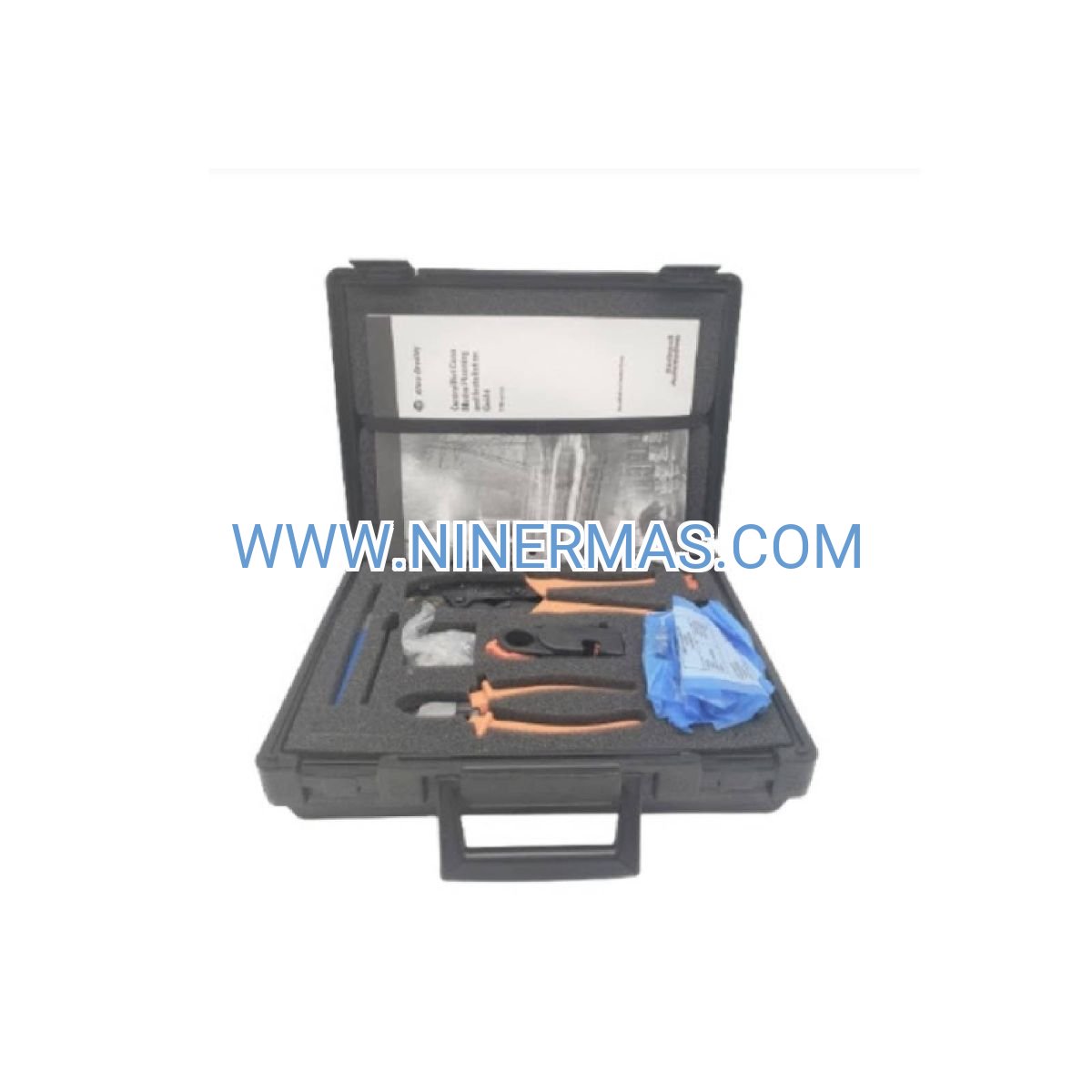

ControlNet Media Toolkit (Industrial-Grade Network Diagnostic System)

The 1786-CTK ControlNet Media Toolkit is a professional-grade diagnostic instrument designed for industrial network installation, commissioning, and troubleshooting. Through advanced cable testing, signal analysis, and network verification capabilities, it enables rapid identification of connectivity issues, media faults, and configuration errors across ControlNet infrastructure.

Ideal for automation system integrators, plant maintenance teams, OEM service engineers, and commissioning specialists working in manufacturing, process control, and industrial automation environments. This toolkit addresses critical challenges including intermittent network failures, signal degradation, improper termination, and pre-installation cable certification requirements.

Featuring portable design with rugged construction, the toolkit delivers comprehensive testing capabilities, intuitive operation, and field-proven reliability—suitable for design consultants, system integrators, end-user facilities, and service providers. Contact our application engineers for testing protocol recommendations and technical specifications.

Core Functions & Technical Advantages

• Comprehensive Cable Certification
  Performs full media qualification testing including impedance measurement, attenuation analysis, and DC resistance verification. Validates cable installations meet ControlNet specifications before network commissioning, reducing startup delays and troubleshooting time.
• Real-Time Network Analysis
  Monitors live network traffic, detects signal quality degradation, and identifies noise sources or reflection points. Enables proactive maintenance by detecting issues before they cause system downtime or communication errors.
• Portable Field-Ready Design
  Compact handheld form factor with integrated battery power and protective housing. Designed for harsh industrial environments, allowing technicians to perform diagnostics at remote locations, inside control panels, or along cable runs without external power.
• Intuitive Diagnostic Interface
  Features clear LCD display with guided test procedures and pass/fail indicators. Simplifies complex network analysis for field technicians, reducing training requirements and minimizing diagnostic errors during commissioning or troubleshooting.
• Complete Documentation Support
  Generates detailed test reports with measurement data, cable maps, and fault location information. Provides verifiable certification records for quality assurance, compliance documentation, and maintenance history tracking.
• Multi-Function Testing Capability
  Combines cable testing, network monitoring, and fault location in a single instrument. Eliminates the need for multiple specialized tools, reducing equipment costs and simplifying field service kit requirements.

Typical Application Scenarios

This diagnostic toolkit is essential for applications requiring high-reliability network infrastructure and minimal unplanned downtime, particularly in:

• New System Commissioning & Installation
  Pre-commissioning cable certification for greenfield automation projects. Verifies media quality before equipment installation, preventing costly rework and ensuring first-time network startup success in automotive assembly, packaging lines, and process manufacturing facilities.
• Preventive Maintenance Programs
  Scheduled network health assessments to detect cable degradation, connector wear, or environmental damage before failures occur. Supports condition-based maintenance strategies in chemical plants, power generation facilities, and continuous process industries.
• Troubleshooting & Emergency Response
  Rapid fault isolation during unplanned network outages or intermittent communication errors. Minimizes production downtime by quickly identifying cable breaks, short circuits, or termination problems in food & beverage, pharmaceutical, and discrete manufacturing operations.
• System Expansion & Retrofit Projects
  Validation of existing cable infrastructure before adding new network nodes or upgrading control systems. Ensures legacy cabling meets current specifications for oil & gas, mining, and water treatment facility modernization projects.
• Contractor & Integrator Field Service
  Essential tool for automation contractors performing multi-site installations, warranty service, or customer support. Provides consistent testing methodology across diverse industrial applications including material handling, robotics, and machine control systems.

Technical Specifications & Selection Guide

To ensure optimal tool selection for your application requirements, we provide standardized specifications covering testing capabilities, environmental ratings, and operational parameters. Custom configurations available for specialized testing protocols.

Selection Recommendations: When specifying this toolkit, consider: network topology complexity, cable installation distance, frequency of testing requirements, environmental conditions at test locations, and documentation/reporting needs. For application-specific guidance, provide your network architecture details, testing objectives, and site conditions—our engineers will recommend optimal testing procedures and accessory requirements.

Advanced Diagnostic Features

• Time-Domain Reflectometry (TDR) – Pinpoints exact fault location along cable runs, displaying distance to opens, shorts, or impedance mismatches
• Signal Quality Metrics – Measures signal-to-noise ratio, jitter, and attenuation to assess network margin and predict potential failures
• Termination Verification – Validates proper 75Ω termination at network endpoints to prevent signal reflections
• Data Logging & Export – Stores test results with timestamps for trend analysis and compliance documentation
• Multi-Language Interface – Supports English and additional languages for global deployment

Delivery, Service & Technical Support

Standard units typically ship from stock within 3-5 business days; specialized configurations or bulk orders may require 7-14 days lead time. Each toolkit includes a 12-month manufacturer warranty covering defects in materials and workmanship, with extended service plans available.

Comprehensive technical support includes remote diagnostic assistance, on-site calibration services (region-dependent), and application engineering consultation. Complete documentation package provided: user manual, quick-start guide, test procedure templates, calibration certificate, and carrying case. Optional training programs available for enterprise deployments.

Frequently Asked Questions (FAQ)

Q: Can the 1786-CTK ControlNet toolkit test other industrial network types like EtherNet/IP or DeviceNet?
A: This toolkit is specifically designed for ControlNet coaxial media testing. For EtherNet/IP or DeviceNet diagnostics, different test equipment is required. Contact us for recommendations on multi-protocol testing solutions if your facility uses multiple network types.

Q: What is the maximum cable length this toolkit can accurately test and certify?
A: The TDR function can detect faults up to 1000 meters (3280 feet) from the test point. For optimal accuracy on longer network segments, testing from multiple access points along the cable run is recommended.

Q: Does the toolkit require annual calibration or certification for accurate measurements?
A: While the instrument maintains accuracy under normal use, annual calibration is recommended for critical applications or quality system compliance (ISO 9001, etc.). We offer factory calibration services with traceable certification.

Q: Can this tool be used on live ControlNet networks without disrupting production?
A: Yes, the network monitoring and signal analysis functions operate non-intrusively on active networks. However, certain cable certification tests require the network segment to be offline. Consult the user manual for specific test mode requirements.

Q: What accessories or consumables are needed for field operation?
A: The standard kit includes all necessary test leads, BNC adapters, and termination resistors. Optional accessories include spare battery packs, AC chargers for international voltages, and ruggedized transport cases for mobile service vehicles.

Q: Is training available for technicians unfamiliar with ControlNet diagnostics?
A: Yes, we offer both online training modules and on-site workshops covering ControlNet fundamentals, toolkit operation, and advanced troubleshooting techniques. Training can be customized for your specific application requirements.

Request Technical Support & Quotation

For detailed application engineering support, product quotations, or custom testing solutions, please provide the following information: project scope, network architecture details (node count, cable distances, topology), testing frequency requirements, environmental conditions, documentation standards, and any special certification needs. Our engineering team will provide tailored recommendations and competitive pricing within 24 hours.
