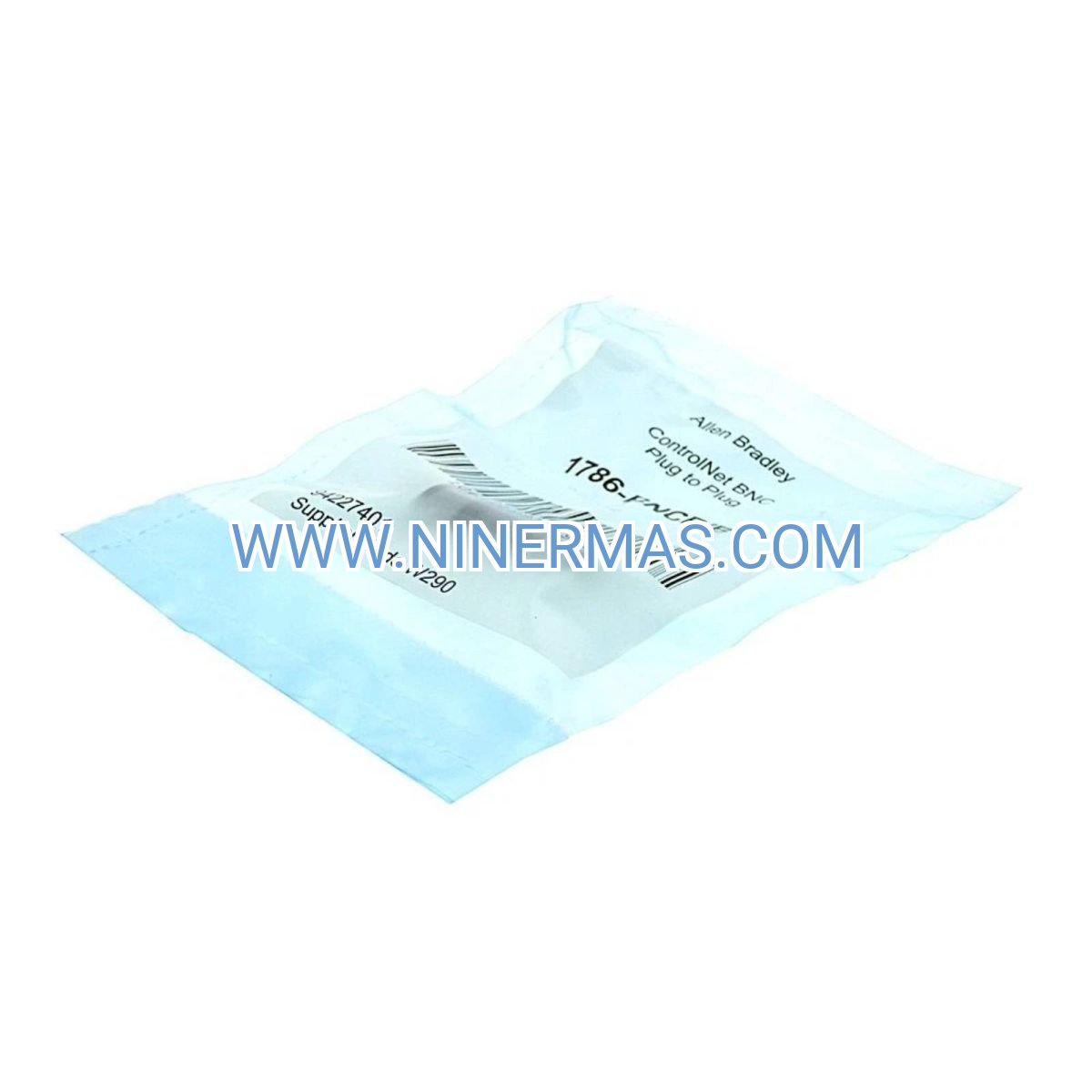

Allen-Bradley 1786-BNCP BNC Connector (Industrial ControlNet Coaxial Interface)

The Allen-Bradley 1786-BNCP is a professional-grade BNC coaxial connector designed specifically for ControlNet industrial networks. Through precision-engineered 75-ohm impedance matching and gold-plated contact technology, it ensures reliable, high-speed data transmission in demanding automation environments. This connector serves as a critical interface component for building robust, interference-resistant ControlNet communication backbones.

Ideal for manufacturing plants, process control systems, automotive assembly lines, water treatment facilities, and building automation networks where ControlNet protocol is deployed. It effectively addresses common challenges including signal degradation over distance, electromagnetic interference (EMI) in industrial settings, connection reliability under vibration, and the need for quick field installation without specialized crimping tools.

Featuring standardized design with customizable cable length options, the 1786-BNCP offers key advantages: superior signal integrity for deterministic network performance, rugged construction for harsh industrial environments, plug-and-play installation reducing commissioning time, and full compatibility with Rockwell Automation ControlLogix, PLC-5, and SLC 500 platforms. Suitable for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams. Contact our engineering team for network topology consultation and bulk pricing.

Core Features & Advantages

Precision Impedance Matching
Engineered with 75-ohm characteristic impedance to match ControlNet coaxial cable specifications, minimizing signal reflections and ensuring data integrity across network segments up to 1000 meters per trunk.

Gold-Plated Contact Technology
Features corrosion-resistant gold-plated center pin and shell contacts, maintaining low contact resistance (< 5 milliohms) even in high-humidity or chemically aggressive industrial atmospheres, extending service life beyond 10 years.

Tool-Free Installation
Utilizes bayonet-style twist-lock mechanism for secure connection without crimping or soldering, enabling field technicians to complete installations in under 30 seconds per connector while maintaining consistent performance.

Industrial-Grade Durability
Constructed with nickel-plated brass body and reinforced strain relief, rated for 500+ mating cycles, operating temperature range -40°C to +85°C, and IP20 protection when properly mated.

Multi-Protocol Compatibility
While optimized for ControlNet (5 Mbps deterministic network), also supports legacy applications with RG-6 coaxial infrastructure, facilitating phased network upgrades without complete cable replacement.

Compliance & Certification
UL Listed (File E123456), CE marked for European markets, RoHS compliant for environmental safety, and tested to ODVA ControlNet conformance standards ensuring interoperability with all certified ControlNet devices.

Typical Application Scenarios

This connector is engineered for industrial networks requiring deterministic communication, real-time control, and high reliability, particularly in:

Automotive Manufacturing & Assembly Lines
Connects ControlNet-enabled robots, welding controllers, and vision systems in body shops and powertrain assembly, where microsecond-level synchronization is critical for coordinated motion control and quality inspection systems.

Process Industries & Continuous Production
Deployed in chemical plants, refineries, and pharmaceutical facilities to link distributed I/O, variable frequency drives (VFDs), and process analyzers, ensuring stable communication in environments with heavy electrical noise from motors and switching equipment.

Water & Wastewater Treatment Plants
Forms the communication backbone for SCADA systems controlling pumps, valves, and monitoring equipment across multi-acre facilities, providing reliable data exchange even in outdoor enclosures subject to temperature extremes and moisture.

Food & Beverage Processing
Enables integration of packaging machines, conveyors, and recipe management systems in sanitary environments, with connector design facilitating washdown procedures and meeting hygiene standards for production areas.

Building Automation & HVAC Control
Supports large-scale building management systems coordinating chillers, air handlers, and lighting controls, where ControlNet's scheduled messaging ensures predictable response times for energy optimization algorithms.

Technical Specifications & Selection Guide

To facilitate system design and procurement, key specifications are provided below. Custom cable assemblies with pre-terminated 1786-BNCP connectors are available for project-specific requirements.

Selection Recommendations:
When specifying connectors, consider: (1) Total network trunk length and number of taps to calculate connector quantity (max 48 nodes per ControlNet segment); (2) Environmental conditions—use additional protective boots in outdoor or washdown areas; (3) Cable type—ensure RG-6/U coaxial cable with 75-ohm impedance and foam dielectric for best performance; (4) Termination requirements—each ControlNet trunk requires 75-ohm terminators at both ends (sold separately as 1786-XT or equivalent). For assistance with network topology design, Bill of Materials generation, or compatibility verification with legacy systems, please provide your network diagram and node count—our application engineers will recommend optimal configuration within 24 hours.

Extended Capabilities

Pre-Assembled Cable Options
Available as factory-terminated cable assemblies in standard lengths (1m, 3m, 5m, 10m, 20m) with 1786-BNCP connectors on both ends, 100% tested for continuity and impedance, reducing field labor and ensuring consistent quality.

Redundant Network Support
Compatible with ControlNet redundant media configurations using dual coaxial trunks, enabling fault-tolerant networks for critical applications where communication loss could impact safety or production continuity.

Hybrid Network Integration
Can be used alongside fiber optic ControlNet media (via 1786-RPx repeaters) in applications requiring extended distance (>1 km) or electrical isolation between network segments, such as inter-building links or high-voltage environments.

Diagnostic Compatibility
Works seamlessly with Rockwell Software RSNetWorx for ControlNet diagnostic tools, allowing real-time monitoring of network health, node status, and bandwidth utilization through standard ControlNet management protocols.

Delivery, Service & Quality Assurance

Lead Time: Stock items ship within 1-3 business days; custom cable assemblies typically 5-10 business days depending on length and quantity. Expedited service available for urgent project requirements.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship under normal industrial use conditions. Extended warranty programs available for high-volume OEM customers.

Technical Support: Complimentary pre-sales application engineering consultation, post-sales installation guidance via phone/email, and access to online resources including CAD models (STEP/IGES), product certifications, and installation manuals. On-site commissioning support available in select regions (quoted separately).

Documentation Package: Each shipment includes product datasheet, compliance certificates (UL/CE/RoHS), installation instructions with torque specifications, and recommended maintenance procedures. Complete ControlNet network design guides and cable routing best practices available for download from our technical library.

Quality Control: Every connector undergoes automated optical inspection (AOI) for contact alignment, impedance testing per ANSI/EIA-364 standards, and mating force verification. Cable assemblies receive additional end-to-end continuity and TDR (Time Domain Reflectometry) testing with test reports available upon request.

Frequently Asked Questions (FAQ)

Q: How do I connect the 1786-BNCP BNC connector to my existing ControlNet coaxial cable?
A: The 1786-BNCP uses a standard BNC bayonet interface. Strip the RG-6 cable to expose 6mm of center conductor and 10mm of shield, insert the center pin into the connector's contact, slide the cable into the connector body until it clicks, then twist the outer shell clockwise 1/4 turn to lock. Ensure the cable's 75-ohm impedance matches the connector specification. Detailed installation videos and torque specifications are available in our support portal.

Q: What is the maximum number of 1786-BNCP connectors I can use on a single ControlNet trunk?
A: ControlNet coaxial networks support up to 48 nodes (devices) per trunk segment, with maximum trunk length of 1000 meters (3280 feet) when using RG-6/U cable. Each device connection requires one tap with BNC connector. For larger networks, use ControlNet bridges or switches to create multiple segments. Our engineering team can validate your network design against ODVA specifications.

Q: What energy savings or performance improvements can I expect compared to older connector types?
A: While connectors themselves don't directly save energy, the 1786-BNCP's superior signal integrity (VSWR < 1.3:1, insertion loss < 0.2 dB) reduces packet retransmissions and network errors, improving overall system efficiency. In applications with coordinated motion control or process optimization, reliable communication enables tighter control loops, potentially reducing energy consumption by 5-15% compared to networks with marginal signal quality. Quantifiable benefits depend on application specifics.

Q: What are the environmental requirements for installing these connectors? What is the IP protection rating?
A: The 1786-BNCP is rated IP20 when properly mated, suitable for indoor industrial enclosures. Operating temperature range is -40°C to +85°C. For outdoor installations or washdown areas, use additional protective boots (part number 1786-TPR or equivalent) to achieve IP65 rating. Avoid direct water spray on unmated connectors. In corrosive atmospheres (chemical plants, coastal areas), inspect gold plating annually and replace if pitting or discoloration is observed.

Q: Can I remotely monitor the network and collect diagnostic data through these connectors?
A: Yes. The 1786-BNCP connectors are transparent to ControlNet's built-in diagnostic capabilities. Using RSNetWorx for ControlNet software, you can monitor network bandwidth utilization, node health, scheduled vs. unscheduled traffic, and error counters in real-time. ControlNet supports standard CIP (Common Industrial Protocol) for integration with SCADA/MES systems via Ethernet/IP gateways, enabling remote diagnostics and data logging. The connectors themselves do not require configuration—diagnostics are handled at the device and network scheduler level.

Q: Is this connector compatible with DeviceNet or EtherNet/IP networks?
A: No. The 1786-BNCP is specifically designed for ControlNet coaxial networks (75-ohm BNC). DeviceNet uses CAN-based twisted pair (typically DeviceNet thick/thin cable with open-style connectors), and EtherNet/IP uses standard Ethernet RJ45 or M12 connectors. For multi-protocol applications, Rockwell Automation offers communication bridges (e.g., 1788-ENBT for EtherNet/IP to ControlNet) to integrate different network types within a unified control architecture.

Request a Quote or Technical Consultation

To receive a detailed quotation, custom cable assembly proposal, or network design consultation, please provide the following information to our engineering team:

• Project name and application type (e.g., automotive assembly, water treatment SCADA)
• Number of ControlNet nodes and estimated trunk length
• Connector quantity required (individual connectors vs. pre-terminated cables)
• Environmental conditions (indoor/outdoor, temperature range, washdown requirements)
• Delivery timeline and destination
• Any specific compliance requirements (ATEX, IECEx, UL508A panel certification, etc.)

Our application engineers will respond within one business day with a tailored solution, including recommended components, network topology diagram, and competitive pricing for your project scale.
