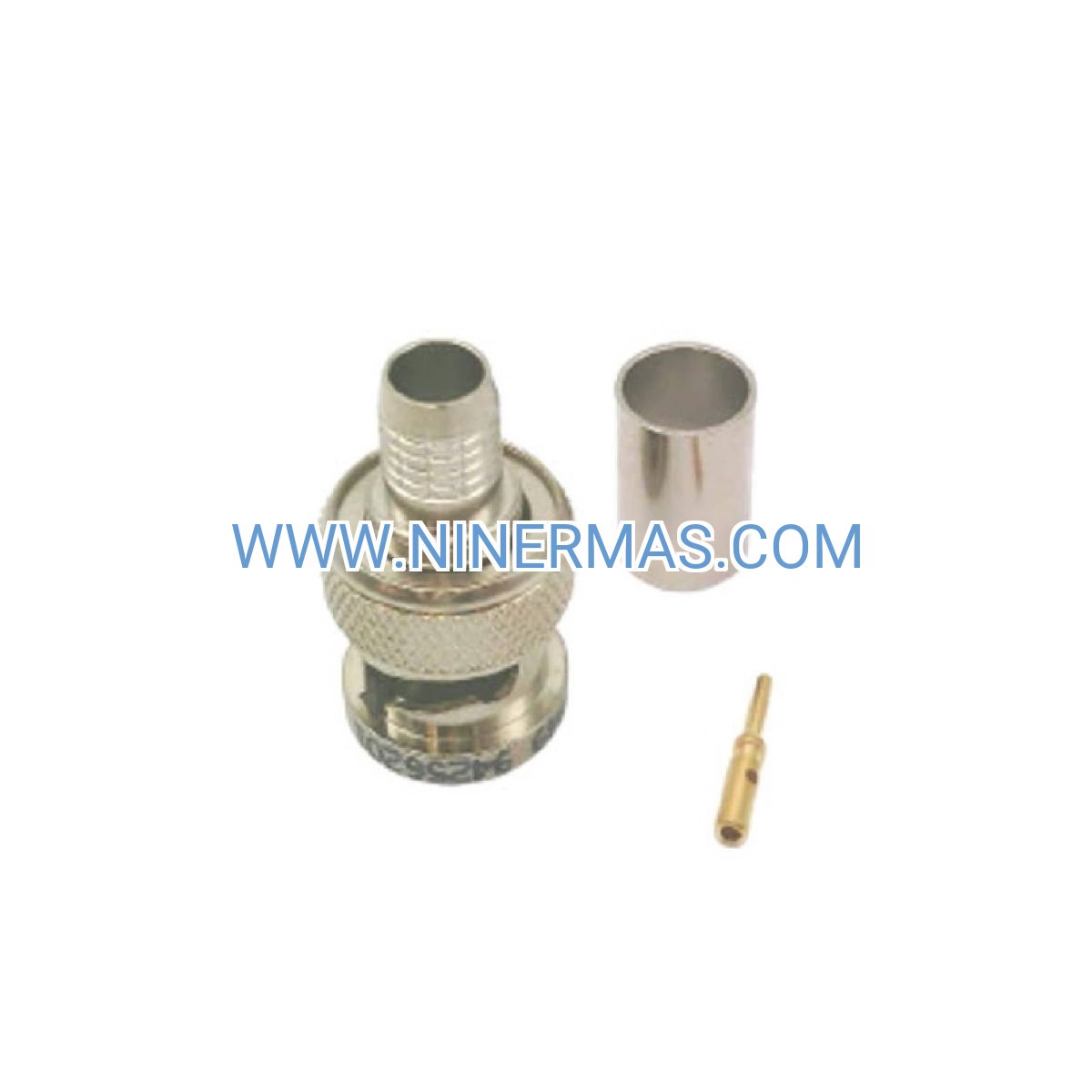

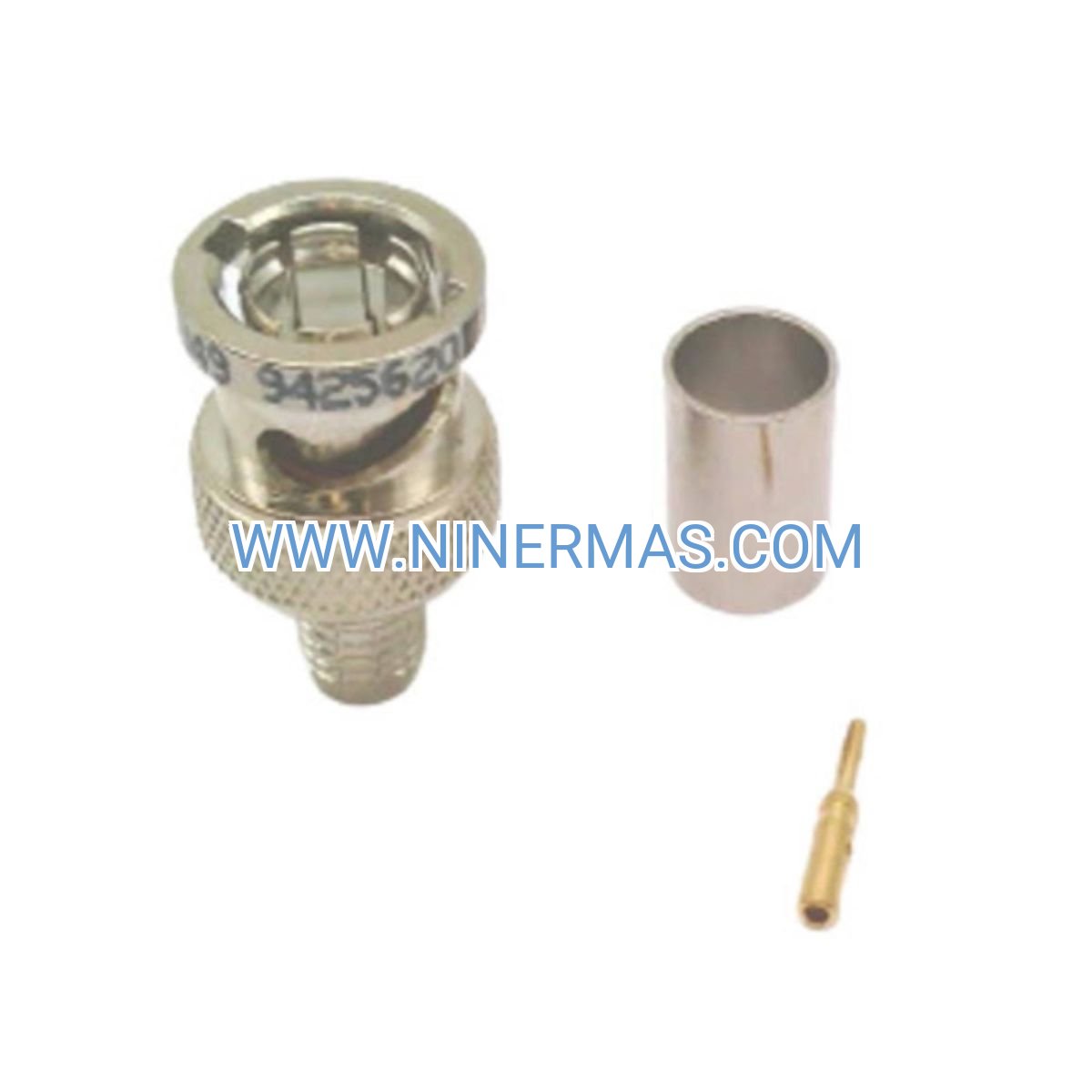

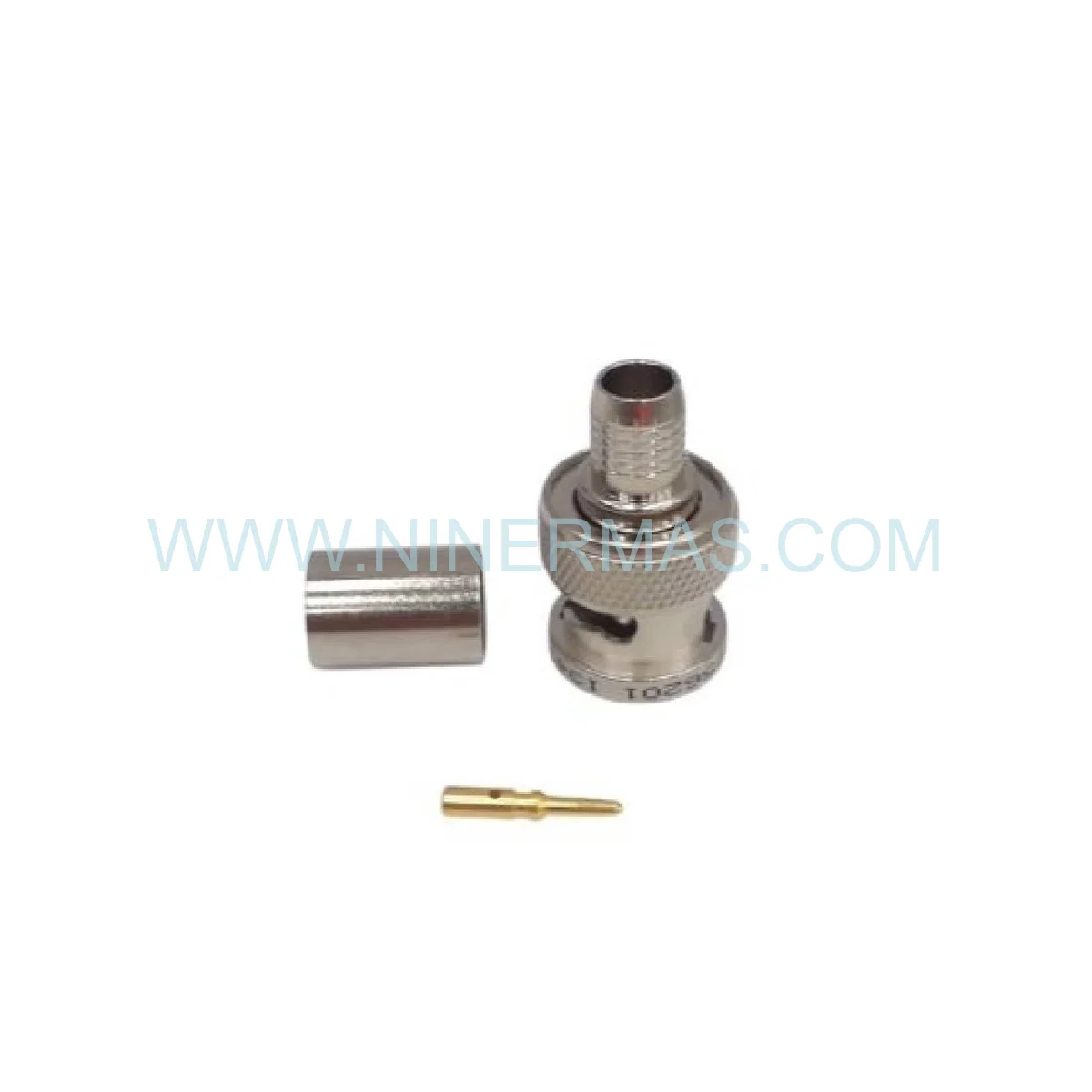

Allen-Bradley 1786-BNC Coaxial BNC Connector (Industrial-Grade ControlNet Component)

The Allen-Bradley 1786-BNC is a precision-engineered coaxial BNC connector designed specifically for ControlNet industrial network applications. Through its 75-ohm impedance matching and gold-plated contact technology, it ensures reliable signal transmission and stable network communication in demanding automation environments.

Ideal for high-reliability industrial control scenarios including manufacturing automation systems, building management networks, municipal SCADA infrastructure, and process control installations. This connector helps solve critical challenges such as signal degradation, network instability, electromagnetic interference susceptibility, and frequent connection failures in harsh industrial environments.

With standardized design and field-proven compatibility, the 1786-BNC offers superior electrical performance, long-term durability, and ease of installation. It is suitable for system integrators, automation engineers, maintenance teams, and OEM equipment manufacturers. Contact our technical team for application guidance and compatibility verification.

Core Features & Advantages

Precision Impedance Matching
Engineered with 75-ohm characteristic impedance to match ControlNet coaxial cable specifications, minimizing signal reflection and ensuring optimal data integrity across network segments up to 1000 meters per trunk.

Gold-Plated Contact Technology
Features corrosion-resistant gold-plated center pin and shell contacts, providing low contact resistance (typically <5mΩ) and maintaining stable electrical performance even after 500+ mating cycles in industrial environments.

RG-6 Cable Compatibility
Designed for seamless termination with standard RG-6/U coaxial cable (18 AWG center conductor), supporting both factory-assembled and field-terminated installations with proper crimping tools.

Robust Mechanical Construction
Nickel-plated brass body with bayonet coupling mechanism ensures secure connection with audible click confirmation, withstanding vibration levels up to 5G and operating temperatures from -40°C to +85°C.

EMI/RFI Shielding Performance
360-degree shield continuity provides >90dB shielding effectiveness against electromagnetic interference, critical for maintaining 5Mbps ControlNet communication in electrically noisy factory floors.

Quick Installation & Maintenance
Tool-free bayonet lock/unlock mechanism enables rapid connector engagement and removal, reducing installation time by 60% compared to threaded alternatives and simplifying troubleshooting procedures.

Typical Application Scenarios

This connector is engineered for industrial environments requiring deterministic network performance and high availability, especially in:

Manufacturing Automation & Assembly Lines
Connects PLCs, I/O modules, and HMI devices in automotive, electronics, and packaging production lines where real-time control and coordinated motion are essential. Supports multi-drop network topologies with up to 99 nodes per segment.

Process Control & SCADA Systems
Enables reliable communication in chemical plants, oil & gas facilities, water treatment stations, and power generation sites. Maintains network integrity in environments with temperature fluctuations, moisture, and chemical exposure.

Building Automation & Infrastructure
Facilitates integration of HVAC controllers, lighting systems, access control, and energy management devices in commercial buildings, hospitals, and data centers requiring 24/7 uptime and centralized monitoring.

Material Handling & Logistics
Supports conveyor control systems, automated storage/retrieval systems (AS/RS), and sortation equipment in warehouses and distribution centers, ensuring synchronized operation across multiple control zones.

Technical Parameters & Selection Guide

To facilitate system design and component selection, we provide comprehensive electrical, mechanical, and environmental specifications. Custom cable assemblies with pre-terminated connectors are also available for project-specific requirements.

Key Specifications:

• Connector Type: BNC Male (Plug) / BNC Female (Jack) - specify when ordering
• Impedance: 75 Ω ±3Ω (1-1000 MHz)
• Cable Compatibility: RG-6/U, RG-59/U coaxial cable
• Contact Material: Beryllium copper with 1.27μm gold plating (center pin), nickel-plated brass (shell)
• Insulation Resistance: >5000 MΩ at 500VDC
• Dielectric Withstanding Voltage: 500VAC RMS (sea level)
• Operating Temperature: -40°C to +85°C (-40°F to +185°F)
• Mating Durability: 500 cycles minimum
• Protection Rating: IP20 (when mated); IP65 available with protective boot accessory
• Compliance: UL Listed, CE marked, RoHS compliant

Selection Recommendations:
When specifying connectors, consider: network topology (trunk/drop configuration), total cable run length, number of taps per segment, environmental conditions (temperature, humidity, chemical exposure), and installation method (field-terminated vs. pre-assembled). For assistance, provide network layout drawings and environmental parameters—our engineers will recommend optimal connector configuration and cable assembly options.

Extended Functionality & Accessories

Compatible Accessories:

• 1786-TPR: ControlNet Tap/Repeater for extending network segments beyond 1000m
• 1786-TPS: Tap with integrated power supply for powering network devices
• Protective Boots: Silicone or PVC boots for enhanced IP65/IP67 sealing in wet environments
• Termination Resistors: 75Ω terminators for proper network impedance matching at trunk ends
• Crimping Tools: Professional-grade tools for field termination (e.g., Paladin 1300 series)

System Integration Options:
The 1786-BNC integrates seamlessly with Allen-Bradley ControlLogix, CompactLogix, and PLC-5 controllers via 1786-series communication modules. Supports DeviceNet-to-ControlNet bridges, EtherNet/IP gateways, and third-party SCADA platforms through standard CIP (Common Industrial Protocol) messaging.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 1-3 business days from regional warehouses. Custom cable assemblies and bulk orders typically require 7-14 days depending on configuration complexity and quantity.

Warranty: All connectors are backed by a 24-month manufacturer warranty covering defects in materials and workmanship under normal industrial use conditions.

Technical Support: Comprehensive support includes pre-sales application consulting, installation guidance, network troubleshooting assistance, and post-sales technical service. Remote diagnostics and on-site commissioning available for large-scale projects (region-dependent).

Documentation Package: Each shipment includes product datasheet, installation instructions with torque specifications, wiring diagrams, compliance certificates (UL/CE/RoHS), and compatibility matrix. CAD models (STEP/IGES) and 3D drawings available upon request for mechanical integration.

Quality Certifications: Manufactured in ISO 9001:2015 certified facilities with 100% electrical testing (impedance, continuity, insulation resistance) and mechanical inspection prior to shipment. Traceability documentation available for critical applications.

Frequently Asked Questions (FAQ)

Q: How do I properly terminate a 1786-BNC connector to RG-6 coaxial cable?
A: Use a two-step crimp process: (1) Strip cable to expose 6mm center conductor and 10mm braid; (2) Insert cable into connector body ensuring braid contacts shell, then crimp ferrule using hex crimp tool (0.324" hex size). Verify DC continuity and impedance with TDR tester before deployment. Detailed termination procedure with photos is included in the installation manual.

Q: What is the maximum number of BNC connectors allowed on a single ControlNet trunk segment?
A: ControlNet specifications permit up to 48 taps (connection points) per 1000-meter trunk segment when using standard 1786-BNC connectors and approved RG-6 cable. Each tap introduces approximately 1.5dB insertion loss; total segment loss must not exceed 16dB. For segments requiring more nodes, use 1786-TPR repeaters to extend the network.

Q: Can the 1786-BNC connector withstand outdoor or washdown environments?
A: The standard connector is rated IP20 (finger-safe, indoor use). For outdoor installations or washdown areas, specify IP65-rated protective boots or consider factory-sealed cable assemblies with overmolded connectors. Operating temperature range (-40°C to +85°C) accommodates most outdoor climates, but UV-resistant cable jackets are recommended for direct sunlight exposure.

Q: Is the 1786-BNC compatible with 50-ohm BNC connectors used in Ethernet or RF applications?
A: No. The 1786-BNC is specifically designed for 75-ohm ControlNet coaxial networks and is not electrically compatible with 50-ohm systems (e.g., thin Ethernet, test equipment). Mixing impedances will cause signal reflections, increased bit error rates, and potential network failures. Always verify impedance specifications before substituting connectors.

Q: What diagnostic tools can I use to verify proper BNC connector installation and network performance?
A: Recommended tools include: (1) Time-Domain Reflectometer (TDR) for impedance verification and fault location; (2) ControlNet Scanner Module (e.g., 1786-RPA) for network health monitoring; (3) Multimeter for DC continuity and shield grounding checks; (4) RSNetWorx for ControlNet software for topology mapping and bandwidth utilization analysis. Acceptance criteria: VSWR <1.5:1, shield continuity <1Ω, no CRC errors during 24-hour burn-in test.

Q: Does the connector support remote monitoring or predictive maintenance capabilities?
A: The connector itself is a passive component without embedded intelligence. However, when used with Allen-Bradley 1786-series communication modules featuring CIPconnect technology, you can monitor network-level metrics (packet loss, bandwidth utilization, node health) through RSNetWorx software or integrate with FactoryTalk analytics platforms for predictive maintenance insights based on communication trends.

Request Technical Support & Custom Solutions

For detailed application engineering, custom cable assembly quotations, or technical specifications, please provide the following information to our team:

• Project name and application industry
• Network topology (trunk length, number of drops, node count)
• Environmental conditions (temperature range, IP rating requirements, chemical exposure)
• Cable type and length requirements
• Quantity and delivery timeline
• Existing ControlNet infrastructure (controller models, communication modules)

Our certified ControlNet specialists will provide one-on-one consultation, system design validation, and competitive pricing within 24 hours for standard inquiries.
