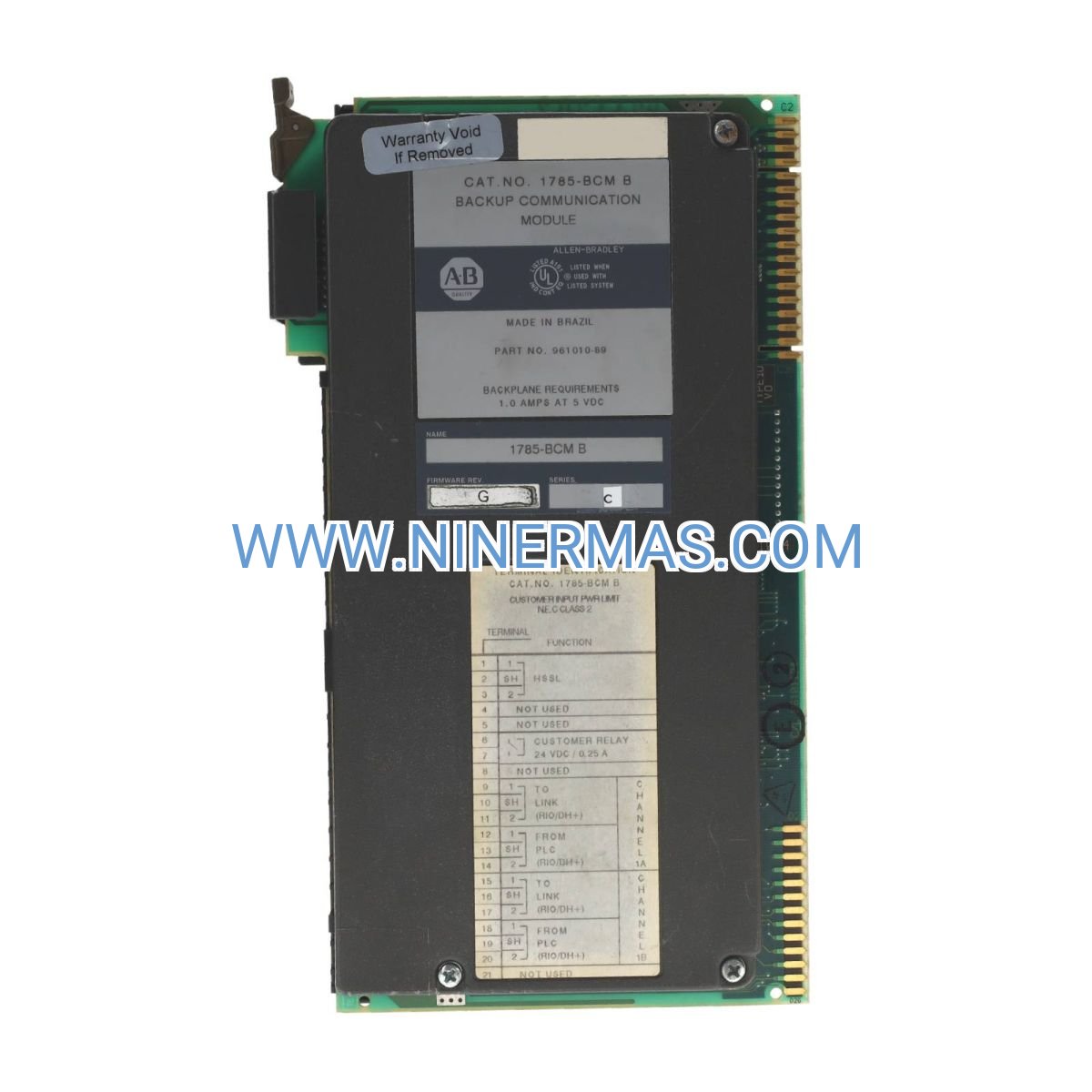

Allen-Bradley 1785-BCM Backup Communication Module (Hot-Swappable Redundancy for PLC-5 Systems)

The Allen-Bradley 1785-BCM Backup Communication Module is a mission-critical component designed for PLC-5 control systems requiring uninterrupted communication and fault-tolerant operation. Through hot-swappable redundancy architecture and seamless failover capability, this module ensures continuous data exchange between PLC-5 processors and remote I/O networks, even during primary module failure or maintenance events.

Engineered for high-availability industrial environments—including power generation, water treatment, petrochemical processing, and manufacturing automation—the 1785-BCM addresses critical challenges such as unexpected communication loss, system downtime during module replacement, and single-point-of-failure risks in legacy PLC-5 infrastructures.

Leveraging proven Allen-Bradley design standards and backward compatibility with existing PLC-5 chassis configurations, this backup module delivers transparent switchover, real-time diagnostics, and extended mean time between failures (MTBF). Ideal for plant engineers, system integrators, OEM equipment builders, and maintenance teams managing aging PLC-5 installations. Contact our automation specialists for compatibility verification, retrofit planning, and technical documentation.

Core Features & Technical Advantages

Hot-Swappable Redundancy Architecture
Supports live module replacement without halting PLC-5 processor operation or disrupting active communication sessions. Automatic failover occurs within milliseconds, maintaining scan integrity and preventing data loss during switchover events.

Seamless PLC-5 Integration
Fully compatible with 1785 chassis backplane architecture, including 1785-L20, L40, L60, and L80 processor families. Requires no firmware modification or ladder logic changes—plug-and-play installation with existing ControlNet, Remote I/O, or DH+ network configurations.

Enhanced System Availability
Reduces unplanned downtime by up to 95% in critical control loops. Dual-module configuration provides N+1 redundancy, ensuring continuous operation even during scheduled maintenance, module diagnostics, or unexpected hardware faults.

Real-Time Fault Detection & Diagnostics

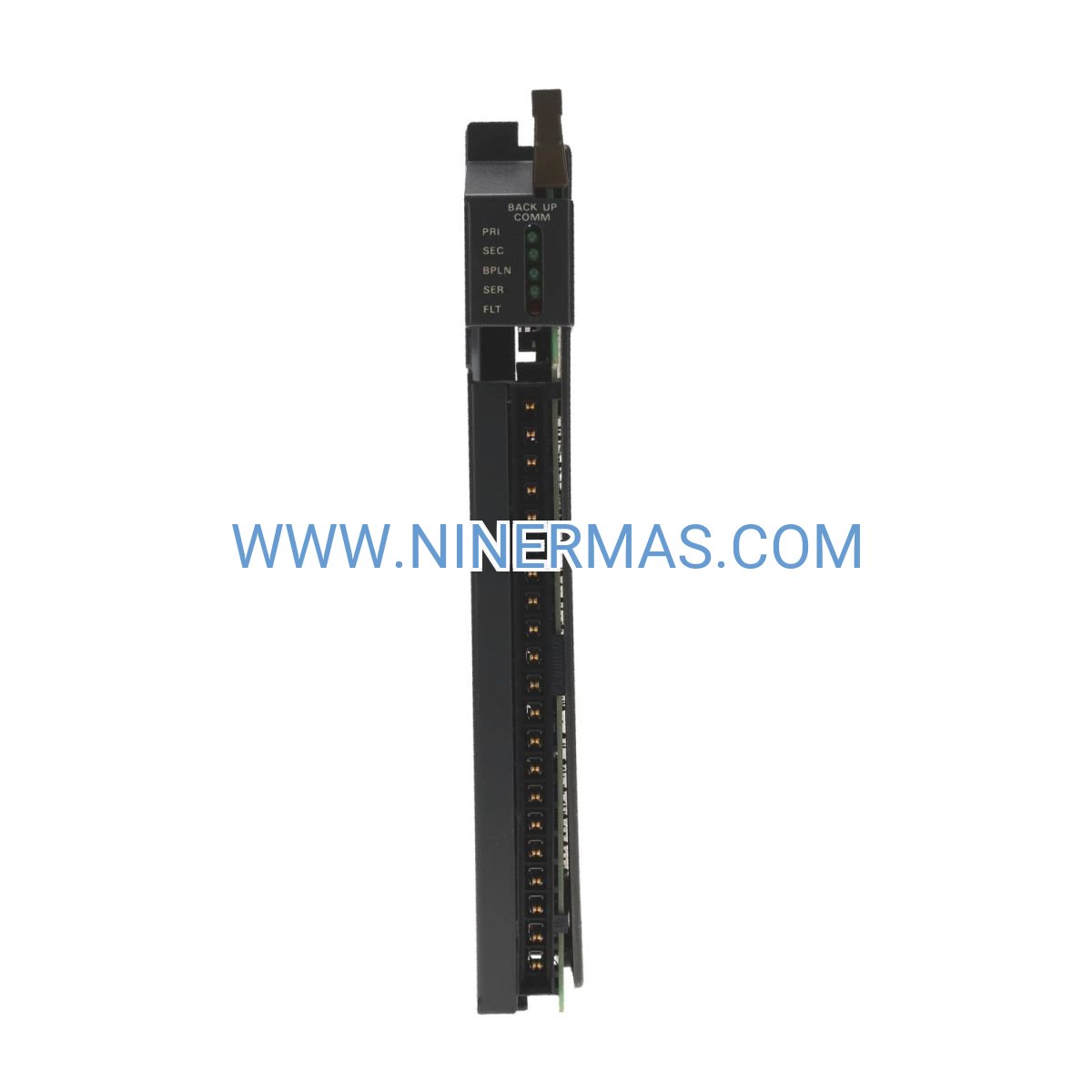

Integrated LED status indicators and RSLogix 5 diagnostic registers provide instant visibility into module health, communication status, and failover events. Supports proactive maintenance scheduling through predictive fault logging.

Industrial-Grade Durability
Conformal-coated PCB assembly withstands harsh environments including temperature extremes (-20°C to +70°C), vibration (IEC 60068-2-6), and electromagnetic interference (EMI/RFI per CE/UL standards). MTBF exceeds 200,000 hours under typical operating conditions.

Simplified Retrofit & Modernization
Enables phased migration strategies for aging PLC-5 systems, extending asset lifespan while maintaining operational continuity. Compatible with modern SCADA/HMI platforms via RSLinx Classic and FactoryTalk gateway interfaces.

Typical Application Scenarios

The 1785-BCM backup communication module is specifically engineered for industries and processes where communication failure directly impacts safety, production throughput, or regulatory compliance:

Power Generation & Substation Automation
Ensures uninterrupted monitoring and control of turbine governors, excitation systems, and protective relay networks. Prevents costly grid disturbances caused by communication blackouts in legacy PLC-5 SCADA architectures.

Water & Wastewater Treatment Facilities
Maintains continuous operation of pump stations, chemical dosing systems, and filtration controls. Meets EPA and local regulatory requirements for redundant control in critical municipal infrastructure.

Petrochemical & Refining Operations
Protects against process upsets in distillation columns, reactor control loops, and emergency shutdown (ESD) systems. Complies with IEC 61511 SIL-rated safety instrumented system (SIS) requirements when configured with certified redundant processors.

Manufacturing & Assembly Lines
Prevents production line stoppages in automotive, food & beverage, and pharmaceutical facilities. Supports 24/7 operation with minimal maintenance windows, reducing cost-per-unit and improving OEE (Overall Equipment Effectiveness).

Building Automation & HVAC Systems
Ensures reliable control of chiller plants, air handling units, and energy management systems in hospitals, data centers, and commercial high-rises. Avoids comfort complaints and energy waste from communication-related control failures.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, review the following technical parameters before specifying the 1785-BCM module:

Electrical & Mounting

• Backplane Current Draw: 800 mA @ 5V DC (typical)
• Power Dissipation: 4.0 Watts maximum
• Chassis Compatibility: 1785-L20/L40/L60/L80 series, 1771 I/O chassis (with adapter)
• Slot Position: Any available slot in 1785 chassis (typically paired with primary communication module)

Communication Interfaces

• Supported Networks: ControlNet, Remote I/O (1785-KA), Data Highway Plus (DH+)
• Baud Rate: Auto-negotiation up to 5 Mbps (ControlNet), 57.6 Kbps (DH+)
• Cable Type: RG-6 coaxial (ControlNet), Belden 9463 twinax (DH+)
• Maximum Network Nodes: 99 (ControlNet), 64 (DH+)

Environmental & Certifications

• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% non-condensing
• Vibration Resistance: 2G @ 10-500 Hz (IEC 60068-2-6)
• Certifications: UL Listed (Class I, Div 2), CE marked, RoHS compliant

Selection Recommendations

When configuring redundant communication for PLC-5 systems, consider the following factors:

• Network Architecture: Identify primary communication protocol (ControlNet vs. DH+ vs. Remote I/O) and verify cable infrastructure
• Processor Model: Confirm processor firmware revision supports redundant communication (consult Rockwell Automation compatibility matrix)
• Failover Requirements: Determine acceptable switchover time (typically <50ms for 1785-BCM) and impact on process control
• Physical Space: Ensure chassis has adjacent slot available for backup module installation
• Existing Inventory: Verify spare parts strategy and alignment with plant-wide standardization policies

For assistance with system design, retrofit planning, or compatibility verification, provide our engineering team with: current PLC-5 processor model, chassis configuration, network topology diagram, and application criticality level. We will recommend the optimal redundancy configuration and provide detailed installation documentation.

Advanced Configuration & Integration Options

Redundant Processor Pairing
When deployed with dual 1785-L series processors in hot-standby configuration, the 1785-BCM enables full system redundancy. Automatic processor switchover combined with communication failover achieves 99.99%+ uptime in SIL 2-rated safety applications.

SCADA & HMI Connectivity
Integrates seamlessly with FactoryTalk View, Wonderware InTouch, Ignition SCADA, and other third-party HMI platforms via RSLinx Classic OPC server. Supports simultaneous connections from multiple clients without performance degradation.

Remote Diagnostics & Monitoring
Compatible with Allen-Bradley Remote Access solutions (FactoryTalk Remote Access, Ewon Flexy) for secure off-site troubleshooting. Diagnostic data can be logged to historian systems (OSIsoft PI, Rockwell FactoryTalk Historian) for predictive maintenance analytics.

Cybersecurity Hardening
Supports network segmentation strategies using managed Ethernet switches and firewall appliances. Firmware is digitally signed and validated during boot sequence to prevent unauthorized modifications (consult Rockwell Security Best Practices documentation).

Delivery, Warranty & Technical Support

Stock Availability & Lead Time
Standard catalog items typically ship within 3-5 business days from our regional distribution centers. Custom-configured redundant systems (including pre-tested processor pairs and communication modules) require 10-15 business days for assembly and quality verification.

Quality Assurance & Warranty
All 1785-BCM modules undergo factory acceptance testing (FAT) including communication loop verification, failover simulation, and environmental stress screening. Covered by a comprehensive 12-month warranty against manufacturing defects, with optional extended service agreements available for critical applications.

Installation & Commissioning Support
Technical assistance includes remote guidance for module installation, RSLogix 5 configuration review, and network diagnostics. On-site commissioning services available in select regions—contact our field service team for project-specific quotations.

Documentation & Resources
Each module ships with complete technical documentation package:

• Installation Quick Start Guide (multi-language)
• Wiring diagrams and backplane pinout specifications
• RSLogix 5 sample ladder logic for redundancy monitoring
• Troubleshooting flowcharts and LED status code reference
• Compliance certificates (UL, CE, RoHS)

Frequently Asked Questions (FAQ)

Q: How does the 1785-BCM backup communication module integrate with existing PLC-5 systems?
A: The 1785-BCM installs directly into any available slot within a 1785-series chassis alongside your primary communication module. It automatically synchronizes with the active module and monitors communication health. No ladder logic changes are required—simply configure the backup module address using RSLogix 5 software and enable redundancy mode in the processor configuration. The module supports ControlNet, DH+, and Remote I/O protocols natively.

Q: What is the maximum number of communication modules supported in a single PLC-5 chassis?
A: A standard 1785 chassis can accommodate up to two communication modules in redundant configuration (one primary + one backup). For applications requiring multiple network connections (e.g., simultaneous ControlNet and DH+ links), consult the chassis slot capacity and backplane current budget—typical configurations reserve 2-3 slots for communication and processor modules combined.

Q: What level of energy savings or efficiency improvement can be expected from implementing backup communication?
A: While the 1785-BCM itself does not directly reduce energy consumption, preventing unplanned downtime delivers substantial operational savings. Industry studies show that each hour of unplanned PLC communication failure costs $50,000-$500,000 depending on process type. By maintaining continuous operation, redundant communication systems typically achieve ROI within 6-18 months through avoided downtime costs, reduced emergency maintenance, and improved production yield.

Q: What are the environmental requirements for installing the 1785-BCM module?
A: The module operates reliably in ambient temperatures from 0°C to 60°C (32°F to 140°F) and tolerates 5-95% relative humidity (non-condensing). It carries UL Class I Division 2 certification for hazardous locations and meets IEC 60068-2-6 vibration standards (2G, 10-500 Hz). For harsh environments exceeding these specifications, consider NEMA 4X enclosures with climate control or consult our application engineers for ruggedized alternatives.

Q: Can the 1785-BCM support remote monitoring and data acquisition via modern protocols?
A: Yes—when paired with RSLinx Classic or FactoryTalk Linx gateway software, the module enables Ethernet/IP, Modbus TCP, and OPC UA connectivity to modern SCADA systems, cloud platforms, and IIoT analytics tools. Native protocols include ControlNet and DH+; protocol conversion occurs at the gateway layer. For direct Ethernet connectivity, consider upgrading to ControlLogix (1756 series) or CompactLogix platforms, which offer native Ethernet/IP with built-in redundancy features.

Q: Is the 1785-BCM compatible with third-party PLC-5 processors or only Allen-Bradley models?
A: The 1785-BCM is engineered exclusively for Allen-Bradley PLC-5 processor families (1785-L20/L40/L60/L80 series) and requires genuine Rockwell Automation backplane architecture. It is not compatible with third-party PLC-5 clones or emulators. For mixed-vendor environments, consider protocol gateways or migration to platform-agnostic control systems.

Request Technical Consultation & Custom Quotation

To receive a tailored redundancy solution for your PLC-5 system, please provide our automation specialists with the following project details:

• Project Name & Application: Facility type, process criticality level, and uptime requirements
• Current PLC-5 Configuration: Processor model (e.g., 1785-L60), chassis type, installed I/O modules
• Communication Network: Protocol type (ControlNet/DH+/Remote I/O), node count, cable infrastructure
• Redundancy Scope: Communication-only backup vs. full processor redundancy
• Site Conditions: Environmental factors, hazardous area classification, available panel space
• Timeline & Budget: Project schedule, capital expenditure approval status, preferred delivery terms

Our certified engineers will respond within 24 hours with a comprehensive proposal including bill of materials, configuration drawings, installation guidelines, and total cost of ownership analysis.
