Allen-Bradley 1785-LT-2A PLC-5/25 Processor Module | 16K Memory Industrial Automation Controller

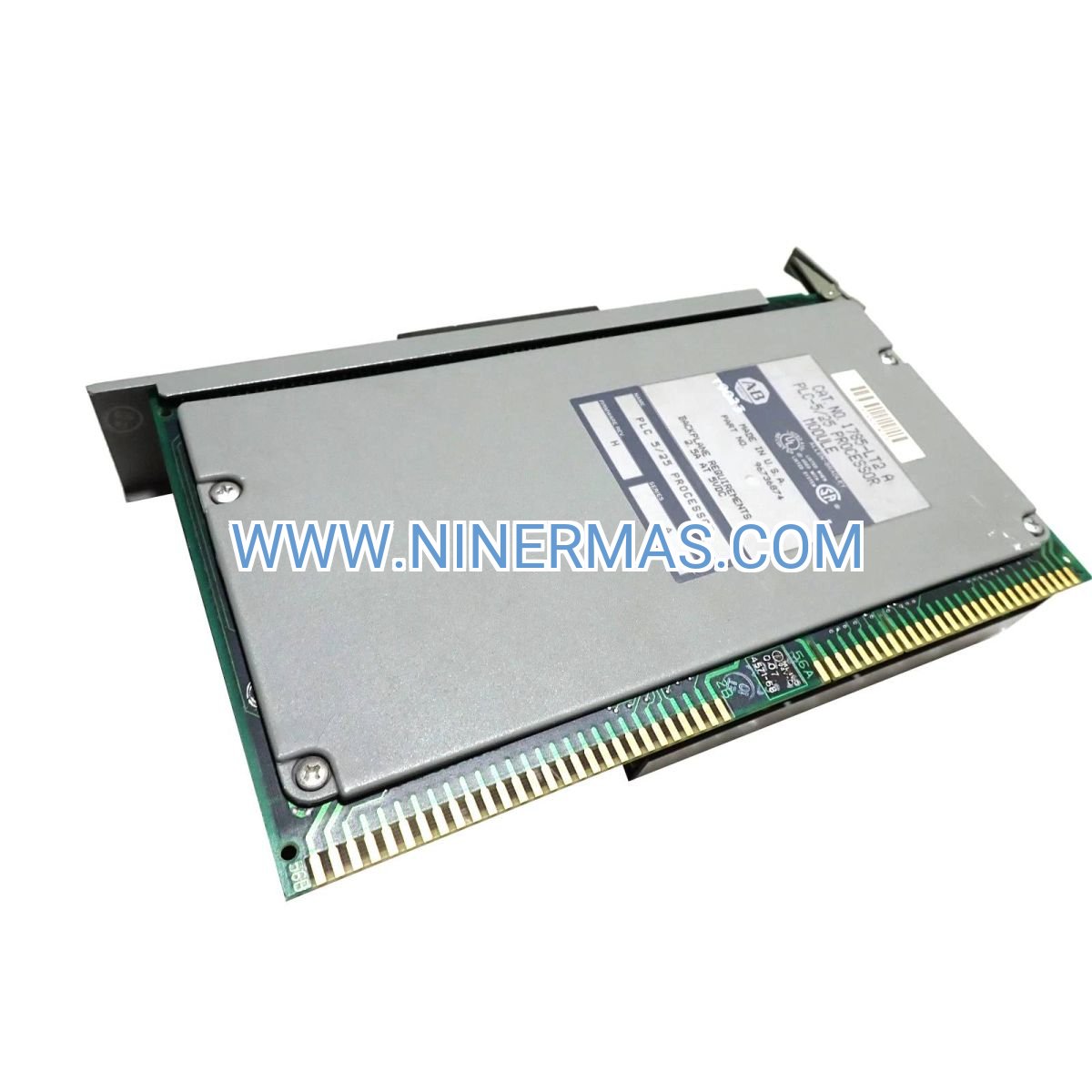

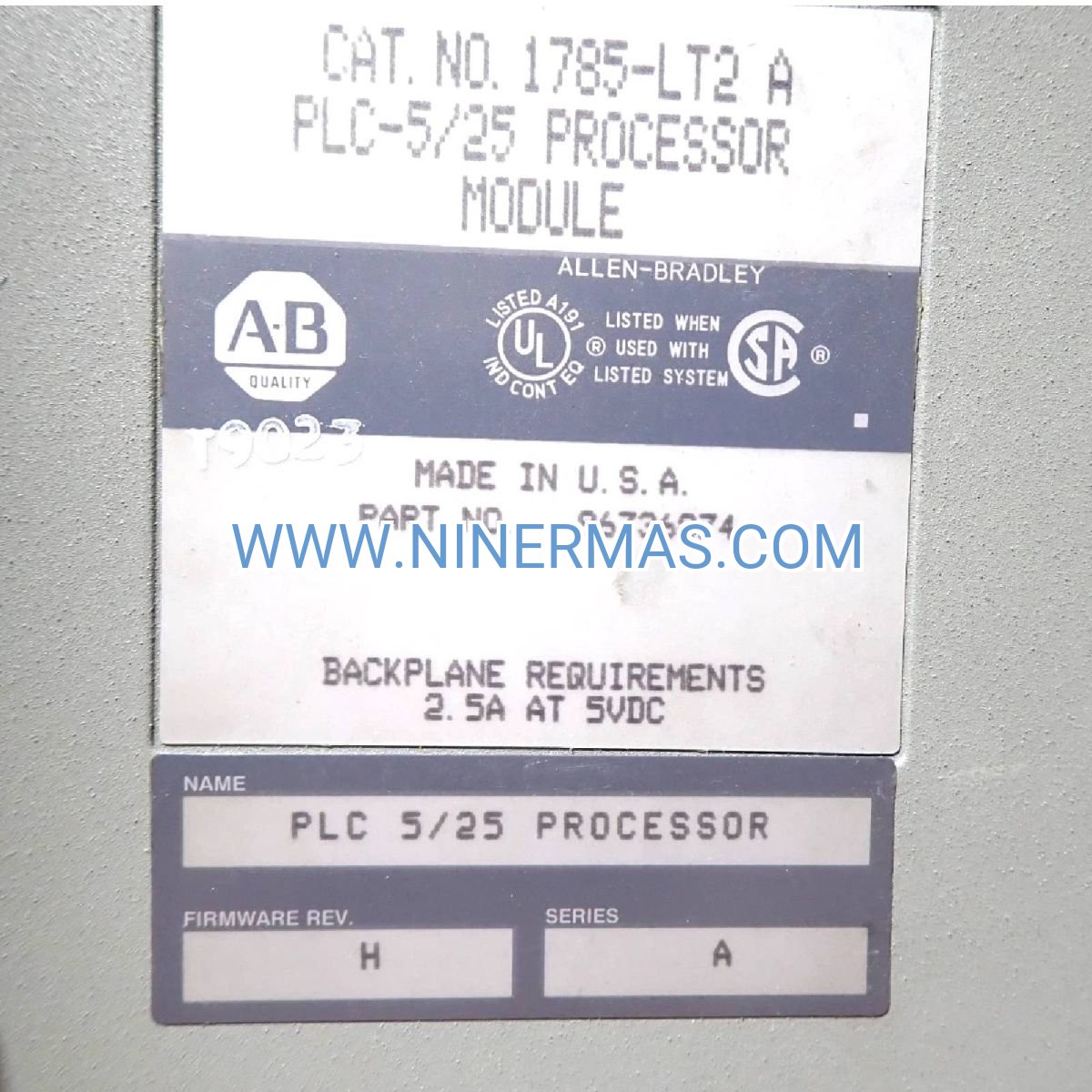

Allen-Bradley 1785-LT-2A PLC-5/25 Processor Module (Industrial-Grade Automation Controller)

The Allen-Bradley 1785-LT-2A PLC-5/25 Processor Module is a high-performance industrial programmable logic controller designed for complex automation and control applications. Featuring 16K words of user memory and advanced processing capabilities, this module delivers reliable execution of ladder logic, sequential function charts, and structured text programming for manufacturing, process control, and infrastructure systems.

Ideal for discrete manufacturing, batch processing, material handling, and SCADA integration, the 1785-LT-2A addresses challenges such as limited I/O expansion, slow scan times, incompatible legacy systems, and insufficient diagnostic feedback. It provides robust performance in demanding industrial environments where uptime and precision are critical.

With standardized architecture and flexible configuration options, this processor module offers multi-rack support, fast scan execution, comprehensive diagnostics, backward compatibility, and scalable I/O expansion—making it suitable for system integrators, plant engineers, OEM equipment builders, and maintenance teams. Contact our application engineers for customized system design, technical specifications, and quotation assistance.

Core Features & Advantages

• High-Speed Processing & Execution
  Equipped with optimized scan algorithms and 16K memory capacity, the module executes complex control logic with minimal latency, ensuring real-time response for time-critical automation tasks and reducing production bottlenecks.
• Flexible I/O Expansion & Multi-Rack Support
  Supports up to 3 local chassis and multiple remote I/O racks via ControlNet or Remote I/O networks, enabling scalable system architecture for plants with distributed control requirements and diverse field devices.
• Comprehensive Diagnostic & Fault Management
  Built-in self-diagnostics, battery backup monitoring, and fault logging capabilities provide immediate visibility into system health, reducing troubleshooting time and minimizing unplanned downtime in mission-critical applications.
• Backward Compatibility & Legacy Integration
  Fully compatible with existing PLC-5 family hardware and RSLogix 5 programming software, allowing seamless upgrades or replacements in brownfield projects without costly system redesigns or extensive reprogramming efforts.
• Robust Industrial-Grade Construction
  Designed to withstand harsh factory environments with wide operating temperature range, vibration resistance, and EMI/RFI immunity, ensuring stable operation in heavy industry, utilities, and outdoor installations.
• Intuitive Programming & Maintenance Interface
  Supports ladder logic, structured text, and function block programming via RSLogix 5 software, with online editing, force functions, and trend monitoring for efficient commissioning, troubleshooting, and operator training.

Typical Application Scenarios

This processor module is engineered for environments demanding high reliability, precise control, and long-term serviceability, including:

• Discrete Manufacturing & Assembly Lines
  Controls conveyor systems, robotic cells, pick-and-place units, and quality inspection stations in automotive, electronics, and consumer goods production, ensuring synchronized operation and minimal cycle time variance.
• Process Control & Batch Management
  Manages temperature, pressure, flow, and level control loops in chemical processing, food & beverage, pharmaceuticals, and water treatment facilities, supporting recipe-based production and regulatory compliance (FDA 21 CFR Part 11 compatible with appropriate configuration).
• Material Handling & Warehouse Automation
  Orchestrates sortation systems, automated storage/retrieval systems (AS/RS), and palletizing equipment in distribution centers and logistics hubs, optimizing throughput and inventory accuracy.
• Infrastructure & Utilities
  Operates pumping stations, HVAC systems, power distribution panels, and wastewater treatment plants, providing remote monitoring, alarm management, and energy optimization for municipal and industrial facilities.
• OEM Equipment & Machine Builders
  Embedded in packaging machines, printing presses, textile equipment, and CNC systems, offering standardized control platform with global support network and long product lifecycle for aftermarket service.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide key specifications for the 1785-LT-2A processor module. Custom configurations and system integration services are available based on project requirements.

Selection Recommendations: When specifying this module, consider total I/O count, required scan performance, network architecture (DH+, ControlNet, Ethernet/IP), environmental conditions, and integration with existing SCADA/HMI systems. For assistance, provide application details including process description, I/O list, communication requirements, and installation environment—our engineers will recommend optimal configuration and compatible components.

Extended Capabilities & Integration Options

• Network Connectivity: Supports DH-485, DH+, ControlNet, and Ethernet/IP (via communication adapters) for plant-wide data exchange and remote access
• Redundancy & High Availability: Compatible with redundant processor configurations for critical applications requiring failover protection
• Data Logging & Historian Integration: Interfaces with Rockwell FactoryTalk, OSIsoft PI, and third-party SCADA platforms for production analytics and compliance reporting
• Motion Control: Coordinates with servo drives and motion modules for synchronized multi-axis positioning and cam profiling
• Safety Integration: Works alongside GuardLogix safety controllers for integrated standard and safety control architecture

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days; custom-configured systems require 10-15 business days depending on scope and component availability.

Warranty: All modules include a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and service contracts available upon request.

Technical Support: Comprehensive support includes pre-sale application consulting, installation guidance, programming assistance, and post-sale troubleshooting via phone, email, and remote desktop (subject to regional availability).

Documentation Package: Each shipment includes product datasheet, installation manual, wiring diagrams, sample ladder logic programs, and quick-start guide in PDF format, facilitating rapid commissioning and knowledge transfer to maintenance personnel.

Quality Standards: Products are factory-tested, calibrated, and inspected per ISO 9001 quality management system. Traceability documentation and certificates of conformance available upon request for regulated industries.

Frequently Asked Questions (FAQ)

Q: How do I integrate the 1785-LT-2A PLC-5/25 processor module with my existing control system?
A: The module installs in slot 0 of a 1771 I/O chassis and communicates via RS-232 (DH-485) or optional network adapters. Confirm chassis compatibility, power supply capacity, and network protocol requirements. Our engineers can provide integration checklists and sample configurations based on your current architecture.

Q: What is the maximum I/O capacity supported by this processor?
A: The 1785-LT-2A supports up to 3,072 discrete I/O points or 512 analog channels across local and remote racks. Actual capacity depends on chassis configuration, communication modules, and scan time requirements.

Q: Can this processor achieve energy savings compared to relay-based control systems?
A: Yes. By enabling variable-speed drives, optimized sequencing, and demand-based operation, PLC-based control can reduce energy consumption by 15-30% in motor-driven applications such as pumps, fans, and compressors, depending on load profiles and system design.

Q: What environmental conditions are required for installation?
A: Operating temperature: 0-60°C; humidity: 5-95% non-condensing; enclosure rating: NEMA 12 or IP54 minimum recommended for industrial environments. Avoid direct exposure to corrosive gases, excessive vibration, or electromagnetic interference sources.

Q: Does this module support remote monitoring and data acquisition?
A: Yes. With appropriate communication adapters (e.g., 1785-KA Ethernet module), the processor can interface with SCADA systems, cloud platforms, and mobile HMI applications using Modbus TCP, EtherNet/IP, or OPC protocols for real-time monitoring and historical trending.

Q: Is the 1785-LT-2A compatible with newer ControlLogix or CompactLogix systems?
A: While the PLC-5 family uses different architecture, data exchange is possible via ControlNet, DH+, or Ethernet gateways. For new projects, migration to ControlLogix is recommended; for existing PLC-5 installations, the 1785-LT-2A provides cost-effective expansion and replacement.

Request Technical Support & Quotation

To receive detailed system design recommendations, pricing, or application-specific guidance, please provide the following information:

• Project name and application overview
• Total I/O count (discrete inputs/outputs, analog channels)
• Required scan time and control loop performance
• Communication network requirements (DH+, ControlNet, Ethernet/IP)
• Environmental conditions and enclosure specifications
• Integration with existing equipment (HMI, SCADA, drives)

Our application engineers will provide one-on-one consultation, recommend compatible components, and prepare a detailed quotation with lead times and delivery options.
