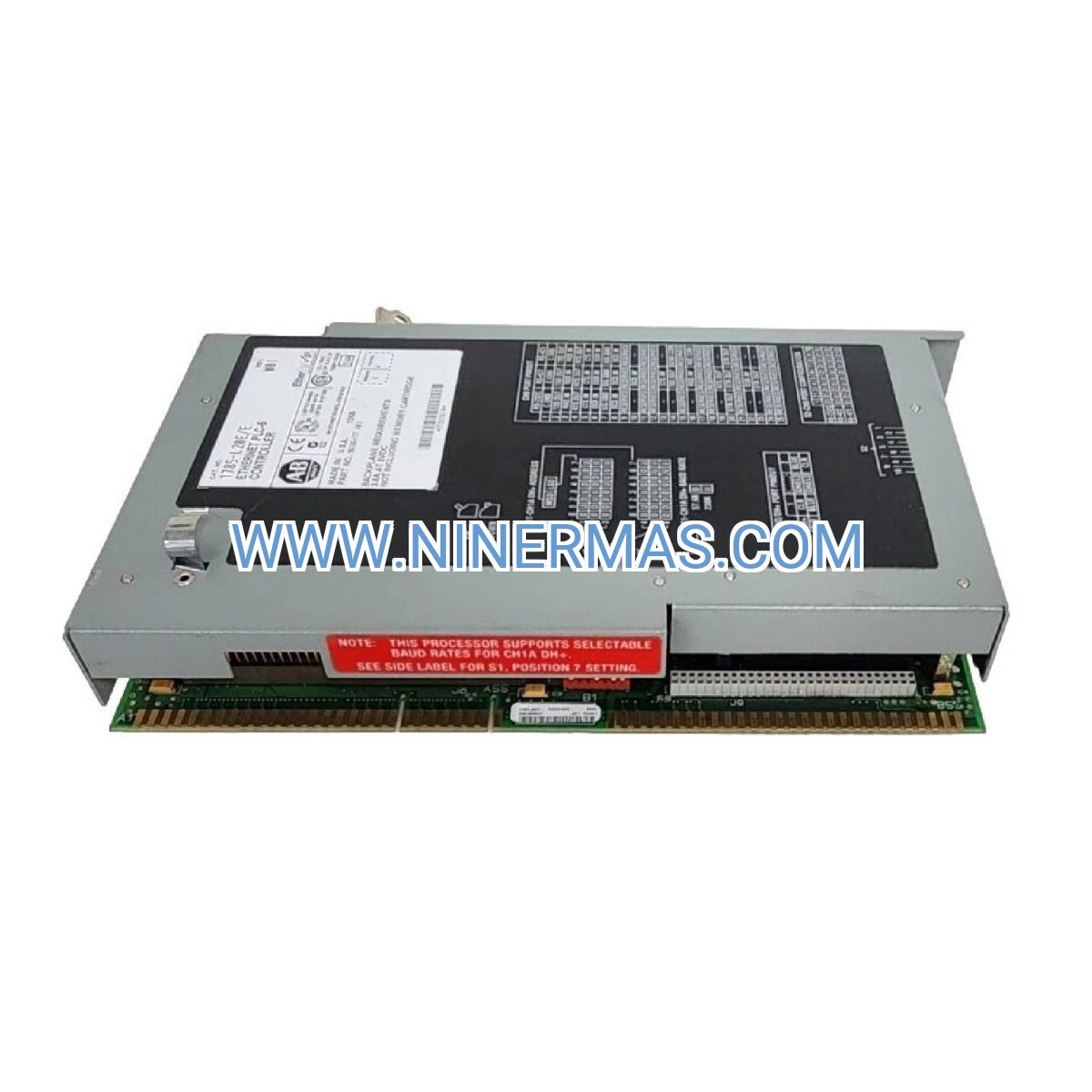

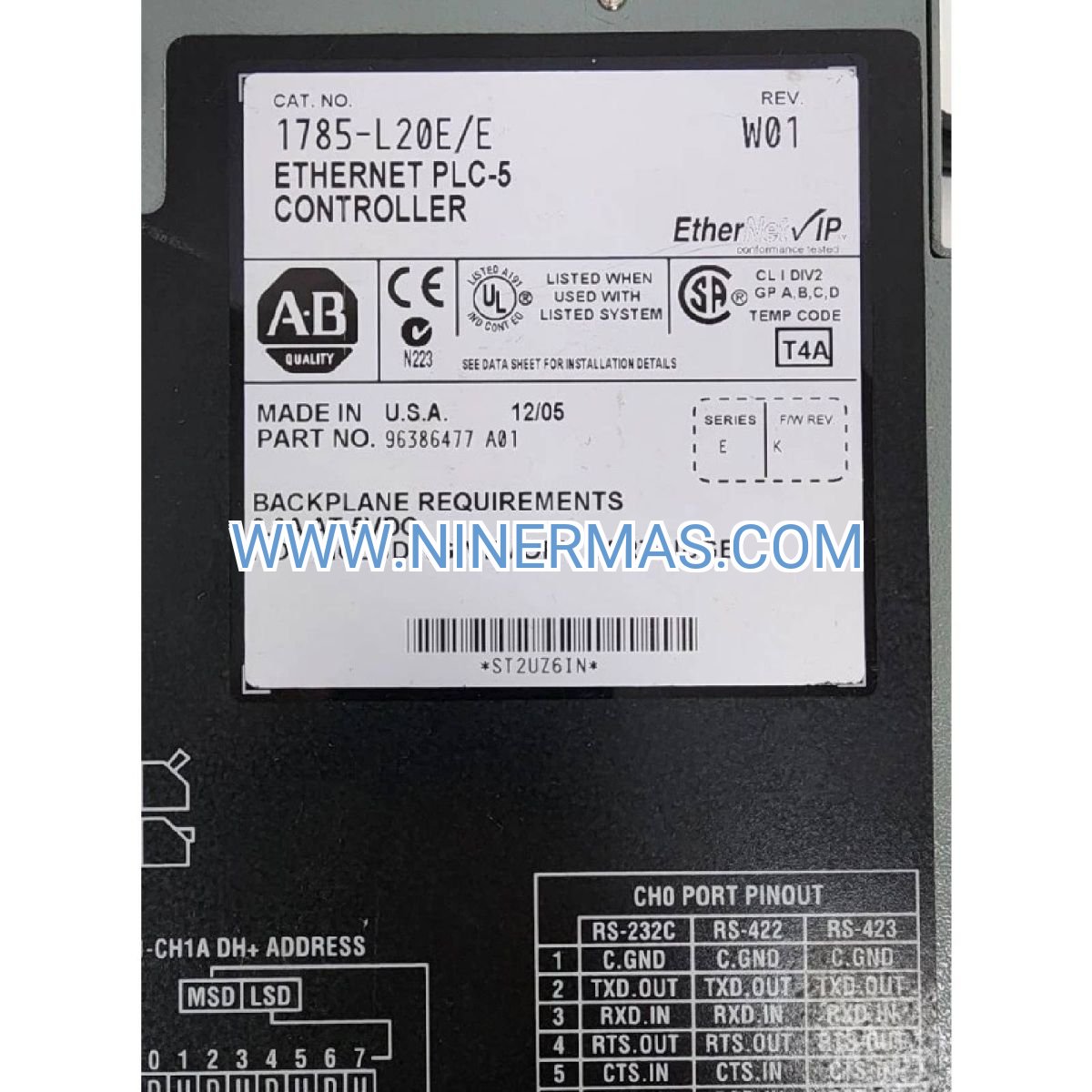

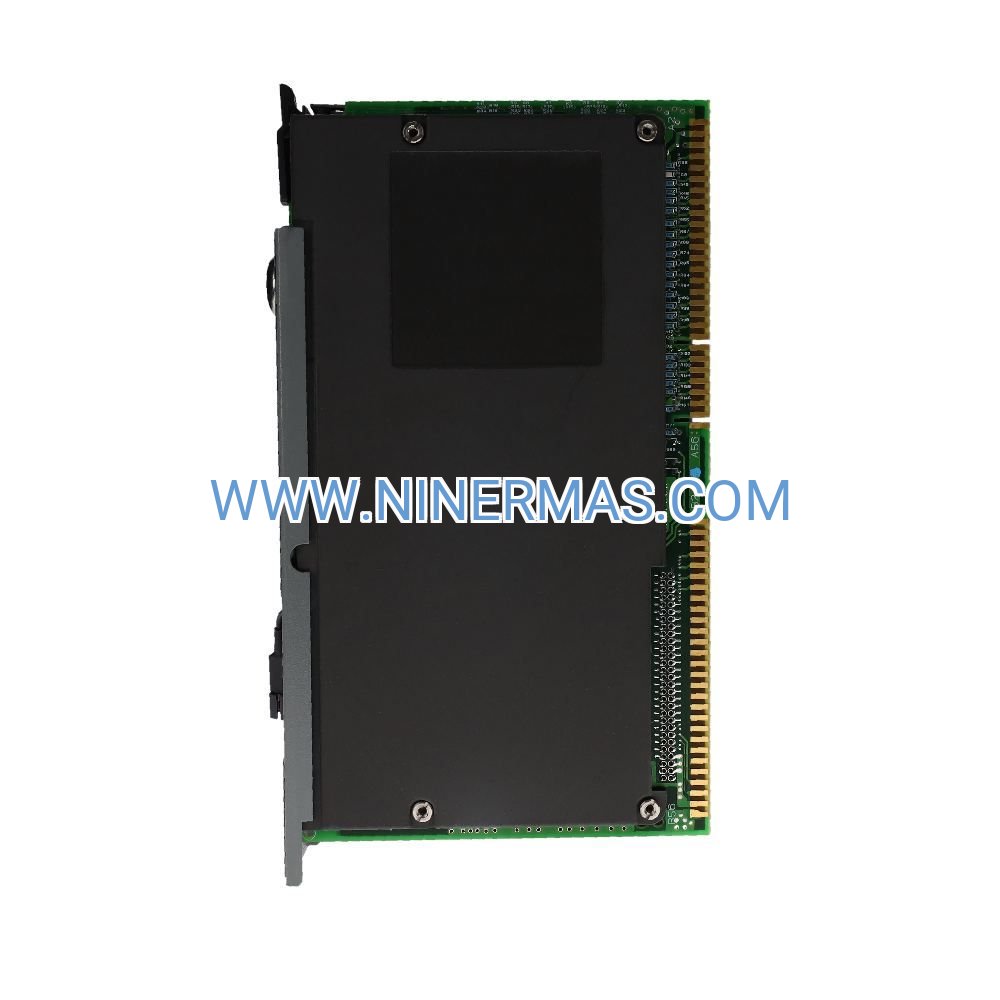

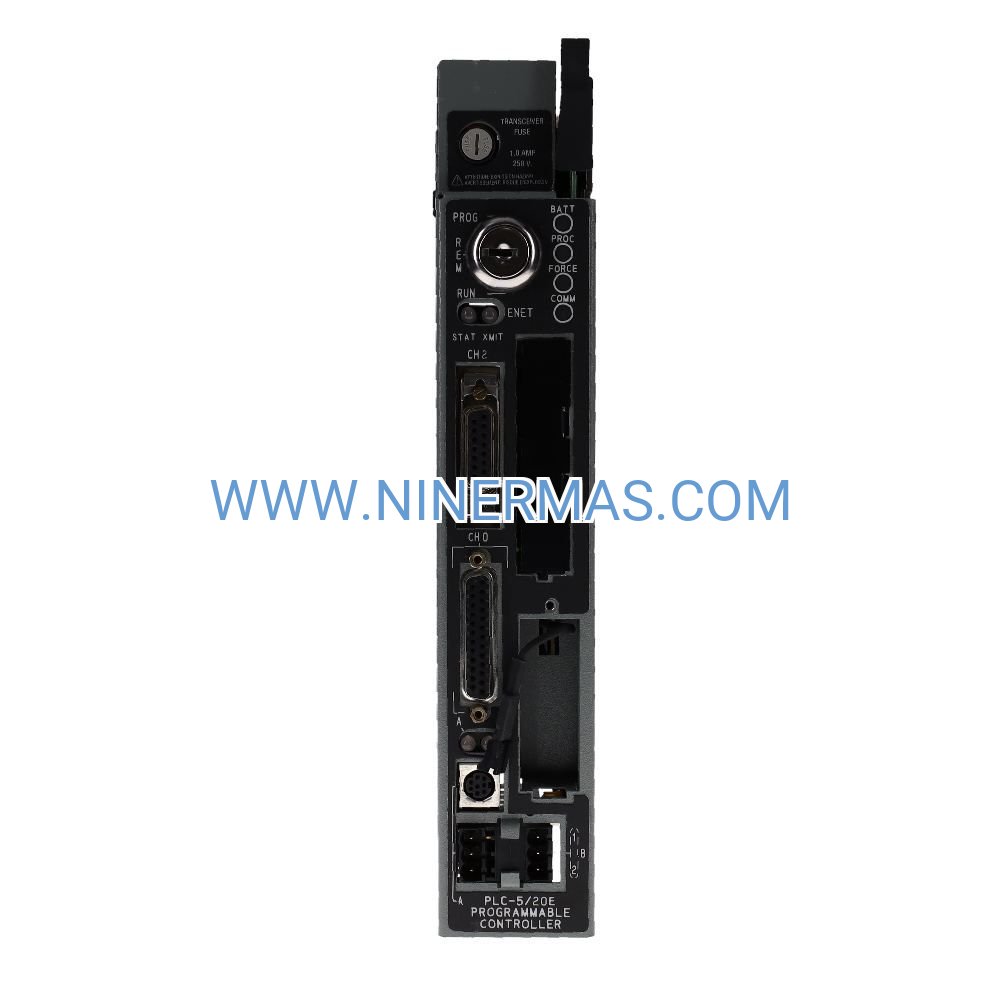

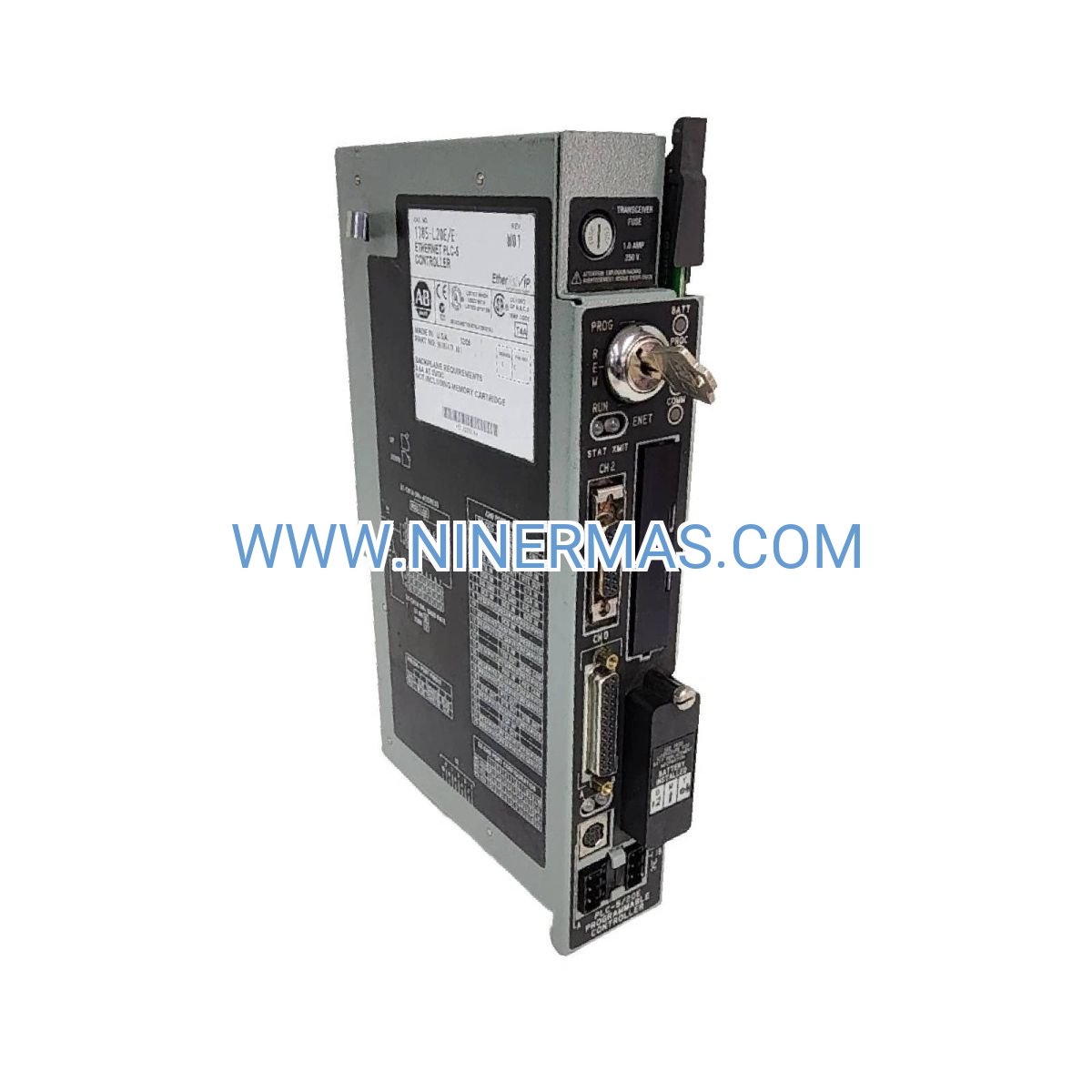

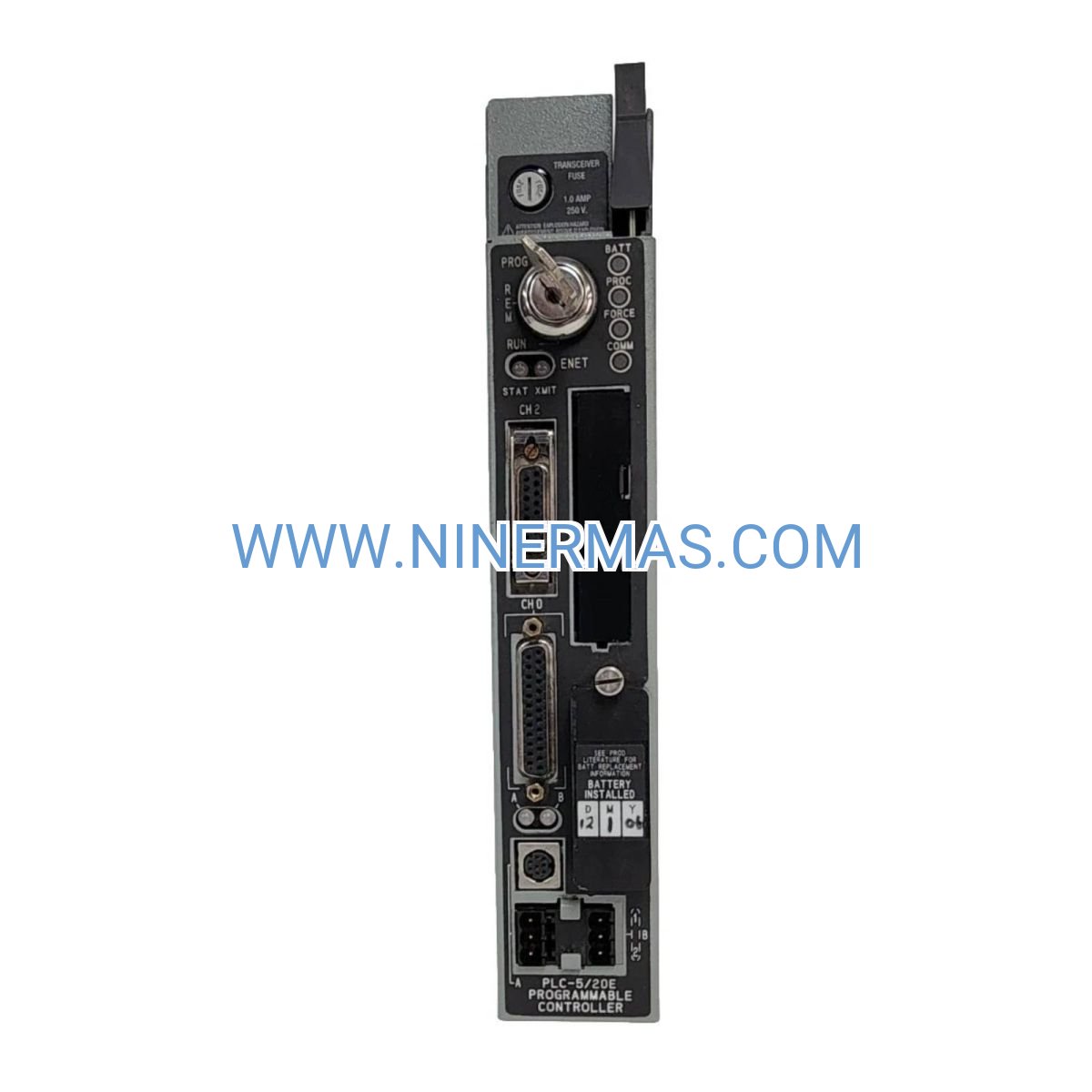

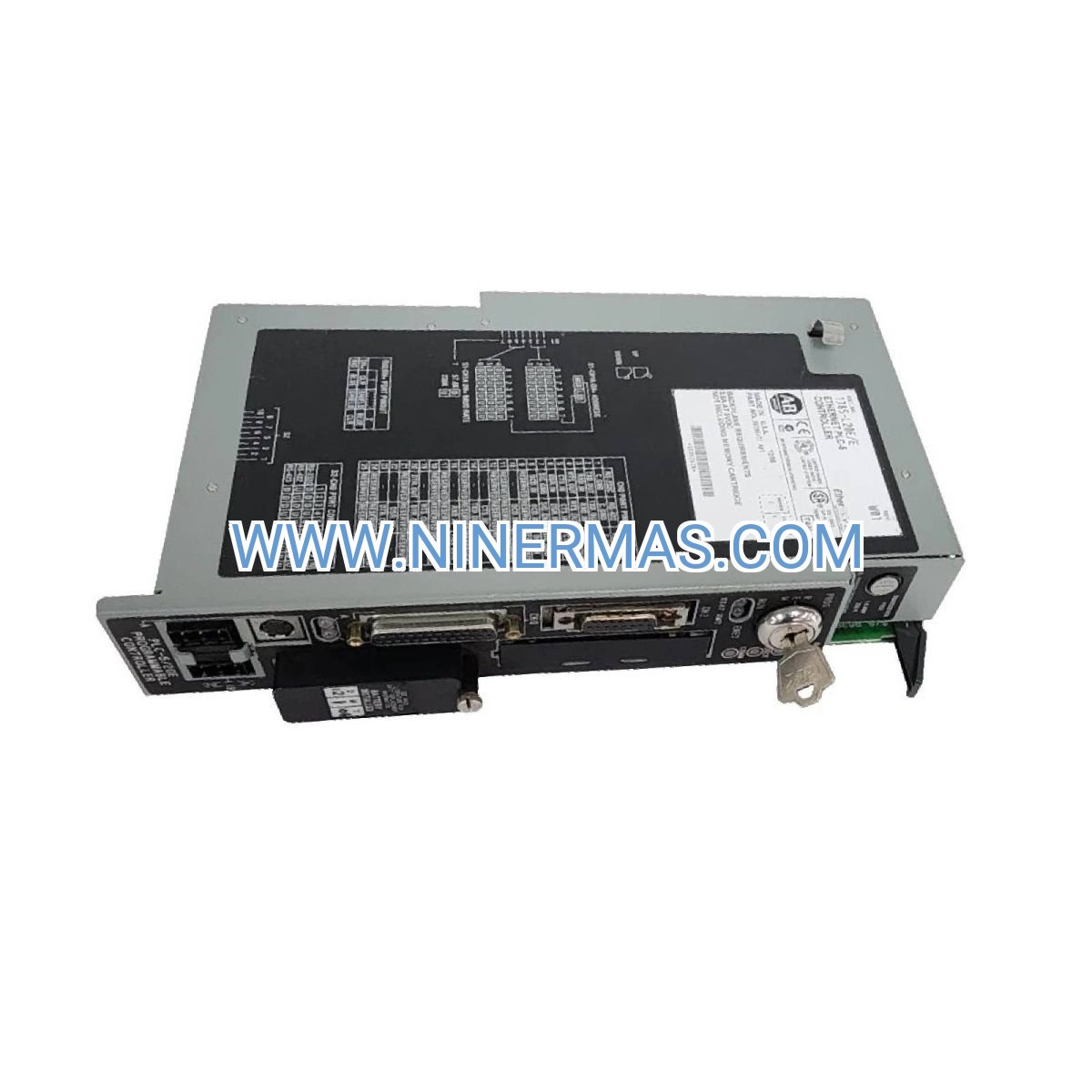

1785-L20E Ethernet-Enabled PLC-5 Controller (Industrial-Grade Automation Platform)

The 1785-L20E represents a proven industrial control solution combining legacy PLC-5 architecture with modern Ethernet/IP connectivity. Engineered for mission-critical applications across manufacturing, process industries, and infrastructure systems, this controller delivers deterministic performance with 20K words of user memory and dual-channel communication capabilities that bridge traditional DH+ networks with contemporary Ethernet-based automation ecosystems.

Designed for system integrators and plant engineers managing complex production environments, the 1785-L20E eliminates the need for costly gateway hardware while maintaining full backward compatibility with existing 1785-series I/O infrastructure. Whether you're modernizing a legacy installation or deploying new control architecture, this controller provides the reliability and connectivity demanded by 24/7 industrial operations.

With sub-millisecond scan performance and hot-swappable design, the 1785-L20E minimizes unplanned downtime while enabling seamless integration with SCADA platforms, MES systems, and enterprise-level data analytics tools through its native 10/100 Mbps Ethernet interface.

Core Capabilities & Technical Advantages

→ Native Ethernet/IP Communication
Built-in 10/100 Mbps Ethernet port eliminates external communication modules, reducing hardware costs by 30-40% compared to gateway-based solutions. Supports CIP (Common Industrial Protocol) for direct integration with FactoryTalk View, Ignition SCADA, and third-party HMI platforms. Enables real-time data publishing to cloud analytics and IIoT gateways without compromising control loop performance.

✓ Dual-Protocol Architecture
Simultaneous Ethernet/IP and DH+ (Data Highway Plus) operation allows gradual network migration strategies. Maintain existing peer-to-peer messaging with legacy PLC-5 processors while adding modern supervisory connectivity. Supports up to 64 nodes on DH+ at 230.4 Kbps and unlimited Ethernet devices through managed switch infrastructure.

✓ 20K User Memory with Expandable Data Tables
Accommodates complex ladder logic, structured text routines, and recipe-driven batch programs. Typical applications utilize 12-15K words, leaving headroom for future expansion. Memory retention via onboard lithium battery (5-year typical lifespan) ensures program integrity during power interruptions.

✓ Deterministic Scan Performance
0.9 ms per K of logic execution ensures predictable response times for high-speed packaging lines, motion control coordination, and safety-interlocked processes. Supports interrupt-driven I/O for sub-scan event handling in critical applications.

✓ Hot-Swap Serviceability
Field-replaceable design allows controller exchange without de-energizing chassis backplane or disrupting adjacent modules. Reduces MTTR (Mean Time To Repair) from hours to minutes during emergency maintenance scenarios.

✓ Industrial Environmental Ratings
Operates reliably in 0-60°C ambient temperatures with conformal coating protection against moisture, dust, and chemical exposure. Suitable for harsh environments including foundries, wastewater facilities, and outdoor enclosures with proper NEMA-rated housing.

Industry Applications & Use Cases

Discrete Manufacturing & Assembly
Coordinates multi-station assembly lines with up to 4096 discrete I/O points across distributed racks. Handles high-speed counting, product tracking, and quality gate logic while streaming production metrics to MES databases via Ethernet. Common in automotive component assembly, electronics manufacturing, and consumer goods packaging where cycle times demand sub-10ms I/O response.

Process Control & Batch Operations
Manages PID loops for temperature, pressure, and flow regulation in chemical processing, food & beverage production, and pharmaceutical manufacturing. Recipe management capabilities support multi-product facilities requiring frequent changeovers. Ethernet connectivity enables remote recipe downloads and batch reporting to ERP systems.

Water/Wastewater Treatment
Controls pump sequencing, chemical dosing, and filtration processes across distributed lift stations and treatment plants. Ethernet/IP communication facilitates SCADA integration for remote monitoring of flow rates, tank levels, and equipment status. Supports Modbus TCP for third-party instrumentation integration.

Material Handling & Logistics
Orchestrates conveyor networks, sortation systems, and automated storage/retrieval systems (AS/RS) in distribution centers and warehouses. High-speed I/O scanning tracks package positions while Ethernet communication coordinates with warehouse management systems (WMS) for routing decisions.

Building Automation & HVAC
Regulates chiller plants, air handling units, and energy management systems in commercial facilities. BACnet/IP gateway integration enables building management system (BMS) connectivity while maintaining direct control of critical equipment through hardwired I/O.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 1785-L20E when your application requires Ethernet connectivity with moderate memory demands (up to 20K words). For larger programs exceeding 18K words, consider the 1785-L40E (40K memory). If retrofitting existing PLC-5 systems without Ethernet, the 1785-ENET communication module provides equivalent connectivity while preserving your current processor investment.

Advanced Integration & Expansion Options

Network Architecture: Deploy in star, linear, or ring topologies using industrial Ethernet switches (Stratix series recommended). Supports VLAN segmentation for isolating control traffic from enterprise networks. IGMP snooping reduces multicast traffic overhead in large installations.

Redundancy Configurations: Pair with 1785-BCM battery backup modules for extended memory retention during prolonged outages. Hot-backup redundancy achievable through third-party redundancy processors (ControlLogix migration path recommended for new redundant applications).

Remote I/O Expansion: Supports 1794 FLEX I/O, 1797 FLEX Ex (hazardous location), and legacy 1771 I/O via adapter modules. Maximum cable distances: 10,000 feet (DH+), unlimited (Ethernet with proper infrastructure).

Protocol Gateways: Integrate Modbus RTU/TCP devices, Profibus networks, or DeviceNet segments through protocol converter modules. Ethernet/IP-to-OPC UA gateways enable Industry 4.0 data exchange with cloud platforms and edge analytics systems.

Delivery, Warranty & Technical Support

Lead Times: In-stock units ship within 1-2 business days via DHL/FedEx Express. Custom configurations (firmware versions, special testing) require 5-7 business days. Expedited same-day shipping available for critical downtime situations (additional fees apply).

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and communication malfunctions. Warranty includes advance replacement service—receive your replacement unit before returning the defective controller to minimize production interruptions.

Technical Assistance: Pre-sales application engineering support available to validate compatibility with existing systems. Post-purchase troubleshooting includes firmware upgrade guidance, network configuration assistance, and I/O mapping verification. Phone/email support during business hours (GMT+8), emergency support available for critical production issues.

Documentation Package: Each controller includes installation manual, wiring diagrams, RSLogix programming examples, and Ethernet/IP configuration templates. Firmware release notes and obsolescence roadmaps provided upon request.

Frequently Asked Questions

Can the 1785-L20E communicate with ControlLogix processors on the same Ethernet network?
Yes, through Ethernet/IP messaging (MSG instructions). The 1785-L20E can exchange data with ControlLogix (1756 series), CompactLogix (1769 series), and other Ethernet/IP-enabled devices using produced/consumed tags or explicit messaging. Configuration requires RSLinx Enterprise for tag mapping.

What is the maximum Ethernet cable distance between the controller and network switch?
Standard Cat5e/Cat6 Ethernet supports 100 meters (328 feet) per segment. Extend beyond this using industrial Ethernet switches as repeaters. For extreme distances, fiber optic media converters enable multi-kilometer runs while maintaining 100 Mbps throughput and electrical isolation.

Does this controller support secure communication protocols for cybersecurity compliance?
The 1785-L20E uses standard Ethernet/IP (unencrypted). Implement network-level security through managed switches with ACLs (Access Control Lists), VLAN isolation, and firewall rules. For encrypted communication, deploy a ControlLogix platform with CIP Security extensions or use VPN tunnels at the network infrastructure layer.

How do I migrate programs from an older 1785-L20 (non-Ethernet) to this 1785-L20E model?
Programs are directly transferable via RSLogix 5 software. Upload the existing program from the L20 using serial/DH+ connection, then download to the L20E via Ethernet or serial. Memory maps and I/O addressing remain identical—only communication configuration requires updates to enable Ethernet functionality.

What is the expected operational lifespan in continuous-duty applications?
Typical MTBF (Mean Time Between Failures) exceeds 100,000 hours (11+ years) under rated environmental conditions. Actual lifespan depends on ambient temperature, power quality, and vibration exposure. Capacitor aging is the primary long-term concern—plan for replacement at 15-20 year intervals in well-maintained installations.

Are firmware updates available, and how are they applied?
Firmware updates distributed via Rockwell Automation's Product Compatibility & Download Center (PCDC). Updates applied using RSLogix 5 software through Ethernet or serial connection. Always verify compatibility with existing I/O modules and communication adapters before upgrading—consult release notes for breaking changes.

Ready to Modernize Your Control System?

Contact our automation specialists for application-specific recommendations, compatibility verification with your existing infrastructure, or volume pricing for multi-unit projects. We provide detailed technical datasheets, AutoCAD panel layout drawings, and integration support to ensure successful deployment.

Request a quote today or speak with our engineering team to discuss your control system requirements.
