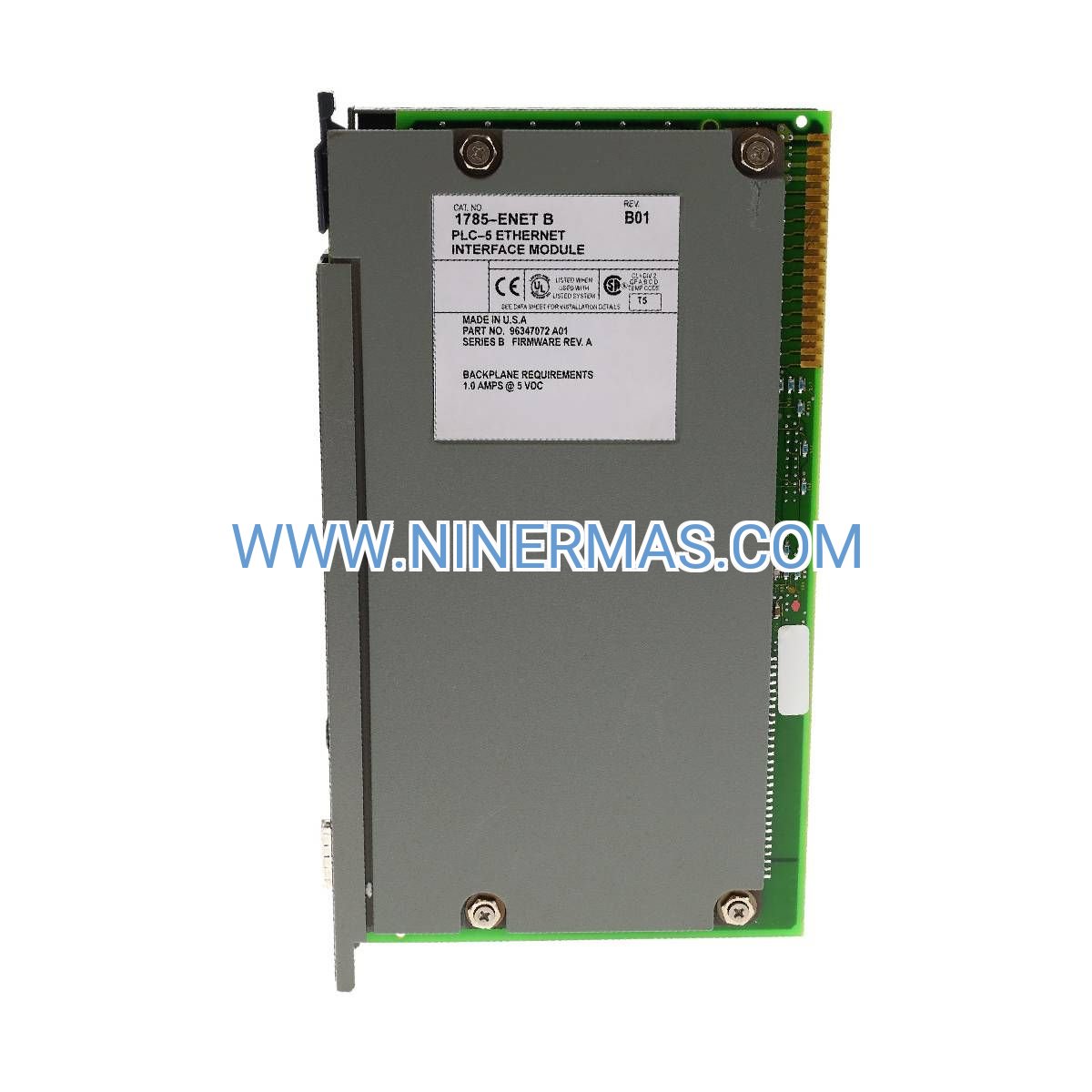

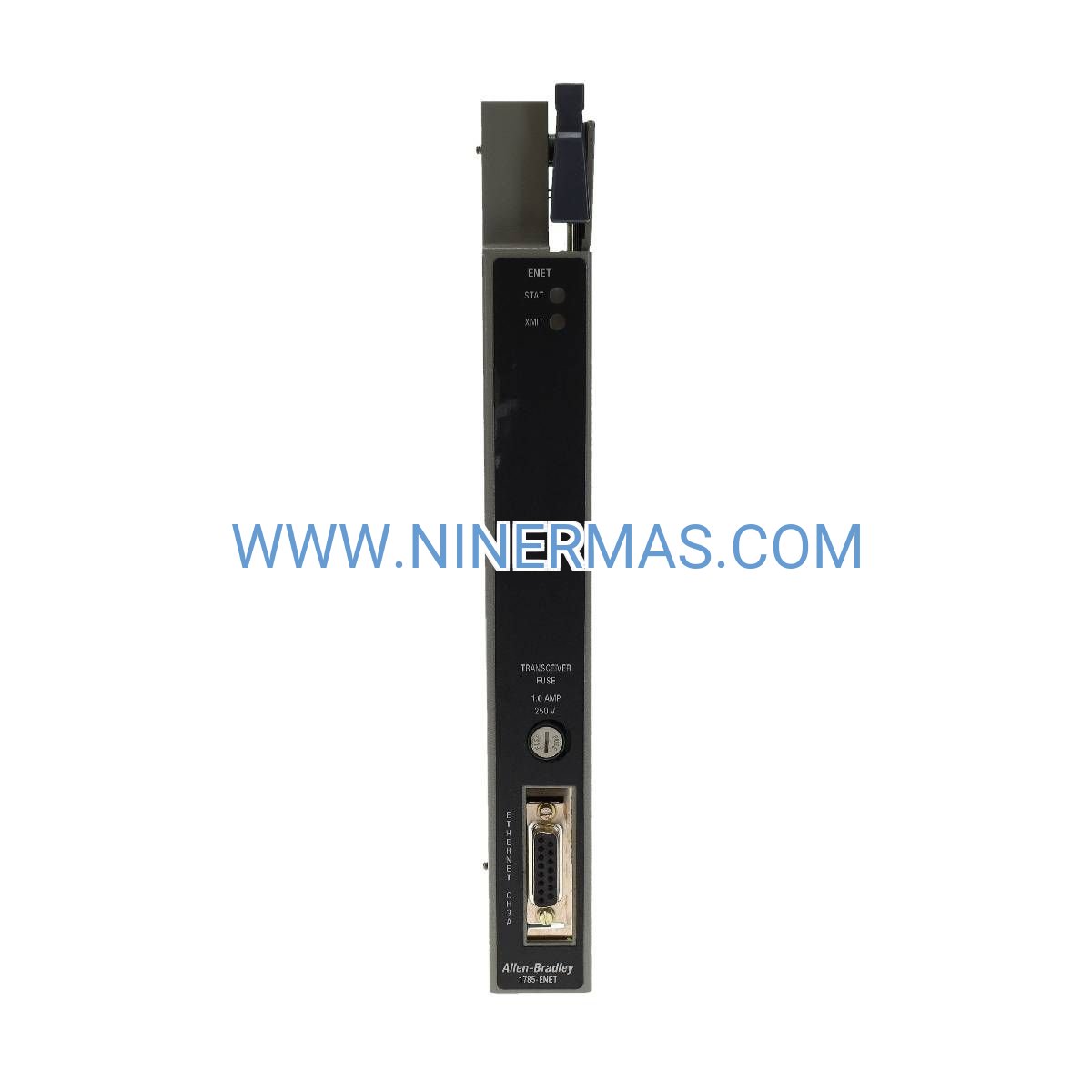

1785-ENET Industrial Ethernet Gateway (PLC-5 TCP/IP Communication Bridge)

The 1785-ENET serves as a mission-critical Ethernet gateway engineered to bridge legacy PLC-5 control architectures with modern TCP/IP networks. This industrial-grade communication module transforms isolated PLC-5 processors into networked automation nodes, enabling real-time data exchange across plant-wide SCADA systems, remote HMI terminals, and enterprise MES platforms. Designed for 24/7 operation in harsh manufacturing environments, the gateway delivers deterministic performance with sub-10ms latency for time-sensitive control applications.

Manufacturing facilities running PLC-5 infrastructure face a critical challenge: integrating decades-old control logic with contemporary Ethernet-based monitoring systems without costly controller replacements. The 1785-ENET solves this by providing native EtherNet/IP protocol support while maintaining full backward compatibility with existing 1785-series backplane architectures. System integrators gain immediate access to PLC-5 data registers through standard TCP/IP sockets, eliminating proprietary serial gateways and reducing network complexity by up to 60%.

With certified operation across automotive assembly lines, chemical batch processing, and power generation facilities, this gateway module represents the proven solution for extending PLC-5 system lifecycles while meeting modern Industry 4.0 connectivity requirements. Installation requires zero modifications to existing ladder logic—simply insert the module into an available chassis slot and configure IP parameters through RSLinx Classic or the embedded web server.

Core Capabilities & Technical Advantages

→ Multi-Session TCP/IP Architecture: Simultaneously manages 64 independent TCP/IP connections, allowing concurrent access from multiple HMI workstations, data historians, and mobile SCADA clients without session conflicts or bandwidth degradation.

→ Auto-Negotiating Dual-Speed Interface: Automatically detects and configures 10Mbps or 100Mbps Ethernet speeds based on switch capabilities, ensuring optimal throughput whether deployed on legacy 10BASE-T infrastructure or modern gigabit-backbone networks.

→ Protocol Versatility: Natively supports EtherNet/IP explicit messaging, TCP/IP socket communication, and UDP/IP broadcast packets—enabling integration with Rockwell Automation software suites, third-party SCADA platforms (Wonderware, Ignition, iFIX), and custom data acquisition applications.

✓ Industrial Hardening: Conformal-coated PCB withstands temperature extremes (0-60°C), electrical noise immunity per IEC 61000-4-4 standards, and continuous vibration exposure typical of heavy machinery installations.

✓ Flexible IP Configuration: Supports BOOTP, DHCP dynamic addressing, or static IP assignment—accommodating both IT-managed VLAN environments and standalone machine networks with fixed addressing schemes.

✓ Diagnostic LED Array: Real-time visual indicators for module status, network activity, and fault conditions accelerate troubleshooting during commissioning and reduce mean-time-to-repair during production incidents.

Industrial Application Scenarios

Centralized Production Monitoring: Automotive tier-1 suppliers deploy the 1785-ENET to aggregate data from 20+ PLC-5 controllers managing robotic welding cells, conveyor systems, and quality inspection stations. Plant managers access unified dashboards showing real-time OEE metrics, alarm histories, and predictive maintenance alerts—eliminating manual data collection rounds and reducing downtime by 35%.

Remote Engineering Access: Chemical processing facilities enable secure VPN tunnels to 1785-ENET modules, allowing control engineers to perform off-hours program modifications, recipe updates, and diagnostic data pulls without on-site visits. This capability cuts emergency service costs by 50% while maintaining strict cybersecurity protocols through firewall-protected Ethernet segments.

Historian Integration for Compliance: Pharmaceutical manufacturers stream batch process variables (temperature, pressure, flow rates) from PLC-5 controllers through the 1785-ENET to FDA 21 CFR Part 11-compliant data historians. Automated timestamped records eliminate manual logbook entries and provide audit-ready documentation for regulatory inspections.

Legacy Modernization Projects: Food & beverage plants retrofit 1990s-era PLC-5 packaging lines with Ethernet connectivity instead of $200K+ controller replacement projects. The 1785-ENET preserves proven control logic while enabling integration with new MES systems tracking production schedules, material traceability, and energy consumption analytics.

Multi-Vendor System Integration: Water treatment facilities use the gateway to connect Allen-Bradley PLC-5 pump controllers with Siemens HMI panels and Modbus-based flow meters—the EtherNet/IP to Modbus TCP bridging functionality consolidates disparate protocols onto a single Ethernet backbone.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 1785-ENET when your application requires direct PLC-5 processor communication over Ethernet. For distributed I/O networking, consider the 1794-AENT FlexI/O adapter. For ControlLogix systems, specify the 1756-ENBT or 1756-EN2T modules instead. Confirm your PLC-5 processor firmware supports EtherNet/IP messaging (minimum revision varies by processor model).

Advanced Integration Features

Embedded Web Server: Access module diagnostics, IP configuration, and connection status through any standard web browser—no proprietary software required for basic troubleshooting and network verification.

SNMP Monitoring Support: Integrate with enterprise network management systems (Nagios, PRTG, SolarWinds) to receive automated alerts for module faults, excessive retransmissions, or connection threshold violations.

Dual-Port Ethernet Option: When paired with managed industrial switches, create redundant network paths using Device Level Ring (DLR) or Parallel Redundancy Protocol (PRP) for zero-downtime failover in critical applications.

Custom Socket Programming: Developers can create proprietary data exchange applications using standard TCP/IP socket libraries (Python, C#, Java) to read/write PLC-5 data tables without RSLinx middleware dependencies.

Delivery Timeline & Support Services

Standard Lead Time: In-stock units ship within 24-48 hours via DHL/FedEx Express. Typical delivery to North America/Europe: 3-5 business days. Asia-Pacific: 5-7 business days.

Custom Configuration Services: Pre-programmed modules with customer-specific IP addresses, gateway settings, and firmware versions available with 5-7 day lead time (minimum order: 5 units).

Warranty Coverage: 12-month manufacturer defect warranty covering materials and workmanship. Extended 36-month coverage available for critical infrastructure applications.

Technical Support: Lifetime email/phone support for configuration assistance, network troubleshooting, and firmware update guidance. Remote diagnostic sessions available for complex integration challenges.

Documentation Package: Each module includes installation quick-start guide, IP configuration worksheet, RSLinx setup instructions, and EtherNet/IP object reference manual (PDF format).

Frequently Asked Questions

Q: Can the 1785-ENET interface with non-Rockwell SCADA systems like Siemens WinCC or Schneider Citect?
A: Yes—the module's TCP/IP socket interface allows third-party SCADA platforms to read/write PLC-5 data using standard Ethernet communication drivers. Most modern SCADA packages include native Allen-Bradley Ethernet drivers that communicate directly with the 1785-ENET without additional gateway hardware.

Q: What is the maximum cable distance between the 1785-ENET and the Ethernet switch?
A: Standard Ethernet specifications allow up to 100 meters (328 feet) of Cat5e/Cat6 cable between the module and switch. For longer distances, use fiber optic media converters or industrial Ethernet extenders rated for your environmental conditions.

Q: Does this module reduce PLC-5 scan time or affect control performance?
A: No—the 1785-ENET operates asynchronously from the PLC-5 processor scan cycle. Ethernet communication occurs during backplane idle time without impacting ladder logic execution speed. Typical installations show zero measurable increase in scan time.

Q: Can I use the 1785-ENET for safety-rated communication in SIL 2/3 applications?
A: The 1785-ENET is not certified for safety-critical communication per IEC 61508 standards. For safety I/O networking, use dedicated safety communication modules like the 1756-EN2F with GuardLogix processors. The 1785-ENET is appropriate for standard process control and monitoring applications.

Q: How do I secure the Ethernet connection against unauthorized access?
A: Implement network segmentation using managed switches with VLAN isolation, configure firewall rules to restrict IP address ranges, and enable port security features. The module supports password-protected web interface access. For high-security environments, deploy the module behind industrial firewalls with deep packet inspection capabilities.

Q: What firmware version should I specify for compatibility with RSLogix 5 version 8.0?
A: Firmware version 4.003 or later ensures full compatibility with RSLogix 5 v8.0 and newer. Check your current module firmware through RSLinx Classic or the web interface, then download updates via the ControlFLASH utility available from Rockwell Automation's support portal.

Get Started with PLC-5 Network Modernization

Transform your legacy PLC-5 infrastructure into a connected automation platform. Contact our technical sales team for application-specific configuration guidance, multi-unit pricing, and integration support. We provide pre-sale network architecture reviews to ensure optimal module placement and IP addressing schemes for your facility.

Request a Quote: Email your PLC-5 processor model numbers, required connection count, and network topology diagram for a customized solution proposal within 24 hours.
