Allen-Bradley 1785-BEM Service-Ready Spare Part for Industrial Maintenance

Allen-Bradley 1785-BEM Service-Ready Spare Part for Industrial Maintenance

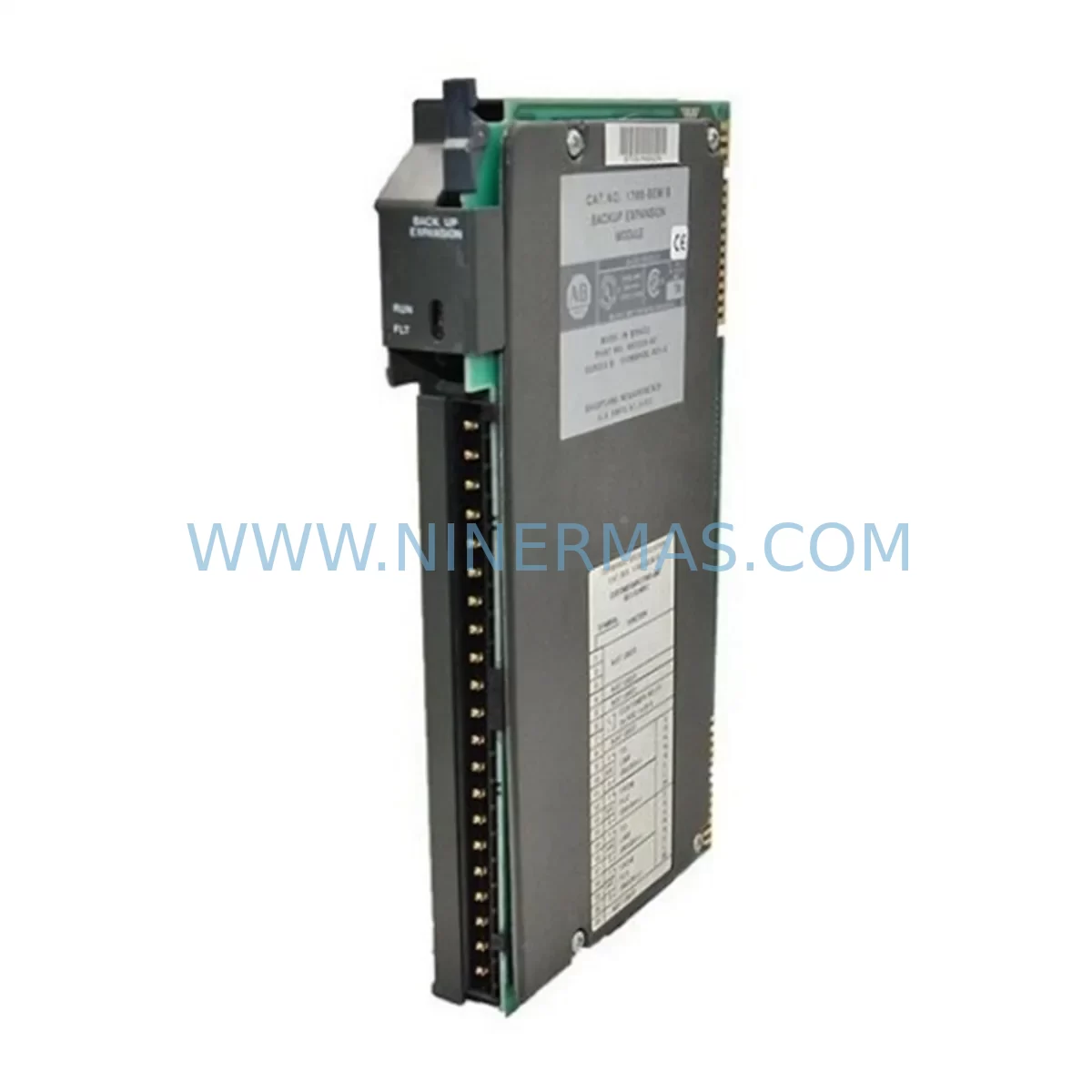

The Allen-Bradley 1785-BEM is a Bus Expansion Module designed for the PLC-5 programmable controller series, one of Rockwell Automation’s most widely deployed control platforms in heavy industry, automotive manufacturing, oil & gas processing, and utilities. As legacy PLC-5 systems continue to operate well beyond their original design life, maintaining a reliable inventory of service-ready spare parts such as the 1785-BEM is essential for any maintenance team responsible for continuous production uptime.

At NINERMAS, every 1785-BEM unit is sourced, inspected, and dispatched with full traceability. Our supply chain focuses on original components — not refurbished or counterfeit substitutes — ensuring that your replacement module integrates seamlessly into your existing PLC-5 rack architecture without configuration conflicts or compatibility risks. Each unit ships with a 12-month warranty and undergoes pre-shipment functional verification.

For maintenance engineers managing aging control infrastructure, the 1785-BEM represents a critical link between the PLC-5 processor and remote I/O chassis. A failure in this module can isolate entire I/O segments, triggering unplanned shutdowns across production lines. Stocking at least one spare 1785-BEM per control cabinet cluster is a widely recommended practice in industrial maintenance planning.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 1785-BEM in a PLC-5 system, a thorough site inspection of the surrounding control architecture is strongly recommended. The Bus Expansion Module does not operate in isolation — its performance depends on the integrity of the entire communication chain and power distribution network within the control cabinet.

Begin by verifying the condition of the 1785-L40B or 1785-L80B PLC-5 processor module, as a degraded processor can cause intermittent BEM faults that are often misdiagnosed as module failures. Simultaneously, inspect the 1771-P4S or 1771-P7 power supply modules that feed the I/O chassis; insufficient or unstable DC bus voltage is a leading cause of premature BEM failure in high-cycle environments.

Check all 1771-ASB Remote I/O Adapter modules connected downstream of the 1785-BEM. These adapters translate the RIO bus signal to local I/O racks, and a failing ASB can generate false BEM fault codes. Inspect the 1771-IFM and 1771-OFM field I/O modules for signs of overheating, loose terminal connections, or insulation breakdown — particularly in environments with high ambient temperature or vibration.

Review the 1785-KA5 or 1785-KE communication interface modules if the PLC-5 system is integrated into a DH+ or Ethernet/IP network. Communication module degradation can cause cascading faults that appear as BEM errors in the diagnostic log. For systems using 1756-DHRIO or 1756-RIO bridge modules to interface legacy PLC-5 racks with ControlLogix platforms, verify bridge firmware compatibility after any BEM replacement.

Do not overlook the 1492-J terminal blocks and 1492-CABLE wiring harnesses connecting the I/O chassis to field devices. Corroded or loose terminations introduce signal noise that can destabilize the RIO bus. Finally, inspect any MTL or P+F signal isolators in the analog signal loops — degraded isolation can introduce ground loops that affect bus communication integrity.

A complete spare parts kit for a PLC-5 control cabinet should include the 1785-BEM alongside a processor backup, at least one power supply module, one ASB adapter, and a set of critical I/O modules matched to your process requirements. This approach minimizes mean time to repair (MTTR) and supports a proactive maintenance strategy rather than a reactive one.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the existing 1785-BEM, document the current rack configuration using RSLogix 5 or PLC-5 programming software. Record all I/O map assignments, RIO scanner settings, and node addresses. This documentation is critical for restoring communication after module swap.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the I/O chassis power supply before removing the BEM. Do not hot-swap the 1785-BEM — this module requires a controlled power-down sequence to avoid backplane damage.

Step 3 — Physical Replacement: Remove the faulty module by releasing the top and bottom locking tabs. Insert the new 1785-BEM, ensuring the backplane connector is fully seated. Secure the locking tabs and verify the module is flush with the chassis face.

Step 4 — Configuration Restore: Power up the chassis and verify that the BEM’s status LEDs indicate normal operation (RUN green, FAULT off). Re-download the processor program if required. Confirm all remote I/O nodes are communicating correctly via the RSLogix 5 I/O tree.

Step 5 — System Validation: Run a full I/O scan and verify all field devices respond correctly. Check the PLC-5 fault table for any residual errors. Document the replacement in your maintenance management system (CMMS) with the new module’s serial number and installation date.

This workflow supports a typical replacement time of under 60 minutes for experienced maintenance technicians, minimizing production downtime and ensuring system compatibility is maintained throughout the process.

Spare Parts Support FAQ

Q1: Is the 1785-BEM compatible with all PLC-5 processor variants?
The 1785-BEM is designed for use with the Allen-Bradley PLC-5 family, including the PLC-5/10, 5/12, 5/15, 5/20, 5/25, 5/30, 5/40, 5/60, and 5/80 processors. Compatibility depends on the chassis type and RIO bus configuration. We recommend confirming your specific rack model and firmware revision before ordering. Our technical team can assist with compatibility verification at no charge.

Q2: What does the 12-month warranty cover, and how is it enforced?
Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested before shipment and ships with a test report. In the event of a warranty claim, we provide a replacement unit or full refund within the warranty period. Warranty is voided only by physical damage caused by improper installation, overvoltage, or unauthorized modification.

Q3: How do you manage long-term supply for discontinued Allen-Bradley PLC-5 components?
NINERMAS maintains a dedicated inventory of legacy Rockwell Automation components, including the PLC-5 series, sourced through authorized distribution channels and verified OEM stock. We actively monitor market availability and pre-purchase buffer stock for high-demand SKUs such as the 1785-BEM to ensure continuity of supply for customers managing long-lifecycle industrial systems.

Q4: Can I order multiple units for annual maintenance stock, and do you offer volume pricing?
Yes. We support bulk procurement for annual maintenance budgets and planned shutdown kits. Volume pricing is available for orders of 3 units or more. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to discuss your inventory requirements and lead time expectations.
