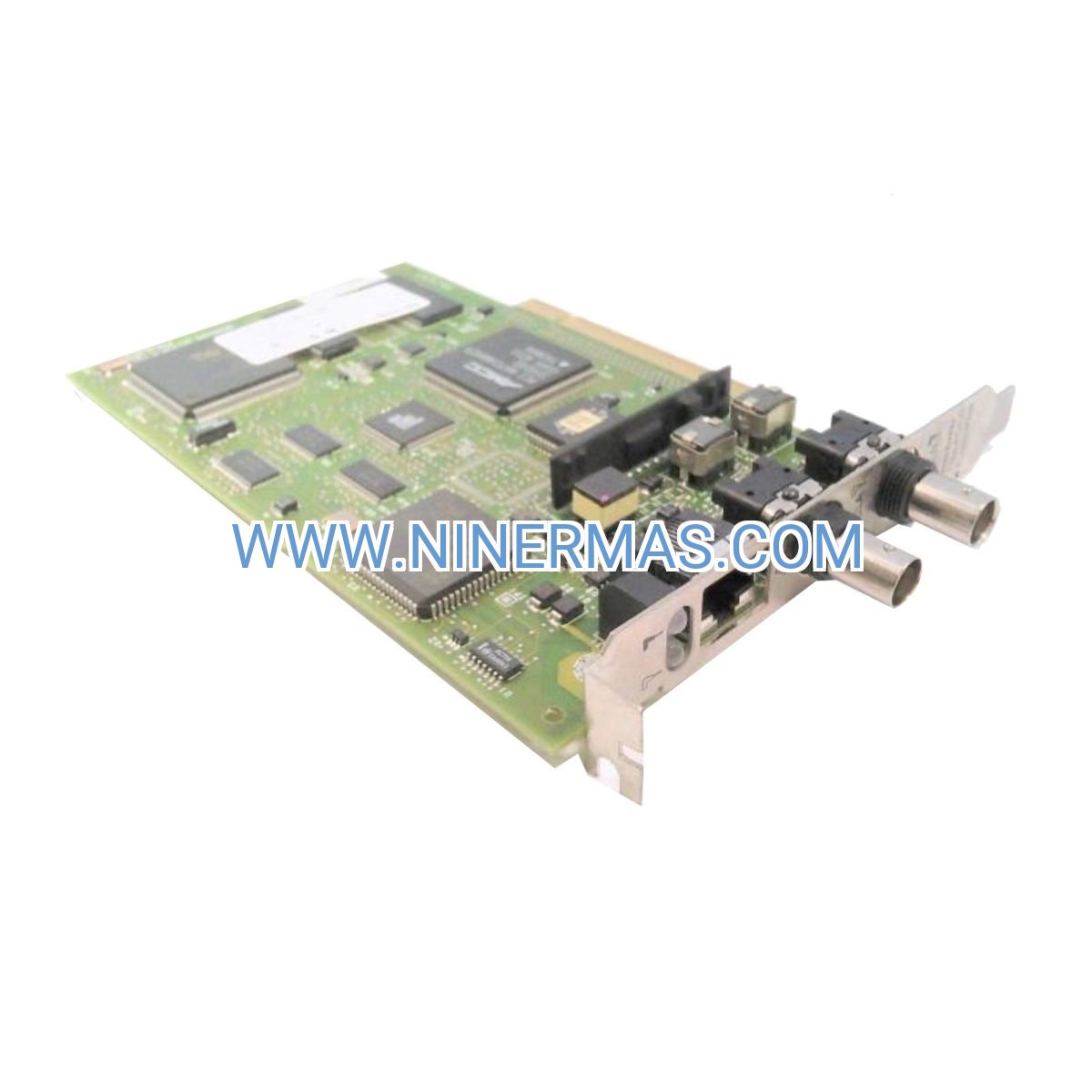

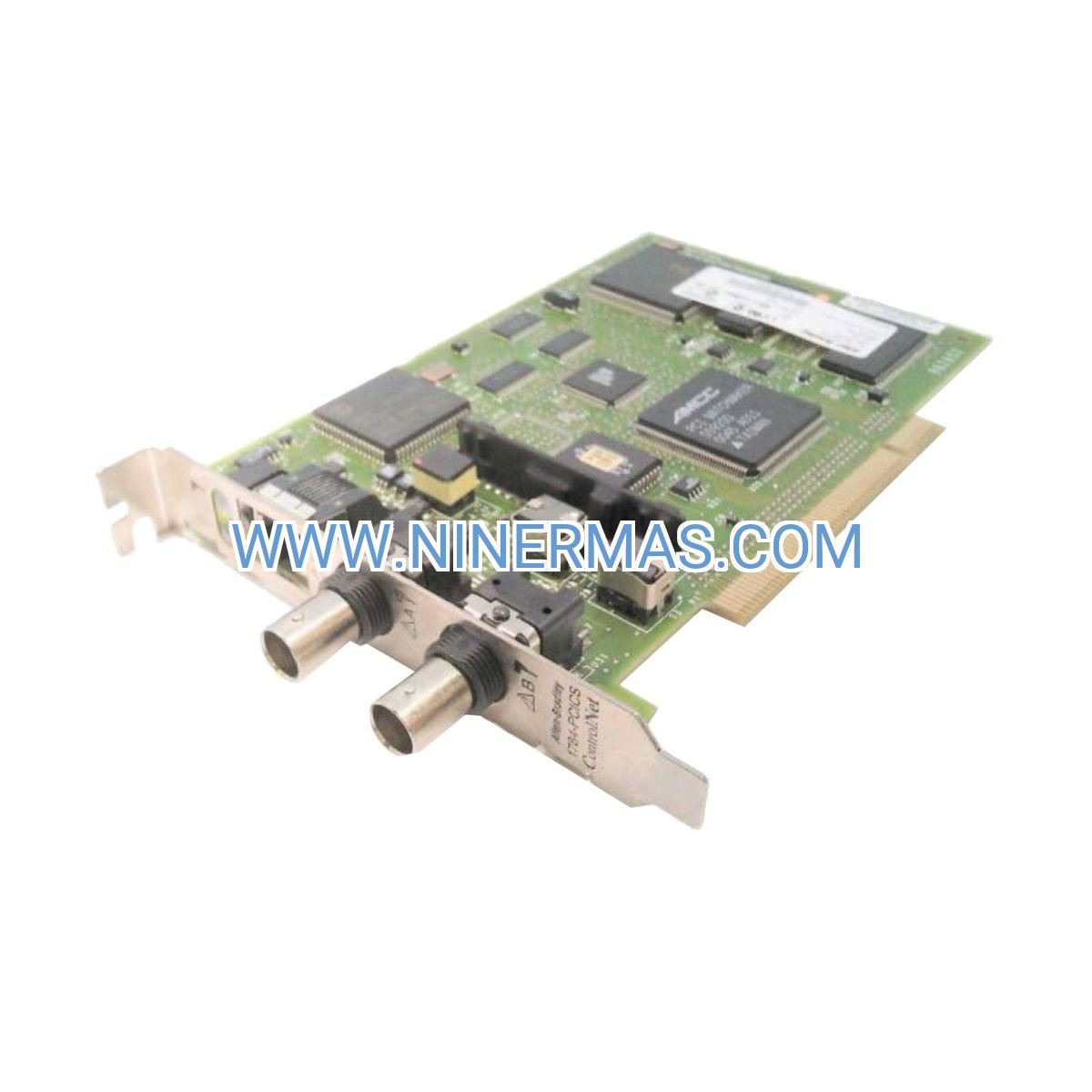

1784-PCICS ControlNet PCI Interface Card – Industrial-Grade Real-Time Communication Solution

The 1784-PCICS ControlNet PCI Interface Card is a high-performance industrial communication module designed for seamless integration into PC-based control systems. Leveraging deterministic ControlNet protocol and 5Mbps data transmission, this card enables real-time data exchange, precise synchronization, and reliable network diagnostics across distributed automation architectures.

Ideal for manufacturing execution systems (MES), supervisory control and data acquisition (SCADA), and industrial IoT gateways, the 1784-PCICS addresses critical challenges including network latency, protocol incompatibility, data integrity loss, and limited remote monitoring capabilities in mission-critical environments.

Through standardized PCI form factor and comprehensive driver support, this interface card delivers plug-and-play installation, multi-vendor interoperability, and long-term serviceability—making it the preferred choice for system integrators, OEM equipment manufacturers, and plant automation engineers. Contact our technical team for customized configuration assistance and competitive quotations.

Core Features & Technical Advantages

Deterministic Real-Time Communication
Utilizes time-division multiple access (TDMA) scheduling to guarantee predictable message delivery within 5ms cycles, eliminating data collisions and ensuring synchronized motion control, process regulation, and safety interlocking across up to 99 network nodes.

Seamless ControlLogix & CompactLogix Integration
Native compatibility with Rockwell Automation programmable logic controllers (PLCs) via RSLinx Classic and FactoryTalk software suites, enabling direct tag-based data mapping, online programming, and firmware updates without additional protocol converters.

Enhanced Network Diagnostics & Fault Isolation
Built-in network health monitoring with LED status indicators and software-based diagnostic tools to identify cable faults, node failures, and bandwidth saturation in real time, reducing mean time to repair (MTTR) by up to 40%.

Robust Industrial-Grade Construction
Conformal-coated PCB with extended temperature tolerance (-40°C to +70°C), vibration resistance per IEC 60068-2-6, and electromagnetic compatibility (EMC) compliance to EN 61000-6-2/4 standards, ensuring reliable operation in harsh factory floors, utility substations, and offshore platforms.

Flexible System Architecture Support
Supports both standalone PC workstations and rack-mounted industrial computers, with driver compatibility across Windows 7/10/11 and Windows Server editions, facilitating integration into legacy systems and modern virtualized environments.

Scalable Network Topology
Accommodates linear, star, and redundant ring topologies with hot-swappable media modules, allowing network expansion from single-segment installations to multi-drop configurations spanning 1,000+ meters without performance degradation.

Typical Application Scenarios

This interface card is engineered for environments demanding high reliability, deterministic performance, and centralized data aggregation:

Manufacturing Execution Systems (MES) & SCADA Integration
Connects plant-floor controllers to supervisory HMI workstations and enterprise resource planning (ERP) databases, enabling real-time production tracking, quality assurance data logging, and automated reporting for automotive assembly lines, pharmaceutical packaging, and food processing facilities.

Distributed Motion Control & Robotics
Synchronizes multi-axis servo drives, robotic manipulators, and conveyor systems with sub-millisecond precision, critical for pick-and-place operations, CNC machining centers, and automated guided vehicle (AGV) fleets in warehousing and logistics.

Process Automation & Batch Control
Facilitates coordinated control of pumps, valves, and analyzers in chemical reactors, water treatment plants, and oil & gas refineries, where recipe management, alarm prioritization, and regulatory compliance (21 CFR Part 11, ISA-88) are mandatory.

Energy Management & Utility SCADA
Aggregates data from remote terminal units (RTUs), intelligent electronic devices (IEDs), and substation automation controllers in power generation, transmission, and distribution networks, supporting load balancing, fault detection, and demand response programs.

Building Automation & HVAC Control
Integrates with BACnet/IP gateways and Modbus TCP devices to manage chiller plants, air handling units, and lighting systems in commercial buildings, data centers, and hospitals, optimizing energy consumption while maintaining occupant comfort.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, please review the following parameters:

Network Protocol: ControlNet (deterministic TDMA)
Data Rate: 5 Mbps
Maximum Nodes: 99 per network segment
Bus Interface: PCI 2.2 (32-bit, 33 MHz)
Operating Voltage: +5V DC (supplied via PCI bus)
Power Consumption: Typical 3.5W, Maximum 5W
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Relative Humidity: 5% to 95% non-condensing
Shock Resistance: 30g operational, 50g non-operational (IEC 60068-2-27)
Vibration Resistance: 5g @ 10-500 Hz (IEC 60068-2-6)
EMC Compliance: EN 61000-6-2 (Immunity), EN 61000-6-4 (Emissions)
Safety Certifications: UL 508, CE, C-Tick
Connector Type: BNC coaxial (ControlNet trunk/drop)
Dimensions (L×W): 175 mm × 107 mm (6.89" × 4.21")
Weight: Approximately 150g (0.33 lbs)
Driver Support: Windows 7/8/10/11, Windows Server 2012/2016/2019/2022
Configuration Software: RSLinx Classic, RSNetWorx for ControlNet

Selection Recommendations:
When specifying the 1784-PCICS, consider the following factors: total number of network nodes, maximum cable distance, required update rate (NUT - Network Update Time), host PC form factor (desktop vs. industrial chassis), operating system version, and integration with existing Rockwell Automation or third-party devices. For complex installations involving redundant networks, fiber-optic media, or safety-rated communication, consult our application engineers to validate system architecture and ensure compliance with industry standards (IEC 61158, IEC 61784).

Advanced Capabilities & Customization Options

Redundant Network Support: Pair with secondary 1784-PCICS card for fault-tolerant configurations with automatic failover
Fiber-Optic Extension: Compatible with 1786-RPA/RPB repeaters for long-distance links up to 3,000 meters
Third-Party Device Integration: Supports generic ControlNet I/O adapters, variable frequency drives (VFDs), and smart instruments via EDS (Electronic Data Sheet) files
OPC Server Connectivity: Enables data exchange with non-Rockwell HMI/SCADA platforms (Wonderware, Ignition, Siemens WinCC) via OPC DA/UA protocols
Custom Firmware & Driver Packages: Available for specialized operating systems or embedded computing platforms upon request

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days; custom-configured units require 10-15 business days
Warranty Period: 12 months from date of shipment, covering manufacturing defects and component failures
Technical Support: Complimentary remote diagnostics, driver installation assistance, and network troubleshooting via email/phone; on-site commissioning services available (region-dependent)
Documentation Package: Includes installation manual, electrical schematics, wiring diagrams, driver CD, and sample RSLogix configuration files for rapid deployment and maintenance

All units undergo rigorous factory acceptance testing (FAT) including burn-in cycles, network stress tests, and EMC pre-compliance verification to ensure field-ready reliability and regulatory conformance.

Frequently Asked Questions (FAQ)

Q: How do I install the 1784-PCICS ControlNet PCI interface card in my industrial PC?
A: Power down the PC, insert the card into an available PCI slot, secure with mounting bracket, connect ControlNet coaxial cable to BNC connector, then install RSLinx Classic drivers from the provided CD or Rockwell Automation website. Detailed step-by-step instructions are included in the user manual.

Q: What is the maximum number of devices this card can communicate with simultaneously?
A: The 1784-PCICS supports up to 99 nodes on a single ControlNet segment. Actual device count depends on network update time (NUT) configuration and data payload size; typical installations handle 20-40 devices with 5ms update rates.

Q: Can this interface card achieve energy savings compared to traditional serial communication?
A: While the card itself consumes minimal power (~5W), the primary benefit is system-level efficiency: deterministic scheduling reduces CPU overhead by 15-25%, and consolidated wiring (single coaxial trunk vs. multiple RS-232/485 cables) lowers installation and maintenance costs by approximately 30%.

Q: What environmental protection rating does the 1784-PCICS offer?
A: The card is designed for installation inside IP20-rated industrial PC enclosures. For harsh environments (dust, moisture, corrosive gases), the host computer should be housed in NEMA 4/4X or IP65/66 cabinets with appropriate cooling and filtration.

Q: Does the 1784-PCICS support remote monitoring and cloud-based data analytics?
A: Yes, when paired with FactoryTalk Gateway or third-party IoT edge devices, the card can publish ControlNet data to MQTT brokers, Azure IoT Hub, AWS IoT Core, or on-premises historians, enabling predictive maintenance, OEE dashboards, and machine learning model training.

Q: Is this card compatible with non-Rockwell PLCs or DCS systems?
A: The 1784-PCICS is optimized for Allen-Bradley ControlLogix/CompactLogix ecosystems. Integration with Siemens, Schneider Electric, or ABB controllers requires protocol gateways (e.g., ProSoft, HMS Anybus) or custom OPC server configurations; consult our integration specialists for feasibility assessment.

Request Technical Consultation & Quotation

To receive a tailored solution proposal, competitive pricing, and application-specific recommendations, please provide the following details: project name, application type (MES/SCADA/motion control), number of network nodes, required update rate, cable distance, host PC specifications, and existing automation platform (if any). Our certified engineers will respond within 24 hours with a comprehensive selection guide and budget estimate.
