Allen-Bradley 1784-PCC PCMCIA DH+ Interface Card | Legacy PLC Network Adapter

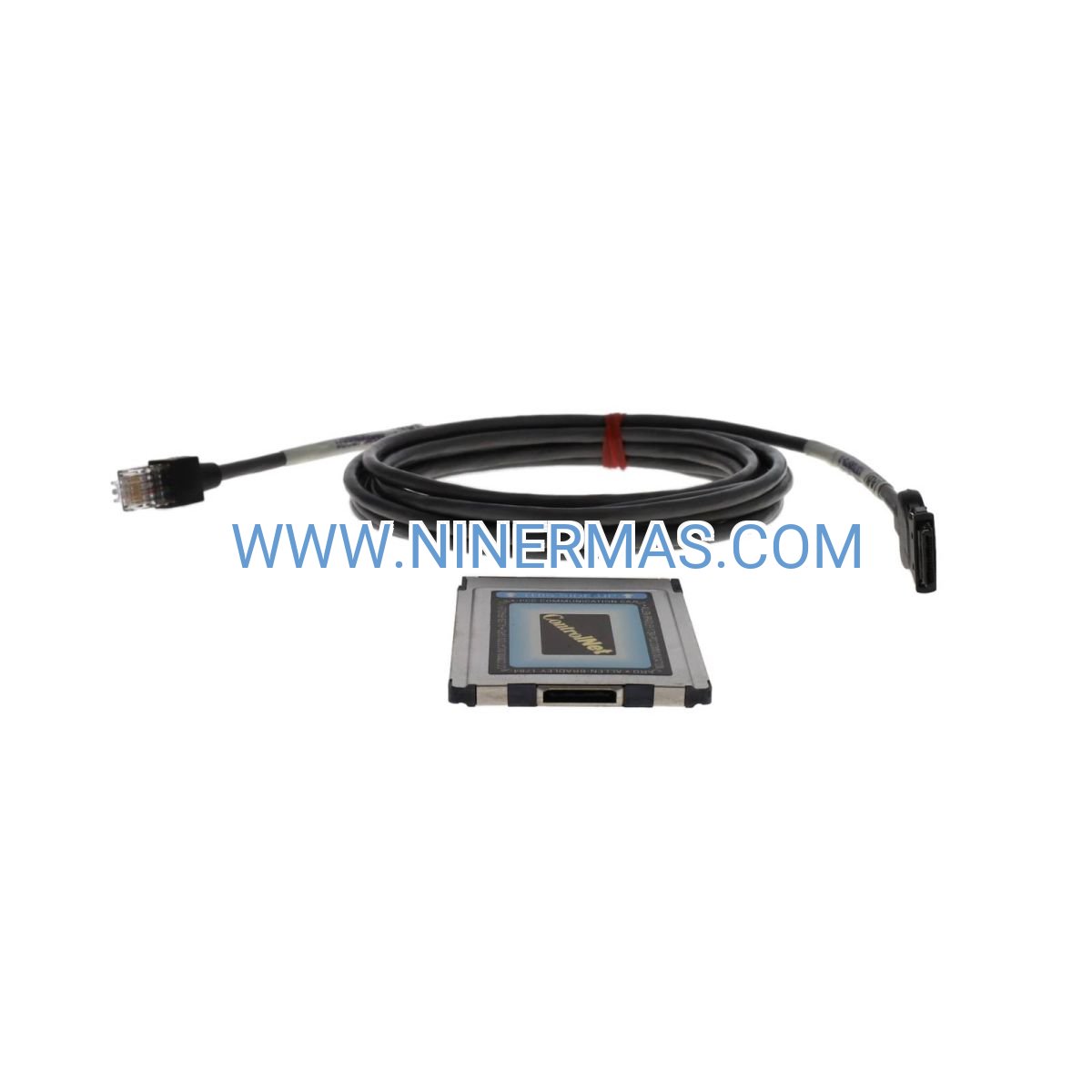

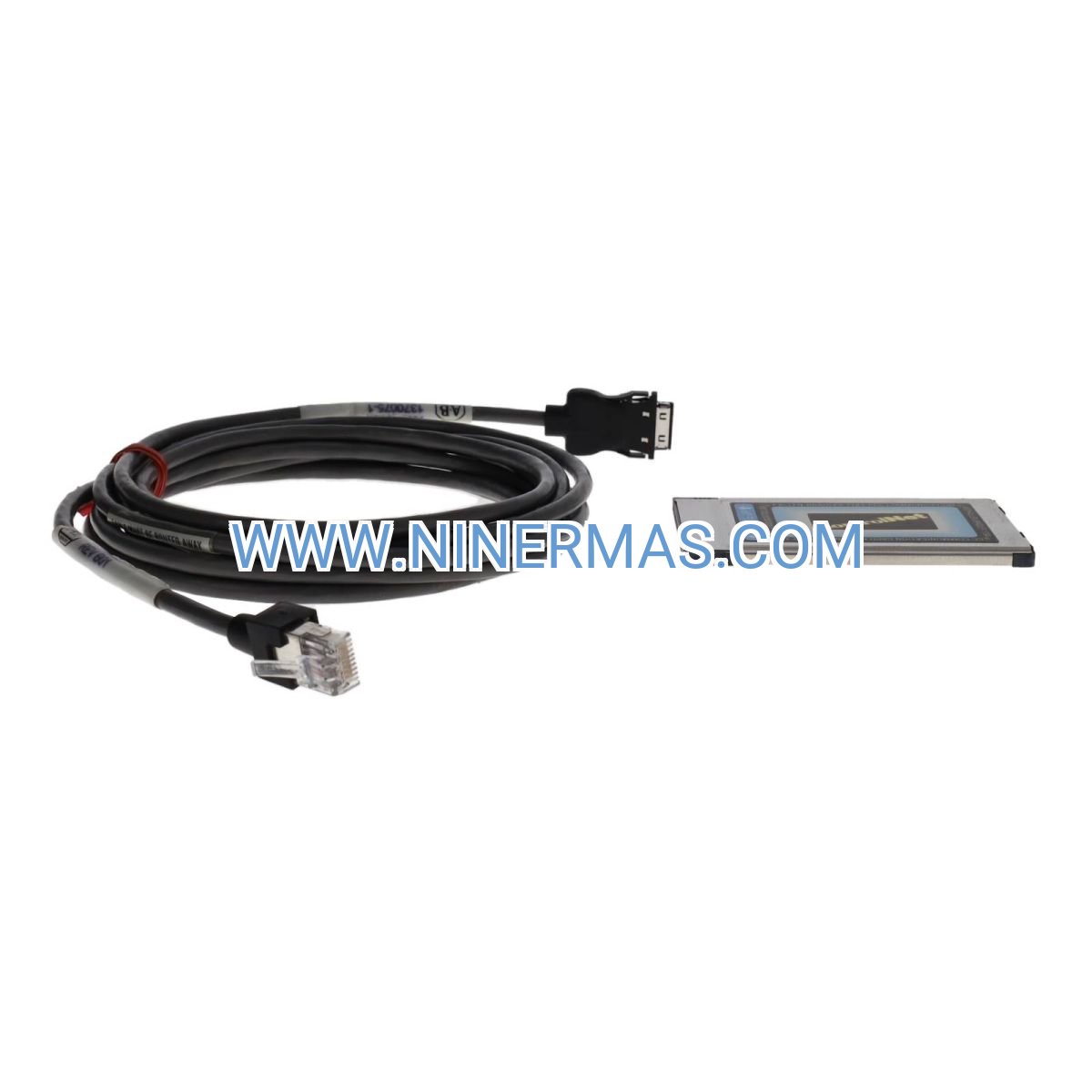

Allen-Bradley 1784-PCC PCMCIA DH+ Network Interface Card (Industrial Legacy PLC Communication Solution)

The Allen-Bradley 1784-PCC is a professional-grade PCMCIA network interface card designed for Data Highway Plus (DH+) protocol communication, enabling direct laptop connectivity to legacy Rockwell Automation PLC systems. Through PCMCIA Type II slot integration and advanced DH+ protocol support, this module delivers reliable programming access, real-time diagnostics, and seamless system integration for industrial automation environments.

Ideal for plant maintenance teams, system integrators, automation engineers, and OEM service providers working with PLC-5, SLC 500, and ControlLogix platforms. This interface card solves critical challenges including limited on-site programming access, legacy network compatibility issues, diagnostic delays, and multi-vendor system integration requirements in manufacturing, process control, and infrastructure automation applications.

Built on proven Rockwell Automation technology with field-tested reliability, the 1784-PCC offers plug-and-play installation, broad software compatibility, rugged industrial construction, and long-term spare parts availability. Suitable for design engineers, maintenance contractors, system integrators, and end-user facilities requiring dependable legacy PLC access. Contact our technical team for compatibility verification, configuration guidance, and project-specific recommendations.

Core Features & Technical Advantages

• Native DH+ Protocol Support
  Hardware-level Data Highway Plus communication engine ensures authentic protocol handling, eliminating software emulation delays and providing deterministic response times for time-critical programming and diagnostic operations.
• Universal RSLogix Compatibility
  Certified for use with RSLogix 5, RSLogix 500, RSLogix 5000, and RSLinx Classic software suites, enabling unified programming environment across multiple PLC families without driver conflicts or version incompatibilities.
• PCMCIA Type II Form Factor
  Standard 68-pin PCMCIA interface fits legacy laptops and industrial portable computers, providing hot-swap capability and eliminating the need for external power supplies or bulky serial adapters in field service scenarios.
• Multi-Node Network Access
  Supports up to 64 DH+ network nodes with configurable station addressing (0-77 octal), allowing simultaneous monitoring of multiple PLCs and distributed I/O racks from a single connection point.
• Industrial-Grade Construction
  Conformal-coated PCB assembly with extended temperature rating (-20°C to +70°C) and enhanced EMI/RFI shielding meets industrial environment requirements for vibration, electrical noise, and thermal cycling resistance.
• Diagnostic LED Indicators
  Integrated status LEDs provide real-time feedback on power, network activity, and communication errors, accelerating troubleshooting and reducing mean time to repair (MTTR) during system commissioning or fault diagnosis.

Typical Application Scenarios

This interface card is engineered for environments demanding reliable legacy PLC connectivity, particularly in:

• Manufacturing Plant Maintenance & Upgrades
  Enables programming access to installed PLC-5 and SLC 500 systems during production equipment retrofits, software updates, and preventive maintenance cycles without requiring permanent programming terminals or dedicated workstations.
• System Integration & Commissioning Projects
  Facilitates multi-vendor automation system integration where DH+ networks interface with newer EtherNet/IP or ControlNet architectures, supporting phased migration strategies and hybrid network topologies during plant modernization initiatives.
• Field Service & Emergency Troubleshooting
  Provides mobile diagnostic capability for service technicians responding to unplanned downtime events, allowing rapid fault isolation, program backup/restore operations, and configuration verification at remote or distributed facility locations.
• OEM Machine Builder Support
  Supports original equipment manufacturers providing aftermarket service for legacy machinery with embedded PLC-5 or SLC controllers, ensuring long-term serviceability and customer support continuity beyond original production lifecycles.
• Training & Development Environments
  Ideal for technical training centers, vocational schools, and R&D laboratories maintaining legacy PLC platforms for workforce development, backward compatibility testing, or historical system documentation and preservation.

Technical Specifications & Selection Guide

To ensure optimal compatibility and performance, the 1784-PCC is available with the following standard specifications, with custom configurations available for specialized applications:

Selection Recommendations: When specifying the 1784-PCC, consider: existing DH+ network baud rate settings, laptop PCMCIA slot availability (or USB-to-PCMCIA adapter requirements), RSLogix software version compatibility, operating system support (Windows XP/7/10 with legacy drivers), and environmental conditions at installation sites. For assistance with compatibility verification or configuration planning, provide your PLC model numbers, software versions, and application requirements to our engineering team for personalized recommendations.

Extended Capabilities & Integration Options

• Multi-Protocol Gateway Compatibility: Works in conjunction with 1761-NET-AIC, 1770-KF2, and other protocol converters for bridging DH+ networks to Ethernet, serial, or USB interfaces in complex automation architectures.
• Redundant Network Support: Compatible with redundant DH+ network configurations using dual-channel controllers, providing failover communication paths for high-availability applications.
• Third-Party HMI Integration: Supports OPC server connectivity through RSLinx Gateway, enabling data exchange with non-Rockwell HMI platforms, SCADA systems, and MES applications.
• Remote Access Solutions: Can be integrated with industrial VPN routers and remote desktop solutions for secure off-site programming and diagnostics, subject to cybersecurity policy compliance.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days from stock; custom-configured or bulk orders require 10-15 business days depending on quantity and specifications.

Warranty Coverage: All units include a minimum 12-month manufacturer's warranty covering defects in materials and workmanship, with extended warranty options available for critical applications.

Technical Support: Comprehensive pre-sales and post-sales support including compatibility verification, driver installation guidance, network configuration assistance, and troubleshooting support via phone, email, and remote desktop sessions (region-dependent).

Documentation Package: Each unit ships with installation quick-start guide, RSLinx configuration instructions, driver CD/download links, and access to online knowledge base resources including application notes, firmware updates, and compatibility matrices.

Quality Certifications: Products sourced through authorized distribution channels with full traceability, authenticity verification, and compliance with RoHS, REACH, and conflict minerals regulations.

Frequently Asked Questions (FAQ)

Q: How do I connect the 1784-PCC PCMCIA card to modern laptops without PCMCIA slots?
A: Use a USB-to-PCMCIA adapter (CardBus compatible) such as the Syba SD-PCI-CARD or similar industrial-grade adapters. Ensure Windows driver compatibility and verify RSLinx recognizes the adapter before attempting DH+ communication. Some users successfully deploy legacy laptops with native PCMCIA slots for dedicated programming applications.

Q: What is the maximum cable length supported for DH+ networks using the 1784-PCC?
A: DH+ networks support up to 10,000 feet (3,048 meters) total cable length using RG-6 quad-shield coaxial cable with proper termination resistors (150Ω) at both network ends. Individual drop cables should not exceed 100 feet without repeaters. Cable quality and EMI environment significantly impact maximum practical distances.

Q: Can the 1784-PCC interface card work with Windows 10 or Windows 11 operating systems?
A: The 1784-PCC requires legacy PCMCIA drivers that are not natively supported in Windows 10/11. Most users achieve compatibility by running RSLogix software in Windows XP Mode (virtual machine), using Windows 7 laptops with compatibility mode, or deploying dedicated legacy programming workstations. Rockwell Automation recommends checking FactoryTalk software compatibility matrices for specific OS support.

Q: How many PLCs can I program simultaneously through a single 1784-PCC connection?
A: While the DH+ network supports up to 64 nodes, RSLogix software typically communicates with one PLC at a time for programming operations. However, RSLinx can maintain simultaneous data monitoring connections to multiple nodes for diagnostics, data collection, or HMI applications, subject to network bandwidth and software licensing.

Q: What is the difference between 1784-PCC and 1784-PCMK interface cards?
A: The 1784-PCC is a PCMCIA card for DH+ networks, while the 1784-PCMK is a combo kit including both DH+ and DH-485 communication cables. The 1784-PCMK provides broader protocol support for SLC 500 and MicroLogix systems using DH-485 networks. Verify your network protocol requirements before ordering.

Q: Does the 1784-PCC support remote I/O communication or only PLC programming?
A: The 1784-PCC provides full DH+ protocol support, enabling both PLC programming (via RSLogix) and remote I/O scanner communication (when configured in PLC-5 or SLC systems). It can also facilitate peer-to-peer messaging and data table sharing between controllers on the same DH+ network.

Request Technical Consultation & Quotation

To receive detailed compatibility verification, application-specific configuration recommendations, or project quotations, please provide the following information to our engineering team:

• Project name and application overview
• Existing PLC models and firmware versions (e.g., PLC-5/40, SLC 5/05)
• Current DH+ network configuration (baud rate, node count, cable type)
• RSLogix software versions in use
• Laptop/computer specifications and operating system
• Quantity requirements and delivery timeline
• Special environmental or certification requirements

Our application engineers will provide one-on-one consultation, compatibility confirmation, and tailored recommendations within 24 business hours.
