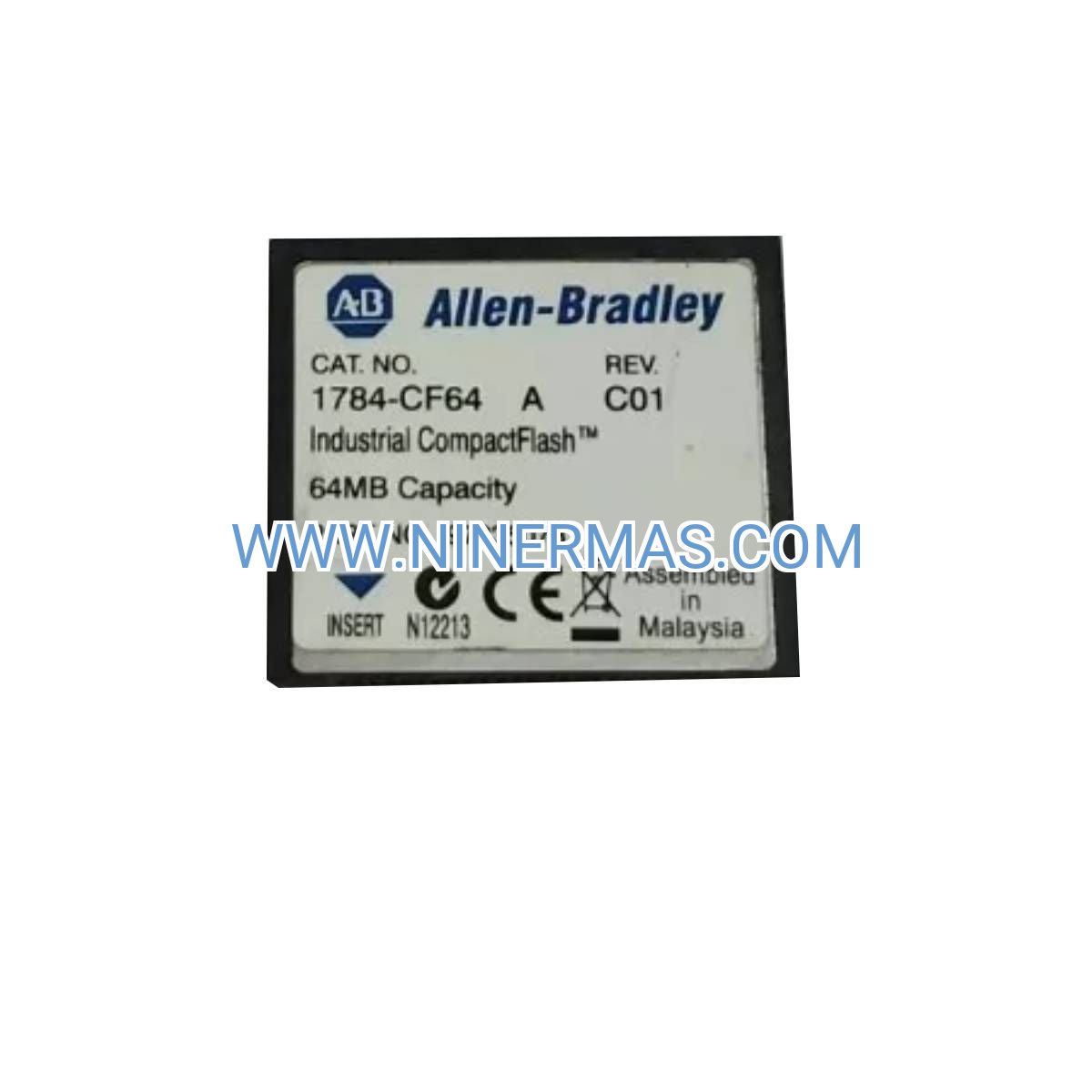

1784-CF64 CompactFlash Memory Card (Industrial-Grade 64MB Storage Solution)

The 1784-CF64 represents a purpose-built CompactFlash memory solution engineered for Allen-Bradley ControlLogix and PLC-5 automation platforms. Delivering 64MB of industrial-grade nonvolatile storage, this memory card enables critical functions including controller firmware management, automated program backup, real-time data logging, and production recipe storage across manufacturing and process control environments.

Designed for system integrators, plant engineers, and OEM machine builders who demand reliable data persistence in harsh industrial conditions, the 1784-CF64 solves the challenge of maintaining controller configurations and historical data without dependence on network infrastructure or external storage devices.

With SLC flash technology, extended temperature tolerance, and proven shock resistance, this CompactFlash card delivers the durability required for 24/7 industrial operations while simplifying disaster recovery, firmware updates, and multi-site deployment standardization.

Core Features & Benefits

✓ Extended Industrial Temperature Range: Operates reliably from 0°C to 60°C with storage capability down to -40°C, ensuring data integrity in extreme thermal environments found in foundries, cold storage facilities, and outdoor installations.

✓ Superior Shock & Vibration Resistance: Withstands 1500G shock loads and 15G vibration (10-2000 Hz), making it ideal for mobile equipment, high-speed packaging lines, and applications with continuous mechanical stress.

✓ Long-Term Data Retention: Guarantees 10+ years of data persistence without power, providing archival-quality storage for regulatory compliance documentation, calibration records, and validated process parameters.

✓ Rapid Disaster Recovery: Auto-load functionality restores controller programs on startup, reducing mean time to repair (MTTR) from hours to minutes when replacing failed processors.

✓ Offline Firmware Management: Store multiple controller firmware versions locally, enabling upgrades and rollbacks at remote sites without Ethernet connectivity or IT infrastructure dependencies.

✓ High-Endurance SLC Flash: Single-Level Cell NAND technology delivers 100,000+ write cycles per block, supporting continuous data logging applications that would quickly degrade consumer-grade memory cards.

Typical Application Scenarios

Pharmaceutical Manufacturing: Batch control systems require validated recipe storage and audit trail documentation. The 1784-CF64 maintains FDA 21 CFR Part 11 compliant batch records, formula parameters, and equipment qualification data directly on the controller, eliminating single points of failure in networked historian systems.

Water & Wastewater Treatment: Remote lift stations and treatment plants often lack reliable network connectivity. Engineers use the CompactFlash card to log flow rates, chemical dosing events, and alarm histories locally, then retrieve data during periodic site visits for regulatory reporting and trend analysis.

OEM Machine Builders: Equipment manufacturers pre-configure 1784-CF64 cards with machine programs, HMI projects, and commissioning documentation. This approach reduces field startup time by 60-80% and ensures consistent deployments across customer sites worldwide.

Food & Beverage Processing: Production lines handling multiple SKUs store recipe parameters (temperatures, pressures, timing sequences) on CompactFlash cards. Operators perform product changeovers by selecting recipes from the HMI, with the controller loading parameters directly from the card in seconds.

Mining & Extraction: Conveyor systems, crushers, and material handling equipment in remote mining operations use the 1784-CF64 for predictive maintenance data logging. Vibration signatures, bearing temperatures, and runtime hours accumulate on the card for condition-based maintenance analysis.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1784-CF64 for applications requiring up to 50MB of combined program and data storage. For larger data logging requirements (trending, SPC data, batch records), consider the 128MB or 256MB variants. Verify your controller model supports CompactFlash; newer 1756-L8x (ControlLogix 5580) controllers require SD cards instead.

Extended Functions

Load-on-Startup Configuration: Program the controller to automatically execute ladder logic from the CompactFlash card on power-up, creating a self-restoring system that requires no manual intervention after power failures or processor replacements.

Secure Data Logging: Implement write-once logging strategies where the controller appends timestamped process data to CSV files on the card, creating tamper-evident audit trails for regulated industries.

Multi-Version Firmware Library: Maintain a library of tested firmware versions on the card, allowing rapid rollback if new firmware introduces unexpected behavior in production environments.

Remote Configuration Management: Ship pre-configured CompactFlash cards to remote sites, enabling local technicians to update controller programs without specialized programming knowledge or remote access infrastructure.

Delivery & Service

Lead Time: In-stock items ship within 1-2 business days via DHL, FedEx, or UPS. Custom-configured cards (pre-loaded with your programs) ship within 3-5 business days after receiving your project files.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Warranty covers card replacement but does not cover data recovery services.

Technical Support: Our automation specialists provide compatibility verification, configuration guidance, and troubleshooting assistance via email and phone. Support includes help with RSLogix/Studio 5000 card formatting and file management procedures.

Documentation Included: Each card ships with installation quick-start guide, compatibility matrix, and links to Rockwell Automation technical documentation (publication 1784-UM001).

Frequently Asked Questions

Can I use standard consumer CompactFlash cards in ControlLogix controllers?
While physically compatible, consumer cards lack industrial temperature ratings, wear-leveling algorithms, and endurance specifications. They typically fail within months in continuous-write applications. The 1784-CF64 uses SLC flash with 10x the write endurance of consumer MLC cards.

What file systems does the 1784-CF64 support for data logging?
The card uses FAT16 file system formatting, compatible with Windows, Linux, and direct controller access. Maximum individual file size is 2GB. Use the controller's built-in formatting utility before first use to ensure proper cluster sizing.

How do I monitor remaining storage capacity during data logging operations?
RSLogix 5000/Studio 5000 software displays available card space in the controller properties dialog. Implement ladder logic to monitor free space and trigger alarms when capacity drops below 10%, preventing log file corruption from full-card conditions.

Is the 1784-CF64 hot-swappable in ControlLogix controllers?
Most ControlLogix models support hot-swap, but best practice is to place the controller in Program mode before removing the card to prevent file corruption. Consult your specific controller manual (1756-L6x, L7x series) for hot-swap procedures.

Can I clone CompactFlash cards to standardize multiple production lines?
Yes. Use a USB CompactFlash reader and disk imaging software (e.g., Win32DiskImager) to create exact copies. This approach ensures identical controller configurations across multiple machines, reducing commissioning time and engineering effort.

What happens if the CompactFlash card fails during operation?
The controller continues running from RAM but loses auto-load and data logging capabilities. Implement controller fault routines to detect card errors and trigger maintenance alarms. Keep spare cards on-site for critical applications.

Get Started Today

Secure your ControlLogix automation investment with industrial-grade memory storage. Order the 1784-CF64 CompactFlash card now or contact our technical team for application-specific configuration guidance and volume pricing.

Need assistance? Our automation specialists are available to discuss your specific requirements, verify controller compatibility, and recommend optimal storage configurations for your application.
