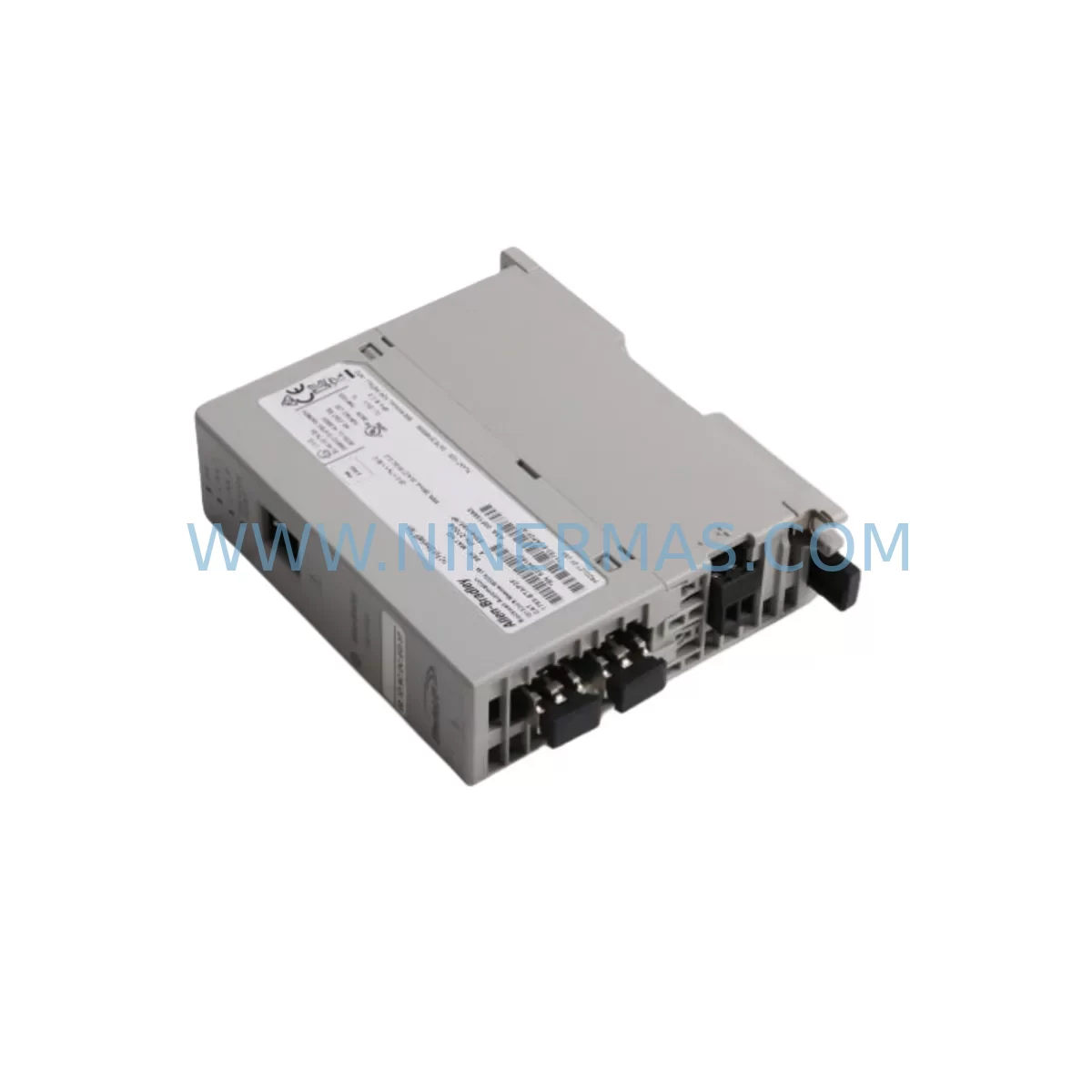

Allen-Bradley 1783-NATR Service-Ready Spare Part for Industrial Maintenance

Allen-Bradley 1783-NATR Service-Ready Spare Part for Industrial Maintenance

The Allen-Bradley 1783-NATR is a Network Address Translation (NAT) Router designed for industrial Ethernet environments, enabling seamless IP address translation between machine-level networks and plant-level infrastructure. As a critical component within Rockwell Automation’s Stratix networking ecosystem, the 1783-NATR supports the isolation and segmentation of control network traffic — a fundamental requirement in modern manufacturing plants, process facilities, and discrete automation systems. Whether you are managing a scheduled annual overhaul, responding to an unplanned network fault, or building a proactive spare parts inventory, the 1783-NATR is a high-priority line item for any maintenance engineer responsible for EtherNet/IP-based control architectures.

In industrial environments where Allen-Bradley PLCs such as the ControlLogix 1756 series or CompactLogix 1769 series are deployed, network segmentation via NAT routing is essential for protecting controller integrity and enabling multi-machine cell communication without IP conflicts. The 1783-NATR provides static and dynamic NAT mapping, allowing maintenance teams to replace machine modules or reconfigure network topology without disrupting upstream SCADA or DCS communications. This makes it an indispensable spare for facilities running Rockwell Automation’s Integrated Architecture.

From a procurement standpoint, the 1783-NATR is a long-lifecycle component that supports extended system availability programs. NINERMAS maintains verified stock of the 1783-NATR with full pre-shipment functional testing, ensuring that every unit dispatched meets original factory performance specifications. Each unit is covered by a 12-month warranty from the date of shipment, providing procurement engineers with the confidence needed to commit to spare parts budgets and maintenance contracts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1783-NATR is flagged for replacement during a control cabinet inspection or network fault diagnosis, maintenance engineers should treat the event as a trigger for a broader system health review. The NAT router sits at the boundary between machine-level and plant-level networks, meaning its failure can cascade into communication losses affecting multiple downstream devices simultaneously.

Begin by verifying the 24V DC power supply feeding the 1783-NATR — a degraded or undersized power supply such as a 1606-XLP or 1606-XLS series unit can cause intermittent resets that mimic router faults. Inspect the associated Ethernet cabling and patch panel connections for continuity and signal integrity. If the 1783-NATR is installed within a Stratix 5700 managed switch environment, review the switch port configuration and VLAN assignments to confirm that NAT translation rules will remain valid after the router swap.

For ControlLogix 1756 systems, check the 1756-EN2T or 1756-EN2TR EtherNet/IP communication modules for firmware compatibility with the replacement 1783-NATR. In CompactLogix 1769 installations, verify that the 1769-L3x or 1769-L2x controller’s Ethernet port settings align with the new NAT mapping table. If the system includes a PanelView Plus 7 or PanelView Plus 6 HMI, confirm that the HMI’s configured IP address falls within the translated address range supported by the replacement unit.

During annual maintenance shutdowns, it is best practice to simultaneously inspect the 1783-US5T unmanaged switches, 1783-BMS10CGL managed switches, and any 1783-ETAP EtherNet/IP tap modules installed in the same network segment. Terminal blocks and DIN rail power distribution components — including Phoenix Contact or Weidmüller terminal strips — should be checked for corrosion and secure seating. Signal isolators and surge protection devices on I/O wiring should also be verified, as transient events that damage NAT routers often affect adjacent signal conditioning equipment as well.

For facilities running Rockwell Automation’s FactoryTalk View SE or FactoryTalk Historian, ensure that the historian’s data collection path through the NAT boundary is re-validated after the 1783-NATR replacement. Procurement teams should maintain at least one cold-standby 1783-NATR unit per production line or network segment to support rapid recovery without waiting on lead times.

Site Replacement Workflow

Step 1 — Pre-Replacement Documentation: Before removing the faulty 1783-NATR, export the current NAT configuration using the device’s web-based Device Manager interface or via RSLogix 5000 / Studio 5000. Record all static NAT mappings, dynamic NAT pool ranges, and any PAT rules. This configuration file will be used to restore settings on the replacement unit and eliminates the risk of IP conflicts during commissioning.

Step 2 — Power Isolation: De-energize the 24V DC supply rail feeding the 1783-NATR. Confirm zero voltage at the device terminals using a calibrated multimeter before proceeding. Do not rely solely on the power LED indicator, as capacitive hold-up can maintain voltage briefly after supply disconnection.

Step 3 — Physical Removal and Inspection: Disconnect both Ethernet cables, labeling them clearly as WAN-side and LAN-side before removal. Release the DIN rail locking tab and slide the unit free. Inspect the DIN rail segment and adjacent components for signs of heat damage, moisture ingress, or mechanical stress that may have contributed to the original failure.

Step 4 — Replacement Unit Preparation: Mount the new 1783-NATR on the DIN rail. Reconnect the 24V DC supply and Ethernet cables in their correct positions. Power up the unit and access the Device Manager web interface to import the previously exported configuration file. Verify that all NAT mappings are correctly restored before reconnecting to the live plant network.

Step 5 — Functional Verification: From the ControlLogix or CompactLogix controller, initiate a ping test to key devices on both sides of the NAT boundary. Confirm that EtherNet/IP I/O connections re-establish within expected timeouts. Verify HMI connectivity and historian data flow. Document the replacement in the site maintenance log with the new unit’s serial number and the date of installation.

This structured replacement workflow minimizes downtime to under 30 minutes for experienced maintenance teams and ensures full system compatibility is maintained without requiring controller program modifications.

Spare Parts Support FAQ

Q1: Is the 1783-NATR still available as a new or tested spare, and what is the lead time?
Yes. NINERMAS maintains verified stock of the 1783-NATR as both new and professionally tested surplus units. Standard lead time for in-stock units is 3–7 business days for international shipments. For urgent downtime recovery requirements, expedited dispatch options are available. Contact sale@ninermas.com with your site urgency level for priority handling.

Q2: How do I confirm compatibility between the 1783-NATR and my existing Stratix or ControlLogix network?
The 1783-NATR is compatible with all EtherNet/IP-based Rockwell Automation control systems, including ControlLogix 1756, CompactLogix 1769, and Stratix 5700 / 2000 managed switch environments. Compatibility is determined by firmware version and NAT configuration, not by hardware revision. NINERMAS technical support can assist with compatibility verification based on your system’s firmware baseline and network topology prior to shipment.

Q3: What pre-shipment testing is performed on each 1783-NATR unit?
Every 1783-NATR unit dispatched by NINERMAS undergoes a full functional test that includes power-on verification, Ethernet port link establishment, NAT rule configuration and translation validation, and firmware version confirmation. Test records are available upon request. Units that do not pass all test criteria are not shipped. This process ensures that replacement units perform to original factory specifications from the moment they are installed on site.

Q4: What warranty and long-term supply support does NINERMAS provide for the 1783-NATR?
All 1783-NATR units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. NINERMAS also supports long-term spare parts availability programs for facilities requiring committed stock reservations, annual supply agreements, or multi-unit procurement for fleet-wide maintenance planning. Contact our team to discuss a tailored supply arrangement for your site’s lifecycle requirements.
