Allen-Bradley 1783-MX08T Stratix Expansion Module | 8-Port Industrial Ethernet Switch for Automation

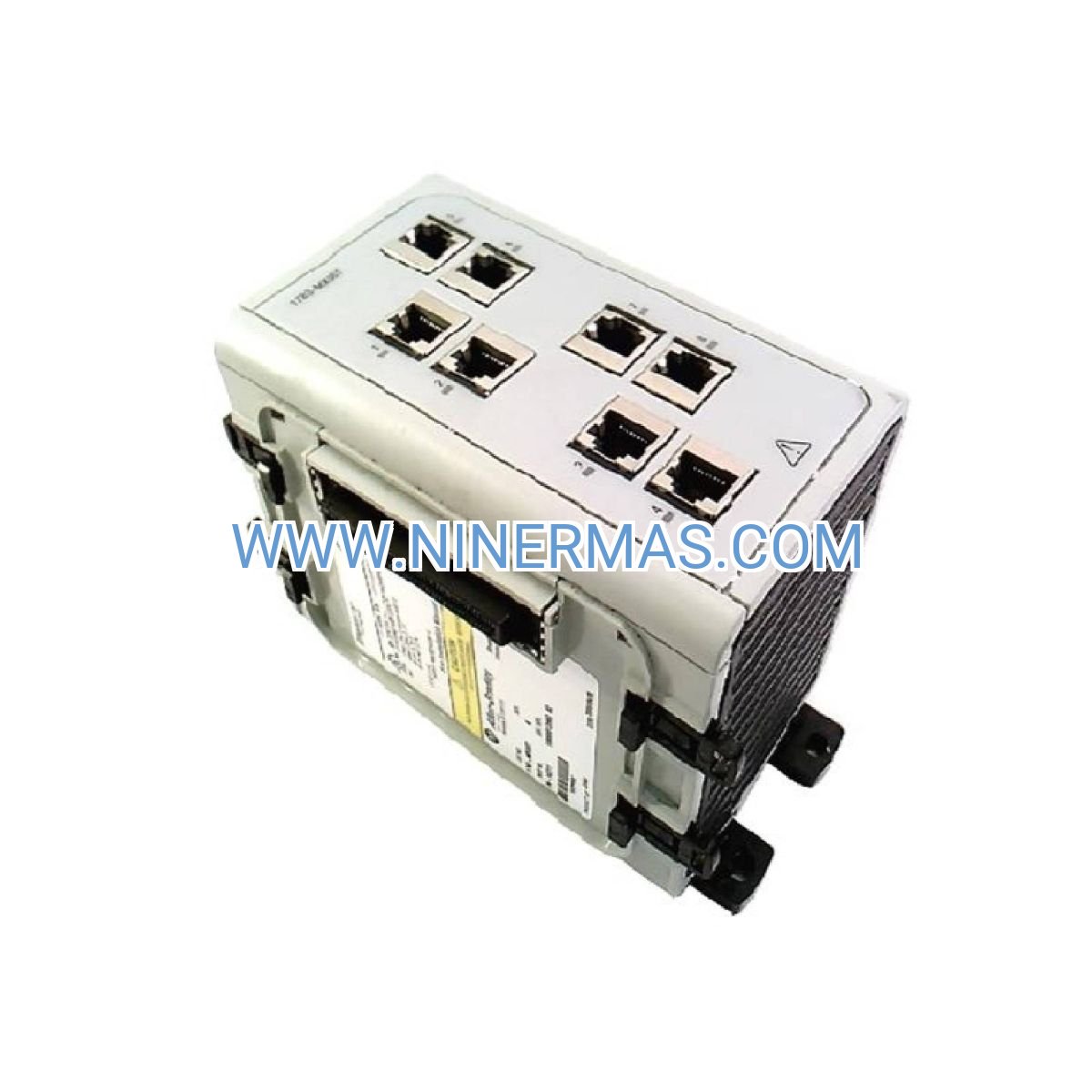

Allen-Bradley 1783-MX08T Stratix 8-Port Expansion Module (Industrial-Grade Ethernet Switch)

The Allen-Bradley 1783-MX08T is an industrial Ethernet expansion module designed for scalable network infrastructure in automation and process control environments. Through hot-swappable modular architecture and IEEE 802.3 compliant switching technology, it delivers reliable 10/100 Mbps connectivity for distributed I/O, HMI panels, PLCs, and SCADA systems.

Suitable for manufacturing plants, water treatment facilities, oil & gas installations, and building automation systems, this module helps solve challenges such as limited port availability, network segmentation requirements, high electromagnetic interference (EMI), and the need for redundant communication paths in mission-critical applications.

With standardized DIN-rail mounting and compatibility with Stratix managed switches, the 1783-MX08T offers plug-and-play expansion, industrial-grade durability, and simplified maintenance. Ideal for system integrators, automation engineers, OEM equipment manufacturers, and facility maintenance teams. Contact our engineering team for application-specific configuration guidance and quotation.

Core Features & Advantages

• Hot-Swappable Modular Design
  Supports live installation and removal without powering down the main switch, minimizing downtime during expansion or maintenance operations.
• 8x 10/100 Mbps RJ45 Ports
  Provides auto-negotiating Fast Ethernet connectivity with auto-MDI/MDIX, eliminating the need for crossover cables and simplifying field wiring.
• Industrial-Grade Environmental Tolerance
  Operates reliably in -40°C to +70°C ambient temperature range with conformal coating protection against dust, moisture, and corrosive gases.
• Seamless Stratix Integration
  Designed for use with Allen-Bradley Stratix 5700, 5400, and 8000 series managed switches, enabling centralized configuration via Studio 5000 or web interface.
• Enhanced Network Resilience
  Supports Device Level Ring (DLR) and Rapid Spanning Tree Protocol (RSTP) for sub-50ms failover, ensuring continuous operation in redundant topologies.
• Comprehensive Diagnostic LEDs
  Per-port link/activity indicators and module status LEDs provide instant visual feedback for troubleshooting and network health monitoring.

Typical Application Scenarios

This expansion module is engineered for environments demanding high port density, network reliability, and harsh-condition performance, including:

• Automotive & Discrete Manufacturing
  Connects robotic cells, vision systems, and conveyor controls in assembly lines where real-time communication and minimal latency are critical.
• Process Industries (Oil, Gas, Chemical)
  Integrates field instruments, remote I/O racks, and safety systems in hazardous areas, supporting compliance with IEC 61850 and ODVA standards.
• Water & Wastewater Treatment
  Links SCADA servers, variable frequency drives (VFDs), and distributed RTUs across pump stations and treatment plants for centralized monitoring.
• Building Automation & HVAC
  Expands network capacity for BACnet/IP controllers, lighting panels, and energy management systems in commercial and institutional facilities.
• Material Handling & Logistics
  Supports high-density sensor networks, barcode scanners, and automated guided vehicles (AGVs) in warehouses and distribution centers.

Technical Specifications & Selection Guide

To facilitate design and procurement, we provide key electrical, mechanical, and environmental parameters:

Selection Considerations: When specifying this module, confirm the host switch model compatibility (Stratix 5700/5400/8000 series), required port count for current and future expansion, network topology (star, ring, or redundant), and environmental conditions (temperature extremes, vibration levels, hazardous area classification). For custom configurations or integration with third-party devices, consult our application engineers with site-specific parameters.

Extended Capabilities

• VLAN & QoS Support
  Inherits VLAN tagging (802.1Q) and Quality of Service (802.1p) settings from the host switch, enabling traffic prioritization for time-sensitive control data.
• Port Mirroring & Diagnostics
  Allows network administrators to mirror traffic from any port to a monitoring port for protocol analysis and troubleshooting using tools like Wireshark.
• IGMP Snooping
  Optimizes multicast traffic distribution for applications such as distributed I/O polling and video surveillance integration.
• Cable Diagnostics (TDR)
  Time-Domain Reflectometry function detects cable faults, short circuits, and impedance mismatches up to 100 meters, reducing field service time.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3–5 business days from stock; custom-configured modules require 10–15 business days.
Warranty: Backed by a 24-month manufacturer warranty covering defects in materials and workmanship.
Technical Support: Remote configuration assistance and on-site commissioning services available (region-dependent).
Documentation: Each unit includes installation quick-start guide, wiring diagrams, and access to full user manual (publication 1783-UM008) via Rockwell Automation Literature Library.
Compliance: All modules undergo factory acceptance testing (FAT) and are shipped with CE Declaration of Conformity and UL certification labels.

Frequently Asked Questions (FAQ)

Q: How do I install the 1783-MX08T expansion module into a Stratix switch?
A: Power down the host switch, align the module with the expansion slot, slide it into the backplane connector until it clicks, then secure with the retention screws. Power on the switch; the module will auto-configure. Refer to publication 1783-IN005 for detailed steps.

Q: Can this module be used with non-Allen-Bradley switches?
A: No, the 1783-MX08T is designed exclusively for Allen-Bradley Stratix managed switches due to proprietary backplane signaling and power distribution. For third-party switch integration, consider standalone Stratix models.

Q: What is the maximum cable length supported per port?
A: Each 10/100BASE-TX port supports up to 100 meters (328 feet) of Cat5e or better UTP/STP cable, per IEEE 802.3 specifications.

Q: Does the module support Power over Ethernet (PoE)?
A: No, the 1783-MX08T provides data connectivity only. For PoE applications, use the 1783-MX08PXT variant or external PoE injectors.

Q: How do I monitor port status and traffic statistics?
A: Access the host switch's embedded web server or use Studio 5000 Logix Designer with the Stratix add-on profile. SNMP v1/v2c/v3 is also supported for integration with third-party NMS platforms.

Q: Is firmware update required after installation?
A: The module inherits firmware from the host switch. Ensure the switch runs the latest firmware version (available via Rockwell Automation Product Compatibility & Download Center) to access new features and security patches.

Request a Quote or Technical Consultation

To receive a detailed selection worksheet, pricing, or application-specific design support, please provide the following information: project name, industry/application type, total port count required, network topology (ring/star/redundant), environmental conditions (temperature/vibration/hazardous area class), and existing switch infrastructure. Our certified engineers will respond within 24 hours with a tailored recommendation.
