Allen-Bradley 1783-MS10T Stratix 8000 | 10-Port Managed Industrial Ethernet Switch | Layer 2+ Gigabit

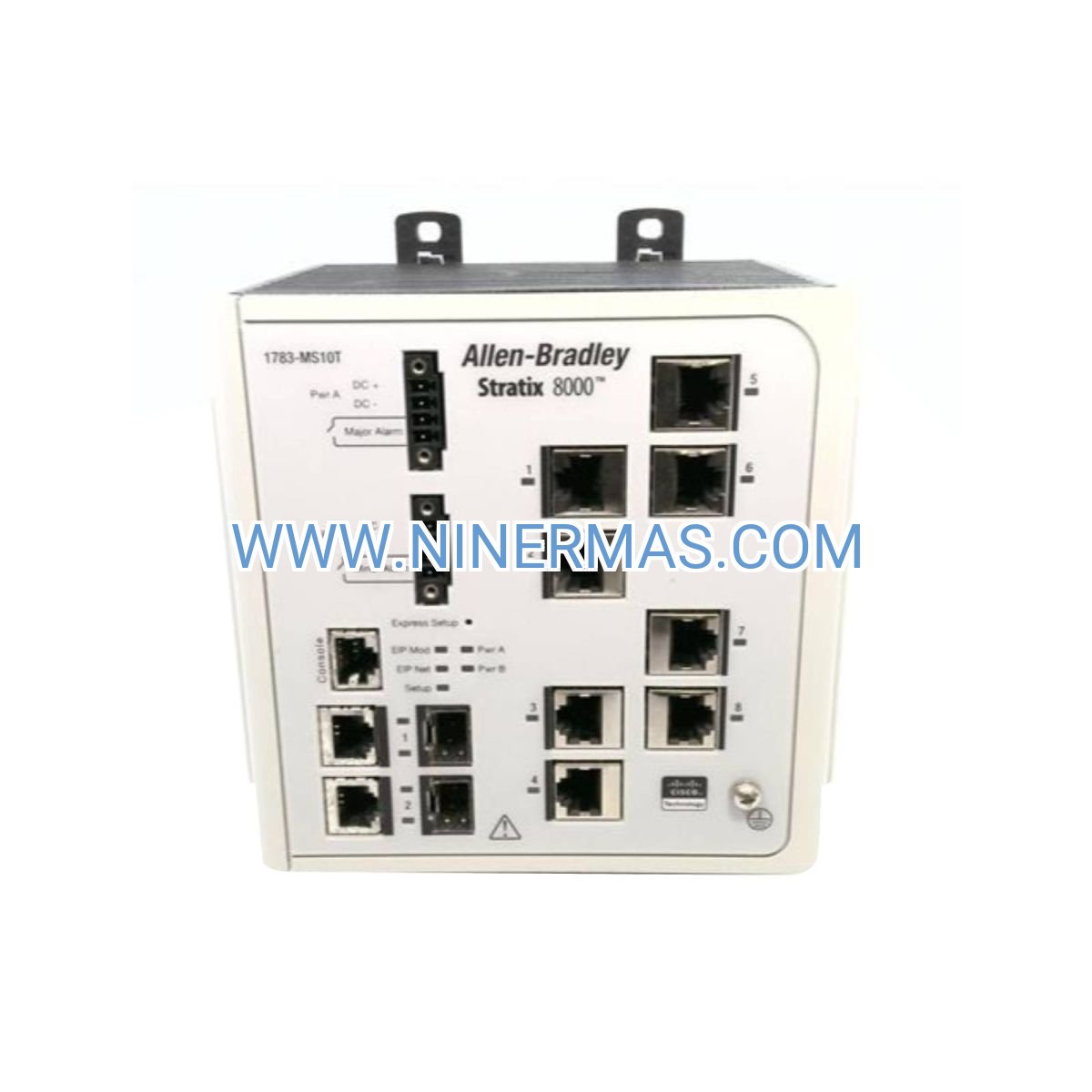

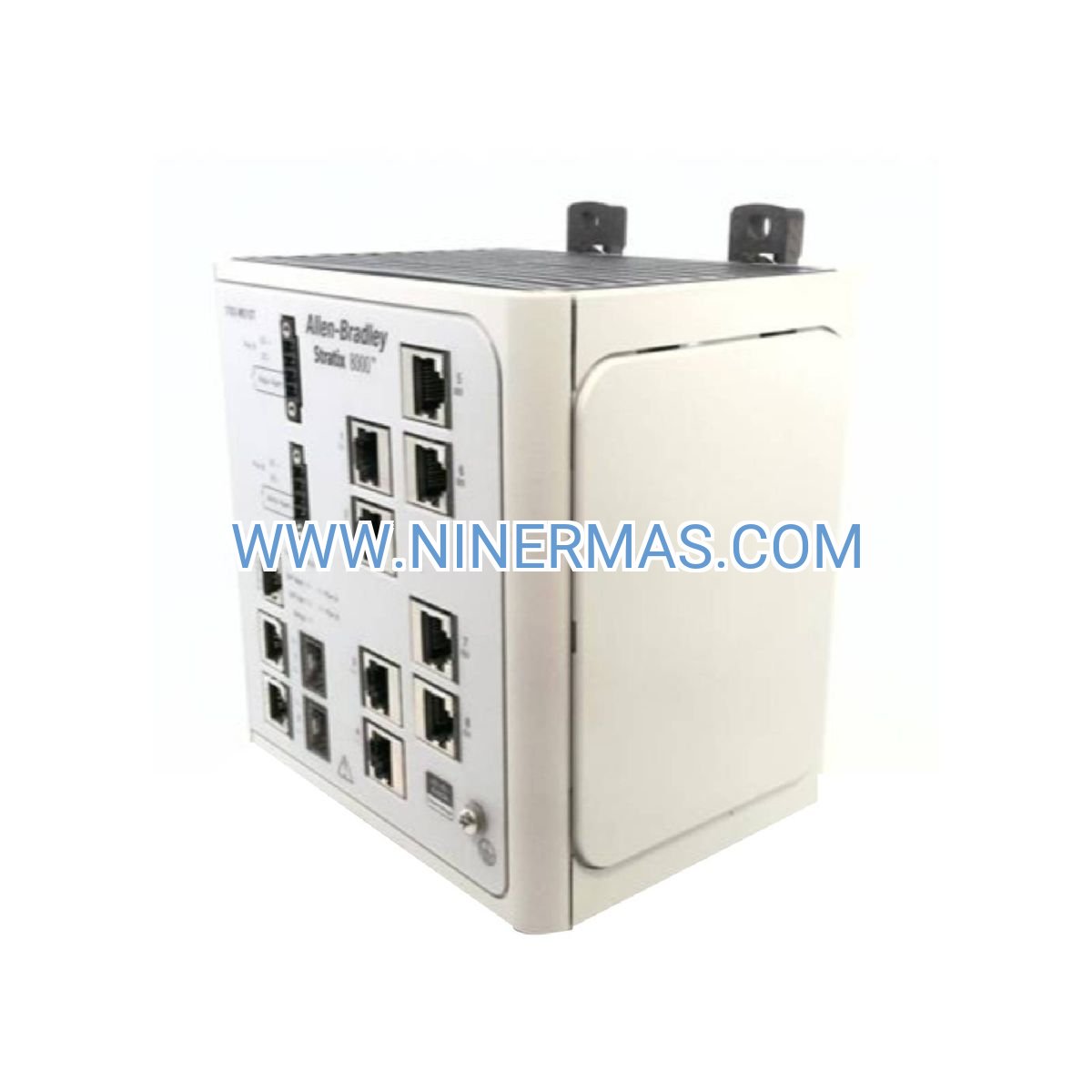

Allen-Bradley 1783-MS10T Stratix 8000 Managed Industrial Ethernet Switch

The Allen-Bradley 1783-MS10T Stratix 8000 is a high-performance managed industrial Ethernet switch engineered for mission-critical automation and control networks. Featuring 10 Gigabit Ethernet ports with advanced Layer 2+ switching capabilities, this switch delivers deterministic network performance through precision traffic management, VLAN segmentation, and Quality of Service (QoS) prioritization.

Designed for demanding industrial environments including manufacturing automation, process control systems, SCADA infrastructure, and building management networks, the 1783-MS10T addresses common challenges such as network latency, broadcast storms, electromagnetic interference susceptibility, and unplanned downtime. Its ruggedized construction ensures reliable operation in harsh conditions where commercial-grade equipment fails.

Through standards-compliant design and flexible configuration options, this managed switch provides network redundancy protocols, comprehensive security features, real-time diagnostics, and seamless integration with Rockwell Automation ecosystems. Ideal for system integrators, control engineers, plant managers, and OEM equipment manufacturers requiring enterprise-class networking with industrial durability. Contact our engineering team for application-specific configuration guidance and technical specifications.

Core Features & Technical Advantages

Advanced Layer 2+ Switching Intelligence
Equipped with IGMP snooping, static routing capabilities, and IEEE 802.1Q VLAN support, the switch optimizes multicast traffic distribution while maintaining network segmentation for enhanced security and performance isolation across automation zones.

Proven Energy Efficiency & Cost Reduction
IEEE 802.3az Energy Efficient Ethernet (EEE) technology reduces power consumption by up to 40% during low-traffic periods compared to legacy switches, lowering operational expenses in 24/7 industrial operations without compromising availability.

Intelligent Network Redundancy
Supports multiple redundancy protocols including Rapid Spanning Tree Protocol (RSTP), Media Redundancy Protocol (MRP), and Device Level Ring (DLR) with sub-50ms failover times, ensuring continuous operation even during link or device failures.

Comprehensive Industrial Protection
Built-in safeguards against electrical surges (2kV), electrostatic discharge (ESD), electromagnetic interference (EMI/RFI), and thermal extremes protect network integrity. Conformal coating options available for corrosive environments and high-humidity applications.

Intuitive Management & Diagnostics
Web-based graphical interface, SNMP v1/v2c/v3 support, and CLI access enable rapid configuration and troubleshooting. Real-time port monitoring, traffic statistics, and event logging facilitate proactive maintenance and reduce mean time to repair (MTTR).

Flexible Mounting & Installation

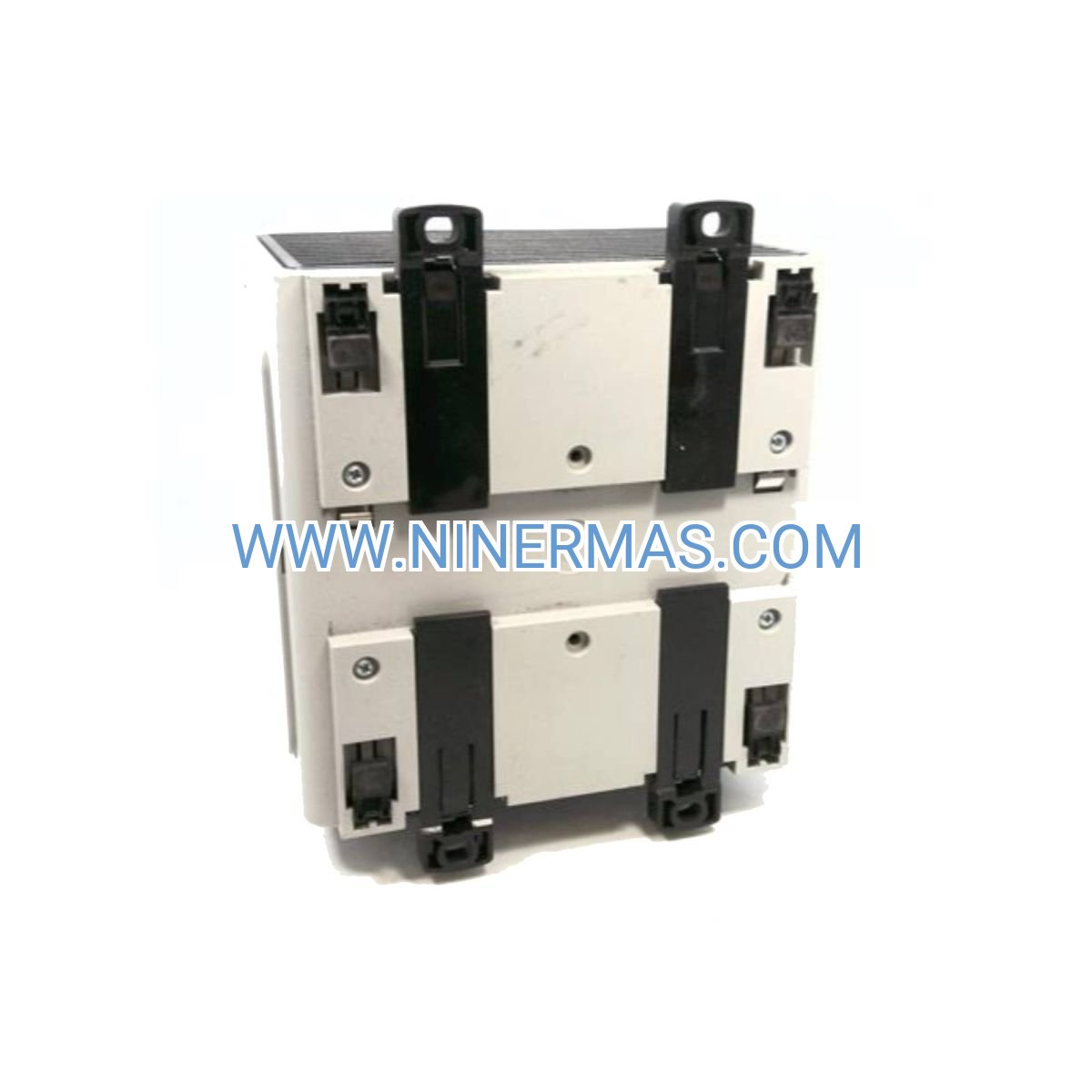

Standard 35mm DIN-rail mounting with optional panel-mount brackets accommodates diverse cabinet configurations. Compact form factor (50mm width) maximizes panel space utilization in space-constrained control enclosures.

Typical Application Scenarios

This industrial managed switch excels in environments demanding high reliability, deterministic performance, and extended temperature operation:

Manufacturing Automation & Robotics
Connects PLCs, HMIs, servo drives, vision systems, and industrial robots in automotive assembly, electronics manufacturing, and packaging lines. Supports EtherNet/IP and PROFINET protocols for real-time motion control with microsecond-level synchronization.

Process Control & SCADA Systems
Backbone infrastructure for oil & gas facilities, water treatment plants, power generation stations, and chemical processing. Handles distributed I/O, remote terminal units (RTUs), and supervisory control communications with deterministic latency guarantees.

Building Automation & Infrastructure
Integrates HVAC controllers, access control systems, fire alarm panels, and energy management devices in commercial buildings, hospitals, and data centers. VLAN segmentation isolates operational technology (OT) from information technology (IT) networks.

Transportation & Infrastructure Networks
Deployed in railway signaling systems, intelligent traffic management, airport baggage handling, and tunnel ventilation control where extended temperature range (-40°C to 70°C) and vibration resistance are critical requirements.

Renewable Energy & Utilities
Connects inverters, battery management systems, and monitoring equipment in solar farms, wind turbines, and microgrid installations. Supports IEC 61850 substation automation protocols for smart grid applications.

Technical Specifications & Selection Guide

To ensure optimal system performance, the 1783-MS10T offers the following technical characteristics:

Port Configuration: 10 × 10/100/1000BASE-T RJ45 ports with auto-MDI/MDIX
Switching Capacity: 20 Gbps non-blocking wire-speed forwarding
MAC Address Table: 8,192 entries with automatic learning and aging
VLAN Support: Up to 256 IEEE 802.1Q VLANs with port-based and tag-based assignment
Power Input: 24VDC nominal (18-32VDC range), redundant dual input with reverse polarity protection
Power Consumption: 12W maximum (typical 8W)
Operating Temperature: -40°C to 70°C (-40°F to 158°F) without derating
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Humidity: 5% to 95% non-condensing
Enclosure Rating: IP30 standard (IP67 available with sealed connectors)
Shock & Vibration: IEC 60068-2-27 (shock), IEC 60068-2-6 (vibration)
MTBF: >500,000 hours at 40°C per Telcordia SR-332
Certifications: UL/cUL Class I Div 2, ATEX Zone 2, IECEx, CE, FCC, RCM

Selection Considerations:
When specifying the 1783-MS10T for your application, evaluate these critical parameters: required port count and future expansion needs, maximum network diameter and fiber uplink requirements, power supply voltage availability (24VDC standard or 48VDC option), environmental conditions including temperature extremes and vibration levels, redundancy protocol requirements (DLR, MRP, RSTP), and integration with existing Rockwell Automation or third-party control systems. Our application engineers can review your network topology, traffic patterns, and performance requirements to recommend the optimal configuration and complementary products.

Extended Capabilities & Integration

Cybersecurity Features: IEEE 802.1X port-based authentication, MAC address filtering, port security with violation actions, HTTPS/SSH encrypted management, and role-based access control (RBAC) protect against unauthorized access and cyber threats in converged OT/IT environments.

Time Synchronization: IEEE 1588v2 Precision Time Protocol (PTP) and SNTP support enable microsecond-level clock synchronization across distributed control systems for coordinated motion control and time-stamped event logging.

Quality of Service: Eight priority queues with strict priority and weighted round-robin scheduling ensure deterministic delivery of time-critical control traffic while managing best-effort data communications.

Ecosystem Integration: Native compatibility with Rockwell Automation Studio 5000, FactoryTalk View, and Connected Components Workbench simplifies device discovery, configuration management, and diagnostics within integrated architecture environments.

Delivery, Support & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom configurations with specialized firmware or extended temperature testing require 2-3 weeks for factory preparation and validation testing.

Warranty Coverage: Comprehensive 3-year manufacturer warranty covering defects in materials and workmanship. Extended warranty programs and advance replacement services available for mission-critical applications requiring maximum uptime guarantees.

Technical Support: Complimentary pre-sales application engineering assistance for network design review and product selection. Post-installation support includes remote diagnostics via secure VPN connection, on-site commissioning services (region-dependent), and 24/7 emergency technical hotline for production-down situations.

Documentation Package: Each unit ships with complete technical documentation including installation quick-start guide, detailed user manual with CLI command reference, electrical wiring diagrams with terminal assignments, dimensional drawings for panel layout, and configuration file templates for common applications. Digital resources available through secure customer portal.

Quality Certifications: Manufactured in ISO 9001:2015 certified facilities with full traceability. Each switch undergoes 100% functional testing, burn-in validation, and environmental stress screening prior to shipment. Test reports and certificates of conformance available upon request.

Frequently Asked Questions (FAQ)

Q: How does the 1783-MS10T Stratix 8000 managed switch integrate with existing non-Rockwell automation equipment?
A: The switch supports industry-standard protocols including IEEE 802.3 Ethernet, 802.1Q VLANs, and SNMP management, ensuring compatibility with Siemens, Schneider Electric, ABB, and other vendors' PLCs and I/O systems. Configuration can be performed via standard web browser or CLI without proprietary software requirements.

Q: What is the maximum number of devices that can be connected in a single DLR ring topology?
A: Device Level Ring (DLR) protocol supports up to 50 nodes in a single ring with sub-3ms fault recovery time. For larger installations, multiple rings can be interconnected using supervisor modules or Layer 3 routing for scalable network architectures.

Q: What energy savings can be achieved compared to unmanaged industrial switches?
A: Energy Efficient Ethernet (EEE) reduces power consumption by 30-40% during low-traffic periods typical in automation networks. In a 100-switch installation operating 8,760 hours annually, this translates to approximately 3,500 kWh savings, reducing both operational costs and cooling requirements.

Q: What are the environmental requirements for installation and operation?
A: The switch operates reliably from -40°C to 70°C ambient temperature without derating, suitable for outdoor enclosures and non-climate-controlled facilities. IP30 enclosure rating protects against dust and incidental contact; IP67-rated connector versions available for washdown environments. Conformal coating option provides additional protection against moisture, salt spray, and chemical exposure.

Q: Can the switch support remote monitoring and predictive maintenance through Industrial IoT platforms?
A: Yes, SNMP v3 with encrypted authentication enables integration with SCADA systems, network management platforms (Nagios, PRTG, SolarWinds), and cloud-based analytics services. MQTT and OPC UA gateway functionality available through companion modules for seamless IIoT connectivity and condition monitoring.

Q: What fiber optic uplink options are available for long-distance connections?
A: While the 1783-MS10T features copper RJ45 ports, the Stratix 8000 family includes models with SFP (Small Form-factor Pluggable) slots supporting multimode fiber (up to 2km) and single-mode fiber (up to 120km) for inter-building connections, outdoor installations, and electrically isolated network segments.

Request Technical Consultation & Quotation

To receive a customized solution proposal, detailed technical specifications, and competitive pricing for your project, please provide our engineering team with the following information:

• Project name and application description (manufacturing, process control, building automation, etc.)
• Network topology requirements (star, ring, redundant architecture)
• Total number of connected devices and anticipated traffic patterns
• Required port count and future expansion plans
• Environmental conditions (temperature range, vibration, humidity, hazardous area classification)
• Power supply specifications (voltage, redundancy requirements)
• Integration requirements (existing control system brand, protocols, management software)
• Timeline for delivery and commissioning support needs

Our certified automation specialists will provide one-on-one consultation to optimize your network design, ensure regulatory compliance, and deliver a complete bill of materials with lead times and pricing.
