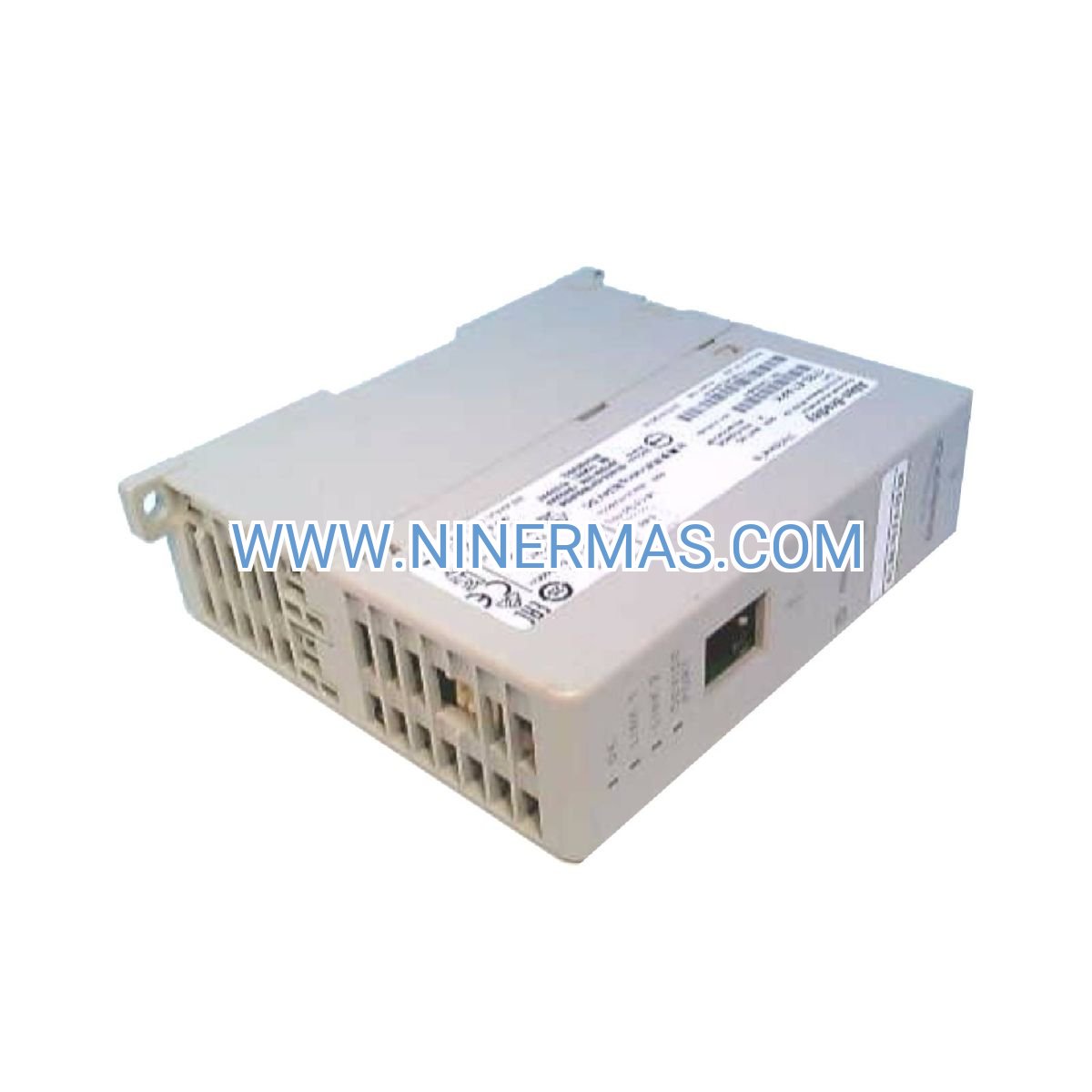

EtherNet/IP Tap Module 1783-ETAPK | Industrial Network Diagnostic Tool with Conformal Coating

EtherNet/IP Tap Module (Industrial Network Diagnostic Solution)

The 1783-ETAPK EtherNet/IP Tap Module is a professional-grade network diagnostic device designed for non-intrusive monitoring and troubleshooting of industrial EtherNet/IP networks. Through advanced passive tap technology, it enables real-time traffic analysis, protocol diagnostics, and performance monitoring without disrupting network operations or requiring system downtime.

Ideal for manufacturing plants, process automation facilities, and industrial control systems, this tap module helps resolve critical issues such as intermittent communication failures, network congestion, packet loss, and protocol errors. It is particularly valuable for system integrators, maintenance engineers, and automation professionals managing ControlLogix, CompactLogix, and other Rockwell Automation platforms.

Featuring conformal coating protection, plug-and-play installation, and compatibility with leading network analysis tools, the 1783-ETAPK delivers reliable diagnostics in harsh industrial environments. Whether you're commissioning new systems, troubleshooting existing networks, or performing preventive maintenance, this module provides the visibility and insights needed to maintain optimal network performance. Contact our application engineers for selection assistance and technical specifications.

Core Features & Advantages

• Non-Intrusive Network Monitoring
  Utilizes passive tap technology to mirror network traffic without introducing latency, packet loss, or disruption to live production systems, ensuring safe diagnostics during operation.
• Conformal Coating Protection
  Enhanced environmental resistance against moisture, dust, chemical vapors, and temperature fluctuations, extending service life in demanding industrial settings rated up to 85% RH non-condensing.
• Broad Protocol Compatibility
  Supports full EtherNet/IP protocol suite including CIP, TCP/IP, and UDP communications, compatible with ControlLogix, CompactLogix, Stratix switches, and third-party EtherNet/IP devices.
• Plug-and-Play Deployment
  Simple inline installation between network devices using standard RJ45 connectors, with automatic link speed detection (10/100 Mbps) and no configuration required for basic monitoring.
• Multi-Tool Integration
  Works seamlessly with Wireshark, RSLinx Classic, Studio 5000 Logix Designer, and other industry-standard network analyzers, providing flexible diagnostic workflows for different skill levels.
• Compact & DIN-Rail Mountable
  Space-efficient design with optional DIN-rail mounting bracket, suitable for installation in crowded control cabinets and panel enclosures with limited space availability.

Typical Application Scenarios

This EtherNet/IP tap module is engineered for environments where network reliability, uptime, and diagnostic visibility are critical, including:

• Automotive & Discrete Manufacturing
  Diagnose communication issues in high-speed assembly lines, robotic cells, and material handling systems where unplanned downtime costs thousands per minute, ensuring rapid fault isolation.
• Process Industries & Continuous Production
  Monitor EtherNet/IP networks in chemical plants, oil & gas facilities, water treatment systems, and food processing lines where process stability and regulatory compliance demand continuous network integrity.
• System Integration & Commissioning
  Validate network architecture, verify device configurations, and troubleshoot startup issues during new system deployments, reducing commissioning time and ensuring first-time-right installations.
• Preventive Maintenance & Troubleshooting
  Perform periodic network health assessments, identify degrading cables or switches, and capture intermittent faults that are difficult to reproduce, supporting predictive maintenance strategies.
• Multi-Vendor System Environments
  Analyze interoperability issues between Rockwell Automation controllers and third-party devices such as drives, HMIs, I/O modules, and SCADA systems using EtherNet/IP as a common protocol.

Technical Parameters & Selection Guide

To facilitate engineering design and product selection, we provide standardized specifications for the 1783-ETAPK module. Custom configurations are available for specialized applications.

Selection Recommendations: When selecting a tap module, consider the following factors: network topology (star, ring, or linear), maximum data throughput requirements, environmental conditions (temperature, humidity, vibration), available cabinet space, and diagnostic tool preferences. For complex multi-segment networks or high-availability systems, consult our application engineers who can recommend optimal tap placement and configuration. Provide your network diagram and device list for customized selection support.

Extended Capabilities

• Remote Diagnostics Support: When paired with managed Stratix switches or industrial routers, enables remote packet capture and analysis via secure VPN connections, reducing on-site service visits.
• Training & Documentation: Comprehensive user manual, quick-start guide, and wiring diagrams included. Optional on-site or virtual training available for maintenance teams on network troubleshooting best practices.
• Firmware Upgradability: Field-upgradable firmware ensures long-term compatibility with evolving EtherNet/IP standards and diagnostic tool updates, protecting your investment.
• Redundancy Compatibility: Suitable for use in Device Level Ring (DLR) and other redundant network topologies without interfering with failover mechanisms or network recovery times.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3–5 business days from stock. Custom configurations or bulk orders typically require 10–15 business days. Expedited shipping available upon request.

Warranty: All units include a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available for critical applications.

Technical Support: Comprehensive support includes remote troubleshooting assistance, application engineering consultation, and access to technical documentation (electrical schematics, connection diagrams, protocol specifications). On-site commissioning and training services available in select regions.

Documentation Package: Each module ships with complete technical documentation including installation manual, wiring diagrams, dimensional drawings, and software configuration guides in PDF format, facilitating rapid deployment and maintenance.

Frequently Asked Questions (FAQ)

Q: How does the 1783-ETAPK EtherNet/IP tap module integrate with existing network infrastructure?
A: The tap module installs inline between any two EtherNet/IP devices (e.g., controller and switch, or switch and I/O module) using standard Ethernet cables. It passively mirrors all traffic to the monitor port without requiring IP address configuration or network reconfiguration. Simply connect your analysis laptop to the monitor port and begin capturing packets.

Q: What is the maximum network throughput the tap module can handle without packet loss?
A: The 1783-ETAPK supports full-duplex 100 Mbps operation (200 Mbps aggregate) with zero packet loss under normal conditions. It is designed for typical industrial EtherNet/IP networks where traffic rarely exceeds 30–40% utilization, providing ample headroom for burst traffic and diagnostic overhead.

Q: Can this tap module be used in hazardous or outdoor environments?
A: The standard 1783-ETAPK is rated IP20 and designed for installation inside control cabinets in non-hazardous industrial environments (0–60°C, 5–85% RH non-condensing). For hazardous locations (Class I Div 2, ATEX Zone 2) or outdoor installations, consult our team for ruggedized enclosure options or alternative models with higher ingress protection ratings.

Q: What diagnostic software is recommended for use with this tap module?
A: Wireshark (free, open-source) is the most popular choice for detailed packet analysis and protocol decoding. For Rockwell Automation-specific diagnostics, RSLinx Classic and Studio 5000 Logix Designer provide integrated network browsing and device status monitoring. Commercial tools like NETSCOUT or Fluke Networks analyzers are also compatible for advanced troubleshooting.

Q: Does the conformal coating affect network performance or signal integrity?
A: No. The conformal coating is applied to the PCB and internal components for environmental protection and does not contact the Ethernet signal paths or connectors. Signal integrity, impedance matching, and data transmission quality remain fully compliant with IEEE 802.3 Ethernet standards.

Q: Can multiple tap modules be used simultaneously on the same network segment?
A: Yes. Multiple tap modules can be deployed at different points in the network to monitor traffic between specific device pairs or network segments. This is particularly useful for large systems with multiple control zones, allowing simultaneous multi-point diagnostics without interference.

Request a Quote or Technical Consultation

To receive a detailed selection proposal, pricing quotation, or technical support, please provide the following information: project name, application description, network topology (number of devices, switches, controllers), data rate requirements, environmental conditions, and any specific diagnostic objectives. Our application engineers will respond within 24 hours with a customized recommendation and supporting documentation.
