Allen-Bradley 1783-ETAP1F Service-Ready Spare Part for Industrial Maintenance

Allen-Bradley 1783-ETAP1F Service-Ready Spare Part for Industrial Maintenance

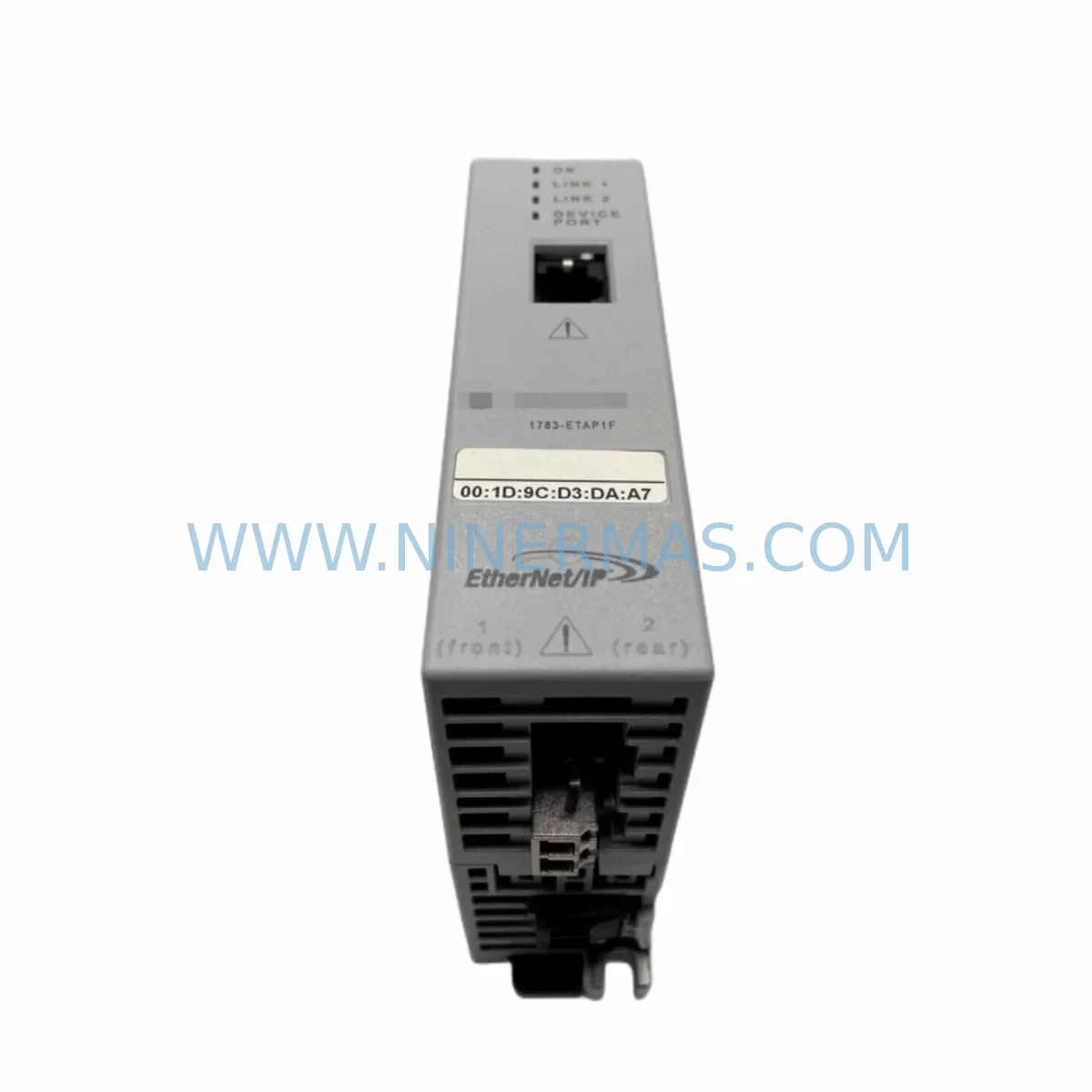

The Allen-Bradley 1783-ETAP1F is an original EtherNet/IP Tap module designed for passive network monitoring and port mirroring within Rockwell Automation’s Stratix industrial Ethernet infrastructure. As a critical diagnostic and maintenance component, the 1783-ETAP1F enables maintenance engineers to connect a network analyzer or SCADA monitoring device to a live EtherNet/IP segment without interrupting production traffic. In high-availability manufacturing environments — including automotive assembly, food and beverage processing, oil and gas control rooms, and discrete parts manufacturing — unplanned downtime caused by a failed or degraded tap module can halt an entire production line within minutes. Stocking a verified, service-ready 1783-ETAP1F as part of your critical spare parts inventory is a proven strategy for reducing mean time to repair (MTTR) and maintaining continuous operation.

NINERMAS supplies the 1783-ETAP1F as a tested, original spare backed by a 12-month warranty. Each unit undergoes pre-shipment functional verification to confirm port integrity, LED status indication, and passive tap performance before dispatch. Whether you are responding to an emergency breakdown, executing a scheduled annual overhaul, or building a proactive spare parts buffer for your control cabinet, NINERMAS provides reliable long-term supply with fast lead times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the 1783-ETAP1F in the field, a thorough maintenance engineer will treat the tap module replacement as an opportunity to audit the surrounding EtherNet/IP infrastructure. The tap sits inline between two network nodes, meaning any degradation in adjacent components can mask or amplify the symptoms that originally pointed to the tap as the fault source.

Begin by inspecting the Stratix 5700 managed switch (e.g., 1783-BMS10CGL or 1783-BMS20CL) that the tap feeds into — verify port statistics, check for CRC errors, and confirm that IGMP snooping and QoS settings are intact after the tap swap. Next, examine the EtherNet/IP copper patch cables and RJ45 connectors on both the upstream and downstream tap ports; a damaged cable sheath or a corroded connector pin is a common secondary fault that goes undetected during a rushed emergency replacement.

If the 1783-ETAP1F is installed in a control cabinet alongside a ControlLogix L7x or L8x controller (e.g., 1756-L73 or 1756-L83E), confirm that the controller’s EtherNet/IP communication module — typically a 1756-EN2T or 1756-EN2TR — is operating without I/O connection timeouts. A tap failure can sometimes be misdiagnosed as a controller communication fault, so clearing the controller fault log and verifying I/O connection counts after tap replacement is essential.

For systems using CompactLogix 5370 or 5380 controllers (e.g., 1769-L30ER or 1769-L33ER), check the onboard EtherNet/IP port configuration in Studio 5000 Logix Designer and confirm that the network path to remote I/O adapters — such as the 1734-AENTR POINT I/O EtherNet/IP adapter — is re-established cleanly after the tap is replaced. It is also advisable to inspect any 1783-NATR NAT router modules in the same cabinet, as these devices share the same DIN rail mounting profile and are often part of the same network segment.

From a power and protection standpoint, verify that the 1606-XLP power supply or equivalent 24 VDC DIN rail PSU feeding the cabinet is within voltage tolerance (21.6–26.4 VDC), since marginal supply voltage can cause intermittent network device resets that mimic tap failures. Check the associated terminal block fusing (e.g., Phoenix Contact or Weidmüller 6.3 A fuse terminal blocks) on the 24 VDC distribution rail. For cabinets with signal isolation requirements, inspect any MTL or Pepperl+Fuchs signal isolators on analog I/O loops to confirm they have not been affected by the network event that triggered the tap replacement.

Finally, if the plant uses FactoryTalk View SE or ME HMI panels connected via EtherNet/IP, verify that the HMI communication path is fully restored after the tap swap and that no stale alarm states remain latched. Document the replacement in your CMMS with the tap’s serial number, installation date, and the results of the post-replacement network health check — this record becomes invaluable during the next annual shutdown audit.

Site Replacement Workflow

Step 1 — Identify and isolate: Confirm the 1783-ETAP1F as the fault source using a network analyzer connected to the monitor port. If the monitor port produces no traffic mirror output, the tap is the primary suspect. Note the upstream and downstream device IP addresses and MAC addresses before disconnecting.

Step 2 — Safe removal: The 1783-ETAP1F is a passive device and does not require a controller shutdown for replacement in most topologies. However, notify the control room operator before disconnecting, as the brief link interruption (typically <30 seconds) will generate I/O connection timeout alarms on the controller. Snap the unit off the DIN rail and disconnect both RJ45 cables, labeling them A (upstream) and B (downstream) to preserve network topology.

Step 3 — Install the replacement unit: Mount the new 1783-ETAP1F on the DIN rail, reconnect cables A and B in the correct orientation, and verify that the LINK LEDs illuminate on both copper ports within 5 seconds. Reconnect the monitor port cable to your network analyzer or SPAN destination switch port.

Step 4 — Verify network restoration: Confirm that the controller I/O connection count returns to its pre-fault value in Studio 5000 or RSLinx Classic. Run a brief ping sweep across the EtherNet/IP segment to confirm all nodes are reachable. Clear any latched alarms on the HMI and document the restoration time.

Step 5 — Legacy system compatibility: The 1783-ETAP1F is backward compatible with older Rockwell EtherNet/IP infrastructure, including legacy SLC 5/05 Ethernet processors and PLC-5E systems still operating in extended-life environments. No firmware update is required for the tap itself, making it a drop-in replacement that minimizes engineering time during emergency callouts.

Spare Parts Support FAQ

Q1: What is the expected service life of the 1783-ETAP1F, and when should I plan a proactive replacement?
The 1783-ETAP1F is a passive electronic device with no moving parts, and under normal operating conditions (clean cabinet environment, stable temperature, no voltage surges) it can remain in service for 10–15 years. However, Rockwell Automation’s standard product lifecycle policy means that older units may reach end-of-life (EOL) or end-of-support status. NINERMAS recommends stocking at least one replacement unit per production line and scheduling a proactive swap during the next planned annual shutdown if the installed unit has been in service for more than 8 years or shows any intermittent link-loss events.

Q2: How do I verify compatibility between the 1783-ETAP1F and my existing Stratix switch or ControlLogix system?
The 1783-ETAP1F is compatible with any standard 10/100 Mbps EtherNet/IP copper segment. It does not require configuration or firmware and is recognized transparently by Stratix 5700, Stratix 5400, and Stratix 2000 switches, as well as ControlLogix and CompactLogix EtherNet/IP communication modules. Compatibility verification requires only confirming that your network operates at 10 or 100 Mbps copper — the tap does not support fiber uplinks on its inline ports (the 1F suffix denotes the copper variant).

Q3: What pre-shipment testing does NINERMAS perform on the 1783-ETAP1F before dispatch?
Every 1783-ETAP1F shipped by NINERMAS undergoes a functional bench test that includes: (1) port continuity check on all three ports, (2) LED status verification under live network traffic, (3) passive tap mirror output confirmation using a network packet analyzer, and (4) physical inspection of the DIN rail clip, RJ45 port housings, and label integrity. A test report is available upon request. All units are shipped in anti-static packaging with a 12-month warranty from the date of invoice.

Q4: Can NINERMAS guarantee long-term supply of the 1783-ETAP1F for multi-year maintenance contracts?
Yes. NINERMAS maintains a dedicated inventory buffer for high-demand Rockwell Automation spare parts, including the 1783-ETAP1F and related Stratix network components. For customers with multi-site maintenance contracts or annual shutdown schedules, NINERMAS offers reserved stock agreements and blanket purchase order arrangements to ensure supply continuity. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss your long-term spare parts requirements.
