Allen-Bradley 1783-ETAP Industrial Ethernet Tap Module | 3-Port Network Diagnostic Tool for EtherNet/IP Systems

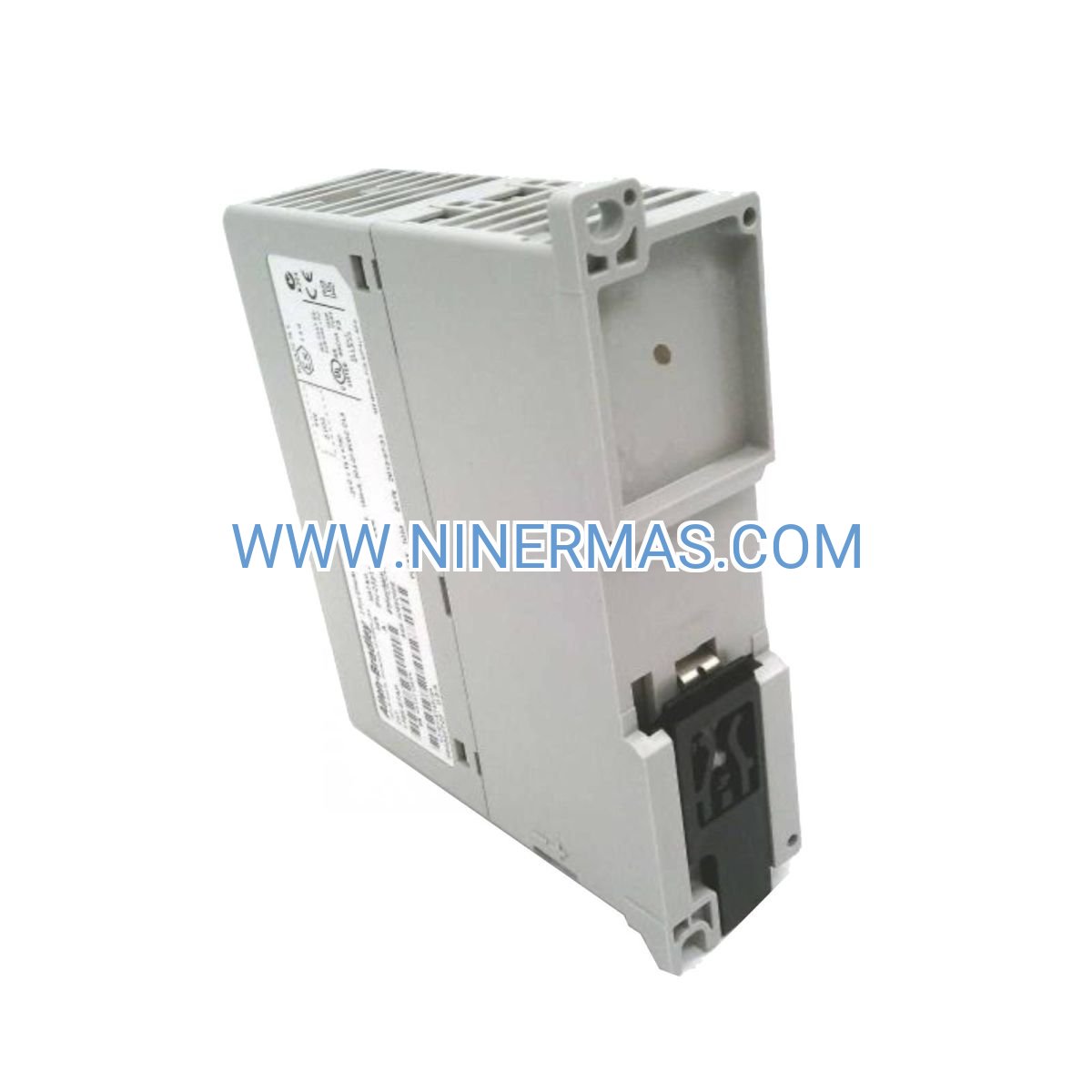

Allen-Bradley 1783-ETAP EtherNet/IP Tap Module (Industrial Network Diagnostic Solution)

The Allen-Bradley 1783-ETAP is a professional-grade industrial Ethernet tap module designed for non-intrusive network monitoring and diagnostics in EtherNet/IP automation systems. Through its 3-port copper switching architecture and passive tap technology, it enables real-time traffic analysis, protocol troubleshooting, and performance monitoring without disrupting live production networks.

Ideal for manufacturing plants, process control facilities, and industrial infrastructure where continuous uptime is critical, the 1783-ETAP helps solve common challenges such as intermittent communication errors, network congestion, device configuration conflicts, and protocol-level faults that are difficult to diagnose with standard tools.

With DIN-rail mounting, compact design, and industrial-grade reliability, this tap module is the preferred choice for automation engineers, system integrators, maintenance teams, and OEM equipment manufacturers. Contact our technical team for application-specific configuration guidance and competitive quotations.

Core Features & Technical Advantages

Non-Intrusive Network Monitoring
Utilizes passive tap technology to mirror network traffic to diagnostic tools (such as Wireshark, protocol analyzers, or SCADA monitoring systems) without introducing latency, packet loss, or network disruption—ensuring zero impact on production operations.

3-Port Copper Ethernet Architecture
Features two in-line 10/100 Mbps RJ45 ports for transparent data pass-through, plus one dedicated monitor port for connecting diagnostic equipment. Supports full-duplex communication and auto-negotiation for seamless integration into existing networks.

EtherNet/IP Protocol Optimization
Specifically engineered for Rockwell Automation EtherNet/IP environments, enabling deep inspection of CIP (Common Industrial Protocol) messages, implicit/explicit messaging, and I/O scanner traffic—critical for troubleshooting ControlLogix, CompactLogix, and Stratix switch ecosystems.

Industrial-Grade Durability
Built to withstand harsh factory environments with operating temperature range of 0–60°C, conformal coating for moisture/dust resistance, and compliance with CE, UL, and ATEX standards. MTBF exceeds 100,000 hours for long-term reliability.

Plug-and-Play Installation
DIN-rail mountable design with compact 35mm footprint, 24V DC power input (18–30V range), and LED status indicators for power, link activity, and fault diagnostics. No software configuration required—simply insert into network path and connect monitoring device.

Multi-Vendor Compatibility
While optimized for Allen-Bradley systems, the 1783-ETAP is fully compatible with standard Ethernet protocols, making it suitable for mixed-vendor environments including Siemens, Schneider Electric, Omron, and Modbus TCP networks.

Typical Application Scenarios

The 1783-ETAP is engineered for environments where network visibility, uptime assurance, and rapid fault resolution are mission-critical:

Automotive & Discrete Manufacturing
Deploy between PLC controllers and I/O racks to monitor real-time production data, diagnose intermittent communication faults on assembly lines, and validate network performance during equipment commissioning or upgrades.

Process Industries (Oil & Gas, Chemical, Pharmaceutical)
Install in SCADA/DCS networks to capture process variable trends, troubleshoot fieldbus gateway issues, and ensure regulatory compliance through continuous network audit trails without interrupting critical process control loops.

Water/Wastewater Treatment & Utilities
Monitor remote pump stations, valve actuators, and flow meters over EtherNet/IP networks. Identify communication bottlenecks, detect unauthorized device access, and optimize polling intervals to reduce network congestion.

Building Automation & HVAC Systems
Integrate into BACnet/IP or EtherNet/IP building management systems to troubleshoot chiller controllers, air handling units, and energy meters. Capture traffic patterns for energy optimization and predictive maintenance analytics.

Machine OEM & System Integration
Embed into custom machinery or skid-mounted systems to provide end-users with built-in diagnostic capabilities. Simplify remote support, reduce on-site service calls, and accelerate commissioning timelines.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, please review the following technical parameters:

Network Interface: 3× RJ45 10/100BASE-TX Ethernet ports (2× in-line + 1× monitor)
Protocol Support: EtherNet/IP (CIP), Modbus TCP, PROFINET, standard TCP/IP
Power Supply: 24V DC ±20% (18–30V), 3W typical consumption
Mounting: 35mm DIN rail (EN 50022)
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Humidity: 5% to 95% non-condensing
Enclosure Rating: IP20 (for panel-mount applications)
Certifications: UL, CE, RCM, KCC, ATEX Zone 2
Dimensions: 35 × 118 × 87 mm (W × H × D)
Weight: Approximately 0.2 kg

Selection Recommendations:
When specifying the 1783-ETAP, consider the following factors: network topology (star, daisy-chain, or ring), maximum cable distance between devices, required diagnostic tool compatibility (e.g., Wireshark, RSLinx, FactoryTalk), and whether redundant monitoring is needed for high-availability systems. For multi-segment networks or fiber-optic backbones, consult our engineering team for hybrid tap solutions combining 1783-ETAP with media converters or managed switches.

Advanced Diagnostic Capabilities

Real-Time Traffic Analysis
Capture and analyze EtherNet/IP implicit messaging (I/O data), explicit messaging (configuration/diagnostics), and multicast traffic. Identify bandwidth hogs, detect broadcast storms, and optimize producer-consumer relationships.

Protocol Decoding & Troubleshooting
Use with Wireshark or proprietary Allen-Bradley tools to decode CIP service codes, class/instance/attribute structures, and error responses. Pinpoint configuration mismatches, timeout issues, and firmware incompatibilities.

Network Performance Baselining
Establish performance benchmarks for packet loss, jitter, and latency. Compare pre- and post-upgrade metrics to validate network improvements or identify degradation trends.

Security Auditing & Compliance
Monitor for unauthorized device connections, abnormal traffic patterns, or potential cybersecurity threats. Generate audit logs for ISO 27001, IEC 62443, or NERC CIP compliance.

Remote Diagnostics & Predictive Maintenance
Integrate with cloud-based analytics platforms or on-premise SIEM systems to enable remote troubleshooting, automated alerting, and predictive failure analysis based on network behavior patterns.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3–5 business days; custom configurations or bulk orders typically require 10–15 business days.
Warranty: 24-month manufacturer warranty covering defects in materials and workmanship.
Technical Support: Complimentary remote configuration assistance, application engineering consultation, and access to detailed user manuals, wiring diagrams, and AutoCAD drawings.
Installation Services: On-site commissioning and training available in select regions (contact for availability and pricing).
Documentation Package: Includes quick-start guide, electrical schematics, network topology examples, and integration notes for FactoryTalk View, RSLogix 5000, and Studio 5000 environments.

Frequently Asked Questions (FAQ)

Q: How does the 1783-ETAP EtherNet/IP tap module integrate with existing PLC networks?
A: The 1783-ETAP is inserted in-line between any two Ethernet devices (e.g., PLC and switch, or switch and I/O module). The two in-line ports pass traffic transparently, while the monitor port outputs a mirrored copy to your diagnostic tool. No IP address configuration or network reconfiguration is required.

Q: Can one tap module monitor multiple network segments simultaneously?
A: Each 1783-ETAP monitors a single point-to-point link. For multi-segment monitoring, deploy multiple tap modules at strategic locations (e.g., upstream of critical controllers, at network boundaries, or before/after managed switches).

Q: What level of energy savings or efficiency improvement can be expected?
A: While the tap module itself does not directly reduce energy consumption, it enables faster fault resolution and network optimization, which can minimize downtime-related production losses (often valued at $10,000–$100,000 per hour in manufacturing). Improved network efficiency also reduces unnecessary retransmissions and CPU overhead on controllers.

Q: What are the environmental and installation requirements?
A: The 1783-ETAP requires a clean, dry panel environment with IP20 minimum protection. Ambient temperature must remain within 0–60°C, and the 24V DC power supply should be isolated and filtered to prevent electrical noise. DIN-rail mounting allows installation in standard control cabinets alongside PLCs and I/O modules.

Q: Does the tap module support remote monitoring and data export?
A: Yes—when connected to a network analyzer or industrial PC running packet capture software, the 1783-ETAP enables remote monitoring via VPN or secure tunneling. Captured data can be exported in PCAP format for offline analysis, long-term archiving, or integration with SIEM/SCADA historian systems. Supported protocols include SNMP, Modbus TCP, and OPC UA for integration with third-party monitoring platforms.

Q: Is the 1783-ETAP compatible with fiber-optic networks?
A: The standard 1783-ETAP features copper RJ45 ports. For fiber-optic networks, pair it with Allen-Bradley 1783-BMS or third-party media converters to extend monitoring capabilities to single-mode or multimode fiber backbones.

Request a Custom Solution

To receive a tailored selection proposal, competitive quotation, or technical consultation, please provide the following details:

• Project name and application overview
• Network topology (star, ring, linear) and number of devices
• PLC/controller models and firmware versions
• Diagnostic tool requirements (Wireshark, RSLinx, proprietary software)
• Power supply specifications and environmental conditions
• Quantity required and delivery timeline

Our application engineers will respond within 24 hours with a comprehensive solution including product recommendations, wiring diagrams, and pricing.
