Allen-Bradley 1783-EMS08T Stratix 6000 Switch | 8-Port Managed Industrial Ethernet | DLR Ring Support

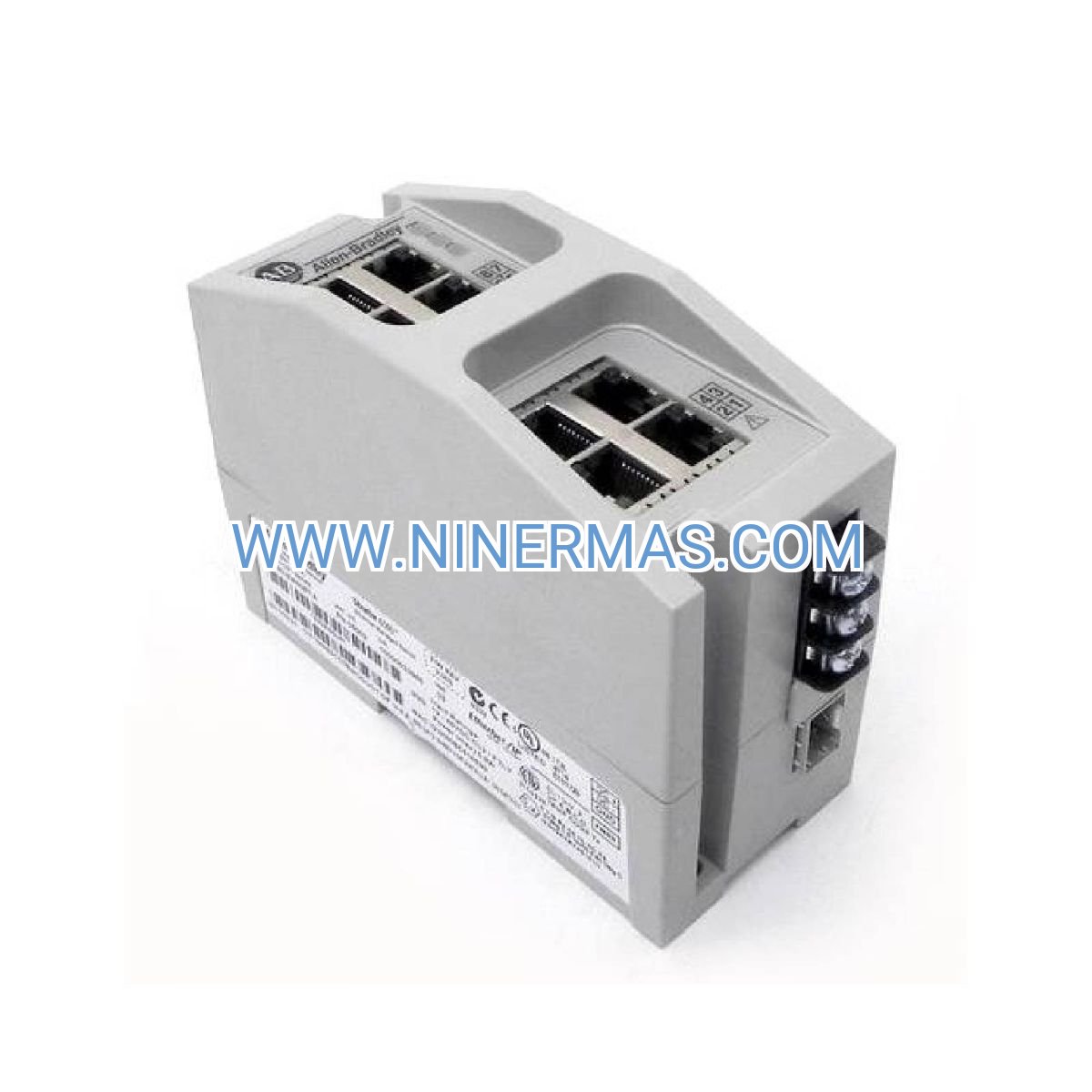

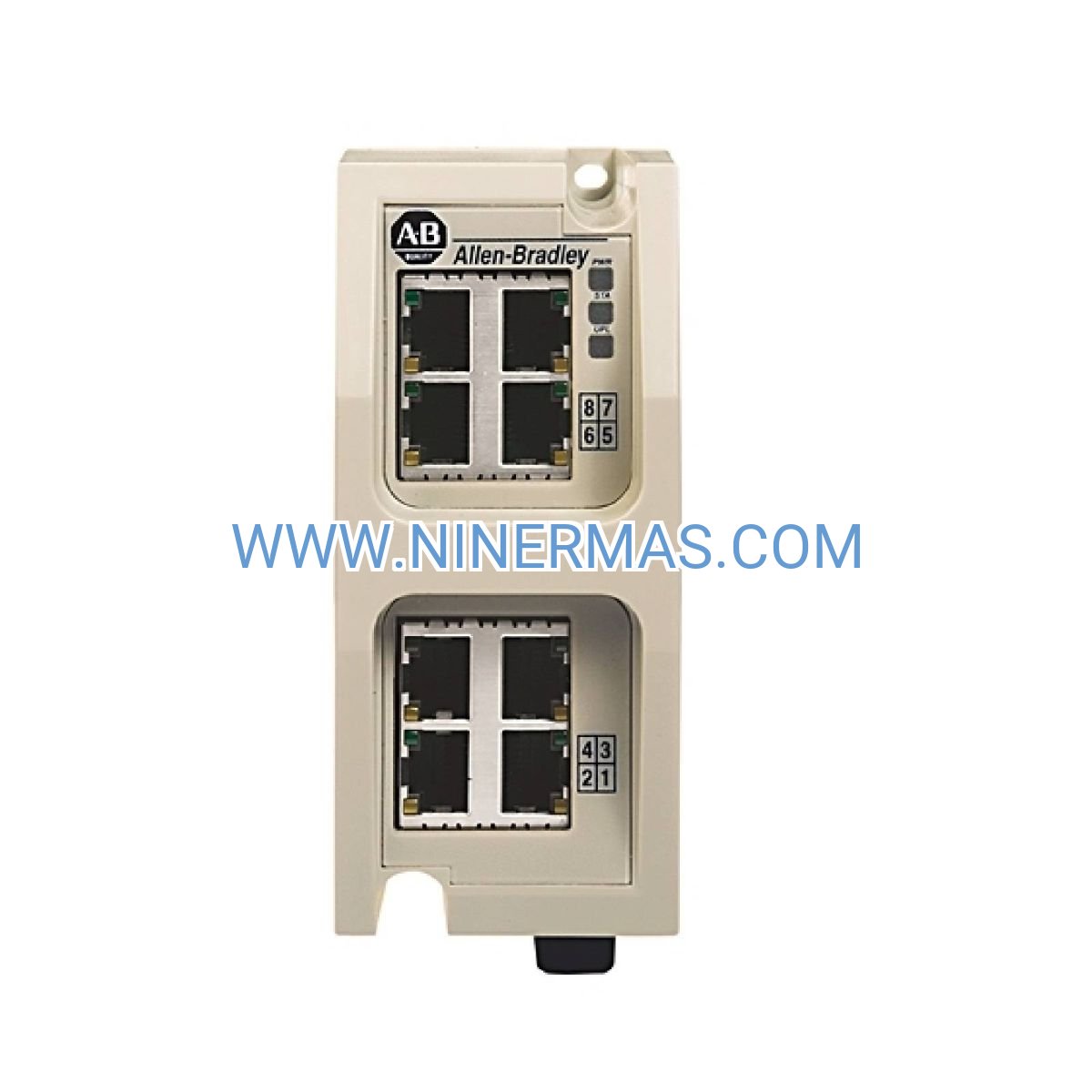

Allen-Bradley 1783-EMS08T Stratix 6000 Managed Ethernet Switch (Industrial-Grade Network Control Solution)

The Allen-Bradley 1783-EMS08T is an 8-port managed industrial Ethernet switch engineered for mission-critical automation networks. Through advanced Layer 2 switching technology and Device Level Ring (DLR) protocol support, it delivers deterministic network performance with sub-10ms failover recovery, ensuring continuous operation in demanding industrial environments.

Designed for oil & gas facilities, power generation plants, water treatment systems, automotive manufacturing lines, and process control applications, this switch addresses common challenges including network downtime, electromagnetic interference, extreme temperature fluctuations, and complex multi-vendor device integration requirements.

With ruggedized construction, seamless Studio 5000 Logix Designer integration, and comprehensive diagnostic capabilities, the 1783-EMS08T offers reliable connectivity, simplified configuration, rapid troubleshooting, and scalable architecture. Ideal for control engineers, system integrators, plant maintenance teams, and OEM equipment manufacturers seeking proven industrial networking solutions. Contact our application engineers for network topology design and product selection assistance.

Core Features & Advantages

Device Level Ring (DLR) Redundancy
Supports DLR ring topology with automatic failover recovery in less than 10ms, eliminating single points of failure and maintaining network continuity during cable breaks or switch failures, critical for continuous process operations.

Extended Operating Temperature Range
Operates reliably from -40°C to 70°C (-40°F to 158°F) without forced cooling, suitable for outdoor enclosures, unheated control rooms, and extreme climate installations where commercial-grade switches would fail.

EtherNet/IP Native Support
Optimized for Rockwell Automation's EtherNet/IP industrial protocol with CIP Sync for precision time synchronization, ensuring seamless integration with ControlLogix, CompactLogix PLCs, PowerFlex drives, and Kinetix servo systems.

Comprehensive Port Diagnostics
Real-time monitoring of port status, traffic statistics, error counters, and cable health through embedded web interface and Studio 5000 integration, reducing troubleshooting time and preventing unplanned downtime.

Quality of Service (QoS) Prioritization
IEEE 802.1p/Q VLAN tagging and traffic prioritization ensure time-critical control data receives precedence over non-essential traffic, maintaining deterministic performance in converged networks mixing control, safety, and information data.

DIN Rail & Panel Mount Flexibility
Compact metal housing with integrated DIN rail clip and panel mount options, fitting standard industrial enclosures while providing EMI/RFI shielding and IP30 ingress protection for harsh factory floor environments.

Typical Application Scenarios

This managed switch is engineered for industrial networks requiring high availability, environmental resilience, and protocol-specific optimization, particularly in:

Oil & Gas Production & Pipeline Systems
Connects remote wellhead controllers, SCADA RTUs, and safety instrumented systems across distributed facilities, withstanding temperature extremes and providing redundant communication paths for critical shutdown systems and leak detection networks.

Power Generation & Substation Automation
Links protective relays, turbine controllers, and SCADA systems in power plants and electrical substations, meeting IEC 61850 timing requirements and providing deterministic performance for real-time monitoring and control of generation assets.

Automotive & Discrete Manufacturing Lines
Establishes high-speed communication between PLCs, HMIs, vision systems, and robotic cells on assembly lines, supporting synchronized motion control and enabling rapid changeovers through centralized network management and diagnostics.

Water & Wastewater Treatment Facilities
Interconnects pump stations, filtration systems, and chemical dosing equipment across treatment plants, operating reliably in high-humidity environments while providing remote monitoring capabilities and alarm notification for process deviations.

Food & Beverage Processing Plants
Supports hygienic design requirements in washdown areas, connecting packaging equipment, batch controllers, and traceability systems while maintaining network integrity during cleaning cycles and temperature fluctuations in refrigerated zones.

Technical Specifications & Selection Guide

To facilitate engineering design and product selection, we provide standardized specifications for the 1783-EMS08T model, with custom configurations available for specific project requirements.

Key Technical Parameters:

• Port Configuration: 8 × 10/100 Mbps RJ45 copper ports (auto-MDI/MDIX)
• Network Topology: Star, DLR ring (single or dual ring), linear daisy-chain
• Switching Capacity: 1.6 Gbps wire-speed forwarding, store-and-forward architecture
• MAC Address Table: 8,192 entries with automatic learning and aging
• Power Input: 24V DC (18-32V DC operating range), redundant dual input optional
• Power Consumption: Maximum 12W typical operation
• Operating Temperature: -40°C to 70°C (-40°F to 158°F), convection cooled
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 5% to 95% non-condensing
• Vibration Resistance: IEC 60068-2-6 compliant, 5g operational
• Shock Resistance: IEC 60068-2-27 compliant, 30g operational
• EMC Compliance: CE, FCC Class A, ATEX Zone 2 (with appropriate enclosure)
• Enclosure Rating: IP30, metal housing with grounding lug
• Mounting: 35mm DIN rail or panel mount (hardware included)
• Dimensions: 125mm (H) × 35mm (W) × 120mm (D)
• MTBF: >500,000 hours at 40°C per Telcordia SR-332

Selection Recommendations:
When specifying this switch, consider: maximum network node count, required ring recovery time, ambient temperature range, power supply redundancy needs, cabinet space constraints, and future expansion requirements. For networks exceeding 50 nodes or requiring fiber backbone connectivity, consult our application engineers with network topology diagrams, device lists, and environmental conditions for optimized switch selection and configuration guidance.

Advanced Network Capabilities

IGMP Snooping & Multicast Filtering: Prevents multicast traffic flooding by intelligently forwarding multicast streams only to subscribed ports, essential for I/O scanner optimization and bandwidth conservation in large EtherNet/IP networks.

Port Mirroring for Diagnostics: Mirrors traffic from any port to a designated monitoring port for protocol analysis and troubleshooting without network interruption, accelerating fault isolation and commissioning validation.

SNMP v1/v2c/v3 Management: Enables integration with enterprise network management systems (NMS) for centralized monitoring, SNMP trap notifications, and MIB-based configuration, bridging IT and OT network management practices.

Dual IP Address Configuration: Supports separate IP addresses for device configuration network and production control network, enhancing security by isolating management traffic from operational data flows.

Firmware Update via Studio 5000: Simplifies lifecycle management through in-application firmware updates without requiring separate configuration tools, reducing training requirements and ensuring version consistency across installations.

Delivery, Service & Quality Assurance

Lead Time: Factory-sealed units typically ship within 3-5 business days from stock; custom-configured switches with pre-loaded settings available with 7-10 day lead time.

Warranty Coverage: Standard 2-year manufacturer warranty covering defects in materials and workmanship; extended warranty and advance replacement programs available for critical infrastructure applications.

Technical Support: Remote configuration assistance, network design review, and troubleshooting support provided by certified Rockwell Automation engineers; on-site commissioning and training services available based on project scope and location.

Documentation Package: Each unit includes quick-start guide, complete user manual (PDF), electrical wiring diagrams, DLR configuration examples, Studio 5000 Add-On Profile (AOP), and compliance certificates for regulatory submissions.

Quality Certifications: Manufactured in ISO 9001:2015 certified facilities; products undergo 100% functional testing, burn-in validation, and environmental stress screening prior to shipment, ensuring field-ready reliability.

Frequently Asked Questions (FAQ)

Q: How does the 1783-EMS08T managed switch integrate with existing Allen-Bradley control systems?
A: The switch features native EtherNet/IP support and includes a Studio 5000 Add-On Profile (AOP) for seamless integration. Simply add the switch to your I/O configuration tree, and you can monitor port status, configure VLANs, and view diagnostics directly within the Logix Designer environment without requiring separate network management software.

Q: What is the maximum number of switches that can be connected in a single DLR ring topology?
A: The 1783-EMS08T supports DLR rings with up to 50 devices (switches and end nodes combined) while maintaining the guaranteed sub-10ms failover recovery time. For larger networks, consider implementing multiple rings with inter-ring coupling or upgrading to fiber-based backbone switches for extended scalability.

Q: What level of energy savings can be achieved compared to unmanaged switch solutions?
A: While managed switches typically consume slightly more power (12W vs. 8W for unmanaged equivalents) due to advanced processing capabilities, the network-wide energy optimization through traffic management, reduced broadcast storms, and prevention of network loops can reduce overall infrastructure power consumption by 15-25% in large installations by eliminating redundant traffic and enabling Energy Efficient Ethernet (EEE) on compatible devices.

Q: What environmental protection rating does this switch provide, and are there installation restrictions?
A: The switch carries an IP30 rating, suitable for installation inside industrial control cabinets and electrical enclosures. For outdoor or washdown applications, mount the switch in a NEMA 4X or IP65-rated enclosure with appropriate environmental sealing. Ensure adequate ventilation for convection cooling and maintain ambient temperatures within the -40°C to 70°C operating range.

Q: Does the switch support remote monitoring and SCADA integration for data acquisition?
A: Yes, the 1783-EMS08T supports multiple remote access methods including embedded web server (HTTP/HTTPS), SNMP v1/v2c/v3 for integration with network management systems, and direct monitoring through Studio 5000. It also supports Modbus/TCP and EtherNet/IP explicit messaging for custom SCADA integration, enabling real-time port statistics, alarm notifications, and performance trending.

Q: Can this switch be used in hazardous location (Class I Division 2) installations?
A: When installed in an appropriately rated purged and pressurized enclosure or explosion-proof cabinet meeting Class I Division 2 requirements, the 1783-EMS08T can be deployed in hazardous areas. Consult local electrical codes (NEC Article 500 in North America, IECEx internationally) and work with certified panel builders to ensure proper enclosure selection, purge system design, and installation practices.

Request Technical Selection Assistance

To receive detailed network topology recommendations, product configuration guidance, or project quotations, please provide the following information: project name and industry sector, application environment (temperature range, enclosure type), network architecture requirements (node count, ring/star topology, fiber needs), connected device types and quantities (PLCs, drives, I/O, HMIs), power supply specifications, and any specific compliance requirements (UL, ATEX, marine). Our application engineering team will provide personalized selection recommendations and technical support within 24 hours.
