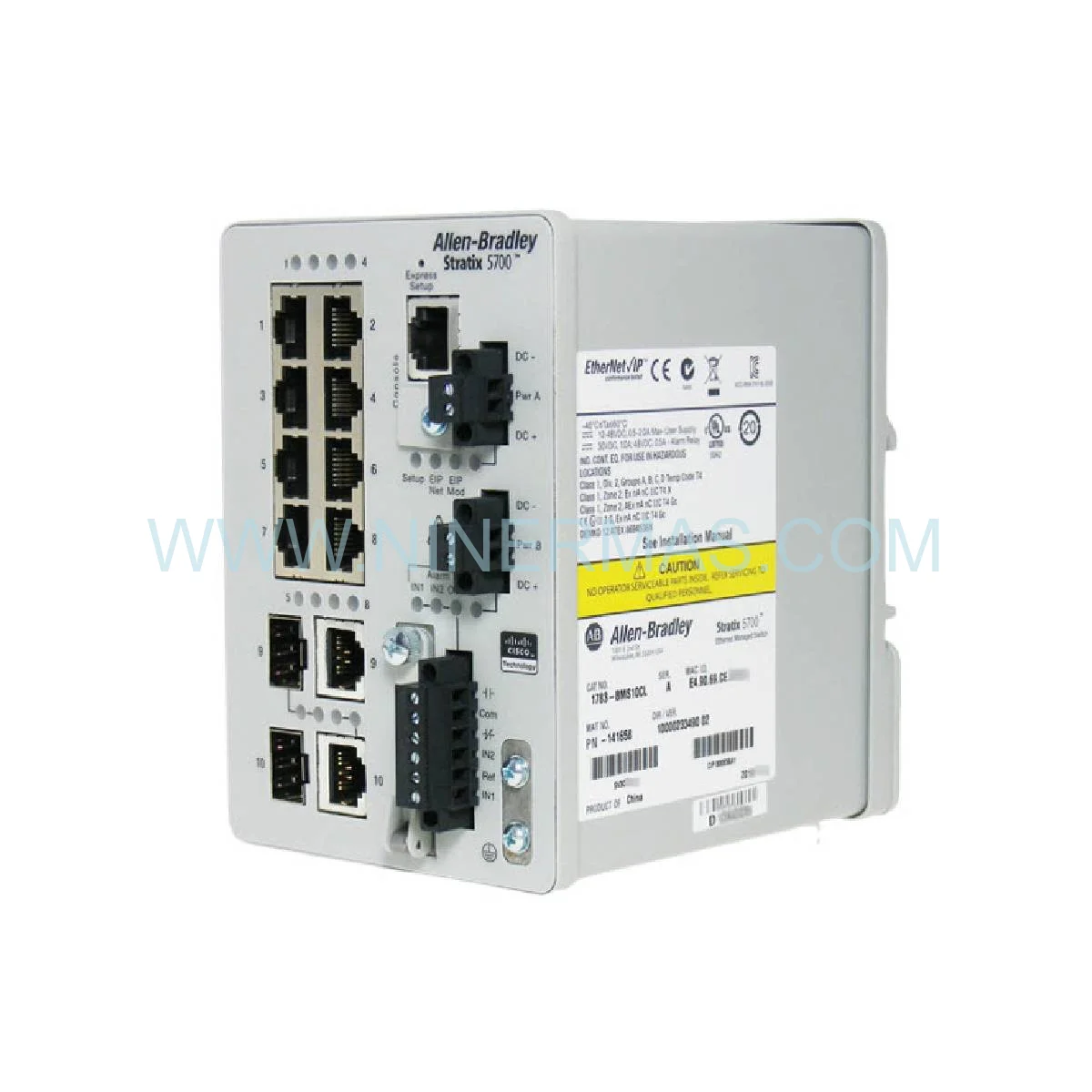

Allen-Bradley 1783-BMS10CL Stratix 5700 10-Port Managed Ethernet Switch

Allen-Bradley 1783-BMS10CL Stratix 5700 10-Port Managed Ethernet Switch

The Allen-Bradley 1783-BMS10CL is a ruggedized industrial managed Ethernet switch engineered for mission-critical automation networks. Part of the Stratix 5700 series, this 10-port switch delivers enterprise-grade performance with Power over Ethernet Plus (PoE+) capability, making it ideal for powering IP cameras, wireless access points, and industrial IoT devices directly through network cables.

Technical Specifications

• Model: 1783-BMS10CL
• Port Configuration: 10 x 10/100 Mbps Ethernet ports
• PoE+ Support: IEEE 802.3at compliant, up to 30W per port
• Power Input: 12-48V DC wide-range input
• Switching Capacity: 2 Gbps non-blocking architecture
• Management: Layer 2+ managed with VLAN, QoS, IGMP snooping
• Operating Temperature: -40 °C to +70 °C extended range
• Mounting: DIN-rail or panel mount options
• Certifications: UL/cUL Class I Div 2, ATEX Zone 2, IECEx

Key Applications & Use Cases

This managed switch excels in demanding industrial environments where reliable network connectivity is non-negotiable:

• Manufacturing Automation: Connect PLCs, HMIs, drives, and I/O modules in EtherNet/IP networks
• Process Control: Segment critical control traffic from enterprise data using VLAN technology
• Machine Building: Integrate vision systems, robotics, and safety devices on a single network backbone
• Infrastructure Monitoring: Power and connect IP surveillance cameras in remote locations
• Oil & Gas: Deploy in hazardous locations with appropriate certifications for Zone 2 environments

Advanced Network Solutions

The 1783-BMS10CL integrates seamlessly with Rockwell Automation’s Integrated Architecture, offering:

• Precision Time Protocol (PTP): Synchronize distributed control systems with microsecond accuracy
• Device Level Ring (DLR): Achieve sub-50ms network recovery for uninterrupted operations
• CIP Security: Implement role-based access control and encrypted communications
• Studio 5000 Integration: Configure and monitor from your engineering workstation
• Redundant Power: Dual DC inputs ensure continuous operation during power fluctuations

Frequently Asked Questions

Q: Can this switch support fiber optic connections?
A: The 1783-BMS10CL features copper Ethernet ports. For fiber connectivity, consider the 1783-BMS10CGL model with SFP slots or use media converters.

Q: What is the total PoE+ power budget?
A: The switch provides up to 240W total PoE+ budget, intelligently distributed across powered ports based on device requirements.

Q: Is this compatible with non-Rockwell devices?
A: Yes, the switch follows IEEE 802.3 standards and works with any Ethernet-enabled device. However, advanced features like CIP Security require compatible Rockwell hardware.

Q: How do I configure VLANs for traffic segmentation?
A: Use the embedded web interface or Studio 5000 Logix Designer. The switch supports port-based and 802.1Q tagged VLANs with up to 256 VLAN IDs.

Q: What’s included in the 12-month warranty?
A: Our warranty covers manufacturing defects and hardware failures. We provide advance replacement service to minimize downtime, plus lifetime technical support.

Related Products You May Need

Why Choose Industrial Control Hub?

• Genuine Allen-Bradley Products: Factory-sealed with full manufacturer traceability
• 12-Month Warranty: Comprehensive coverage with hassle-free claims process
• Global Shipping: Fast delivery to your facility with real-time tracking
• Technical Expertise: Pre-sales consultation and post-installation support
• Competitive Pricing: Volume discounts available for system integrators

Upgrade your industrial network infrastructure with the proven reliability of Allen-Bradley Stratix 5700 technology. Order your 1783-BMS10CL today and experience seamless integration with your automation ecosystem.
