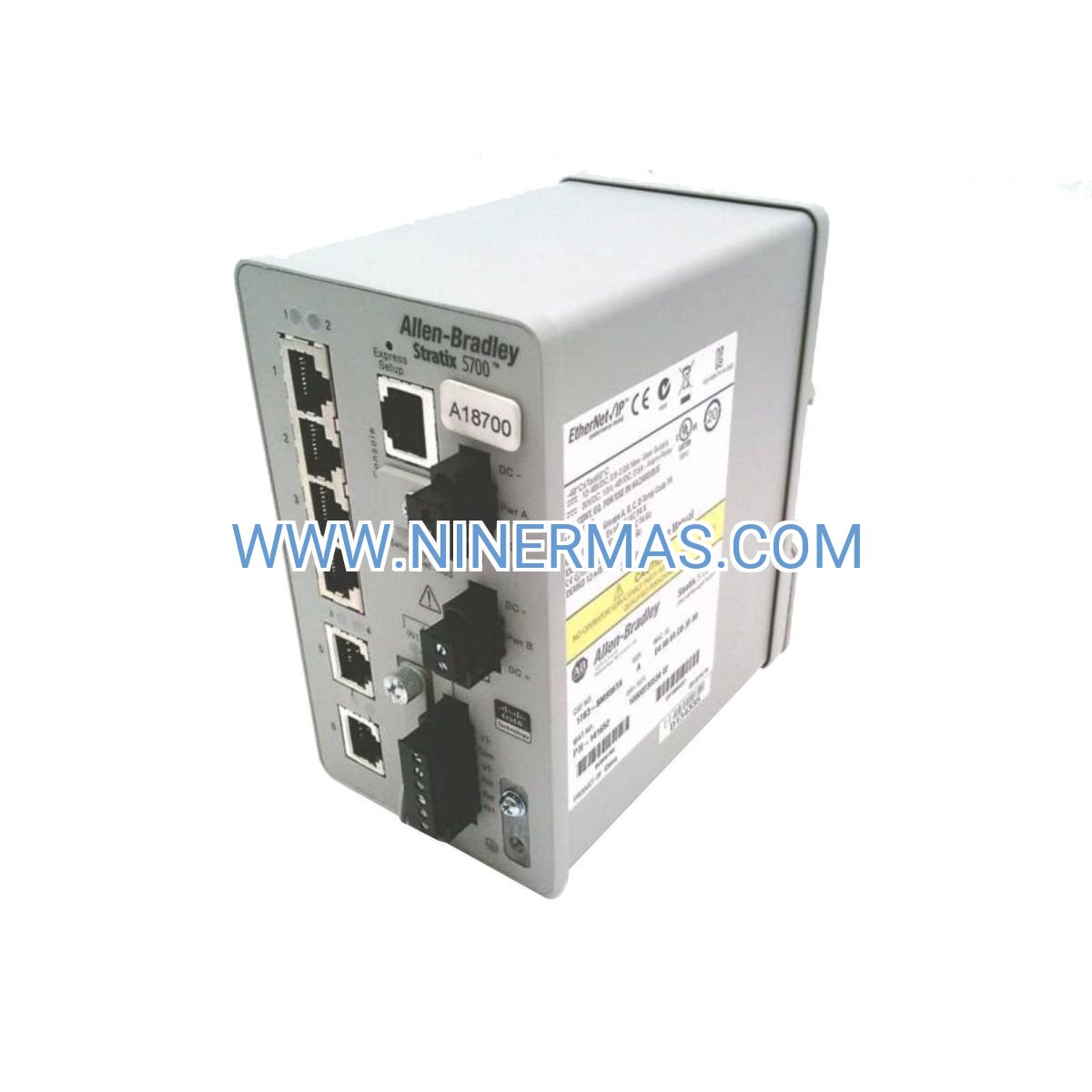

Allen-Bradley 1783-BMS10CGP Stratix 5700 Managed Ethernet Switch (Industrial-Grade PoE+ Network Solution)

The Allen-Bradley 1783-BMS10CGP Stratix 5700 is a ruggedized 10-port managed Ethernet switch engineered for mission-critical industrial automation networks. Leveraging advanced PoE+ (Power over Ethernet Plus) technology and Layer 2+ switching capabilities, this module delivers reliable, high-performance connectivity for factory floors, process control systems, SCADA infrastructure, and Industrial IoT (IIoT) deployments.

Designed for environments where network uptime, power efficiency, and seamless device integration are paramount, the Stratix 5700 addresses common challenges such as unstable network performance, complex device power management, limited diagnostic visibility, and harsh operating conditions. It is the preferred choice for system integrators, plant engineers, OEMs, and automation professionals seeking a proven, scalable networking backbone.

With standardized configuration templates and flexible customization options, the 1783-BMS10CGP offers intelligent traffic management, comprehensive fault protection, and intuitive monitoring interfaces. Whether you're upgrading legacy infrastructure or building a greenfield automation network, this switch ensures operational continuity and long-term investment protection. Contact our engineering team for tailored network design, technical specifications, and competitive quotations.

Core Features & Technical Advantages

High-Capacity PoE+ Power Delivery
Equipped with a 240W total PoE budget across 10 ports, the switch simultaneously powers IP cameras, wireless access points, VoIP phones, and industrial sensors without requiring separate power supplies. This reduces installation complexity, lowers cabling costs, and enhances system reliability in distributed automation environments.

Advanced Layer 2+ Switching Performance
Supports VLAN segmentation, Quality of Service (QoS) prioritization, IGMP snooping for multicast optimization, and Rapid Spanning Tree Protocol (RSTP) for network redundancy. These features ensure deterministic data delivery, minimize latency for time-sensitive control signals, and prevent broadcast storms in complex topologies.

Industrial-Hardened Design & Extended Temperature Range
Built to withstand extreme conditions with an operating temperature range of -40°C to 75°C (-40°F to 167°F), IP30-rated enclosure, and DIN-rail mounting for compact panel integration. Conformal coating options protect against moisture, dust, vibration, and electromagnetic interference (EMI) common in manufacturing and utility settings.

Comprehensive Network Security & Access Control
Implements 802.1X port-based authentication, MAC address filtering, and Access Control Lists (ACLs) to safeguard against unauthorized device connections and cyber threats. Integrated with Rockwell Automation's security ecosystem, it supports defense-in-depth strategies for converged IT/OT networks.

Simplified Diagnostics & Proactive Monitoring
Features embedded web-based management interface, SNMP v3 support, and compatibility with Rockwell's FactoryTalk Network Manager for centralized visibility. Real-time port status LEDs, syslog event logging, and email/SNMP trap alerts enable rapid fault isolation and minimize unplanned downtime.

Seamless Integration with Rockwell Automation Ecosystem
Natively compatible with ControlLogix, CompactLogix PLCs, PowerFlex drives, and PanelView HMIs via EtherNet/IP protocol. Pre-configured Add-On Profiles (AOP) accelerate commissioning and ensure consistent performance across multi-vendor automation architectures.

Typical Application Scenarios

The 1783-BMS10CGP is engineered to meet the demanding connectivity requirements of diverse industrial sectors, particularly where network reliability, power consolidation, and real-time data exchange are critical:

Discrete Manufacturing & Assembly Lines
Connects robotic cells, vision inspection systems, barcode scanners, and servo drives in automotive, electronics, and consumer goods production. PoE+ capability simplifies deployment of IP-based safety devices and mobile operator terminals, while QoS ensures prioritized motion control traffic.

Process Industries & Continuous Production
Supports distributed control systems (DCS), field instrumentation, and analytical equipment in oil & gas, chemical processing, food & beverage, and pharmaceutical facilities. RSTP redundancy and extended temperature tolerance maintain uptime in hazardous or remote locations.

Water/Wastewater Treatment & Utilities
Enables SCADA communication between RTUs, flow meters, pump controllers, and central monitoring stations across geographically dispersed sites. Ruggedized construction withstands outdoor enclosures and substation environments, while VLAN segmentation isolates operational and administrative networks.

Building Automation & Smart Infrastructure
Powers and manages IP surveillance cameras, access control panels, HVAC controllers, and energy meters in commercial buildings, data centers, and transportation hubs. Centralized management reduces operational complexity for facility managers and system integrators.

Material Handling & Warehouse Logistics
Provides backbone connectivity for automated guided vehicles (AGVs), conveyor systems, sortation equipment, and wireless handheld scanners. Multicast filtering optimizes bandwidth for real-time tracking and inventory management applications.

Technical Specifications & Selection Guide

To facilitate accurate system design and procurement, the following parameters define the 1783-BMS10CGP's capabilities. For project-specific configurations or alternative port densities, consult our application engineers with details on network topology, device count, power requirements, and environmental conditions.

Selection Considerations:
When specifying the 1783-BMS10CGP, evaluate total connected device count, aggregate PoE power draw (ensure <240W), required network redundancy topology (ring vs. star), ambient temperature extremes, and integration with existing Rockwell or third-party control platforms. For networks exceeding 10 endpoints or requiring fiber uplinks, consider the Stratix 5700 modular chassis variants. Our team provides complimentary network assessments and Bill of Materials (BOM) optimization upon request.

Advanced Capabilities & Integration Options

Precision Time Protocol (PTP) Synchronization
Supports IEEE 1588v2 for sub-microsecond time alignment across distributed motion control and data acquisition systems, critical for coordinated multi-axis robotics and high-speed packaging lines.

CIP Security & TLS Encryption
Implements Common Industrial Protocol (CIP) Security extensions and Transport Layer Security (TLS) 1.2 for encrypted EtherNet/IP communications, meeting cybersecurity mandates in regulated industries (FDA 21 CFR Part 11, IEC 62443).

Modular Expansion & Fiber Connectivity
Optional SFP (Small Form-factor Pluggable) slots enable long-distance fiber connections (up to 80 km with single-mode transceivers) for inter-building links or harsh EMI environments where copper cabling is impractical.

Cloud-Ready Network Analytics
Integrates with FactoryTalk Analytics and third-party SIEM (Security Information and Event Management) platforms via syslog and SNMP, enabling predictive maintenance, anomaly detection, and compliance reporting.

Delivery, Warranty & Technical Support

Lead Time & Availability:
Standard catalog units typically ship within 3-5 business days from regional distribution centers. Custom-configured switches (e.g., pre-loaded firmware, labeled ports, extended conformal coating) require 10-15 business days. Expedited logistics available for urgent project timelines.

Warranty Coverage:
Backed by Allen-Bradley's standard 2-year limited warranty covering defects in materials and workmanship. Extended service agreements and advance replacement programs available through authorized Rockwell Automation distributors.

Installation & Commissioning Support:
Comprehensive documentation package includes quick-start guide, detailed user manual, AutoCAD dimensional drawings, and sample network topologies. Remote configuration assistance and on-site startup services offered based on project scope and geographic location.

Lifecycle & Obsolescence Management:
As part of Rockwell's actively supported product line, the Stratix 5700 series receives regular firmware updates, security patches, and technical bulletins. Migration paths and backward compatibility ensured for long-term asset protection.

Frequently Asked Questions (FAQ)

Q: How does the 1783-BMS10CGP integrate with existing non-Rockwell automation equipment?
A: The switch operates as a standard IEEE 802.3-compliant Ethernet device, supporting any equipment with RJ45 connectivity (Siemens, Schneider, Mitsubishi PLCs, etc.). EtherNet/IP-specific features (CIP routing, implicit messaging) are optional and do not interfere with generic TCP/IP, Modbus TCP, or PROFINET traffic when properly segmented via VLANs.

Q: What is the maximum number of PoE devices I can connect simultaneously?
A: All 10 ports support PoE+, but total power draw must not exceed 240W. For example, you can power eight 30W devices (240W total) or ten 24W devices. The switch automatically prioritizes ports based on configurable power management policies to prevent overload.

Q: Can this switch operate in hazardous (explosive atmosphere) locations?
A: The 1783-BMS10CGP is certified for Class I Division 2 (North America) and ATEX/IECEx Zone 2 (international) hazardous locations when installed per NEC Article 500/501 or IEC 60079 guidelines. For Zone 1/Division 1 applications, consult Rockwell's intrinsically safe (IS) barrier solutions or explosion-proof enclosure options.

Q: How do I monitor switch health and diagnose network issues remotely?
A: Access the embedded web server via any standard browser for real-time port statistics, error counters, and PoE status. For enterprise-scale monitoring, deploy Rockwell's FactoryTalk Network Manager or integrate with open-source tools (Nagios, PRTG) using SNMP MIBs. Email/SMS alerts configurable for critical events (port down, power fault, temperature alarm).

Q: What redundancy options are available to eliminate single points of failure?
A: The switch supports Rapid Spanning Tree Protocol (RSTP) for automatic failover in ring or mesh topologies, typically recovering within 1-2 seconds. For deterministic <50ms recovery, use Rockwell's proprietary Device Level Ring (DLR) protocol in conjunction with compatible Stratix switches and ControlLogix controllers.

Q: Is firmware upgradeable, and how are security vulnerabilities addressed?
A: Yes, firmware updates are released quarterly via Rockwell Automation's Product Compatibility & Download Center (PCDC). Security advisories follow coordinated disclosure practices, with patches typically available within 30 days of vulnerability identification. Automated update scheduling supported through FactoryTalk AssetCentre.

Request a Custom Network Solution

To receive a tailored system design, competitive pricing, or technical consultation for your specific automation project, please provide the following details to our engineering team:

• Project Overview: Application type (manufacturing, infrastructure, building automation), site location, timeline
• Network Topology: Number of switches required, total endpoint count, fiber vs. copper backbone
• PoE Requirements: Device types (cameras, APs, phones), individual power draw, total budget needed
• Environmental Conditions: Temperature range, indoor/outdoor installation, vibration/shock levels
• Control System Architecture: PLC brand/model, HMI platform, SCADA software, existing network infrastructure
• Compliance Needs: Industry certifications (UL, ATEX, FDA), cybersecurity standards (IEC 62443, NIST), data logging requirements

Our certified network specialists will respond within 24 hours with a preliminary Bill of Materials (BOM), network diagram, and implementation roadmap. For urgent inquiries, direct phone support is available during business hours.
