1783-BMS10CGN Stratix 5700 Managed Ethernet Switch | 10-Port Industrial Network Solution with NAT

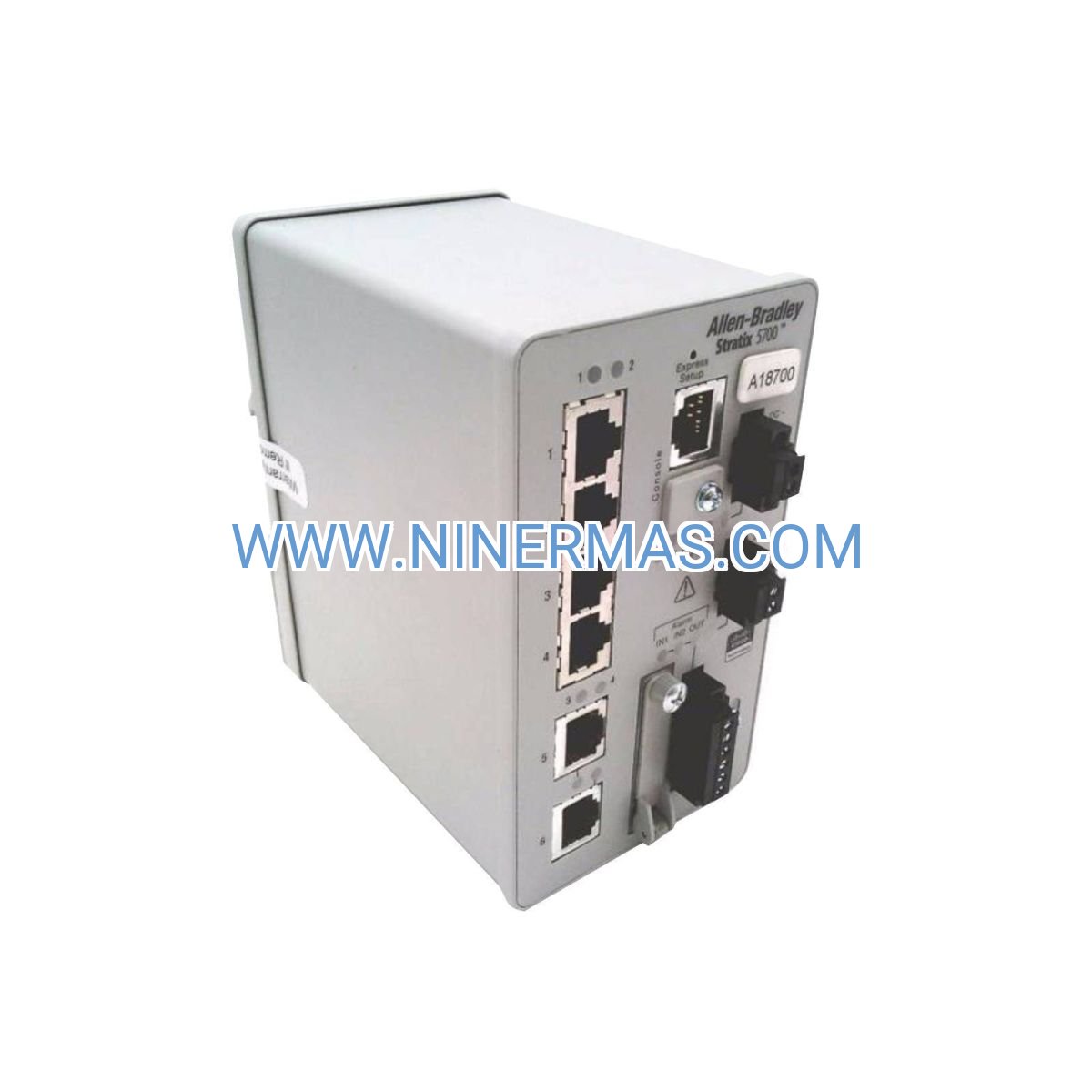

1783-BMS10CGN Stratix 5700 Managed Ethernet Switch – Industrial-Grade Network Control Solution

The 1783-BMS10CGN Stratix 5700 is a high-performance managed Ethernet switch engineered for demanding industrial automation environments. Through advanced Layer 2/Layer 3 switching technology, integrated NAT (Network Address Translation), and comprehensive security protocols, it delivers reliable, secure, and intelligent network connectivity for plant-floor operations, SCADA systems, and distributed control architectures.

Designed for manufacturing facilities, process control plants, water treatment systems, building automation networks, and industrial IoT deployments, this switch addresses critical challenges including network segmentation complexity, cybersecurity vulnerabilities, real-time data transmission delays, and limited remote diagnostics capabilities.

Built on a standardized yet customizable platform, the 1783-BMS10CGN offers robust construction, extended temperature tolerance, redundant power options, and seamless integration with Rockwell Automation ecosystems—making it the preferred choice for system integrators, design engineers, OEM manufacturers, and facility maintenance teams. Contact our application engineers for tailored network architecture design and competitive quotations.

Core Features & Technical Advantages

• Advanced Network Management & Security
  Supports VLAN segmentation, QoS prioritization, IGMP snooping, and port mirroring for optimized traffic control. Integrated firewall, ACL (Access Control Lists), and 802.1X authentication protect against unauthorized access and cyber threats.
• Integrated NAT for Seamless Connectivity
  Built-in Network Address Translation enables secure communication between isolated plant networks and enterprise IT systems, eliminating the need for external routers and reducing infrastructure costs.
• Industrial-Hardened Reliability
  Operates in extreme conditions (-40°C to +70°C), with conformal coating options, DIN-rail or panel mounting, and compliance to IEC 61850-3, IEEE 1613 standards for substations and harsh environments.
• Redundant Power & Network Resilience
  Dual power inputs (24V DC) with automatic failover ensure continuous operation. Supports Rapid Spanning Tree Protocol (RSTP) and Device Level Ring (DLR) for sub-20ms network recovery during link failures.
• Intuitive Configuration & Diagnostics
  Web-based interface, CLI (Command Line Interface), and compatibility with Studio 5000 Logix Designer streamline setup and troubleshooting. Real-time monitoring via SNMP, syslog, and email alerts minimizes downtime.
• Future-Proof Scalability
  10 Ethernet ports (8× 10/100 copper + 2× combo Gigabit fiber/copper) support mixed-media topologies, enabling flexible expansion as production demands grow.

Typical Application Scenarios

This switch is engineered for environments where network uptime, deterministic performance, and security are mission-critical, including:

• Automotive & Discrete Manufacturing
  Connects PLCs, HMIs, vision systems, and robotic controllers in assembly lines, ensuring microsecond-level synchronization and zero packet loss for high-speed production.
• Oil & Gas / Petrochemical Plants
  Provides explosion-proof networking for remote pump stations, pipeline monitoring, and refinery SCADA systems, with compliance to ATEX/IECEx certifications (when paired with appropriate enclosures).
• Water & Wastewater Treatment
  Manages distributed sensor networks, variable frequency drives (VFDs), and telemetry systems across multi-site facilities, with long-distance fiber connectivity up to 80 km.
• Building Automation & Smart Infrastructure
  Integrates HVAC controllers, access control systems, and energy meters into unified BACnet/IP or Modbus TCP networks, reducing installation complexity and operational costs.
• Renewable Energy & Substations
  Supports IEC 61850 protocols for wind farms, solar inverters, and electrical grid monitoring, with precision time synchronization via IEEE 1588 PTP (Precision Time Protocol).

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide standardized configurations with customization options for project-specific requirements:

Selection Recommendations: When specifying this switch, consider total connected devices, required bandwidth per port, fiber distance requirements (single-mode vs. multimode), ambient temperature extremes, and integration with existing Rockwell or third-party control systems. For assistance, provide your network topology diagram, device list, and environmental conditions—our engineers will recommend optimal configurations and SFP module selections.

Extended Capabilities & Integration

• FactoryTalk Integration: Native compatibility with FactoryTalk View SE, Historian, and AssetCentre for centralized monitoring and predictive maintenance.
• Cybersecurity Compliance: Meets IEC 62443 industrial cybersecurity standards, with role-based access control and encrypted management protocols.
• Fiber Optic Expansion: Supports LC/SC connectors with SFP modules for distances up to 80 km, ideal for campus or multi-building deployments.
• Time Synchronization: IEEE 1588v2 PTP ensures sub-microsecond accuracy for motion control and coordinated automation.

Delivery, Warranty & Technical Support

Lead Time: Standard catalog items ship within 3–5 business days; custom-configured units require 10–15 days depending on specifications.

Warranty: Backed by a comprehensive 2-year manufacturer warranty covering defects in materials and workmanship. Extended service agreements available.

Installation & Commissioning: Remote configuration assistance included; on-site startup services available for complex deployments (subject to location and project scope).

Documentation Package: Each unit ships with detailed user manual, quick-start guide, electrical schematics, DXF mounting drawings, and sample configuration files compatible with Studio 5000 and RSLinx Classic.

Frequently Asked Questions (FAQ)

Q: How does the 1783-BMS10CGN integrate with existing Allen-Bradley control systems?

A: The switch is fully compatible with ControlLogix, CompactLogix, and Micro800 PLCs via EtherNet/IP. It auto-discovers devices using BOOTP/DHCP and integrates seamlessly into Studio 5000 for unified programming and diagnostics.

Q: What is the maximum number of devices this switch can support?

A: With 10 ports and support for network expansion via fiber uplinks, it can manage hundreds of devices when configured in a star or ring topology. Actual capacity depends on traffic patterns and bandwidth requirements per device.

Q: Can this switch operate in hazardous (explosive) environments?

A: The switch itself is not intrinsically safe but can be installed in Class I Division 2 or Zone 2 areas when housed in appropriate NEMA 4X or explosion-proof enclosures. Consult local electrical codes and our application team for compliance verification.

Q: Does it support remote monitoring and SNMP traps?

A: Yes. The switch supports SNMPv1/v2c/v3 for integration with network management systems (NMS) like SolarWinds or PRTG. It can send email alerts, syslog messages, and SNMP traps for events such as link failures, power loss, or unauthorized access attempts.

Q: What fiber optic SFP modules are compatible?

A: Compatible modules include 1783-SFP100FX (multimode, 2 km), 1783-SFP1GSX (Gigabit multimode, 550 m), and 1783-SFP1GLX (Gigabit single-mode, 10 km). Third-party SFPs may work but are not officially supported.

Q: How do I configure NAT for connecting plant networks to corporate IT?

A: NAT configuration is performed via the web interface or CLI. You define internal (plant) and external (IT) IP ranges, then create translation rules. Detailed step-by-step guides are included in the user manual, and our support team offers remote assistance for first-time setups.

Request a Custom Solution

To receive a tailored network design, detailed quotation, or technical consultation, please provide the following information:

• Project name and application type (manufacturing, utilities, infrastructure, etc.)
• Total number of devices and their communication protocols
• Required fiber distances and cable types (single-mode/multimode)
• Environmental conditions (temperature range, humidity, vibration)
• Existing control system brand and models (if applicable)
• Cybersecurity and compliance requirements (IEC 62443, NERC CIP, etc.)

Our industrial networking specialists will respond within 24 hours with a comprehensive proposal, including switch configuration, SFP module selection, redundancy architecture, and total cost of ownership analysis.
