Allen-Bradley 1783-BMS10CGL Stratix 5700 Managed Switch | 10-Port Gigabit Industrial Ethernet | Layer 2/3

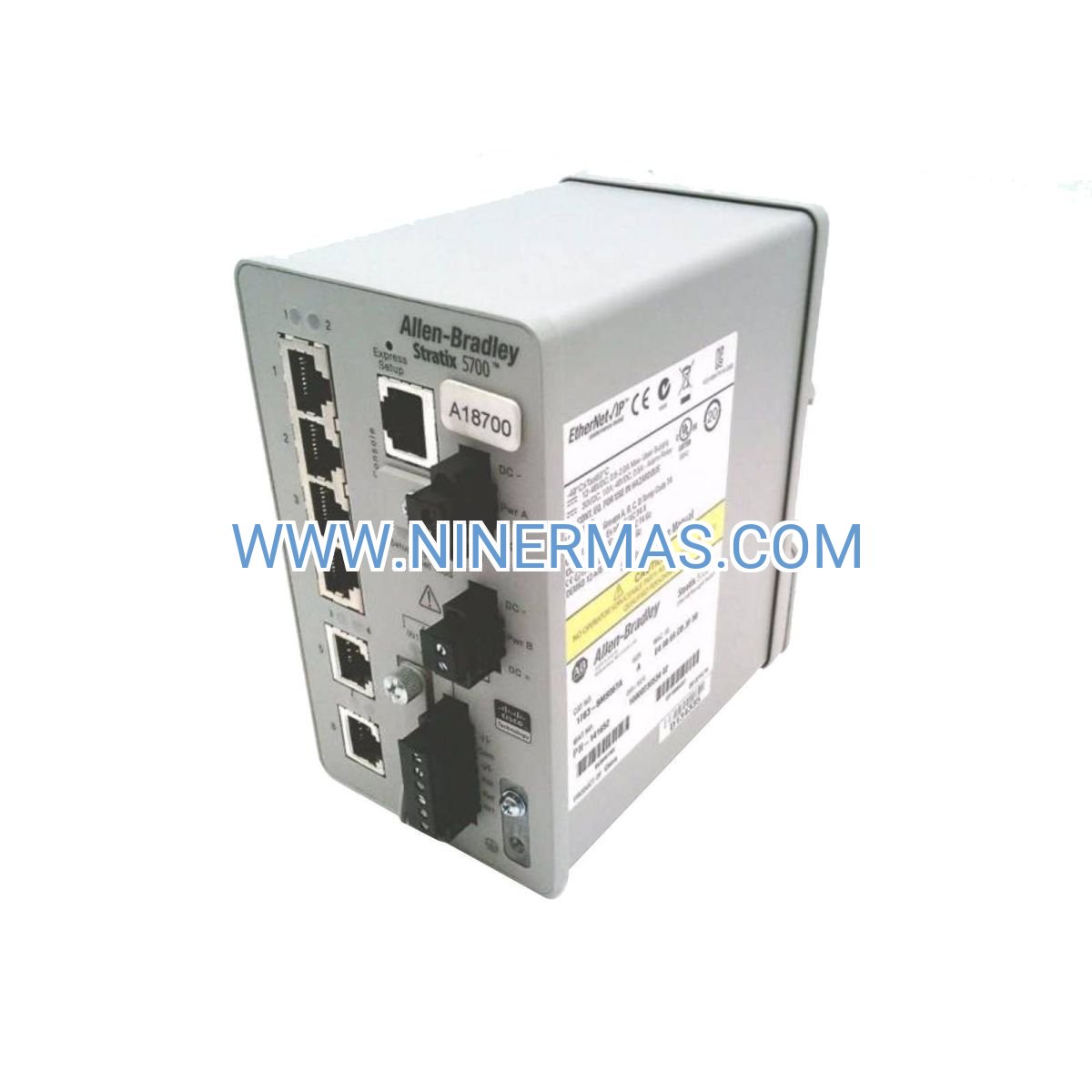

Allen-Bradley 1783-BMS10CGL Stratix 5700 Managed Gigabit Ethernet Switch (Industrial-Grade Layer 2/3 Network Solution)

The Allen-Bradley 1783-BMS10CGL Stratix 5700 is a high-performance managed Gigabit Ethernet switch engineered for demanding industrial automation environments. Through advanced Layer 2/3 switching technology and integrated network redundancy protocols (DLR, MRP), it delivers deterministic, low-latency communication for mission-critical control systems.

Designed for manufacturing plants, process automation facilities, oil & gas installations, and infrastructure projects, this switch addresses common industrial networking challenges including network downtime, electromagnetic interference, harsh environmental conditions, and complex multi-vendor device integration. It ensures seamless connectivity between PLCs, HMIs, I/O modules, drives, and SCADA systems.

With ruggedized construction, Class I Division 2 hazardous location certification, and comprehensive cybersecurity features, the 1783-BMS10CGL is ideal for system integrators, automation engineers, plant maintenance teams, and OEM equipment manufacturers. Contact our technical specialists for application-specific configuration guidance and competitive quotations.

Core Features & Advantages

Industrial-Grade Reliability
Built to withstand extreme temperatures (-40°C to 70°C), shock, vibration, and electrical noise typical in factory floors and outdoor installations. Conformal coating protects circuitry from moisture and contaminants, ensuring continuous operation in harsh conditions.

Advanced Network Redundancy
Supports Device Level Ring (DLR) with sub-50ms failover and Media Redundancy Protocol (MRP), minimizing production downtime caused by cable breaks or switch failures. Ideal for ring topologies in automotive assembly lines and packaging systems.

Comprehensive Layer 2/3 Capabilities
Delivers VLAN segmentation, QoS traffic prioritization, IGMP snooping for multicast optimization, and static routing. Enables efficient network design for large-scale automation architectures with hundreds of devices.

Integrated Security Framework
Features IEEE 802.1X port-based authentication, Access Control Lists (ACLs), and Secure Shell (SSH) encrypted management. Protects industrial networks from unauthorized access and cyber threats, meeting IEC 62443 security standards.

Simplified Configuration & Diagnostics
Compatible with Rockwell Automation Studio 5000 and FactoryTalk software for unified programming environment. Web-based interface and SNMP support enable rapid deployment and real-time network monitoring.

Flexible Port Configuration
10 Gigabit Ethernet ports (8× 10/100/1000BASE-T copper + 2× SFP fiber slots) accommodate diverse cabling requirements. Supports fiber optic connections for long-distance runs up to 10 km and immunity to electrical interference.

Typical Application Scenarios

This managed switch is engineered for environments demanding high availability, deterministic performance, and seamless integration with Rockwell Automation ecosystems:

Automotive & Discrete Manufacturing
Connects robotic welding cells, conveyor systems, and vision inspection stations in assembly lines. DLR redundancy ensures zero-downtime communication during model changeovers and maintenance windows.

Process Industries & Continuous Production
Supports distributed control systems (DCS) in chemical plants, refineries, and food processing facilities. Hazardous location rating (Class I Div 2) permits installation in Zone 2 areas with explosive atmospheres.

Water/Wastewater & Utilities
Enables SCADA communication across pump stations, treatment plants, and remote monitoring sites. Fiber optic uplinks provide lightning protection and extended reach for outdoor installations.

Material Handling & Logistics
Manages network traffic for automated storage/retrieval systems (AS/RS), sortation equipment, and warehouse management systems. QoS ensures priority delivery of time-sensitive control data.

Oil & Gas Upstream/Midstream
Facilitates communication between wellhead controllers, pipeline monitoring systems, and compressor stations. Wide operating temperature range suits outdoor enclosures in extreme climates.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, review the following technical parameters before specifying:

Key Specifications:

• Ethernet Ports: 8× 10/100/1000BASE-T (RJ45) + 2× SFP Gigabit fiber slots
• Switching Capacity: 20 Gbps non-blocking wire-speed forwarding
• MAC Address Table: 8,000 entries
• VLAN Support: Up to 256 VLANs (IEEE 802.1Q)
• Redundancy Protocols: DLR (Device Level Ring), MRP, RSTP
• Power Input: 24V DC (18-32V DC range), redundant dual inputs optional
• Power Consumption: 15W typical, 20W maximum
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5% to 95% non-condensing
• Certifications: UL Class I Div 2, ATEX Zone 2, IECEx, CE, FCC
• Mounting: DIN-rail or panel mount
• Dimensions: 135mm (H) × 40mm (W) × 120mm (D)
• MTBF: >500,000 hours (Telcordia SR-332)

Selection Considerations:
When specifying the 1783-BMS10CGL, evaluate: total connected device count, required network topology (star/ring/redundant ring), fiber vs. copper cabling needs, power supply availability (24V DC), environmental conditions (temperature/humidity/vibration), and cybersecurity requirements. For networks exceeding 10 devices or requiring Layer 3 routing between subnets, consult with our automation engineers to validate architecture design.

Advanced Capabilities

CIP Safety Integration: Supports Common Industrial Protocol (CIP) for seamless integration with GuardLogix safety controllers and safe I/O modules, enabling converged standard and safety networks on a single infrastructure.

Precision Time Protocol (PTP/IEEE 1588): Provides microsecond-level time synchronization across distributed motion control systems, critical for coordinated multi-axis applications.

Network Address Translation (NAT): Allows connection of equipment with duplicate IP addresses without reconfiguration, simplifying integration of legacy machines or third-party devices.

Port Mirroring & Diagnostics: Enables non-intrusive network traffic analysis for troubleshooting and performance optimization using protocol analyzers.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional warehouses. Custom configurations (extended temperature, specialized firmware) require 10-15 business days.

Warranty: Backed by Allen-Bradley's standard 2-year manufacturer warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available.

Technical Support: Comprehensive support includes pre-sales application engineering, startup assistance, remote diagnostics, and on-site commissioning services (subject to location and project scope). TechConnect support subscription provides 24/7 access to Rockwell Automation specialists.

Documentation Package: Each unit ships with complete electrical schematics, wiring diagrams, DIP switch configuration guide, quick-start manual, and digital access to full user manual, firmware updates, and configuration utilities via Product Compatibility & Download Center (PCDC).

Compliance & Testing: All units undergo 100% factory testing including burn-in, environmental stress screening, and network performance validation. Certificates of conformity and test reports available upon request.

Frequently Asked Questions (FAQ)

Q: How does the 1783-BMS10CGL Stratix 5700 managed switch integrate with existing Allen-Bradley control systems?
A: The switch seamlessly integrates via EtherNet/IP protocol with ControlLogix, CompactLogix, and GuardLogix controllers. Configuration is streamlined through Studio 5000 Logix Designer using Add-On Profiles (AOP), enabling unified programming and diagnostics within the same software environment used for PLC programming.

Q: What is the maximum number of devices this 10-port switch can support in a DLR network?
A: While the switch provides 10 physical ports, practical device count depends on network traffic patterns and bandwidth requirements. Typical DLR rings support 30-50 devices with standard I/O traffic. For high-bandwidth applications (vision systems, large recipe transfers), limit to 20-30 devices per ring or implement hierarchical network design with multiple switches.

Q: What energy savings can be achieved compared to unmanaged switches, and what conditions are required?
A: Managed switches enable Energy Efficient Ethernet (IEEE 802.3az), reducing power consumption by 15-20% during low-traffic periods through dynamic port power adjustment. Actual savings depend on network utilization patterns—continuous high-traffic applications see minimal benefit, while batch processes or shift-based operations achieve maximum efficiency.

Q: What are the environmental installation requirements and ingress protection rating?
A: The switch is rated for -40°C to 70°C ambient temperature and 5-95% humidity (non-condensing). While the enclosure provides basic dust protection, it is not IP-rated for direct water exposure. For outdoor or washdown environments, install within a NEMA 4X/IP66 rated electrical enclosure with adequate ventilation or climate control.

Q: Does the switch support remote monitoring and data collection via SCADA or cloud platforms?
A: Yes, the switch supports SNMP v1/v2c/v3 for integration with network management systems (NMS) and SCADA platforms. It also provides syslog event logging and RMON statistics. For cloud connectivity, pair with Rockwell Automation's FactoryTalk Analytics or third-party IoT gateways supporting Modbus TCP, OPC UA, or MQTT protocols for data forwarding.

Q: Can fiber optic SFP modules from third-party vendors be used in the SFP slots?
A: While the switch physically accepts standard SFP transceivers, Allen-Bradley recommends using only Rockwell Automation-branded SFP modules (catalog numbers 1783-SFPxx series) to ensure compatibility, warranty coverage, and technical support. Third-party modules may function but are not validated or supported.

Q: What cybersecurity features protect against industrial network threats?
A: The switch implements multiple security layers: IEEE 802.1X authentication prevents unauthorized device connections, MAC address filtering restricts access to known devices, ACLs block malicious traffic patterns, and encrypted management (HTTPS, SSH) prevents credential interception. Regular firmware updates address emerging vulnerabilities, and integration with Rockwell's Trusted platform provides defense-in-depth architecture.

Request Technical Support & Quotation

To receive a detailed application-specific configuration recommendation, competitive pricing, or technical consultation, please provide the following project information: application description (manufacturing line, process control, infrastructure), total device count and types (PLCs, drives, I/O, HMIs), network topology requirements (star, ring, redundant), fiber vs. copper cabling preferences, power supply specifications (voltage, redundancy), environmental conditions (temperature range, enclosure type), and any specific certifications required (ATEX, IECEx, marine). Our automation engineers will respond within 24 hours with tailored solutions and budget estimates.
