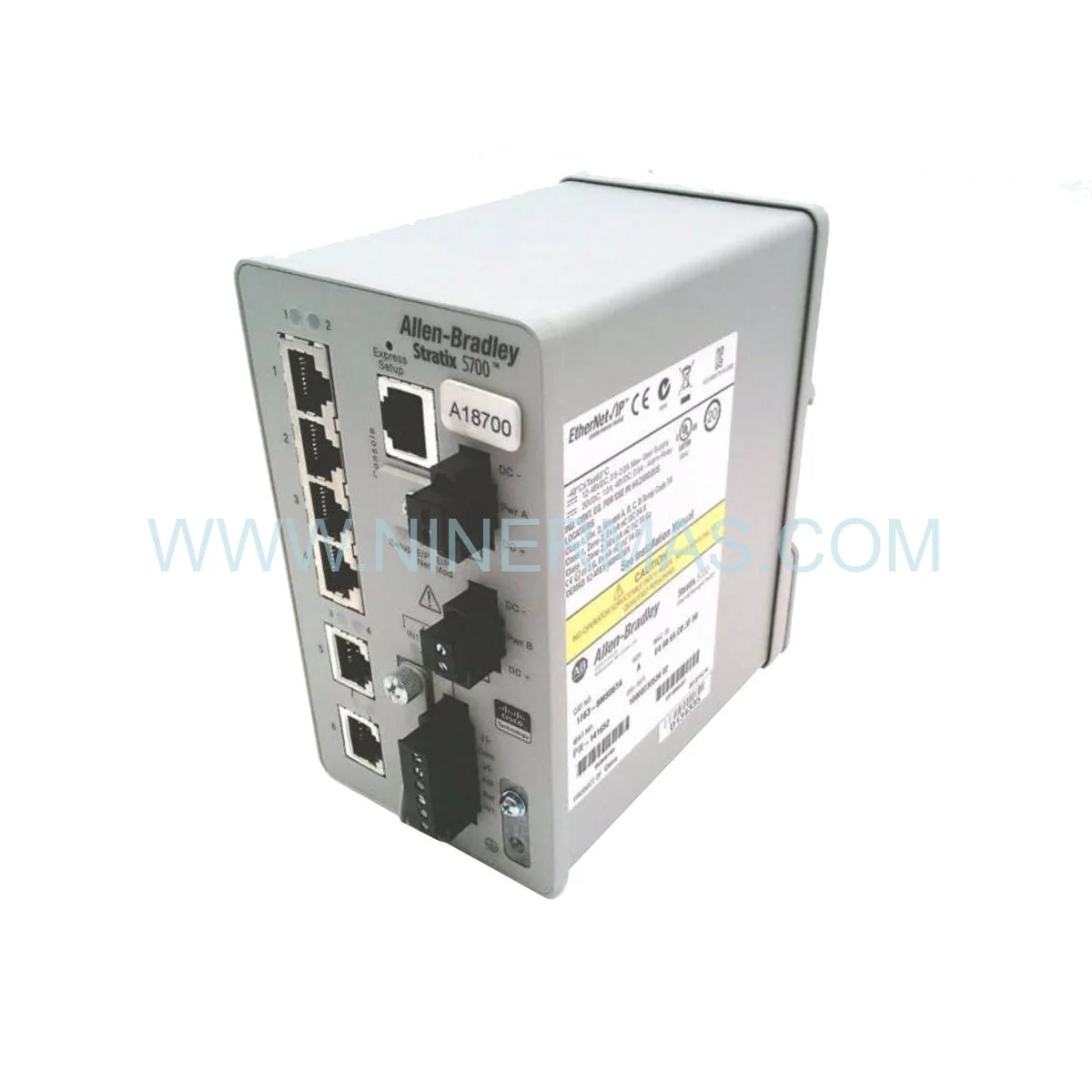

Allen-Bradley 1783-BMS10CGA Stratix 5700 Managed Ethernet Switch (Industrial-Grade Network Control Solution)

The Allen-Bradley 1783-BMS10CGA Stratix 5700 is a high-performance industrial managed Ethernet switch designed for mission-critical automation and control networks. Through advanced Layer 2/Layer 3 routing, DLR (Device Level Ring) protocol support, and integrated network security features, it delivers reliable, deterministic communication for demanding industrial environments.

Engineered for manufacturing plants, process control systems, infrastructure automation, and industrial IoT deployments, this switch addresses challenges such as network downtime, communication latency, cybersecurity vulnerabilities, and complex topology management. It ensures seamless integration with Rockwell Automation ecosystems and third-party industrial protocols.

With ruggedized construction, flexible configuration options, and comprehensive diagnostic capabilities, the 1783-BMS10CGA offers superior uptime, simplified troubleshooting, ease of maintenance, and multi-vendor compatibility. Ideal for system integrators, plant engineers, OEM machine builders, and facility managers seeking scalable, future-proof network infrastructure. Contact our engineering team for application-specific configuration guidance and quotation.

Core Features & Technical Advantages

High-Speed Industrial Connectivity
Equipped with 10 Ethernet ports supporting 10/100/1000 Mbps auto-negotiation, enabling high-bandwidth data exchange between PLCs, HMIs, I/O modules, and SCADA systems with minimal packet loss and jitter.

Advanced Network Redundancy
Native support for DLR (Device Level Ring) and PRP (Parallel Redundancy Protocol) ensures sub-50ms failover during link or device failure, maintaining continuous operation in critical production lines and safety systems.

Comprehensive Layer 2/Layer 3 Routing
Supports VLAN segmentation, QoS (Quality of Service) prioritization, IGMP snooping for multicast optimization, and static/dynamic routing, allowing efficient traffic management across complex multi-subnet industrial networks.

Integrated Cybersecurity Protection
Features IEEE 802.1X authentication, port security, access control lists (ACLs), and encrypted management protocols (HTTPS, SSH) to defend against unauthorized access, malware propagation, and cyber threats in connected manufacturing environments.

Intuitive Management & Diagnostics
Web-based interface, CLI (Command Line Interface), and SNMP v3 support provide flexible configuration options. Real-time port monitoring, event logging, and alarm notifications simplify fault diagnosis and reduce mean time to repair (MTTR).

Ruggedized Design for Harsh Environments
IP30-rated metal enclosure, DIN-rail or panel mounting, -40°C to 70°C operating temperature range, and conformal coating options ensure reliable performance in dusty, vibration-prone, and temperature-variable industrial settings.

Typical Application Scenarios

This switch is optimized for environments requiring high availability, deterministic performance, and seamless protocol interoperability, including:

Discrete Manufacturing & Assembly Lines
Connects robotic cells, vision systems, servo drives, and safety controllers in automotive, electronics, and consumer goods production, ensuring synchronized motion control and real-time quality inspection data flow.

Process Automation & Continuous Production
Supports distributed control systems (DCS) in oil & gas, chemical processing, water treatment, and food & beverage industries, maintaining stable communication between field instruments, analyzers, and supervisory workstations.

Infrastructure & Building Automation
Facilitates integration of HVAC controllers, lighting systems, access control panels, and energy meters in smart buildings, campuses, and data centers, enabling centralized monitoring and energy optimization.

Material Handling & Logistics Systems
Manages communication between conveyor PLCs, barcode scanners, RFID readers, and warehouse management systems (WMS) in distribution centers and automated storage/retrieval systems (AS/RS).

Renewable Energy & Utility Networks
Deployed in solar farms, wind turbines, and substation automation for reliable data acquisition, remote monitoring, and grid synchronization via IEC 61850 and DNP3 protocols.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, the 1783-BMS10CGA offers the following standard configuration parameters, with customization available for project-specific requirements:

Port Configuration: 10 × 10/100/1000BASE-T RJ45 Ethernet ports (copper)
Switching Capacity: 20 Gbps non-blocking wire-speed forwarding
MAC Address Table: 8,192 entries
VLAN Support: Up to 256 VLANs (IEEE 802.1Q)
Redundancy Protocols: DLR, PRP, RSTP (Rapid Spanning Tree Protocol)
Power Supply: 24V DC nominal (18-30V DC range), redundant input optional
Power Consumption: Typically 12W (max 15W)
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
Enclosure Rating: IP30, metal housing with DIN-rail/panel mount
Certifications: UL/cUL Class I Div 2, ATEX Zone 2, IECEx, CE, RCM
Management Protocols: SNMP v1/v2c/v3, RMON, HTTP/HTTPS, Telnet/SSH, TFTP
Dimensions (H×W×D): Approx. 130 mm × 35 mm × 120 mm
MTBF: >300,000 hours (MIL-HDBK-217F)

Selection Recommendations:
When specifying the 1783-BMS10CGA, consider: maximum network node count, required bandwidth per device, ring topology diameter (for DLR), ambient temperature extremes, available panel space, and power source redundancy. For fiber optic uplinks, SFP expansion, or PoE (Power over Ethernet) requirements, consult our engineering team with your site layout and device list for tailored model recommendations.

Extended Capabilities & Integration Options

EtherNet/IP Native Support: Seamless integration with Rockwell Automation ControlLogix, CompactLogix, and GuardLogix PLCs via CIP (Common Industrial Protocol) for unified programming and diagnostics in Studio 5000 environment.

Multi-Protocol Gateway: Optional modules or firmware enable Modbus TCP, PROFINET, OPC UA, and BACnet interoperability, bridging legacy equipment with modern IIoT platforms.

Time Synchronization: IEEE 1588 PTP (Precision Time Protocol) and NTP support ensure microsecond-level clock accuracy for coordinated motion control and time-stamped event logging.

Remote Monitoring & Cloud Connectivity: Compatible with FactoryTalk Analytics, Kepware ThingWorx, and third-party SCADA/MES systems via MQTT, OPC UA, or RESTful APIs for predictive maintenance and performance dashboards.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days; custom-configured units typically 10-15 business days depending on specification complexity and current demand.

Warranty: Minimum 2-year manufacturer warranty covering defects in materials and workmanship; extended service plans available for critical applications.

Technical Support: Remote commissioning assistance, configuration file review, and troubleshooting guidance provided by certified automation engineers (subject to regional availability and service agreement terms).

Documentation Package: Each unit includes detailed user manual, quick start guide, electrical wiring diagrams, DLR topology examples, and sample configuration scripts in PDF and editable formats for integration and maintenance teams.

Compliance & Testing: Factory acceptance testing (FAT) reports, calibration certificates, and material traceability documentation available upon request for regulated industries (pharmaceutical, aerospace, nuclear).

Frequently Asked Questions (FAQ)

Q: How does the 1783-BMS10CGA Stratix 5700 switch integrate with existing Allen-Bradley PLC networks?
A: The switch natively supports EtherNet/IP and CIP protocols, allowing plug-and-play connectivity with ControlLogix, CompactLogix, and other Rockwell controllers. Configuration is streamlined via Studio 5000 Logix Designer or the switch's web interface, with automatic device discovery and Add-On Profile (AOP) integration for simplified commissioning.

Q: What is the maximum number of devices this 10-port switch can support in a DLR ring topology?
A: In a DLR configuration, the switch can participate in rings with up to 50 nodes (per CIP specification), though practical limits depend on network traffic, scan rates, and redundancy requirements. For larger installations, multiple rings can be interconnected via supervisor modules or Layer 3 routing.

Q: What energy savings or efficiency improvements can be expected with managed switching versus unmanaged hubs?
A: Managed switches reduce broadcast storms, optimize multicast traffic via IGMP snooping, and enable Energy Efficient Ethernet (EEE) on compatible ports, potentially lowering network power consumption by 15-25%. More significantly, QoS and VLAN segmentation minimize packet collisions and retransmissions, improving overall system responsiveness and reducing CPU load on connected devices.

Q: What are the environmental and installation requirements for the 1783-BMS10CGA?
A: The switch is rated IP30 and designed for installation in climate-controlled enclosures or industrial cabinets. It operates reliably from -40°C to 70°C, withstands vibration per IEC 60068-2-6, and mounts on standard 35mm DIN rail or via panel screws. Ensure adequate ventilation (minimum 50mm clearance top/bottom) and avoid direct exposure to corrosive gases, condensation, or conductive dust.

Q: Can the switch be remotely monitored and configured? Which protocols are supported?
A: Yes, the 1783-BMS10CGA supports comprehensive remote management via SNMP v3 (encrypted traps and polling), HTTPS web interface, SSH CLI, and integration with FactoryTalk AssetCentre or third-party NMS (Network Management Systems). RMON and syslog enable proactive alerting and historical trend analysis for predictive maintenance.

Q: Is fiber optic connectivity available, and how do I add SFP modules?
A: The base 1783-BMS10CGA model features 10 copper RJ45 ports. For fiber uplinks (single-mode or multimode), select variant models with combo ports or SFP slots (e.g., 1783-BMS10CGN or 1783-BMS10CGL). Consult the product selection guide or contact our team with your fiber type, distance, and connector preference (LC, SC) for compatible transceiver recommendations.

Request a Custom Solution & Expert Consultation

To receive a detailed application engineering proposal, competitive quotation, or technical validation for your project, please provide the following information to our team:

• Project Name & Industry: Brief description of application (e.g., automotive assembly line, water treatment SCADA)
• Network Topology: Star, ring, or hybrid; number of switches and total node count
• Device Types & Protocols: PLCs, HMIs, drives, I/O modules, and communication standards in use
• Bandwidth & Latency Requirements: Expected data rates, scan times, and maximum acceptable delay
• Environmental Conditions: Temperature range, humidity, vibration, and enclosure type
• Redundancy & Uptime Targets: Desired failover time, backup power, and availability SLA
• Compliance & Certifications: Hazardous location ratings, industry standards (FDA, GAMP, IEC 62443)

Our certified automation engineers will provide one-on-one consultation, configuration templates, and Bill of Materials (BOM) tailored to your specifications within 24-48 hours.
