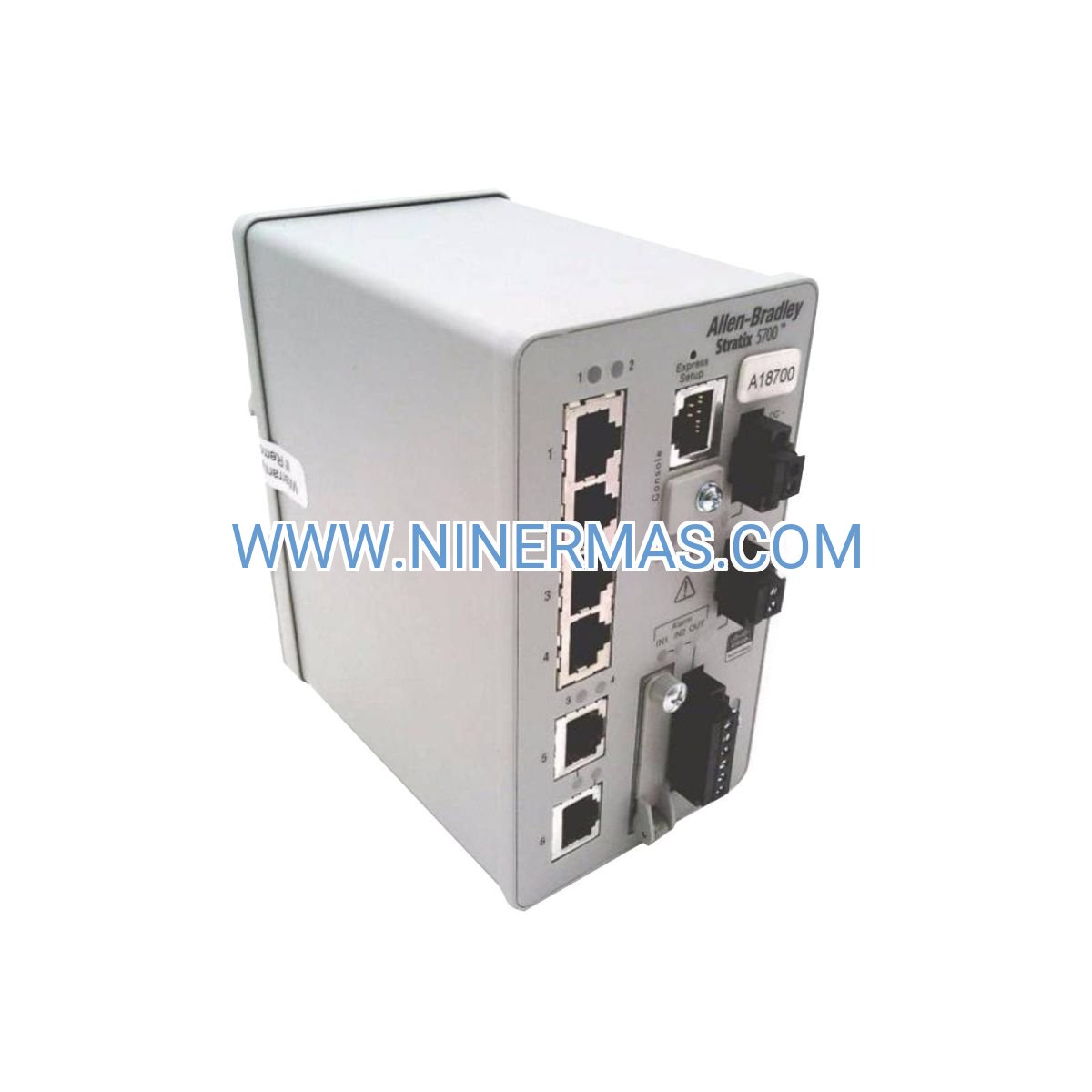

Allen-Bradley 1783-BMS06TA Stratix 5700 Managed Industrial Ethernet Switch

The Allen-Bradley 1783-BMS06TA Stratix 5700 is a ruggedized managed Ethernet switch engineered for mission-critical industrial automation networks. Featuring 6 copper 10/100/1000 Mbps ports with advanced Layer 2/3 switching capabilities, this device delivers reliable, high-performance connectivity for EtherNet/IP™ control systems, SCADA networks, and distributed I/O architectures. Through integrated Device Level Ring (DLR) protocol and comprehensive network management features, it ensures seamless data flow and rapid fault recovery in demanding manufacturing environments.

Designed for industries where network downtime translates to production loss—including automotive assembly lines, oil & gas facilities, water treatment plants, and packaging systems—the 1783-BMS06TA addresses challenges such as network congestion, electromagnetic interference, extreme temperature fluctuations, and the need for real-time deterministic communication. Its industrial-grade construction withstands harsh conditions while maintaining microsecond-level latency for time-sensitive automation protocols.

Backed by standardized configuration templates and field-proven reliability, this switch offers intelligent traffic prioritization, VLAN segmentation for security, and comprehensive diagnostics via embedded web interface. Ideal for system integrators, plant engineers, OEM machine builders, and automation consultants seeking scalable, future-proof network infrastructure. Contact our engineering team with your network topology, device count, and environmental parameters for tailored deployment guidance and competitive quotations.

Core Features & Technical Advantages

Device Level Ring (DLR) Protocol
Provides sub-50ms network recovery during link failures through automatic redundant ring topology, eliminating single points of failure in linear or ring architectures. Supports up to 50 nodes per ring with zero-configuration auto-negotiation.

Advanced Layer 2/3 Switching
Delivers wire-speed forwarding at 6 Gbps aggregate throughput with non-blocking architecture. Supports static routing, IGMP snooping for multicast optimization, and 802.1Q VLAN tagging for network segmentation across up to 256 VLANs.

Industrial-Grade Environmental Resilience
Operates reliably in -40°C to +70°C ambient temperatures with conformal coating protection against moisture, dust, and corrosive gases. Meets Class I Division 2 hazardous location certification for oil/gas and chemical processing installations.

Comprehensive Quality of Service (QoS)
Implements IEEE 802.1p priority queuing with 4 egress queues, ensuring CIP motion control and safety traffic receives precedence over standard I/O messaging. Reduces jitter to <10μs for synchronized motion applications.

Integrated Security & Access Control
Features port-based 802.1X authentication, MAC address filtering (up to 1024 entries), and HTTPS/SSH encrypted management. Supports RADIUS/TACACS+ for centralized user authentication in multi-site deployments.

Simplified Diagnostics & Monitoring
Embedded web server provides real-time port statistics, error counters, and cable diagnostics. SNMP v1/v2c/v3 support enables integration with enterprise network management systems (NMS) like SolarWinds or PRTG. LED indicators show link status, speed, and DLR health at a glance.

Typical Application Scenarios

This switch is engineered for environments demanding uninterrupted network availability, deterministic performance, and seamless integration with Rockwell Automation ecosystems:

Automotive & Discrete Manufacturing
Connects PLCs, HMIs, servo drives, and vision systems in assembly lines where coordinated motion control requires <1ms cycle times. DLR topology ensures production continuity even during cable damage or connector failures.

Oil & Gas Upstream/Midstream Operations
Supports remote pump stations, compressor controls, and pipeline monitoring systems across extended temperature ranges (-40°C in Arctic deployments). Class I Div 2 rating permits installation in Zone 2 hazardous areas without additional enclosures.

Water & Wastewater Treatment Facilities
Manages distributed I/O networks for pump control, chemical dosing, and SCADA telemetry across multi-acre sites. IGMP snooping optimizes bandwidth for video surveillance integration while maintaining real-time process control.

Food & Beverage Processing Lines
Handles high-speed packaging equipment, conveyor systems, and recipe management networks in washdown environments. Conformal coating resists moisture ingress during daily sanitation procedures.

Material Handling & Logistics Automation
Coordinates AGVs, sortation systems, and warehouse management software in distribution centers. VLAN segmentation isolates IT/OT networks while allowing controlled data exchange for inventory tracking.

Technical Specifications & Selection Guide

Selection Considerations
When specifying the 1783-BMS06TA, evaluate: (1) Total connected device count and peak traffic patterns to ensure port density suffices; (2) Required redundancy topology—DLR ring vs. star vs. linear daisy-chain; (3) Ambient temperature extremes and presence of corrosive atmospheres; (4) Power supply architecture—single 24VDC or dual redundant feeds; (5) Integration with existing Stratix or third-party managed switches. For networks exceeding 6 endpoints, consider the 10-port (1783-BMS10CL) or 20-port (1783-BMS20CL) variants. Our application engineers can perform network load analysis and recommend optimal switch placement—submit your AutoCAD layout or device list for complimentary consultation.

Extended Capabilities & Integration Options

Studio 5000 Logix Designer Integration
Add-On Profile (AOP) enables direct configuration and monitoring from RSLogix/Studio 5000 environment. Real-time port status and diagnostics appear as controller tags, simplifying troubleshooting without separate NMS tools.

FactoryTalk Network Manager Compatibility
Centralized visualization of multi-switch topologies with automated device discovery. Graphical ring maps display DLR health, and email/SMS alerts notify administrators of link state changes or threshold violations.

Precision Time Protocol (PTP/IEEE 1588)
Synchronizes distributed motion controllers and I/O modules to <1μs accuracy for coordinated multi-axis applications. Supports both ordinary clock and boundary clock modes.

CIP Security™ Ready
Future firmware updates will enable encrypted EtherNet/IP communications and role-based access control per ODVA CIP Security specification, aligning with IEC 62443 cybersecurity standards.

Delivery, Warranty & Technical Support

Lead Time
Factory-sealed units typically ship within 3–5 business days from regional distribution centers. Custom configurations (pre-loaded firmware, labeled faceplates) require 10–15 business days. Expedited same-day shipping available for critical downtime scenarios (subject to inventory and location).

Warranty Coverage
Standard 3-year manufacturer warranty covering defects in materials and workmanship. Extended 5-year coverage available through Rockwell Automation TechConnect Support contracts, including advance replacement and 24/7 technical hotline access.

Installation & Commissioning Assistance
Complimentary remote guidance for network topology design, VLAN configuration, and DLR setup via phone/email. On-site commissioning services available in major industrial regions—includes physical installation, IP addressing, firmware updates, and performance validation testing. Pricing varies by location and project scope.

Documentation Package
Each unit includes: Quick Start Guide, full User Manual (PDF), wiring diagrams with terminal block pinouts, sample configuration files for common topologies, and Declaration of Conformity certificates. CAD models (STEP/DWG) and 3D mounting templates downloadable from product support portal.

Frequently Asked Questions (FAQ)

Q: How does the 1783-BMS06TA Stratix 5700 switch integrate with existing non-Rockwell Ethernet infrastructure?
A: The switch fully complies with IEEE 802.3 standards and interoperates with any vendor's Ethernet equipment. While DLR is Rockwell-proprietary, the device simultaneously supports industry-standard RSTP (Rapid Spanning Tree Protocol) for redundancy with third-party switches. VLAN trunking (802.1Q) and LACP link aggregation work seamlessly across mixed-vendor networks. For optimal performance in Rockwell ecosystems, pair with ControlLogix/CompactLogix PLCs; for third-party PLC integration, standard Modbus TCP or PROFINET gateways can be connected.

Q: What is the maximum number of devices supported in a single DLR ring topology?
A: A single DLR ring supports up to 50 nodes (switches + end devices with DLR capability). For larger installations, implement multiple rings interconnected via Layer 3 routing or use a supervisor-level switch like the Stratix 8000 series. Each 1783-BMS06TA can participate as a ring node or serve as a DLR supervisor managing fault detection and recovery.

Q: What energy savings can be achieved compared to unmanaged switches, and under what conditions?
A: While managed switches typically consume slightly more power (12W vs. 8W for unmanaged equivalents) due to advanced processing, network-wide energy optimization comes from intelligent traffic management. By eliminating broadcast storms through IGMP snooping and reducing retransmissions via QoS prioritization, overall system efficiency improves by 15–25% in high-traffic environments. Energy-Efficient Ethernet (EEE/802.3az) support reduces port power during idle periods by up to 30%, most effective in applications with cyclical machine operation.

Q: What are the environmental installation requirements and ingress protection level?
A: The switch is rated IP30 (protects against solid objects >2.5mm, no water protection) and requires installation inside a control cabinet or NEMA-rated enclosure when exposed to moisture/dust. Fanless design eliminates maintenance but requires 50mm clearance above/below for convection cooling. For outdoor or washdown areas, house within IP65/NEMA 4X enclosures with thermostat-controlled ventilation. Conformal coating provides additional protection against condensation and corrosive gases in chemical plants or coastal installations.

Q: Can the switch support remote monitoring and SCADA integration via industrial protocols?
A: Yes—SNMP v1/v2c/v3 agents enable polling by SCADA systems (Wonderware, Ignition, FactoryTalk View SE) for port statistics, error counters, and alarm conditions. Modbus TCP gateway functionality (via embedded logic or external converter) allows direct register mapping to PLC/HMI. Syslog export sends event logs to centralized servers, and SMTP email alerts notify operators of critical faults. For OPC UA integration, use Kepware or Matrikon middleware to expose switch data as OPC tags.

Q: Is firmware upgradable in the field, and what cybersecurity protocols are supported?
A: Firmware updates deploy via TFTP/HTTP upload through the web interface or CLI, with automatic rollback if corruption occurs. Current firmware supports HTTPS (TLS 1.2), SSH v2, SNMPv3 with AES-256 encryption, and 802.1X port authentication tied to RADIUS servers. Future releases will add CIP Security™ for encrypted EtherNet/IP messaging. Best practice: disable unused protocols (Telnet, HTTP), implement ACLs restricting management access to specific VLANs, and schedule quarterly firmware reviews per IEC 62443-4-2 guidelines.

Request Custom Network Design & Quotation

To receive a tailored solution proposal, technical specification comparison, or volume pricing, please provide our engineering team with the following details:

• Project Overview: Application type (assembly line, process control, building automation, etc.) and site location
• Network Topology: Number of switches required, desired redundancy scheme (DLR ring, star, linear), and maximum cable run distances
• Connected Devices: Quantity and types (PLCs, drives, I/O blocks, HMIs, IP cameras) with estimated traffic loads
• Environmental Conditions: Ambient temperature range, presence of dust/moisture/vibration, hazardous area classification (if applicable)
• Power Infrastructure: Available DC voltage (18–32V), single or redundant supplies, UPS backup requirements
• Integration Needs: Existing network equipment brands, required interoperability with third-party systems, cybersecurity compliance mandates

Our certified automation specialists will respond within 24 hours with switch model recommendations, port count optimization, estimated lead times, and competitive pricing. For urgent retrofits or production line expansions, same-day preliminary assessments are available.
