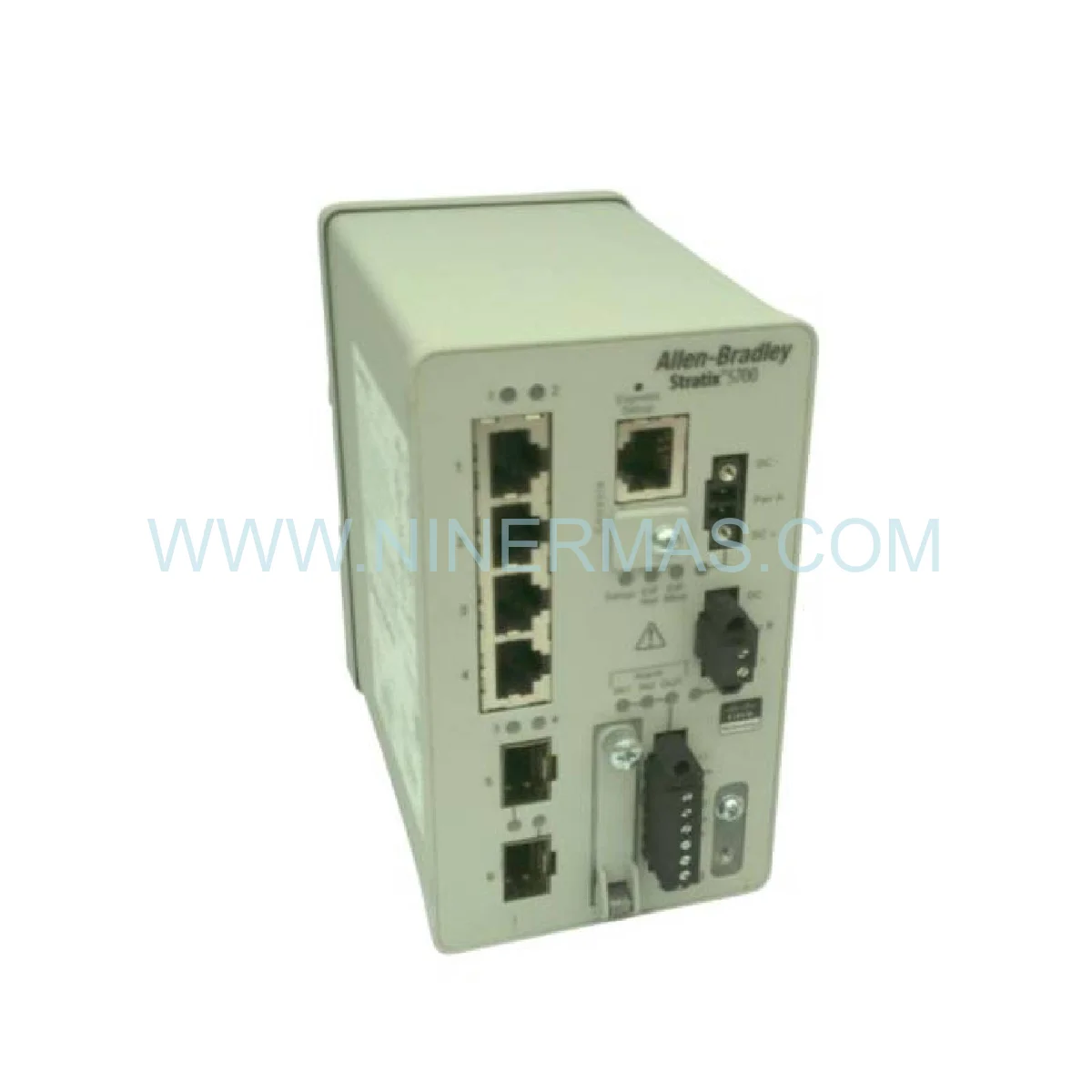

Allen-Bradley 1783-BMS06SA Stratix 5700 Managed Ethernet Switch (Industrial-Grade Network Control Solution)

The Allen-Bradley 1783-BMS06SA Stratix 5700 is a ruggedized managed Ethernet switch engineered for mission-critical industrial automation networks. Through advanced Layer 2/Layer 3 switching technology and integrated Device Level Ring (DLR) protocol, it delivers deterministic network performance with sub-millisecond failover capability for continuous process control.

Designed specifically for manufacturing plants, oil & gas facilities, water treatment systems, power generation stations, and transportation infrastructure where network downtime directly impacts production output. This switch addresses common industrial challenges including electromagnetic interference, extreme temperature fluctuations, voltage instability, network congestion during peak data transmission, and the need for real-time alarm notification when communication faults occur.

Featuring factory-hardened construction with conformal coating options and standardized DIN-rail mounting, the 1783-BMS06SA offers seamless integration with Rockwell Automation ControlLogix/CompactLogix PLCs, SCADA systems, HMI panels, and third-party industrial protocols. Suitable for control engineers, system integrators, OEM machine builders, and plant maintenance teams. Contact our application engineers for network topology design, VLAN configuration guidance, and competitive project quotations.

Core Capabilities & Technical Advantages

• Deterministic Network Performance
  Implements IEEE 802.1Q VLAN segmentation and Quality of Service (QoS) prioritization to ensure time-critical control data transmission takes precedence over diagnostic traffic, maintaining scan times under 10ms even during network congestion.
• Proven Energy Efficiency
  Energy-Efficient Ethernet (EEE) technology reduces power consumption by up to 40% compared to legacy unmanaged switches during low-traffic periods, lowering operational costs for 24/7 continuous operation environments.
• Redundant Network Architecture
  Native support for Device Level Ring (DLR) and Rapid Spanning Tree Protocol (RSTP) enables automatic network recovery within 3ms upon link failure, preventing costly production interruptions in critical control loops.
• Comprehensive Diagnostic Protection
  Built-in safeguards against voltage surges (per IEC 61000-4-5), electrostatic discharge, port overload, and thermal overrun conditions. SNMP trap notifications and syslog integration provide proactive fault detection before system-wide failures occur.
• Intuitive Configuration Interface
  Web-based management console with Studio 5000 Logix Designer integration allows rapid commissioning through pre-configured templates. Supports both graphical topology view and CLI for advanced users, reducing setup time from hours to minutes.
• Extended Environmental Resilience
  Operates reliably across -40°C to +70°C ambient temperature range without forced cooling, meeting Class I Division 2 hazardous location requirements for chemical processing and upstream oil & gas applications.

Proven Application Scenarios

This managed switch excels in environments demanding uninterrupted network availability and precise data synchronization:

• Automotive Assembly Lines & Robotics Cells
  Coordinates real-time communication between multi-axis servo drives, vision inspection systems, and safety PLCs. VLAN isolation prevents robot programming traffic from interfering with motion control commands, ensuring cycle time consistency.
• Municipal Water & Wastewater Treatment
  Connects distributed RTUs, flow meters, and chemical dosing controllers across pump stations spanning several kilometers. DLR redundancy maintains SCADA visibility during fiber cuts or equipment maintenance, preventing overflow incidents.
• Food & Beverage Processing Lines
  Links temperature controllers, weight scales, and CIP (Clean-In-Place) systems in washdown-rated enclosures. Conformal coating protects against moisture ingress and chemical exposure, meeting FDA 21 CFR Part 11 data integrity requirements.
• Oil & Gas Pipeline Monitoring
  Aggregates data from pressure transmitters, flow computers, and leak detection sensors in remote wellhead locations. Wide operating temperature range eliminates need for climate-controlled cabinets in desert or arctic installations.
• Building Automation & HVAC Control
  Integrates BACnet/IP controllers, variable frequency drives, and energy meters across multi-story commercial facilities. PoE+ capability (when paired with appropriate models) simplifies installation by eliminating separate power supplies for IP cameras and access control panels.

Technical Specifications & Selection Guide

To facilitate accurate system design and procurement, we provide standardized configuration parameters. Custom port configurations, fiber uplink options, and extended temperature variants are available upon request.

Selection Recommendations

When specifying this switch for your project, consider the following design factors:

• Network Traffic Volume: Calculate peak bandwidth requirements including cyclic I/O data, HMI polling, historian logging, and diagnostic messaging
• Redundancy Requirements: Determine if single DLR ring or dual-ring topology is needed based on mean time to repair (MTTR) targets
• Environmental Conditions: Verify ambient temperature range, presence of corrosive gases, and vibration levels at installation location
• Power Supply Architecture: Confirm available DC voltage (24V nominal) and whether redundant power inputs are required per IEC 61508 SIL requirements
• Future Expansion: Account for 20-30% port capacity headroom to accommodate additional devices during plant upgrades

For application-specific guidance, please provide your network topology diagram, device count per segment, required uptime percentage, and existing infrastructure details. Our certified network engineers will recommend optimal switch placement, VLAN segmentation strategy, and firmware version compatibility.

Advanced Integration Capabilities

• Studio 5000 Logix Designer Integration: Add-On Profile (AOP) enables direct switch configuration and real-time diagnostics within your ControlLogix programming environment, eliminating need for separate network management software
• FactoryTalk AssetCentre Compatibility: Automatic device discovery and configuration backup streamline multi-site deployments, reducing commissioning time by up to 60% compared to manual setup
• CIP Security Protocol Support: Role-based access control and encrypted communication channels meet IEC 62443 cybersecurity standards for defense-in-depth network protection
• PROFINET & EtherNet/IP Coexistence: Simultaneous operation of multiple industrial protocols on segmented VLANs allows gradual migration from legacy systems without forklift upgrades
• SNMP Trap Forwarding: Integrates with enterprise NMS platforms (SolarWinds, PRTG, Nagios) for centralized alarm management and historical trend analysis

Delivery, Service & Quality Assurance

Lead Time: Factory-sealed units typically ship within 3-5 business days from our regional distribution centers. Custom-configured switches with pre-loaded firmware or specialized conformal coating require 10-15 business days.

Warranty Coverage: All products include a minimum 24-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty plans up to 60 months are available for critical infrastructure applications.

Technical Support: Complimentary remote commissioning assistance includes network topology review, VLAN configuration validation, and firmware upgrade guidance. On-site startup services and training are available in major metropolitan areas (travel charges may apply).

Documentation Package: Each unit ships with Quick Start Guide, complete User Manual (PDF), AutoCAD DXF dimensional drawings, electrical wiring diagrams, and sample Studio 5000 AOP configuration files. Multilingual documentation available upon request.

Compliance Certifications: Products are manufactured in ISO 9001:2015 certified facilities and undergo 100% functional testing including 48-hour burn-in at elevated temperature. Test reports and material certifications (RoHS, REACH) provided with each shipment.

Frequently Asked Questions

How do I integrate the 1783-BMS06SA Stratix 5700 switch with my existing ControlLogix network?

The switch connects via standard Ethernet cables to your ControlLogix controller's Ethernet port or 1756-EN2T/EN3TR communication modules. Download the Add-On Profile (AOP) from the Rockwell Automation Product Compatibility & Download Center, install it in Studio 5000, then add the switch to your I/O Configuration tree. The AOP provides a graphical interface for port configuration, VLAN setup, and real-time diagnostics without requiring separate network management software.

What is the maximum number of devices this 6-port switch can support in a DLR ring topology?

In a Device Level Ring configuration, the switch can support up to 50 nodes per ring as per ODVA DLR specification. However, practical device count depends on network traffic volume—for typical I/O scanning applications with 10ms update rates, 20-30 devices per ring is recommended to maintain deterministic performance. For larger networks, implement multiple DLR rings connected via the switch's uplink ports.

What energy savings can I expect, and what conditions are required to achieve them?

Energy-Efficient Ethernet (EEE) can reduce power consumption by 30-40% during periods when connected devices are idle or transmitting at low data rates (below 10% link utilization). Actual savings depend on your network's duty cycle—continuous high-bandwidth applications like video streaming will see minimal benefit, while batch processing systems with intermittent communication can achieve maximum savings. EEE is automatically negotiated with compatible end devices and requires no manual configuration.

What are the environmental installation requirements, and what is the IP protection rating?

The standard 1783-BMS06SA features IP30 rating, suitable for installation inside control cabinets with filtered ventilation. It operates reliably from -40°C to +70°C ambient temperature without forced air cooling, making it ideal for outdoor enclosures in extreme climates. For washdown environments or direct exposure to dust/moisture, specify the IP67-rated variant (model 1783-BMS06SL) which includes sealed connectors and conformal-coated PCBs meeting NEMA 4X standards.

Can I remotely monitor this switch and collect diagnostic data? Which protocols are supported?

Yes, the switch supports comprehensive remote management via SNMP v1/v2c/v3 (for integration with enterprise NMS platforms), HTTPS web interface (for secure browser-based access), SSH/Telnet CLI (for scripted configuration), and native CIP protocol (for Studio 5000 integration). It can send syslog messages to centralized logging servers and SNMP traps for alarm notification. Real-time metrics include port utilization, error counters, temperature, power supply status, and DLR ring health—all accessible remotely without requiring physical site visits.

Is this switch compatible with non-Rockwell automation equipment and third-party protocols?

Absolutely. While optimized for Rockwell Automation ecosystems, the 1783-BMS06SA is a standards-compliant IEEE 802.3 Ethernet switch that works with any manufacturer's equipment using TCP/IP, Modbus TCP, PROFINET, EtherCAT, or other Ethernet-based industrial protocols. VLAN segmentation allows you to isolate different protocol traffic on the same physical network. Many integrators use Stratix switches in mixed-vendor environments combining Siemens PLCs, Schneider drives, and ABB robots on a common infrastructure.

Request Technical Consultation & Project Quotation

To receive a detailed application engineering review, competitive pricing, and delivery timeline for your specific project, please provide the following information to our technical sales team:

• Project name and industry sector
• Application environment (indoor/outdoor, temperature range, hazardous area classification)
• Total number of network devices and their communication protocols
• Required network topology (star, ring, redundant ring)
• Existing automation platform (ControlLogix, CompactLogix, PLC-5, third-party)
• Available power supply voltage and redundancy requirements
• Project timeline and quantity requirements

Our application engineers typically respond within 4 business hours with preliminary recommendations, followed by detailed network architecture drawings and Bill of Materials within 48 hours.
