Allen-Bradley 1771-WH Swing Arm Wiring Module | PLC-5 Field Interface Solution

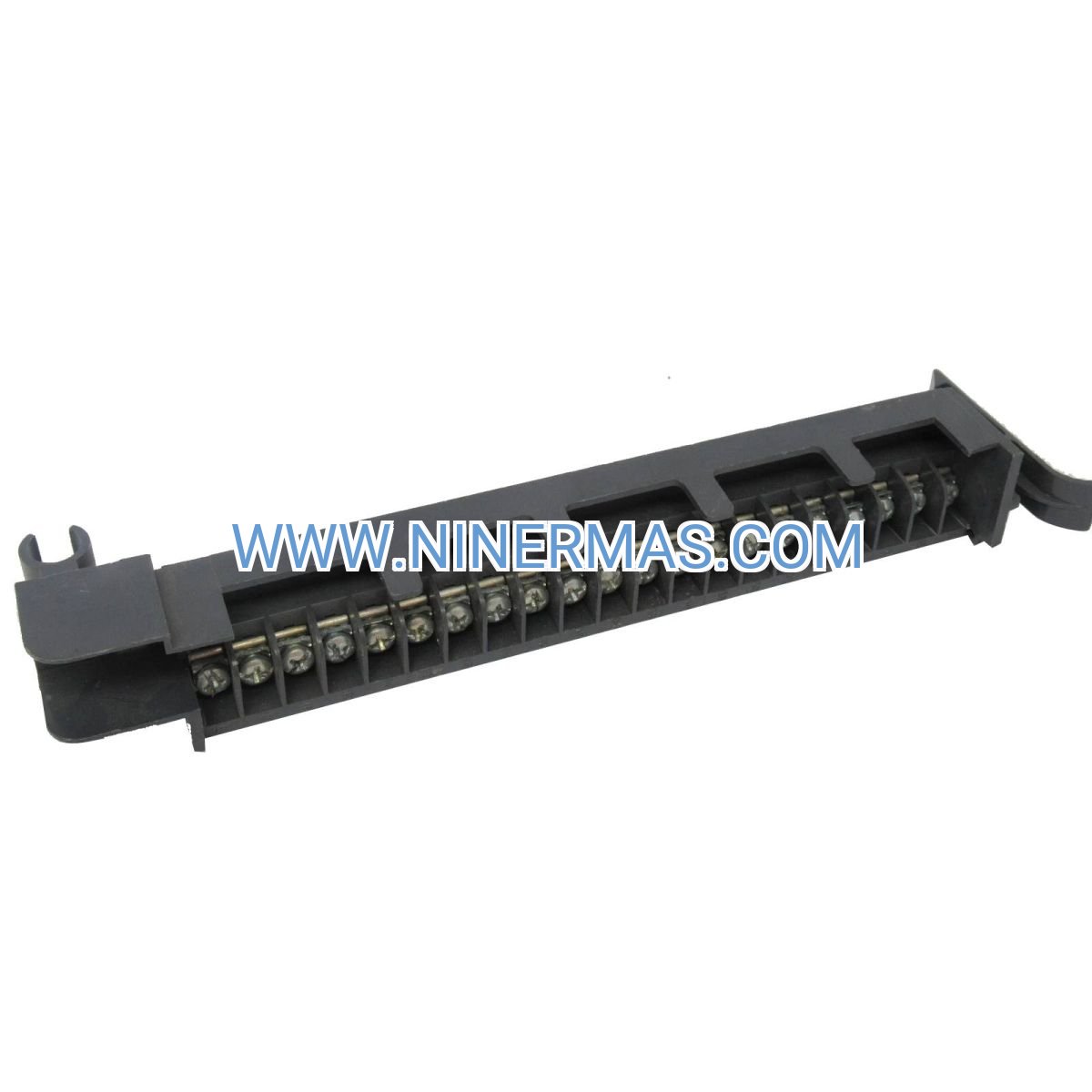

Allen-Bradley 1771-WH Swing Arm Wiring Module (Industrial-Grade Field Interface Solution)

The Allen-Bradley 1771-WH is a professional swing arm field wiring module designed specifically for PLC-5 control systems. Through its innovative rapid-access swing arm mechanism and standardized screw-clamp terminal design, it enables quick field wiring connections, hot-swappable I/O module replacement, and significantly reduced system maintenance downtime.

Ideal for manufacturing plants, process control facilities, industrial automation systems, and equipment integration projects where frequent I/O module maintenance or replacement is required. This module addresses common challenges including time-consuming rewiring during module replacement, accidental wire damage during maintenance, inconsistent field wiring quality, and excessive system downtime.

With proven design reliability and compatibility across the 1771 I/O family, the 1771-WH module delivers rapid maintenance access, standardized installation procedures, enhanced system reliability, and reduced labor costs. Suitable for control engineers, system integrators, plant maintenance teams, and OEM equipment manufacturers. Contact our technical team for application-specific wiring diagrams and installation guidance.

Core Features & Advantages

Rapid-Access Swing Arm Design
The patented swing arm mechanism allows I/O modules to be removed or replaced without disconnecting field wiring. This innovative design reduces maintenance time by up to 60% compared to traditional fixed-terminal modules, minimizing production interruptions.

Robust Screw-Clamp Terminals
Industrial-grade screw-clamp terminals accommodate 14-22 AWG wire sizes, ensuring secure connections in high-vibration environments. The terminals maintain consistent contact pressure over extended operating periods, reducing intermittent connection failures.

Hot-Swap Capability
Supports hot-swappable I/O module replacement while maintaining field wiring integrity. This feature is critical for continuous process operations where unplanned downtime must be minimized, allowing technicians to replace faulty modules within minutes.

Universal 1771 I/O Compatibility
Compatible with the complete Allen-Bradley 1771 I/O module family, including digital input/output, analog I/O, and specialty modules. This universal compatibility simplifies spare parts inventory and standardizes maintenance procedures across multiple control systems.

Clear Terminal Identification
Each terminal position is clearly labeled with permanent markings, reducing wiring errors during installation and maintenance. The intuitive layout follows industry-standard numbering conventions, enabling faster troubleshooting and documentation.

Comprehensive Protection Features
Built-in strain relief provisions protect field wiring from mechanical stress. The module housing provides IP20 protection rating, shielding terminals from dust and accidental contact while maintaining accessibility for maintenance operations.

Typical Application Scenarios

This module is engineered for environments demanding high reliability, rapid serviceability, and consistent field wiring quality, particularly in:

Manufacturing & Assembly Lines
Ideal for automotive, electronics, and consumer goods production facilities where I/O modules control conveyors, robots, and inspection stations. The swing arm design enables quick module replacement during shift changes, maintaining production schedules and minimizing overtime costs.

Process Control & Chemical Plants
Supports continuous process operations in refineries, chemical processing, water treatment, and pharmaceutical manufacturing. Hot-swap capability allows maintenance during production runs, critical for processes that cannot be interrupted without significant product loss or safety concerns.

Power Generation & Utilities
Deployed in power plants, substations, and utility distribution systems where control system reliability directly impacts grid stability. The robust terminal design withstands harsh electrical environments while providing reliable signal transmission for critical monitoring and control functions.

OEM Equipment & Machine Builders
Preferred by equipment manufacturers building packaging machines, material handling systems, and industrial processing equipment. Standardized wiring interface simplifies machine commissioning at customer sites and reduces field service complexity across installed base.

Technical Parameters & Selection Guide

To facilitate system design and module selection, we provide comprehensive technical specifications. Custom configurations are available for specialized project requirements.

Key Technical Specifications:

• Compatible Systems: Allen-Bradley PLC-5 family (all processor models)
• I/O Module Compatibility: All 1771 series digital, analog, and specialty I/O modules
• Terminal Type: Screw-clamp, removable terminal blocks
• Wire Gauge Range: 14-22 AWG (2.5-0.33 mm²), solid or stranded
• Terminal Capacity: Matches specific I/O module requirements (8-32 points typical)
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Humidity: 5% to 95% non-condensing
• Protection Rating: IP20 (finger-safe, dust-protected)
• Mounting: DIN rail or panel mount (1771 chassis compatible)
• Dimensions: Standard 1771 single-slot width
• Certifications: UL Listed, CE marked, RoHS compliant

Selection Recommendations:
When selecting the 1771-WH module, consider: I/O module type and point count, field wiring wire gauge and type, environmental conditions (temperature, humidity, vibration), maintenance access requirements, and existing PLC-5 chassis configuration. For assistance, provide your I/O module part numbers, application description, and environmental parameters. Our application engineers will recommend optimal wiring module configuration and provide detailed connection diagrams.

Extended Functionality

Documentation & Labeling Support
The module accommodates custom wire identification labels and supports integration with plant documentation systems. Clear terminal maps can be generated from control system databases, ensuring consistency between design documentation and physical installation.

Retrofit & Upgrade Compatibility
Designed for seamless retrofit into existing PLC-5 installations. The module can replace older fixed-terminal I/O modules without requiring control program modifications, enabling phased system upgrades while maintaining operational continuity.

Training & Maintenance Efficiency
Standardized design reduces training requirements for maintenance personnel. The intuitive swing arm operation and clear terminal layout enable technicians to perform module replacements with minimal supervision, reducing dependency on specialized expertise.

Delivery, Service & Quality Assurance

Standard catalog items ship from stock within 1-3 business days. Custom-configured modules with specialized labeling or documentation typically require 5-10 business days. All products include a minimum 12-month manufacturer warranty covering defects in materials and workmanship.

Technical support includes remote application assistance, wiring diagram review, and troubleshooting guidance. On-site commissioning support and training services are available for large-scale installations (subject to location and project scope). Each module ships with complete documentation including installation instructions, wiring diagrams, dimensional drawings, and compliance certificates.

Our quality management system maintains ISO 9001 certification, ensuring consistent product quality and traceability. All modules undergo functional testing and inspection prior to shipment, with test records available upon request for critical applications.

Frequently Asked Questions (FAQ)

Q: How does the 1771-WH swing arm wiring module integrate with existing PLC-5 systems?
A: The module mounts directly into standard 1771 I/O chassis using the same slot spacing as traditional I/O modules. Field wiring connects to the swing arm terminal block, while the I/O module plugs into the backplane connector. No special adapters or modifications are required. Verify your I/O module part number and chassis model to confirm compatibility.

Q: What is the maximum number of I/O points supported per wiring module?
A: The 1771-WH terminal configuration matches the specific I/O module it supports. Common configurations include 8, 16, or 32-point modules. Each terminal position corresponds to one I/O point, with additional terminals for power and common connections as required by the I/O module specification.

Q: What maintenance time savings can be expected compared to fixed-terminal modules?
A: Field experience demonstrates 50-70% reduction in module replacement time. Traditional fixed-terminal modules require 20-30 minutes for wire disconnection, module replacement, and rewiring. The 1771-WH swing arm design typically reduces this to 5-10 minutes, as field wiring remains connected during module swap. Actual savings depend on I/O point count and technician experience.

Q: What are the environmental requirements and protection rating?
A: The module operates reliably in 0-60°C ambient temperature with 5-95% non-condensing humidity. IP20 protection rating provides finger-safe terminal access and dust protection, suitable for standard industrial control panel environments. For harsh environments with extreme temperature, moisture, or contaminants, install within NEMA-rated enclosures with appropriate environmental controls.

Q: Does the module support remote monitoring or diagnostic capabilities?
A: The 1771-WH is a passive wiring interface and does not include embedded diagnostics. System-level diagnostics are provided by the PLC-5 processor and I/O modules, which can detect module faults, communication errors, and I/O point status. These diagnostics are accessible through programming software and HMI interfaces using standard PLC-5 diagnostic registers.

Q: Can the module be used with third-party I/O modules or other PLC brands?
A: The 1771-WH is specifically designed for Allen-Bradley 1771 series I/O modules and PLC-5 systems. Mechanical dimensions, electrical pinouts, and backplane communication protocols are proprietary to the 1771 architecture. Use with non-Allen-Bradley equipment is not supported and may result in equipment damage or unsafe operation.

Contact & Technical Support

For detailed application selection, technical specifications, quotations, or project-specific support, please provide: project name and description, application environment and industry, I/O module part numbers and quantities, field wiring specifications (wire gauge, cable type), environmental conditions (temperature, humidity, vibration), and any special requirements (certifications, documentation, training).

Our application engineering team will provide personalized module selection recommendations, connection diagrams, and competitive pricing within one business day.
