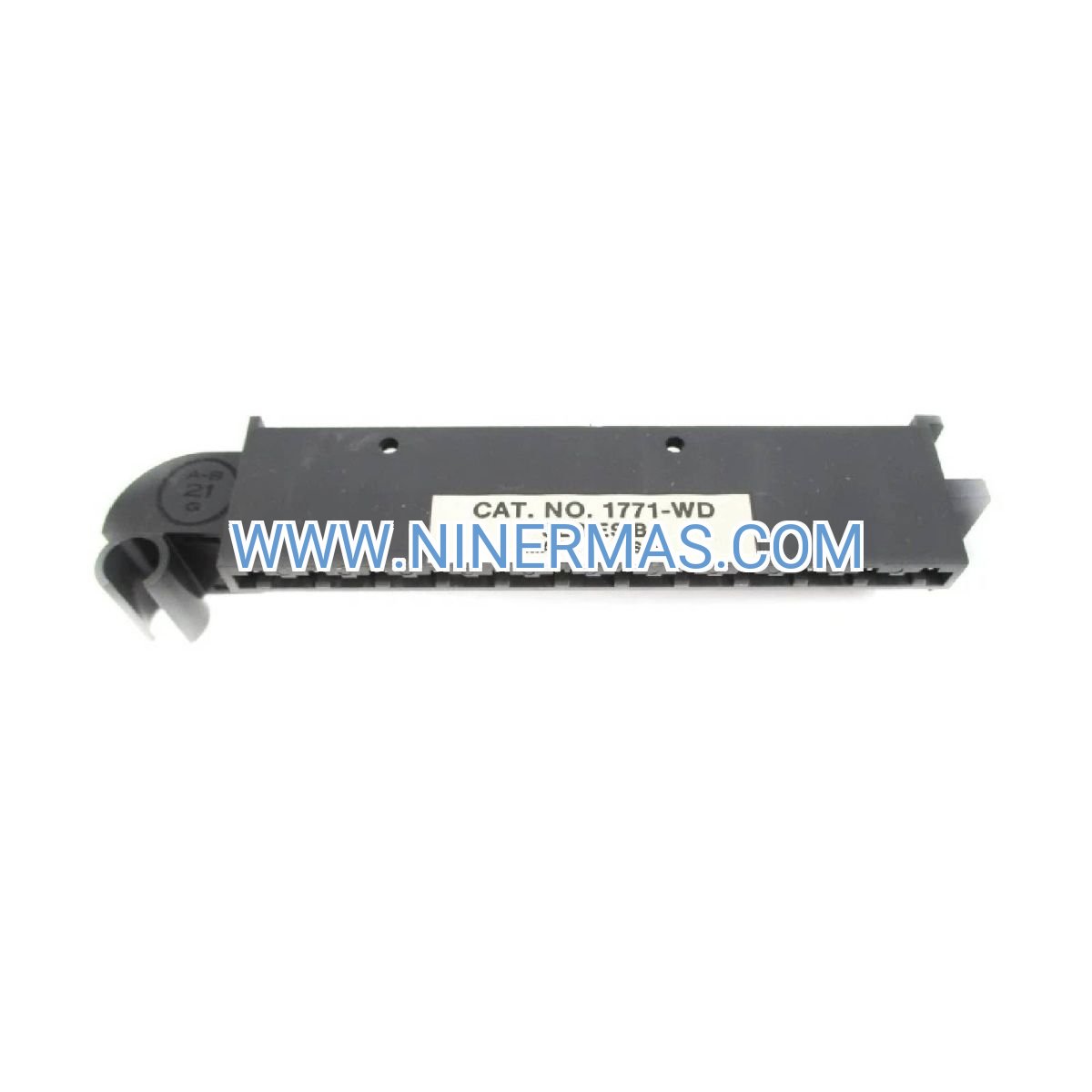

Allen-Bradley 1771-WD Field Wiring Arm for PLC-5 I/O Systems

The Allen-Bradley 1771-WD Field Wiring Arm is a precision-engineered installation accessory designed for PLC-5 I/O module systems. Through its quick-connect terminal design and standardized wiring interface, it enables rapid module replacement, reduces installation errors, and significantly improves system maintainability in industrial automation environments.

Ideal for manufacturing plants, process control systems, machine automation, and legacy PLC-5 upgrade projects, the 1771-WD addresses common challenges including complex field wiring, extended downtime during module replacement, inconsistent wiring practices, and difficulty troubleshooting connection issues in multi-module configurations.

Featuring factory-tested quality, UL/CSA certification, and compatibility with the complete 1771 I/O family, this wiring arm delivers reliable performance, accelerated commissioning, and simplified maintenance workflows. Suitable for system integrators, plant engineers, OEM machine builders, and maintenance teams managing PLC-5 installations. Contact our application engineers for compatibility verification and technical support.

Core Features & Advantages

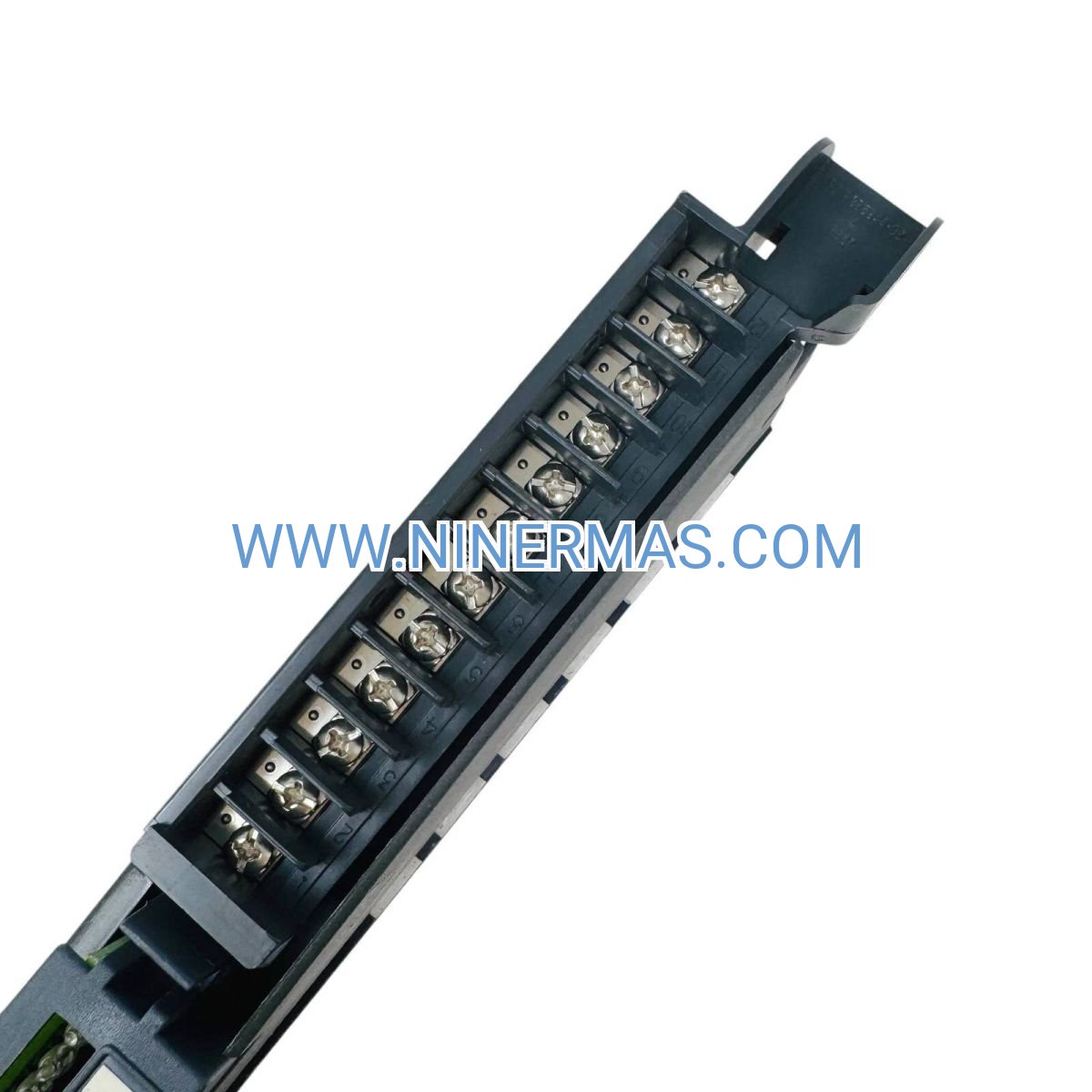

• Quick-Disconnect Wiring Interface
  Pre-wired terminal block design allows module removal and replacement without disturbing field wiring, reducing maintenance downtime by up to 70% compared to direct-wired configurations.
• Error-Proof Installation
  Keyed connector design and clearly labeled terminal positions prevent mis-wiring during initial installation and module swaps, ensuring first-time-right commissioning.
• Hot-Swap Maintenance Support
  Enables module replacement while field wiring remains intact and energized (when used with compatible I/O modules), minimizing production interruptions during repairs.
• Standardized Wiring Practice
  Promotes consistent installation across multiple cabinets and sites, simplifying documentation, training, and long-term system support.
• Robust Industrial Construction
  High-retention spring-clamp terminals, flame-retardant housing, and wide operating temperature range (-20°C to +70°C) ensure reliable performance in harsh industrial environments.
• Complete 1771 Series Compatibility
  Works seamlessly with analog input/output, digital I/O, specialty modules, and communication interfaces within the Allen-Bradley 1771 I/O family.

Typical Application Scenarios

The 1771-WD field wiring arm is engineered for industrial control applications requiring high reliability, rapid serviceability, and standardized installation practices, including:

• Manufacturing & Assembly Lines
  Supports quick module replacement during production shifts, minimizing line stoppages. Ideal for automotive, electronics, food & beverage, and packaging operations with legacy PLC-5 systems.
• Process Control & SCADA Systems
  Facilitates maintenance in chemical plants, water treatment facilities, oil & gas installations, and power generation where unplanned downtime carries high operational costs.
• Machine Automation & OEM Equipment
  Enables machine builders to deliver standardized wiring solutions across product lines, reducing commissioning time and simplifying field service for end customers.
• PLC-5 System Upgrades & Expansions
  Streamlines I/O module additions or replacements during capacity upgrades, process modifications, or obsolescence management projects without complete system rewiring.
• Multi-Cabinet Control Panels
  Promotes wiring consistency across distributed I/O racks, improving documentation accuracy and reducing troubleshooting time for maintenance personnel.

Technical Specifications & Selection Guide

To ensure proper fit and function, the 1771-WD is designed with the following specifications. Custom configurations or alternative mounting solutions are available upon request.

Selection Guidance: When specifying the 1771-WD, confirm the I/O module catalog number, required wire gauge, terminal preference (spring vs. screw), and environmental conditions. For systems with mixed analog and digital I/O, verify terminal block configuration matches signal types. Our engineering team can provide wiring diagrams, terminal assignments, and compatibility matrices upon request.

Enhanced Functionality & Integration

• Color-Coded Terminal Blocks: Optional color-coded terminal strips available for quick visual identification of signal types (power, input, output, common).
• Labeling & Documentation: Pre-printed or custom terminal labels supported; CAD drawings and wiring schematics provided with each order.
• Spare Parts Kits: Replacement terminal blocks and retention clips available separately for long-term maintenance planning.
• Training & Support: Installation guides, video tutorials, and on-site commissioning assistance available through authorized distributors and factory support channels.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3–5 business days; custom-labeled or bulk orders require 10–15 business days.

Warranty: 12-month manufacturer warranty covering defects in materials and workmanship under normal use conditions.

Technical Support: Remote application assistance, wiring verification, and troubleshooting guidance available via phone and email. On-site commissioning support available in select regions (consult factory).

Documentation Package: Each unit ships with installation instructions, terminal assignment diagram, dimensional drawings, and compliance certificates. AutoCAD files and 3D STEP models available upon request.

Frequently Asked Questions (FAQ)

Q: How does the 1771-WD field wiring arm integrate with existing PLC-5 I/O systems?
A: The 1771-WD mounts between the I/O module and the field wiring. Simply connect field wires to the wiring arm terminals, then plug the I/O module into the arm's mating connector. No modifications to the chassis or backplane are required. Verify module compatibility and terminal configuration before ordering.

Q: Can I use the 1771-WD with both analog and digital I/O modules?
A: Yes, the 1771-WD is compatible with the full range of 1771 series modules, including analog input/output (e.g., 1771-IFE, 1771-OFE), digital I/O (e.g., 1771-IAD, 1771-OBD), and specialty modules. Ensure terminal block configuration matches your signal requirements (voltage/current ratings).

Q: What maintenance benefits does the wiring arm provide?
A: The primary benefit is module replacement without rewiring. When a module fails, disconnect it from the wiring arm, install a replacement module, and reconnect—field wiring remains undisturbed. This reduces downtime from hours to minutes and eliminates wiring errors during emergency repairs.

Q: What are the environmental and installation requirements?
A: The 1771-WD operates reliably in industrial environments from -20°C to +70°C with 5–95% humidity (non-condensing). It mounts on standard 1771 chassis or DIN rail (depending on variant). Ensure adequate ventilation, protection from direct water spray, and compliance with local electrical codes. IP20 or higher enclosure recommended.

Q: Does the 1771-WD support remote monitoring or diagnostics?
A: The wiring arm itself is a passive connection interface and does not include diagnostic features. However, it fully supports the diagnostic capabilities of connected I/O modules (e.g., module fault indicators, channel status LEDs). For remote monitoring, integrate with PLC-5 processor diagnostics or SCADA systems via standard communication modules.

Q: Can I order custom terminal labeling or color coding?
A: Yes, custom terminal labels, color-coded blocks, and project-specific documentation are available for orders of 10+ units. Provide terminal assignments, signal names, and labeling preferences at time of order. Lead time may extend by 5–7 business days for custom configurations.

Request a Quote or Technical Consultation

To receive a detailed selection guide, pricing quotation, or application-specific recommendation, please provide the following information: project name, application type, I/O module catalog numbers, quantity required, wire gauge and terminal preference, environmental conditions, and delivery timeline. Our application engineers will respond within one business day with a tailored solution and supporting documentation.
