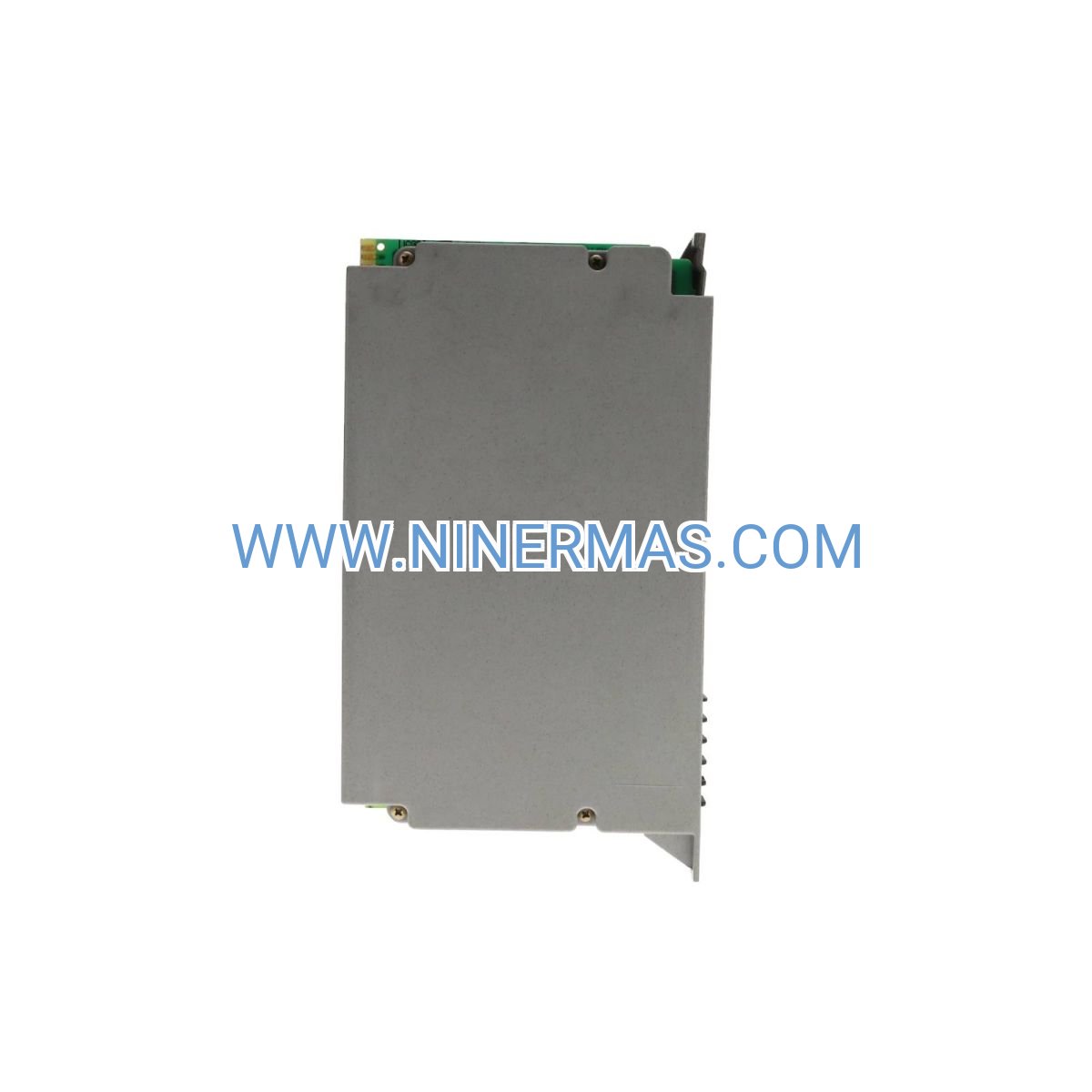

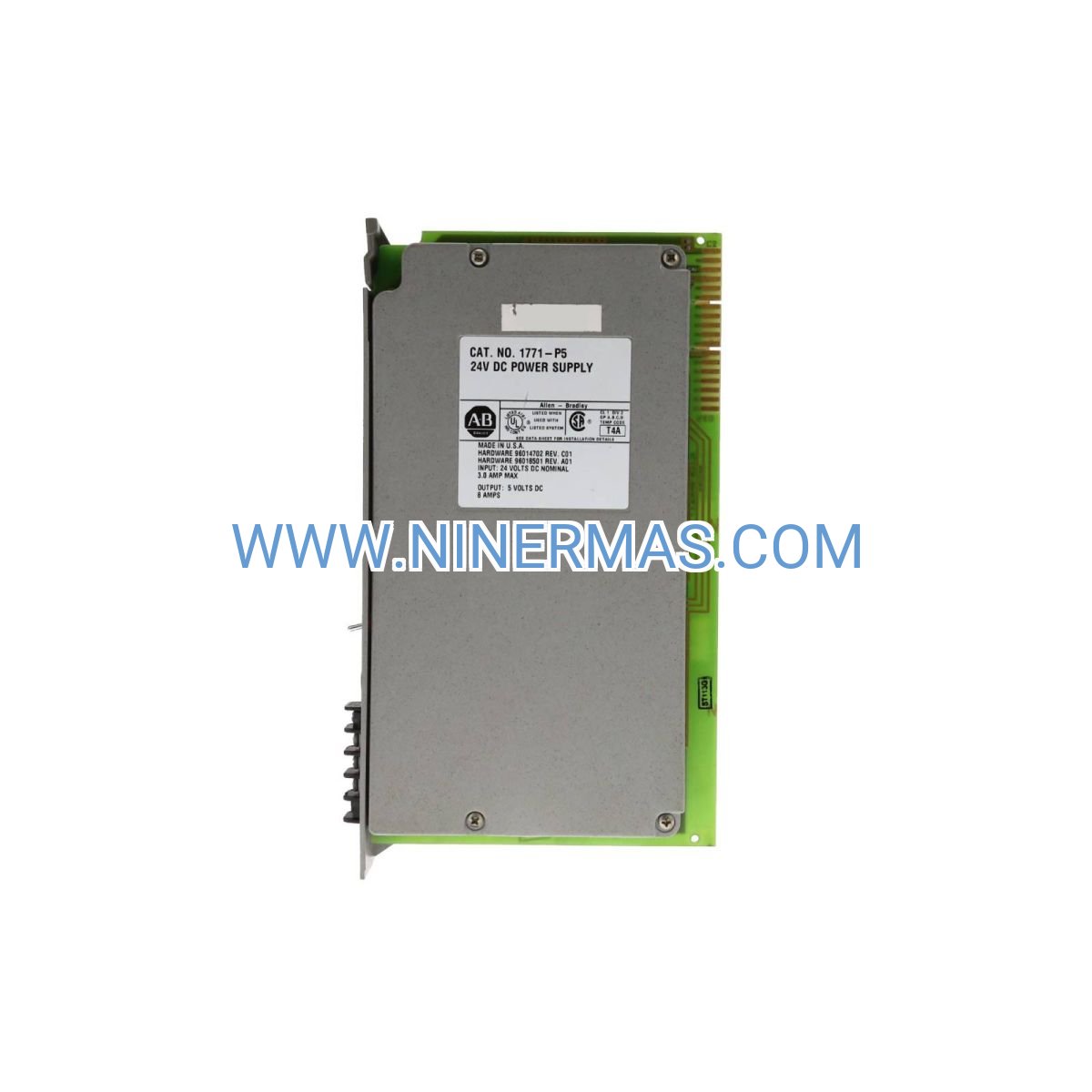

Allen-Bradley 1771-P5 DC Power Supply Module (Industrial-Grade Power Solution for PLC-5 Systems)

The Allen-Bradley 1771-P5 is a high-performance DC power supply module designed specifically for PLC-5 control systems. Through advanced switching power technology and auto-sensing input capability (85-265VAC), it delivers stable 24VDC 8A output to ensure reliable operation of industrial automation equipment. This module supports hot-swappable installation, enabling maintenance without system shutdown.

Ideal for manufacturing plants, process control systems, building automation, and industrial water treatment facilities, the 1771-P5 addresses common challenges such as voltage fluctuations, power interruptions, inadequate redundancy, and excessive downtime during maintenance. It provides consistent power delivery critical for mission-critical control applications.

With standardized design and flexible configuration options, this power supply module offers high reliability, energy efficiency, easy maintenance, excellent compatibility, and comprehensive protection features. It is suitable for system integrators, design engineers, OEM manufacturers, and end-user facilities. Contact our technical team for application guidance and quotation.

Core Features & Advantages

• Wide-Range Auto-Sensing Input
  Accepts 85-265VAC input with automatic voltage detection, eliminating manual switching and adapting to various global power standards. Reduces installation errors and enhances system flexibility across different regions.
• Stable 24VDC 8A Output
  Provides regulated 24VDC power with 8A continuous current capacity, ensuring stable operation of PLC-5 processors, I/O modules, and peripheral devices. Low ripple and noise characteristics protect sensitive electronic components.
• Hot-Swappable Design
  Supports live replacement without powering down the entire system, minimizing production interruptions. Ideal for continuous process industries requiring maximum uptime and rapid fault recovery.
• Comprehensive Protection Functions
  Equipped with overvoltage, overcurrent, short-circuit, and thermal protection mechanisms. Automatic fault detection and shutdown prevent damage to downstream equipment and reduce maintenance costs.
• Compact & Rack-Mountable
  Standard 1771 chassis-compatible form factor allows seamless integration into existing PLC-5 systems. Space-efficient design optimizes cabinet layout and simplifies wiring.
• LED Status Indicators

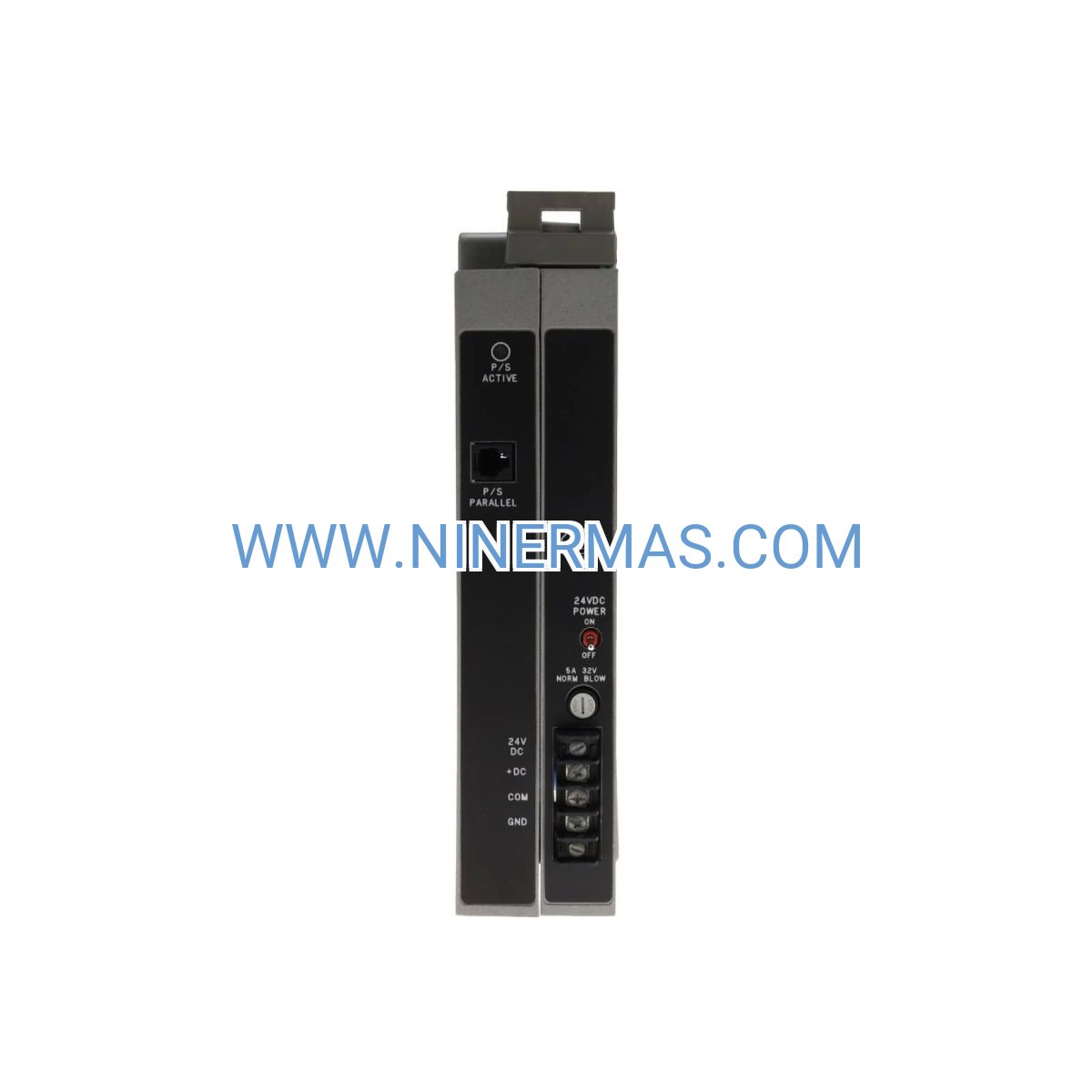

  Front-panel LEDs provide real-time indication of power status and fault conditions, enabling quick visual diagnostics and reducing troubleshooting time.

Typical Application Scenarios

The 1771-P5 power supply module is engineered for applications demanding high power stability, continuous operation, and minimal downtime, including:

• Manufacturing & Assembly Lines
  Powers PLC-5 control systems in automotive, electronics, food & beverage, and pharmaceutical production lines. Ensures uninterrupted operation during critical manufacturing processes and supports 24/7 production schedules.
• Process Control & SCADA Systems
  Provides reliable power for chemical processing, oil & gas, water treatment, and power generation facilities. Maintains system integrity during process upsets and supports redundant power architectures.
• Building Automation & HVAC Control
  Supplies stable power for commercial building management systems, including HVAC, lighting, and access control. Reduces energy consumption through efficient power conversion and supports smart building initiatives.
• Material Handling & Conveyor Systems
  Ensures consistent operation of warehouse automation, sorting systems, and logistics equipment. Minimizes downtime in distribution centers and supports high-throughput operations.
• Industrial Water & Wastewater Treatment
  Powers control panels for pump stations, filtration systems, and chemical dosing equipment. Withstands harsh industrial environments and supports remote monitoring applications.

Technical Specifications & Selection Guide

To facilitate design and selection, we provide standard electrical and mechanical specifications. Custom configurations are available based on project requirements.

Selection Recommendations: When selecting a power supply, consider the following factors: total current draw of all connected modules, ambient operating temperature, input voltage availability, required redundancy level, and available chassis space. For systems requiring N+1 redundancy or higher current capacity, multiple units can be paralleled. Our engineering team can assist with load calculations and system design—please provide your application parameters for customized recommendations.

Advanced Features & Customization Options

• Redundant Power Configuration: Supports parallel operation with automatic load sharing for critical applications requiring fault-tolerant power architectures.
• Remote Monitoring Integration: Compatible with PLC-5 diagnostic systems for real-time power status monitoring and predictive maintenance scheduling.
• Extended Temperature Models: Available for extreme environment applications (-25°C to 70°C operating range).
• Conformal Coating Options: Enhanced protection against moisture, dust, and corrosive atmospheres in harsh industrial settings.
• Custom Input Voltage: Special order units available for non-standard input voltages (e.g., 110VDC, 220VDC industrial power systems).

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days; custom-configured units typically require 10-15 business days depending on specifications.

Warranty: All 1771-P5 modules include a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available upon request.

Technical Support: Comprehensive technical assistance including pre-sales application engineering, installation guidance, and post-sales troubleshooting. Remote diagnostic support and on-site commissioning services available (region-dependent).

Documentation Package: Each unit ships with complete electrical schematics, wiring diagrams, installation manual, quick-start guide, and compliance certificates. CAD drawings and 3D models available for download.

Quality Certifications: Manufactured under ISO 9001 quality management system. All units undergo 100% factory testing including burn-in, hi-pot, and functional verification before shipment.

Frequently Asked Questions (FAQ)

Q: How do I integrate the 1771-P5 power supply module with my existing PLC-5 system?
A: The 1771-P5 is designed for plug-and-play installation in standard 1771 chassis. Simply insert the module into an available chassis slot, ensure proper AC input wiring (85-265VAC), and verify LED indicators show normal operation. No programming or configuration required. Refer to the installation manual for detailed wiring diagrams and safety precautions.

Q: What is the maximum number of I/O modules one 1771-P5 can support?
A: With 8A output capacity at 24VDC, the 1771-P5 can typically support 8-12 standard I/O modules, depending on module type and current draw. High-density analog modules or specialty cards may consume more power. Calculate total system load and maintain 20% derating for reliability. For larger systems, use multiple power supplies or consider redundant configurations.

Q: What energy savings can I expect, and what conditions are required to achieve them?
A: The 1771-P5 achieves ≥85% typical efficiency, reducing heat generation and energy costs compared to older linear power supplies (typically 50-60% efficient). Actual savings depend on load profile and input voltage. In a typical 24/7 industrial application, upgrading from linear to switching power supplies can reduce power consumption by 30-40%, lowering operating costs and cooling requirements.

Q: What are the environmental requirements for installation? What is the IP rating?
A: The module operates reliably in 0-60°C ambient temperature with 5-95% non-condensing humidity. It is designed for indoor industrial control cabinet installation (IP20 rating when properly enclosed). For harsh environments, install in NEMA 12 or IP54-rated enclosures with adequate ventilation. Conformal-coated versions available for corrosive atmospheres.

Q: Does the 1771-P5 support remote monitoring and data acquisition? Which protocols are compatible?
A: While the power supply itself does not have built-in communication interfaces, its status can be monitored through the PLC-5 processor's diagnostic functions. Power supply faults trigger system alarms that can be transmitted via standard PLC-5 communication protocols (DH+, ControlNet, Ethernet/IP with appropriate interface modules). Integration with SCADA systems enables remote monitoring, trending, and predictive maintenance.

Q: Is the 1771-P5 compatible with newer ControlLogix or CompactLogix systems?
A: The 1771-P5 is specifically designed for legacy PLC-5 systems using 1771 chassis architecture. For ControlLogix (1756) or CompactLogix (1769) platforms, Allen-Bradley offers dedicated power supply modules optimized for those architectures. However, the 1771-P5 can provide auxiliary 24VDC power for field devices in mixed-platform installations.

Request a Quote or Technical Consultation

To receive detailed application engineering support, customized system design, or pricing information, please provide the following details: project name, application type, required power capacity, number of I/O modules, input voltage availability, environmental conditions, and any special requirements. Our technical specialists will respond with tailored recommendations and competitive quotations within 24 hours.
