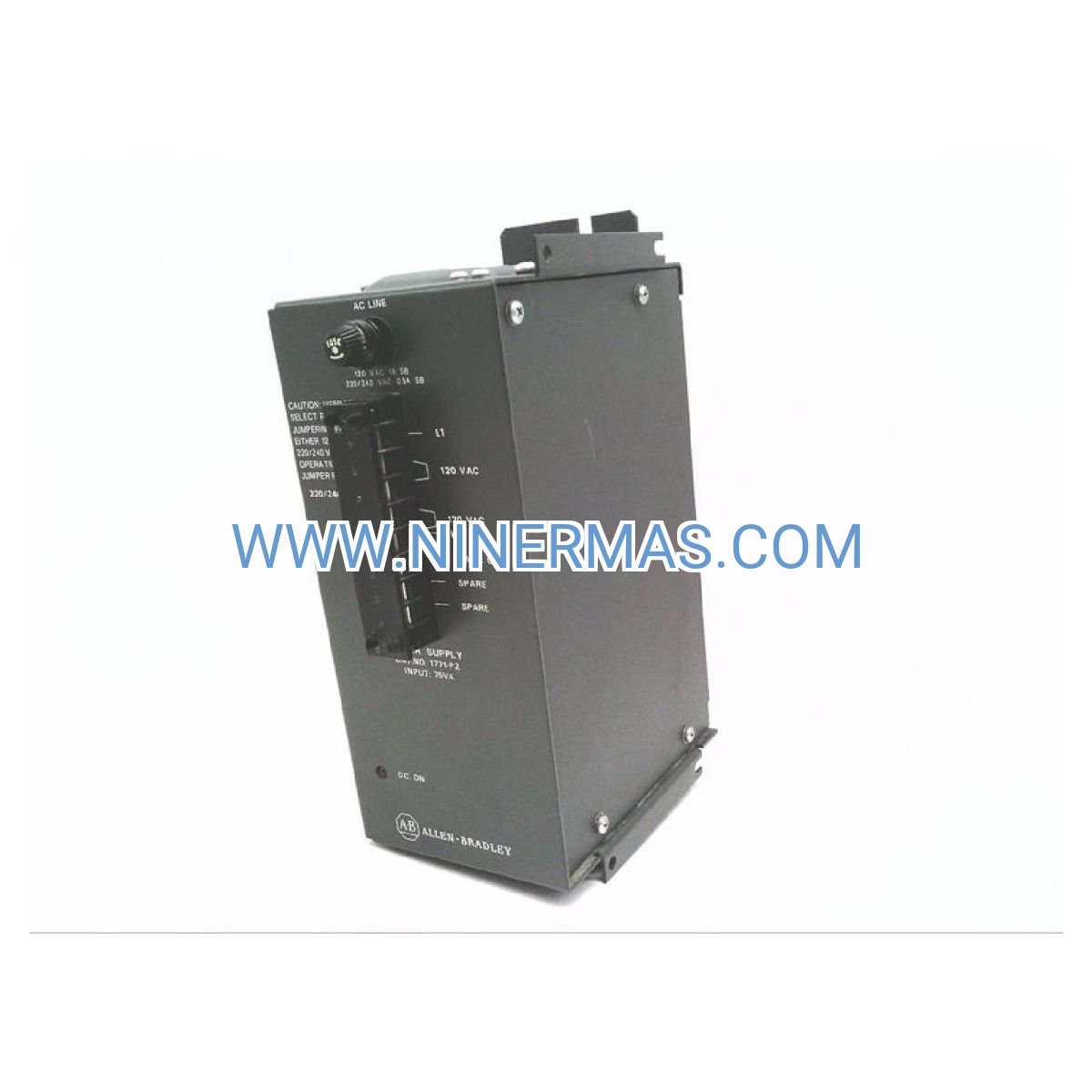

Allen-Bradley 1771-P2A AC/DC Power Supply Module | PLC-5 Industrial Control System | NINERMAS

Frequently Asked Questions (FAQ)

Q: How do I integrate the 1771-P2A power supply with my existing PLC-5 system?
A: The 1771-P2A installs directly into any standard 1771 I/O chassis slot designated for power supplies. Simply slide the module into the leftmost available power supply position, secure with the retention clip, and connect the AC input wiring to the terminal block. The module automatically detects input voltage and begins supplying regulated DC power to the backplane. Refer to the installation manual for detailed wiring diagrams and safety precautions.

Q: What is the maximum number of I/O modules one 1771-P2A can support?
A: A single 1771-P2A provides 30W of total output power. The number of supported I/O modules depends on their individual power consumption, which typically ranges from 1.5W to 5W per module. As a general guideline, one 1771-P2A can power 6-12 standard I/O modules. For precise load calculations, sum the power requirements from each module's specification sheet and ensure the total remains below 80% of rated capacity for optimal reliability.

Q: What energy savings can I expect compared to older linear power supplies?
A: The 1771-P2A's switching power supply technology achieves approximately 85% efficiency, compared to 50-60% for traditional linear supplies. In a typical installation running 24/7, this translates to 30-40% reduction in power consumption and heat generation. Actual savings depend on load conditions, ambient temperature, and input voltage. Lower heat dissipation also reduces HVAC cooling requirements in control rooms and electrical enclosures.

Q: What are the environmental requirements for installation?
A: The 1771-P2A operates reliably in ambient temperatures from 0°C to +60°C (32°F to 140°F) and relative humidity from 5% to 95% non-condensing. Install in a clean, well-ventilated enclosure with IP20 minimum protection rating. For harsh environments with dust, moisture, or corrosive atmospheres, specify the conformal-coated version and use an enclosure rated IP54 or higher. Ensure adequate clearance (minimum 50mm) above and below the module for convection cooling.

Q: Can the 1771-P2A be monitored remotely or integrated with SCADA systems?
A: The 1771-P2A provides local LED status indication but does not have built-in communication interfaces for remote monitoring. However, power supply status can be monitored indirectly through the PLC-5 processor's diagnostic registers, which detect backplane voltage levels and can trigger alarms via your SCADA system. For advanced power monitoring with voltage/current measurements and predictive maintenance capabilities, consider adding external power monitoring modules to your system architecture.

Q: Is the module hot-swappable, and what precautions should I take during replacement?
A: Yes, the 1771-P2A supports hot-swap replacement when installed in a redundant power configuration (two or more power supplies in the same chassis). Before removing a module, verify that the redundant supply is operational and carrying the load. Use proper ESD precautions, avoid touching backplane connectors, and complete the replacement within 30 seconds to minimize electrical stress. For non-redundant systems, a controlled shutdown is required before power supply replacement.
