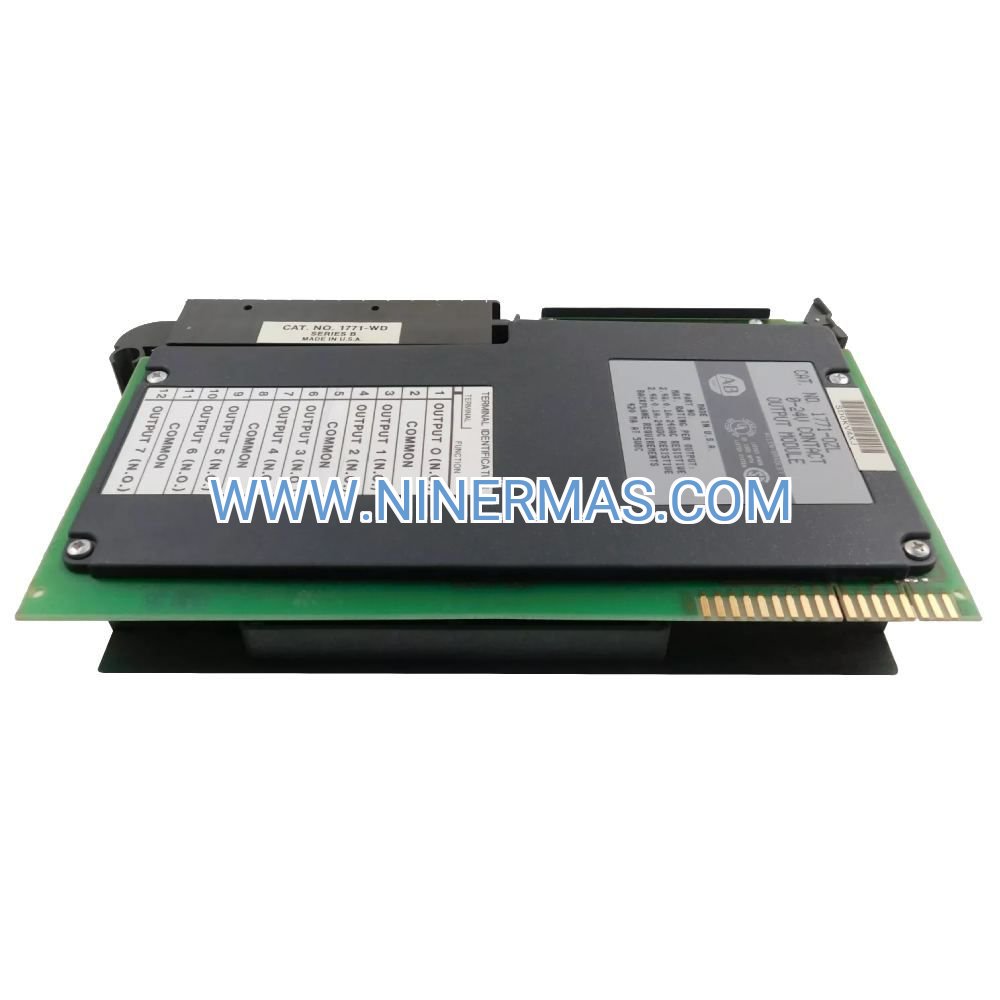

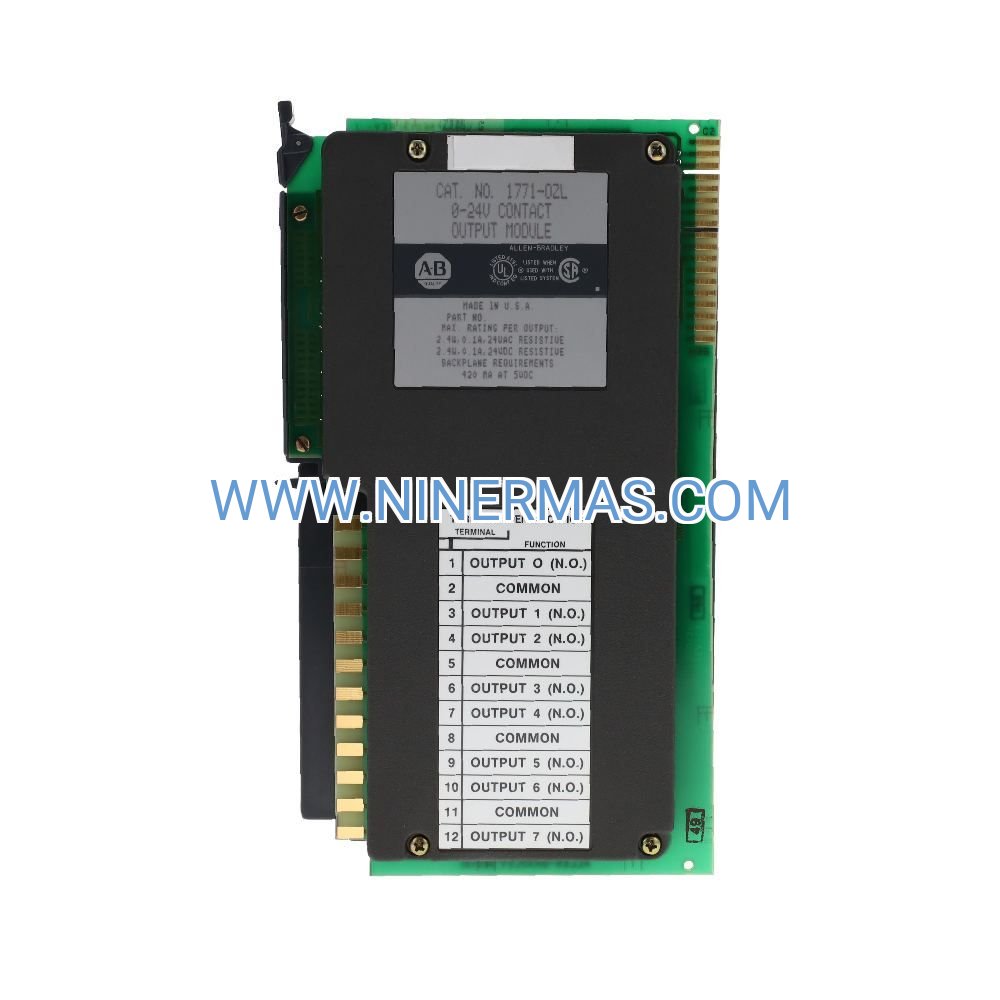

1771-OZL Digital Relay Output Module (Industrial-Grade PLC-5 Control)

The 1771-OZL is an 8-channel digital output module engineered for mission-critical relay switching in PLC-5 programmable logic controller environments. Designed for industrial automation professionals who demand reliable isolation, flexible voltage compatibility, and proven durability, this module serves as the backbone for equipment protection, process sequencing, and safety interlock applications across manufacturing, energy, and infrastructure sectors.

Built to withstand harsh operating conditions while maintaining precise control accuracy, the 1771-OZL addresses common challenges in legacy system upgrades and brownfield expansions. Whether you're managing rotating machinery protection systems, coordinating multi-stage process flows, or implementing fail-safe shutdown logic, this module delivers consistent performance with minimal maintenance overhead.

Key advantages include channel-to-channel isolation preventing ground loop interference, hot-swappable architecture reducing planned downtime, and universal AC/DC voltage compatibility eliminating the need for multiple spare parts inventories. Factory-tested and ready for immediate deployment in standard 1771 chassis configurations.

Core Features & Technical Advantages

→ 8 Isolated Relay Contact Outputs
Independent switching channels with electrical isolation between outputs and backplane, preventing cross-talk and protecting sensitive control circuits from voltage transients.

→ Universal 0-24V AC/DC Compatibility
Field-selectable voltage operation allows a single module to handle diverse load types—from solenoid valves to indicator lamps—reducing inventory complexity and procurement costs.

→ 100mA Per-Channel Current Rating
Sufficient drive capacity for standard industrial control devices including pilot relays, contactors, and annunciator panels without requiring external amplification.

→ 10ms Typical Response Time
Relay actuation speed suitable for most process control applications, with mechanical contact reliability exceeding 100,000 switching cycles under rated load conditions.

✓ Diagnostic LED Indicators
Per-channel status visualization accelerates troubleshooting during commissioning and maintenance, reducing mean time to repair (MTTR) by up to 40% compared to non-indicated modules.

✓ Hot-Swap Capability
Replace modules during system operation without powering down the entire chassis, critical for continuous process industries where unplanned shutdowns cost thousands per hour.

Industrial Application Scenarios

Rotating Equipment Monitoring & Protection
Integrate with vibration sensors and proximity probes to trigger alarm relays when machinery exceeds API 670 or ISO 20816 thresholds. The isolated outputs prevent sensor signal degradation while providing fail-safe shutdown commands to emergency stop circuits.

Chemical Process Sequencing
Control pneumatic valve actuators in batch reactors, distillation columns, and blending systems. The module's AC/DC flexibility accommodates both 24VDC solenoid valves and 120VAC motor starters within the same control strategy.

Water Treatment Automation
Manage pump staging, chemical dosing systems, and filtration backwash cycles. Relay isolation protects PLC backplane from electrical noise generated by variable frequency drives and high-current motor contactors.

Building Management Systems
Orchestrate HVAC damper positioning, boiler sequencing, and zone isolation in commercial facilities. The module's compact footprint fits existing control panels without requiring cabinet modifications.

Machine Safety Interlocks
Implement guard door monitoring, light curtain interfaces, and two-hand control circuits compliant with ANSI/RIA R15.06 standards. Relay contacts provide positive opening action required for Category 3 safety architectures.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 1771-OZL when your application requires electrical isolation between control logic and field devices, particularly in environments with high electrical noise or ground potential differences. For high-frequency switching (>1Hz continuous), consider solid-state alternatives like the 1771-OBD. For higher current loads (up to 2A), evaluate the 1771-OAD series.

Extended Capabilities & System Integration

Legacy System Modernization: The 1771-OZL serves as a bridge component when upgrading PLC-5 systems with modern HMI interfaces or SCADA platforms. Its proven reliability allows phased migration strategies without wholesale controller replacement.

Redundancy Configurations: Deploy in parallel with backup modules using external voting logic for critical shutdown systems requiring SIL-rated architectures (consult with certified functional safety engineers for proper implementation).

Custom Wiring Harnesses: Factory-terminated cable assemblies available for rapid installation in retrofit projects, reducing field wiring errors and commissioning time by 30-50%.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units via expedited courier (DHL/FedEx). Tracking information provided within 24 hours of order confirmation.

Custom Configuration: Pre-tested modules with application-specific wiring available within 7-10 business days. Includes functional test report and configuration documentation.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Advance replacement available for critical applications to minimize downtime exposure.

Technical Support: Unlimited access to application engineers for configuration assistance, troubleshooting guidance, and integration planning. Response within 4 business hours for technical inquiries.

Documentation Package: Each module ships with installation manual, wiring diagrams, and sample ladder logic routines. CAD drawings and 3D STEP files available for panel design integration.

Frequently Asked Questions

What is the maximum wire gauge for terminal connections on the 1771-OZL module?
The module accepts 14-22 AWG copper conductors with ring or spade terminals. Torque specifications are 7-9 in-lbs to prevent terminal damage while ensuring reliable electrical contact.

Can this output module interface with 4-20mA analog devices?
No, the 1771-OZL provides discrete relay contact closures only. For analog signal generation, pair with the 1771-NOC analog output module or consider the 1771-OFE series for current loop applications.

How does the isolated design improve system reliability in noisy environments?
Channel-to-channel and channel-to-backplane isolation prevents ground loops and common-mode voltage interference. This is critical in facilities with large motor drives, welding equipment, or high-voltage switchgear that generate electrical noise exceeding 1000V/μs transient rates.

What is the recommended replacement interval for preventive maintenance?
Under normal operating conditions (ambient temperature <50°C, switching frequency <0.1Hz), the module typically operates 10+ years without degradation. Monitor relay contact resistance annually; replace when exceeding 0.5Ω to prevent voltage drop issues.

Is firmware update required when installing in existing PLC-5 systems?
No, the 1771-OZL is a hardware-only module with no embedded firmware. It is fully compatible with all PLC-5 processor revisions (PLC-5/11 through PLC-5/80) without software modifications.

Can I mix AC and DC loads on different channels of the same module?
Yes, each relay output is electrically isolated and can switch AC or DC loads independently. However, observe proper wiring practices to prevent accidental cross-connection between AC and DC circuits.

Take the Next Step

Ready to enhance your PLC-5 control system reliability? Contact our technical sales team for application-specific recommendations, volume pricing, or to request a detailed integration proposal. We support global shipping with customs documentation for seamless international delivery.

Request a Quote: Email your system specifications and quantity requirements to receive a formal quotation within 24 hours.

Technical Consultation: Schedule a 30-minute call with our automation specialists to discuss compatibility, wiring strategies, and migration planning.
