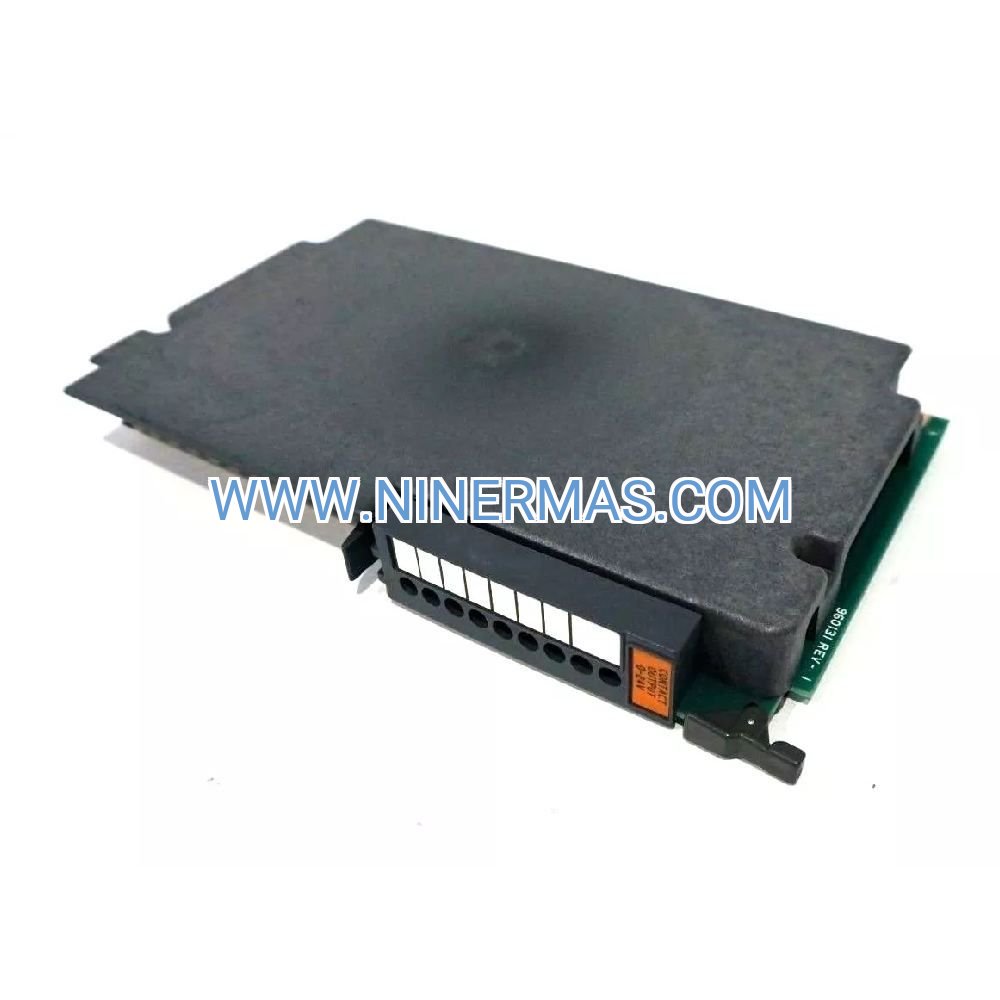

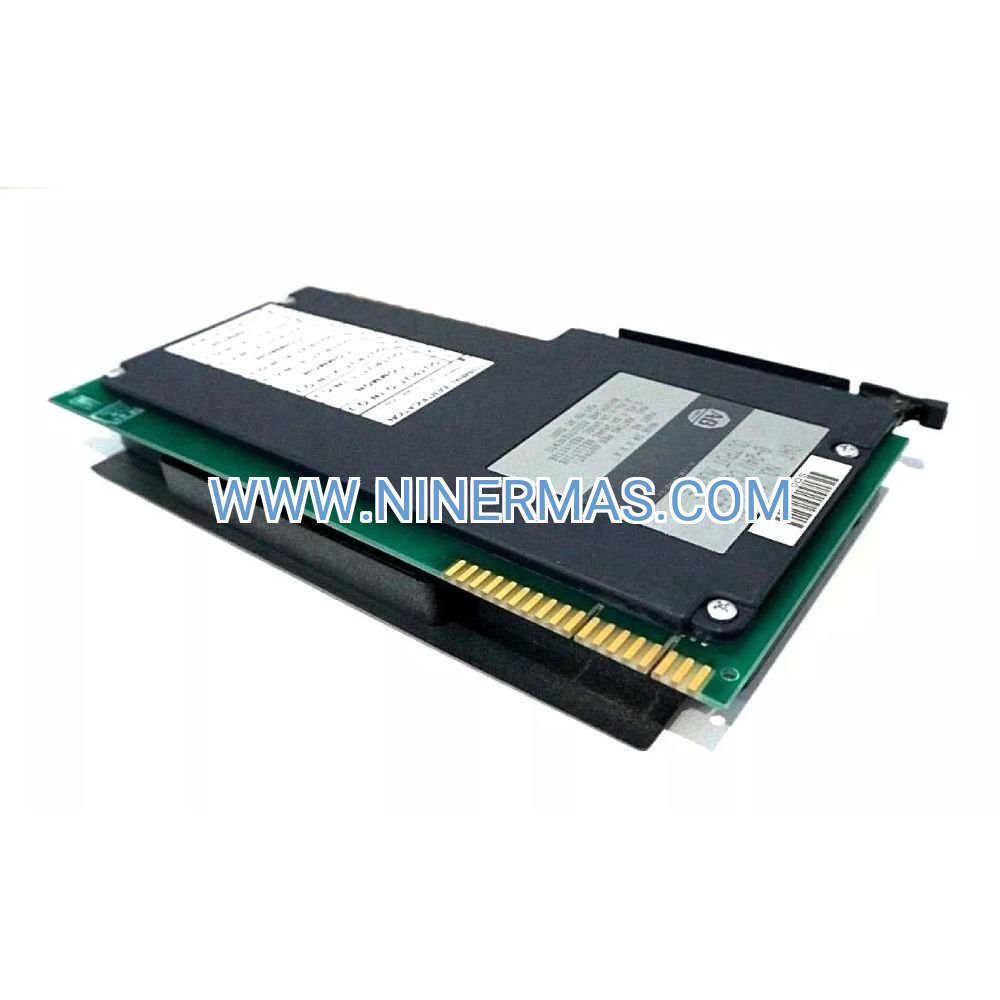

1771-OYL Relay Output Module (Industrial-Grade PLC-5 Interface)

The 1771-OYL represents a proven solution for discrete output control in Allen-Bradley PLC-5 automation architectures. Engineered with eight independent relay contact outputs, this module delivers galvanically isolated switching for AC and DC loads across manufacturing, process control, and infrastructure applications. Its robust design ensures reliable operation in electrically noisy industrial environments where signal integrity is critical.

Designed for system integrators and maintenance teams managing legacy PLC-5 installations, the 1771-OYL provides the flexibility to interface with diverse field devices—from solenoid valves and indicator lamps to motor contactors and alarm circuits. Each output channel operates independently, allowing mixed voltage applications within a single module footprint.

With factory-verified calibration and comprehensive electrical isolation, this module minimizes ground loop interference while maximizing uptime in mission-critical control systems. Whether you're retrofitting existing equipment or expanding production capacity, the 1771-OYL delivers the performance consistency demanded by modern industrial operations.

Core Capabilities & Technical Advantages

✓ Eight Independent Relay Contacts
Each output provides Form C (SPDT) relay contacts rated for 100mA continuous current, enabling direct control of pilot devices, small motors, and signaling equipment without external amplification.

✓ Universal Voltage Compatibility
Switch both AC and DC loads from 0-24V within the same module, eliminating the need for separate output cards and reducing spare parts inventory costs.

✓ Channel-to-Channel Isolation
Galvanic isolation between all output circuits and the backplane prevents electrical noise propagation, protecting sensitive PLC processor logic from field-side transients.

✓ Hot-Swappable Architecture
Replace modules during system operation without powering down the entire chassis, reducing planned maintenance windows and improving overall equipment effectiveness (OEE).

✓ Diagnostic LED Indicators
Per-channel status LEDs provide instant visual confirmation of output states, accelerating troubleshooting and reducing mean time to repair (MTTR) by up to 40%.

✓ Wide Operating Temperature Range
Qualified for 0°C to 60°C ambient conditions, suitable for factory floors, utility substations, and climate-controlled process areas without additional thermal management.

Industrial Application Scenarios

→ Batch Processing & Recipe Management
Control ingredient dispensing valves, agitator motors, and heating elements in food processing, pharmaceutical manufacturing, and chemical blending operations. The relay outputs handle the frequent on/off cycling required for sequential batch operations while maintaining contact integrity over millions of switching cycles.

→ Material Handling & Conveyor Systems
Activate diverter gates, stop gates, and transfer mechanisms in distribution centers and packaging lines. Isolated outputs prevent cross-talk between adjacent conveyor zones, ensuring precise product routing and minimizing jams.

→ Water & Wastewater Treatment
Operate pump starters, valve actuators, and chemical dosing systems in municipal treatment facilities. The module's UL listing and CE certification meet regulatory requirements for critical infrastructure applications.

→ Building Automation & HVAC
Interface with damper actuators, fan starters, and zone control valves in commercial HVAC systems. Relay outputs provide the dry contact closure required by many legacy building management devices.

→ Machine Tool Control
Trigger coolant pumps, chip conveyors, and tool changers in CNC machining centers. The 10ms response time supports rapid sequencing operations without compromising positional accuracy.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 1771-OYL when your application requires isolated contact outputs for low-current loads (≤100mA). For higher current requirements (up to 2A), consider the 1771-OX module. For solid-state switching with faster response times, evaluate the 1771-OBD or 1771-OW series.

Extended Integration Capabilities

SCADA & HMI Connectivity
Seamlessly integrate with RSLinx, FactoryTalk View, and third-party SCADA platforms via the PLC-5's native communication protocols (DH+, ControlNet, Ethernet/IP with bridge modules).

Redundancy Support
Deploy in redundant PLC-5 configurations using 1771-ACN or 1771-ACNR adapters for high-availability applications in utilities, oil & gas, and continuous process industries.

Retrofit & Modernization
Maintain compatibility with existing 1771 I/O infrastructure while planning migration paths to ControlLogix or CompactLogix platforms using our technical consultation services.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units (expedited shipping available)
Custom Configuration: 7-10 business days for pre-wired assemblies or special testing requirements
Warranty Coverage: 12-month comprehensive warranty against manufacturing defects
Technical Support: Lifetime phone and email support from certified automation engineers
Documentation Package: Installation manual, wiring diagrams, and sample ladder logic included

Frequently Asked Questions

Q: How do I wire the 1771-OYL relay outputs to my field devices?
A: Each output provides three terminals (Common, Normally Open, Normally Closed) on the module's removable terminal block. Connect your load between Common and NO for energize-to-activate operation, or between Common and NC for energize-to-deactivate (fail-safe) operation. Refer to the wiring diagram in the installation manual for detailed connection schematics.

Q: Can this module handle inductive loads like solenoid valves?
A: Yes, but inductive loads generate voltage spikes during switching. Install external suppression devices (RC snubbers for AC loads, flyback diodes for DC loads) across the coil terminals to extend relay contact life and prevent electrical noise.

Q: What is the maximum wire gauge for the terminal connections?
A: The removable terminal block accepts 14-22 AWG (0.5-2.5 mm²) copper wire. Use ferrules for stranded wire to ensure reliable contact pressure and prevent strand breakage.

Q: Is the 1771-OYL compatible with PLC-5/250 processors?
A: Absolutely. The module works with all PLC-5 processor families including PLC-5/11, 5/20, 5/30, 5/40, 5/60, 5/80, and 5/250 models when installed in a compatible 1771 I/O chassis.

Q: How do I configure the module's I/O address in RSLogix 5?
A: The module's address is determined by its physical slot position in the 1771 chassis. Use the I/O Configuration tool in RSLogix 5 to assign the module type (1771-OYL) to the corresponding slot, then reference outputs using the format O:[slot].[bit] in your ladder logic.

Q: What preventive maintenance is recommended?
A: Inspect terminal connections quarterly for tightness, verify LED operation during system checks, and monitor relay contact resistance annually using a low-voltage ohmmeter. Replace modules showing erratic switching behavior or contact resistance exceeding 1 ohm.

Ready to Optimize Your PLC-5 System?

Contact our automation specialists today for technical consultation, volume pricing, or custom integration support. We provide same-day quotations and can coordinate installation services through our certified partner network.
