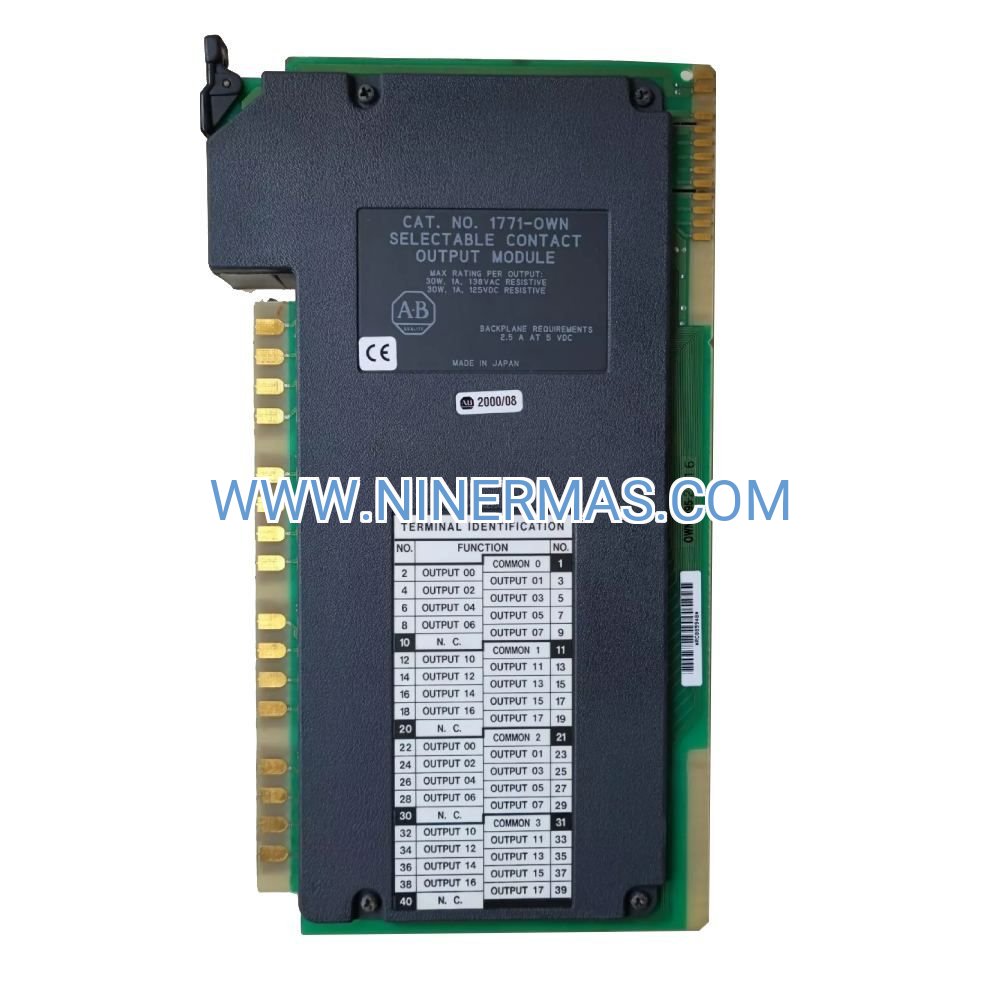

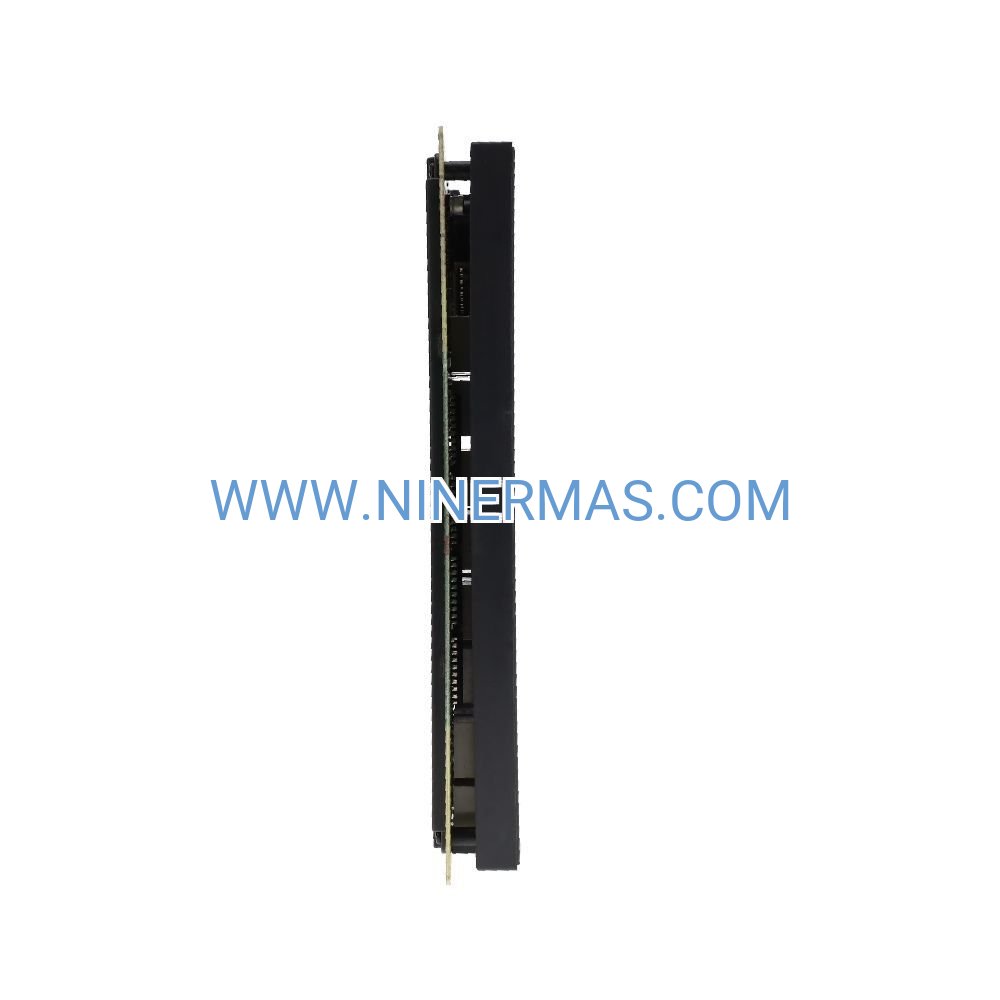

1771-OWN Relay Output Module (Industrial-Grade 32-Channel Control)

The 1771-OWN represents a proven solution for high-density discrete output control in PLC-5 automation architectures. Engineered with 32 independent relay contact outputs, this module delivers versatile switching capability across mixed-voltage industrial environments. Whether coordinating solenoid banks, actuating motor starters, or replacing legacy relay panels, the 1771-OWN provides the electrical isolation and load flexibility demanded by modern manufacturing operations.

Designed for system integrators and maintenance teams managing PLC-5 installations, this module addresses the challenge of controlling diverse field devices from a unified control platform. Its wide voltage tolerance (24-138V AC/DC) eliminates the need for multiple output cards when interfacing with equipment operating at different voltage levels. Form A relay contacts ensure true galvanic isolation, protecting sensitive logic circuits from field-side electrical disturbances while enabling safe control of inductive loads.

With field-proven reliability in process control, material handling, and batch manufacturing applications, the 1771-OWN combines robust mechanical construction with straightforward integration into RSLogix programming environments. Built-in diagnostics and per-point LED status indicators accelerate commissioning timelines and simplify troubleshooting during production operations.

Core Features & Benefits

→ 32 Isolated Relay Outputs
Independent SPST-NO contacts provide true electrical separation between control logic and field circuits, preventing ground loops and voltage transients from compromising PLC integrity.

→ Universal Voltage Compatibility
Each output switches 24-138V AC or DC loads up to 1A, enabling single-module control of mixed-voltage equipment without external interface relays or signal conditioning.

→ 1500V Optical Isolation
High-voltage isolation barriers protect backplane circuitry from field-side faults, extending system uptime in electrically noisy industrial environments.

→ Field-Replaceable Terminals
Removable terminal blocks allow pre-wiring and rapid module swaps during maintenance windows, minimizing production downtime during component replacement.

→ Real-Time Status Visualization
Dedicated LED indicators for each output channel provide instant visual confirmation of switching states, accelerating fault diagnosis and reducing troubleshooting time.

→ Standard 1771 Form Factor
Single-slot chassis compatibility ensures seamless integration into existing PLC-5 systems without backplane modifications or custom mounting hardware.

Application Scenarios

✓ Packaging Line Sequencing
Coordinate pneumatic actuators, diverter gates, and reject mechanisms across multi-stage packaging operations. The module's 10ms response time supports precise timing requirements for high-speed filling and capping sequences.

✓ Chemical Batch Processing
Control solenoid valves, agitator motors, and heating elements in recipe-driven batch reactors. Relay isolation prevents cross-contamination between hazardous area circuits and control room equipment.

✓ HVAC Zone Management
Actuate damper motors, fan contactors, and valve positioners across multi-zone climate control systems. Mixed AC/DC capability accommodates legacy pneumatic controls alongside modern electronic actuators.

✓ Conveyor Interlock Systems
Implement safety interlocks and emergency stop circuits for material handling networks. Relay contacts provide fail-safe switching for motor starters and brake solenoids in accordance with machine safety standards.

✓ Water Treatment Automation
Manage pump starters, chemical feed systems, and valve actuators in municipal and industrial water facilities. The module's wide voltage range supports retrofits of existing relay-based control panels.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1771-OWN when your application requires high-density output control with electrical isolation between logic and field circuits. For solid-state switching with faster response times, consider transistor-based output modules. For higher current loads exceeding 1A per point, specify external contactors driven by the relay outputs. Verify that your PLC-5 chassis provides adequate backplane current capacity when populating multiple I/O modules.

Extended Functions

Diagnostic Integration: The module reports output status and fault conditions to the PLC-5 processor via backplane communication, enabling predictive maintenance strategies based on contact wear monitoring and switching cycle counts.

Hot-Swap Capability: When installed in compatible 1771 chassis with keying modules, the 1771-OWN supports online replacement without powering down the entire I/O rack, reducing maintenance impact on production schedules.

Custom Wiring Harnesses: Pre-fabricated cable assemblies with keyed connectors are available for high-volume installations, reducing field wiring errors and accelerating panel assembly timelines.

Delivery & Service Assurance

Lead Time: Standard inventory items ship within 2-3 business days. Custom-configured modules with pre-wired terminals require 7-10 business days for assembly and testing.

Warranty Coverage: 12-month comprehensive warranty against manufacturing defects and component failures under normal operating conditions. Extended warranty programs available for critical infrastructure applications.

Technical Support: Application engineering assistance for system integration, wiring diagrams, and RSLogix programming examples. Remote diagnostic support available during commissioning and troubleshooting phases.

Documentation Package: Each module includes installation manual, wiring diagrams, dimensional drawings, and compliance certifications (UL, CE, RoHS). Digital resources include CAD models and sample ladder logic routines.

Frequently Asked Questions

How do I determine the correct wire gauge for field connections?
Use 18 AWG minimum for loads up to 1A at distances under 100 feet. For longer runs or higher ambient temperatures, consult NEC Article 310 derating tables. Terminal blocks accept 14-22 AWG solid or stranded wire.

What is the inrush current handling capability for solenoid loads?
Relay contacts tolerate brief inrush currents up to 6A for 10ms during solenoid energization. For loads with sustained inrush exceeding this threshold, implement external surge suppression or current-limiting resistors.

Can this module interface with 3-wire proximity sensors?
No, the 1771-OWN provides output switching only. For proximity sensor interfacing, use 1771-series input modules (1771-IFE, 1771-IAD) designed for sinking/sourcing sensor compatibility.

Does the module support pulse-width modulation for proportional control?
While relay outputs can be pulsed for simple on/off control, mechanical contact life degrades rapidly above 1 Hz switching frequency. For PWM applications, specify solid-state output modules with MOSFET or IGBT switching elements.

What diagnostic information is available through RSLogix software?
The module reports individual output status, blown fuse detection (if equipped), and communication health via standard I/O image tables. Advanced diagnostics require compatible PLC-5 processor firmware (revision 10 or later).

Are replacement terminal blocks available separately?
Yes, terminal block assemblies (catalog 1771-RT) are sold as spare parts for field replacement. Blocks are keyed to prevent incorrect module insertion and include integrated wire strain relief.

Take the Next Step

Ready to integrate the 1771-OWN into your PLC-5 control system? Contact our application engineering team for technical consultation, wiring assistance, or volume pricing. Request a detailed datasheet with electrical specifications, dimensional drawings, and compliance certifications to support your project documentation requirements.
