1771-OW Relay Output Module (Industrial-Grade PLC-5 Interface)

The 1771-OW represents a proven solution for discrete output control in Allen-Bradley PLC-5 automation architectures. Engineered with eight individually isolated relay contacts, this module delivers dependable switching performance across mixed-voltage industrial environments where both AC and DC loads require unified control.

Designed for manufacturing facilities, process plants, and material handling operations, the 1771-OW addresses the challenge of managing diverse electrical loads without deploying multiple specialized output cards. Its hot-swappable architecture minimizes unplanned downtime, while optical isolation safeguards sensitive logic circuits from field-side electrical disturbances.

Whether you're retrofitting legacy PLC-5 systems or maintaining critical production lines, this module provides the reliability and flexibility demanded by 24/7 industrial operations.

Core Features & Benefits

→ Wide Voltage Compatibility: Single module handles 24-138V AC/DC loads, eliminating the need for voltage-specific output cards and reducing spare parts inventory.

→ True Electrical Isolation: 1500V optical isolation between logic and field circuits protects PLC processors from voltage spikes, ground loops, and electromagnetic interference.

→ Individual Contact Separation: Eight independently isolated relay outputs prevent cross-talk and allow simultaneous control of incompatible load types on one module.

→ Zero Leakage Current: Mechanical relay technology ensures complete circuit opening with no residual current flow—critical for sensitive loads and safety circuits.

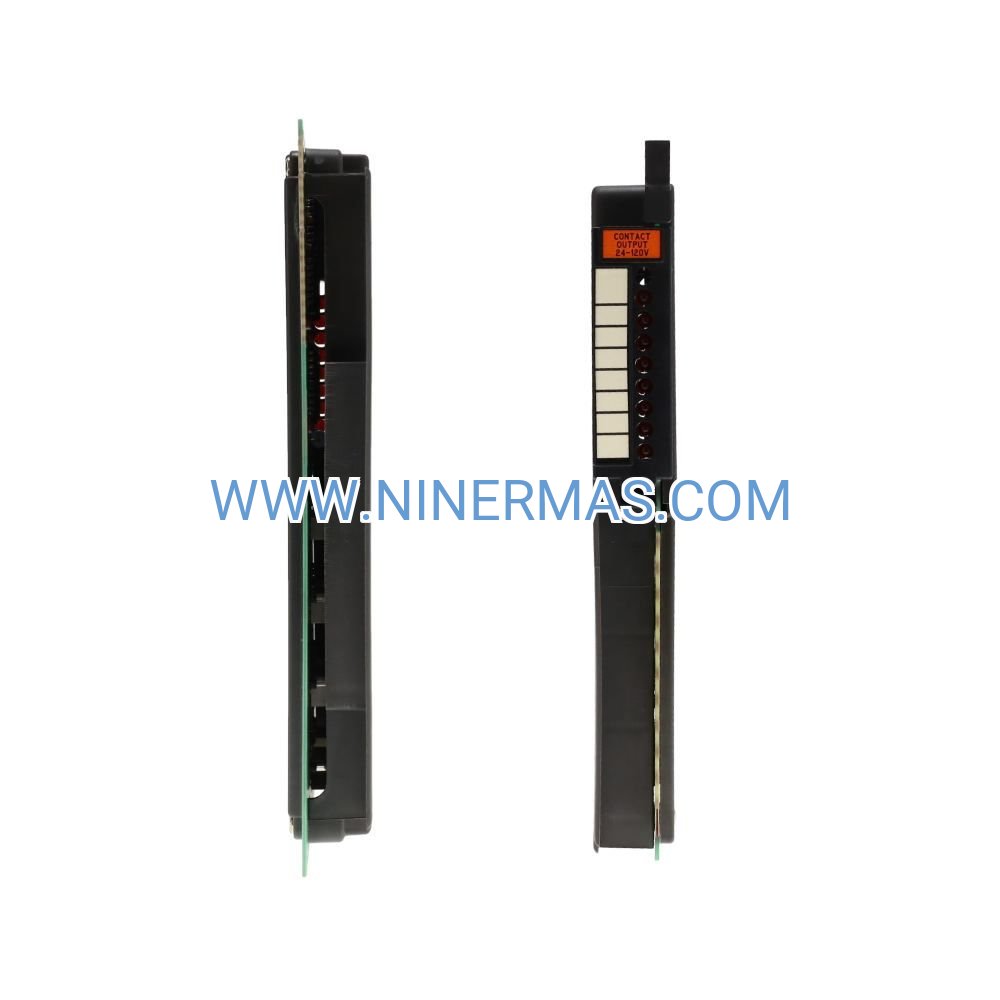

→ Visual Diagnostics: Dedicated LED indicators for each output point enable rapid fault identification and reduce troubleshooting time by up to 60%.

→ Field-Proven Reliability: Factory-calibrated components and UL/CE certifications deliver consistent performance in harsh industrial environments (0-60°C operating range).

Typical Application Scenarios

Manufacturing Line Control: Coordinate conveyor motors, pneumatic actuators, and sorting gates in packaging operations. The module's mixed-voltage capability allows a single card to manage 24V DC solenoids alongside 120V AC motor starters, streamlining panel design and reducing wiring complexity.

Process Equipment Sequencing: Control batch reactor heating elements, agitator motors, and transfer pumps in chemical processing. Relay isolation prevents electrical noise from variable frequency drives from corrupting PLC logic, ensuring precise recipe execution.

Facility Infrastructure Management: Operate industrial lighting circuits, HVAC damper actuators, and emergency alarm systems from centralized PLC-5 controllers. Hot-swap capability allows maintenance during second shifts without halting primary production.

Water Treatment Systems: Switch pump contactors, valve actuators, and chemical feed systems in municipal and industrial water facilities. The module's 1A contact rating handles pilot duty loads while maintaining 100,000+ cycle mechanical life.

Material Handling Networks: Manage diverter gates, lift table motors, and accumulation zone controls in distribution centers. Individual point isolation allows simultaneous operation of 24V DC and 120V AC devices without ground reference conflicts.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1771-OW when your application requires true load isolation, handles mixed AC/DC voltages, or demands zero off-state leakage current. For faster switching speeds (<1ms), consider solid-state output modules. For higher current loads (>1A), evaluate contactor-based solutions with pilot duty relay control.

Extended Functions

Diagnostic Integration: Output status data integrates with RSLogix ladder logic for automated fault detection. Program watchdog timers to identify stuck contacts or failed loads, triggering maintenance alerts before production impact.

Load Monitoring Compatibility: Pair with external current sensors to implement predictive maintenance strategies. Monitor contact degradation through resistance trending and schedule replacements during planned outages.

Surge Protection Options: Install RC snubber networks or MOV suppressors across inductive loads (solenoids, contactors) to extend relay contact life by 3-5x and reduce electrical noise injection into control circuits.

Custom Wiring Configurations: Available with pre-wired terminal blocks or quick-disconnect assemblies for rapid installation in panel-building operations. Consult our engineering team for high-volume OEM applications.

Delivery & Service Assurance

Lead Time: In-stock units ship within 24-48 hours via expedited carriers. Custom configurations (pre-wired assemblies, tested pairs) require 5-7 business days for preparation and quality verification.

Warranty Coverage: 12-month comprehensive warranty against manufacturing defects and component failures. Warranty includes free replacement and return shipping for confirmed defects.

Technical Support: Direct access to PLC-5 specialists for configuration assistance, troubleshooting guidance, and integration planning. Support available via email, phone, and remote diagnostic sessions.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and RSLogix configuration examples. Full technical manuals and CAD drawings available for download.

Frequently Asked Questions

What wiring arm assembly is compatible with the 1771-OW relay output module?
The module accepts standard 1771-WB (12-point) or 1771-WC (36-point) removable terminal blocks. For high-vibration environments, specify the 1771-WD screw-clamp version for enhanced connection security.

Can this module control both AC solenoid valves and DC motor starters simultaneously?
Yes, each of the eight outputs operates independently with selectable AC or DC voltage up to 138V. Ensure proper common return wiring and observe voltage isolation requirements per NEC Article 725.

How does relay contact life compare to solid-state output modules?
Mechanical relays offer 100,000+ cycles at rated load versus 1 million+ for solid-state devices. However, relays provide true galvanic isolation, zero off-state leakage, and superior surge withstand—critical for safety circuits and sensitive loads.

Is hot-swapping supported during live operation without disrupting other I/O?
Yes, the 1771 chassis design allows module removal and insertion under power. Best practice: place outputs in safe state via ladder logic before extraction to prevent uncontrolled load behavior during swap.

What is the maximum cable distance between the module and field devices?
Relay outputs support cable runs up to 300 meters (1000 feet) for low-current loads. For runs exceeding 100 meters, use shielded cable and verify voltage drop remains below 5% at maximum current to maintain reliable switching.

Does the 1771-OW require external fusing for short-circuit protection?
Yes, install appropriately rated fuses or circuit breakers on field power supplies feeding the output loads. The module's internal contacts are not designed to interrupt fault currents exceeding 10x rated current.

Take the Next Step

Ready to integrate the 1771-OW into your PLC-5 control system? Our automation specialists are available to discuss your specific application requirements, recommend complementary I/O modules, and provide detailed technical specifications.

Contact our team today: Email sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance. Request a formal quotation, technical datasheet, or compatibility verification for your existing 1771 chassis configuration.
