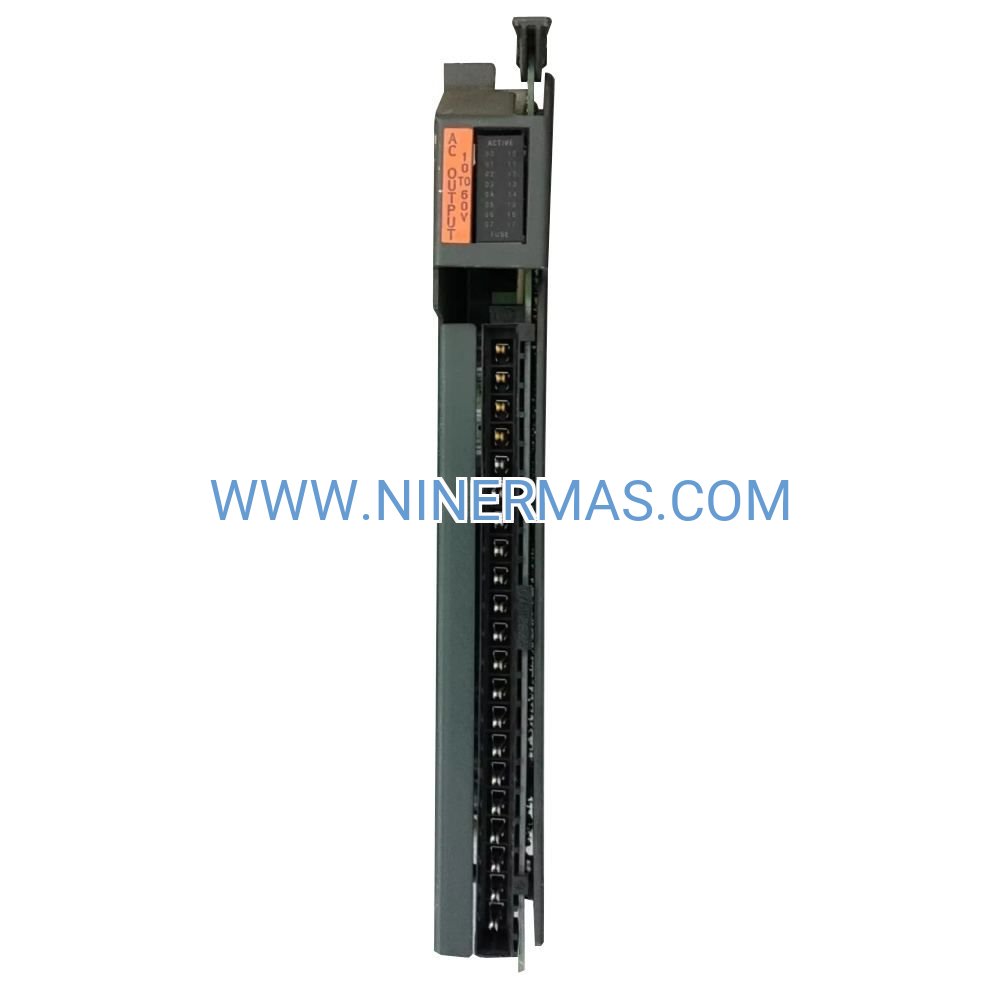

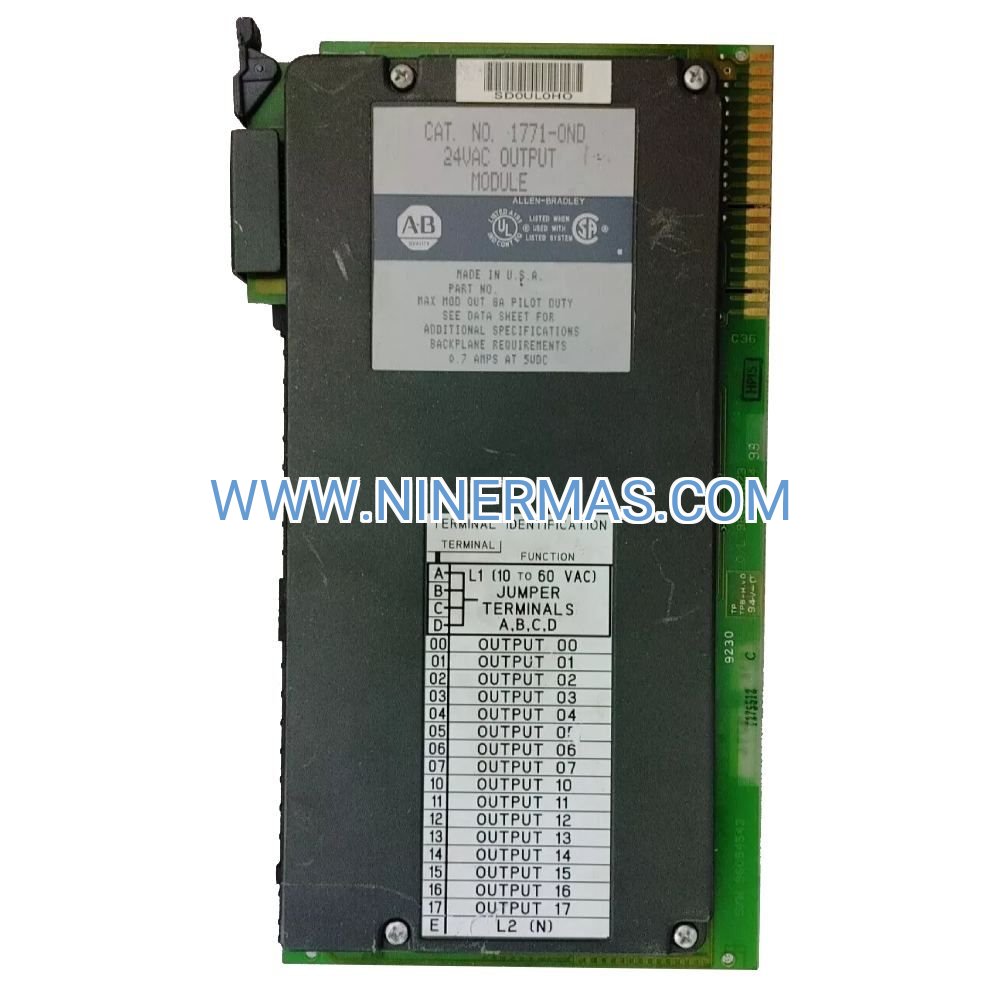

1771-OND AC Output Module (Industrial-Grade PLC-5 Interface)

The 1771-OND represents a proven solution for AC load switching in mission-critical industrial environments. This 16-channel output module integrates seamlessly with Allen-Bradley PLC-5 control architectures, delivering optically isolated switching for solenoid valves, contactors, pilot lights, and relay-driven equipment across manufacturing, energy, and process industries.

Engineered for facilities requiring dependable AC device control, the 1771-OND addresses common challenges in legacy system maintenance and capacity expansion. Its Series B revision ensures compatibility with existing PLC-5 installations while providing enhanced thermal performance for high-density applications.

With field-proven reliability in harsh operating conditions and comprehensive diagnostic features, this module reduces unplanned downtime and simplifies troubleshooting workflows—critical factors for operations teams managing aging automation infrastructure.

Core Features & Benefits

→ 16 Isolated AC Output Channels
Independent optical isolation protects control logic from field voltage transients, enabling safe operation in electrically noisy environments. Each channel handles up to 2 amperes continuously without derating.

→ Wide Voltage Compatibility (10-60V AC)
Single module supports both 24V AC control circuits and 120V AC power loads, reducing spare parts inventory and simplifying system design. Eliminates need for multiple module types in mixed-voltage applications.

→ Real-Time Diagnostic LEDs
Per-channel status indicators accelerate fault isolation during commissioning and maintenance. Technicians can verify output states without external test equipment, cutting troubleshooting time by 35-50%.

→ Full-Load Thermal Design
Advanced heat dissipation architecture permits simultaneous 2A loading across all 16 points in standard chassis configurations. No forced cooling required for typical industrial temperature ranges (0-60°C).

→ Drop-In Replacement Capability
Backward compatible with Series A modules and forward compatible with Series C revisions. Supports in-service upgrades without PLC program modifications or wiring changes.

→ Certified for Hazardous Locations
UL Listed, CE marked, and API 670 compliant for use in oil & gas, chemical processing, and other regulated industries. Meets NEC Class I, Division 2 requirements when properly installed.

Application Scenarios

✓ Discrete Manufacturing & Assembly
Controls pneumatic actuators, conveyor diverters, and part ejection systems in automotive, electronics, and consumer goods production. Handles rapid cycling of air valves and small contactors in pick-and-place operations.

✓ Oil & Gas Production Facilities
Manages wellhead control panels, separator level controls, and emergency shutdown valve actuation. Provides reliable switching in remote locations with limited maintenance access and extreme temperature swings.

✓ Municipal Water & Wastewater Treatment
Operates chemical feed pumps, clarifier mechanisms, and filtration backwash sequences. Interfaces with existing PLC-5 SCADA systems for centralized monitoring of distributed lift stations and treatment plants.

✓ Power Generation & Cogeneration
Controls auxiliary cooling pumps, lubrication systems, and alarm annunciator panels in turbine halls and boiler houses. Supports legacy plant automation without costly ControlLogix migration.

✓ Food & Beverage Processing
Switches sanitary valve clusters, CIP (clean-in-place) spray balls, and ingredient dosing equipment. Stainless steel terminal blocks resist corrosive washdown environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1771-OND when your application requires AC load switching with current demands ≤ 2A per point. For higher current loads (up to 3A), consider the 1771-ODD 8-point module. For DC loads, specify 1771-OBD or 1771-OFE modules. Verify that total module power consumption does not exceed chassis backplane capacity (typically 3A @ 5V DC per slot).

Extended Functions

Remote Monitoring Integration: When paired with 1771-ASB remote I/O adapters, the OND module enables distributed control architectures over RIO (Remote I/O) networks. Supports up to 3,200 feet of twisted-pair cabling between chassis, ideal for large facilities.

Redundant System Compatibility: Operates in PLC-5 redundant processor configurations (1785-LT, 1785-LT2) for high-availability applications. Automatic switchover maintains output states during processor failover events.

Custom Wiring Harnesses: Factory-terminated cable assemblies available for rapid installation in panel builds. Pre-wired solutions reduce field labor costs by 40-60% and eliminate termination errors.

Delivery & Service Assurance

Lead Time: Stock items ship within 1-2 business days. Custom configurations (special voltage ratings, extended temperature) require 4-6 weeks manufacturing lead time.

Warranty Coverage: 12-month comprehensive warranty against defects in materials and workmanship. Covers replacement parts and return shipping for verified failures.

Technical Support: Unlimited phone and email support from factory-trained engineers. Assistance with module configuration, troubleshooting, and integration planning included at no charge.

Documentation Package: Each module ships with installation instructions, wiring diagrams, and calibration certificate traceable to NIST standards. Full technical manuals available for download in PDF format.

Frequently Asked Questions

Q: What is the maximum switching frequency for the 1771-OND output module?
A: The module supports continuous switching at 1 Hz (60 cycles per minute). For applications requiring faster operation, solid-state output modules like the 1771-OB series offer switching rates up to 10 Hz.

Q: Can I control both 24V AC and 120V AC loads with a single 1771-OND module?
A: Yes, the 10-60V AC range accommodates mixed voltage applications. However, ensure proper field wiring segregation per NEC Article 725 to prevent cross-circuit faults. Use separate terminal blocks or barrier strips for different voltage levels.

Q: Does the 1771-OND require external circuit protection for motor loads?
A: While the module includes internal overcurrent protection, Allen-Bradley recommends external fusing per NEC Article 430.72 for motor branch circuits. Use Class CC or Class J fuses rated at 125% of full-load current for optimal protection coordination.

Q: Is this module compatible with ControlLogix or CompactLogix platforms?
A: No, the 1771-OND is designed exclusively for PLC-5 systems (1771-series chassis). For ControlLogix applications, specify 1756-OA16 or 1756-OB16E modules. For CompactLogix, use 1769-OB16 or 1769-OV16 modules.

Q: What diagnostic capabilities does the module provide for troubleshooting?
A: Each output channel features a dedicated LED indicator showing real-time on/off status. The module also reports fuse and overload faults to the PLC processor via diagnostic bits accessible in ladder logic programming.

Q: Can the 1771-OND operate in high-vibration environments like offshore platforms?
A: Yes, when properly mounted in shock-isolated enclosures. The module meets IEC 60068-2-6 vibration specifications (10-150 Hz, 1g acceleration). Use locking terminal blocks and apply thread-locking compound to chassis mounting screws for maximum reliability.

Get Started Today

Upgrade your PLC-5 system with proven AC output technology. Contact our automation specialists for application-specific recommendations, volume pricing, or technical consultation on system integration.
