Allen-Bradley 1771-OG Retrofit-Compatible Digital Output Module

Allen-Bradley 1771-OG Retrofit-Compatible Digital Output Module: Legacy System Compatibility & Smooth Upgrade Path

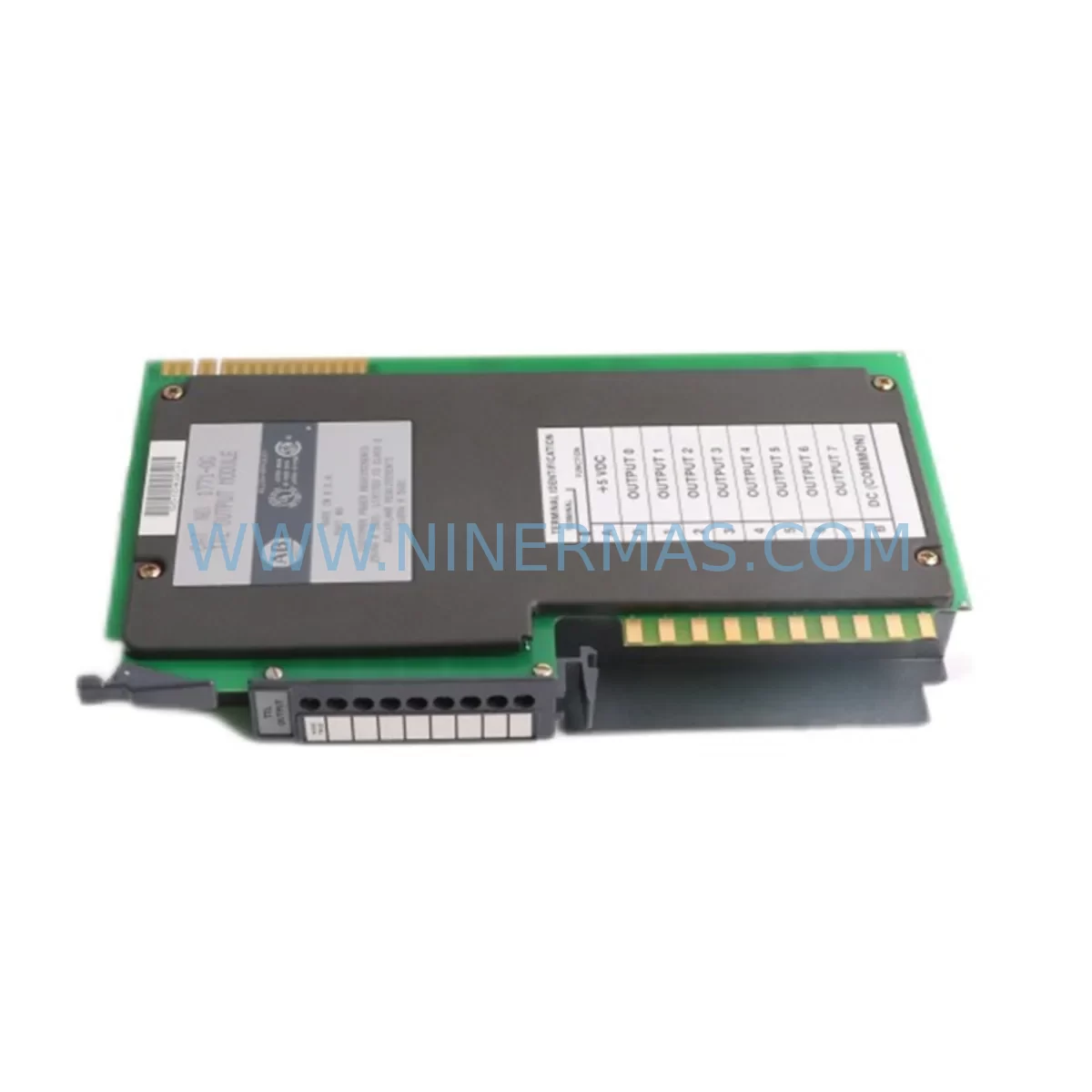

The Allen-Bradley 1771-OG is a ruggedized 16-point DC digital output module designed for operation within the Allen-Bradley PLC-5 family and the 1771 I/O chassis platform. As legacy PLC-5 systems approach end-of-life and original spare parts become increasingly scarce, the 1771-OG remains a critical component for engineers managing aging production lines, control cabinet upgrades, and phased migration projects. NINERMAS maintains verified stock of the 1771-OG to support customers who require immediate availability without compromising system continuity.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 1771-OG into an existing or partially upgraded control system, a structured retrofit plan is essential to avoid unplanned downtime and configuration errors. Engineers working on PLC-5 platform modernization projects frequently encounter the 1771-OG alongside a range of companion modules that must be evaluated as part of the same upgrade scope.

In a typical 1771 chassis, the 1771-OG shares the backplane with analog and digital input modules such as the 1771-IFE (analog input) and 1771-IBD (DC digital input), as well as specialty modules like the 1771-ASB remote I/O adapter, which bridges the chassis to the PLC-5 processor over the 1771 remote I/O link. If the project involves migrating from a remote I/O architecture to a ControlNet or EtherNet/IP topology, the 1771-ASB must be evaluated alongside the 1771-OG to determine whether the entire remote drop can be consolidated or must be retained during a phased cutover.

Power supply capacity is one of the most frequently overlooked factors in 1771 chassis retrofits. The 1771-P4S or 1771-P7 power supply units must be assessed for total chassis load, particularly when adding ruggedized output modules that draw higher backplane current. Before installing the 1771-OG, calculate the aggregate current draw of all installed modules and confirm the power supply’s rated output is not exceeded.

Terminal wiring is another critical checkpoint. The 1771-OG uses a keyed wiring arm — typically the 1771-WN — that must be present and correctly keyed to prevent incorrect module insertion. During a retrofit, it is common to find that wiring arms have been re-keyed or replaced with non-standard alternatives over the years. Verify the keying configuration matches the 1771-OG before proceeding.

For projects that involve HMI screen updates, the output points mapped to the 1771-OG will need to be cross-referenced against the existing PanelView or PanelView Plus tag database. If the slot address of the replacement module differs from the original, all associated HMI display elements, alarm triggers, and data logging references must be updated accordingly. This is particularly relevant when the original module occupied a non-standard slot position due to prior chassis reconfiguration.

In systems where the PLC-5 communicates upstream to a SCADA platform via DF1 or DH+ protocol using a 1784-KTX or 1784-U2DHP programming cable, the communication link should be verified as stable before and after the module swap. Any interruption to the DH+ network during the retrofit window can affect data historian continuity and alarm management at the supervisory level.

Where the retrofit scope extends to I/O expansion — for example, adding output capacity to an existing chassis — the 1771-OBD (DC output, non-ruggedized) or 1771-OW16 (relay output) may be considered as complementary modules depending on the field device requirements. Confirm that the chassis has available slots and that the power supply budget accommodates the additional load before finalizing the bill of materials.

Downtime Control During System Migration

Minimizing production downtime during a 1771-OG replacement or broader PLC-5 retrofit requires careful pre-staging and a disciplined cutover sequence. The following approach is recommended for sites where continuous or near-continuous operation is required.

Before the maintenance window opens, obtain a full backup of the PLC-5 program using RSLogix 5 or an equivalent programming environment. Archive the program file, I/O configuration, and any associated data table values to a secure location. If the system uses a 1771-ASB remote I/O adapter, document the node address and baud rate settings, as these will need to be verified after the module swap.

During the cutover, place the affected output group in a safe state using the PLC-5’s output forcing capability before removing the 1771-OG. This prevents uncontrolled actuation of field devices during the module exchange. After installing the replacement 1771-OG, verify that the module’s LED indicators confirm correct backplane communication before releasing the forced outputs.

For sites performing a phased migration from PLC-5 to a ControlLogix platform, the 1771-OG can remain in service on the legacy chassis while the new 1756-OB16 or equivalent ControlLogix output module is commissioned in parallel. This parallel operation strategy allows the engineering team to validate the new I/O configuration against live process conditions before committing to the final cutover, significantly reducing the risk of undetected wiring or addressing errors.

Post-installation, conduct a point-by-point output verification by forcing each output individually and confirming field device response. Document the results and retain them as part of the site’s maintenance record. All 1771-OG units supplied by NINERMAS are tested prior to shipment and covered by a 12-month warranty, providing additional assurance during the commissioning phase.

Retrofit Support FAQ

Q1: Is the 1771-OG a direct drop-in replacement for a failed unit in the same chassis slot?
Yes. The 1771-OG is a direct slot-compatible replacement for an existing 1771-OG in the same chassis position. No program changes are required provided the slot address remains identical. Verify that the wiring arm keying matches before insertion.

Q2: What commissioning steps are required after installing the replacement module?
After installation, confirm that the module’s backplane communication LED is active, verify the I/O address table in the PLC-5 program matches the installed slot position, and perform a point-by-point output force test to confirm field device response. Check output forcing status and clear any latched faults before returning the system to automatic mode.

Q3: Can the 1771-OG be used in a mixed chassis alongside newer 1771-series modules?
Yes. The 1771-OG is fully compatible with other 1771-series modules in the same chassis, including analog input modules, specialty communication adapters, and other digital I/O modules. Ensure the chassis power supply budget is recalculated if additional modules are being added at the same time.

Q4: What is NINERMAS’s stock availability and warranty policy for the 1771-OG?
NINERMAS maintains inventory of the 1771-OG to support urgent replacement and planned retrofit projects. All units are tested prior to shipment and covered by a 12-month warranty. Contact our team for current stock levels, lead times, and volume pricing.
