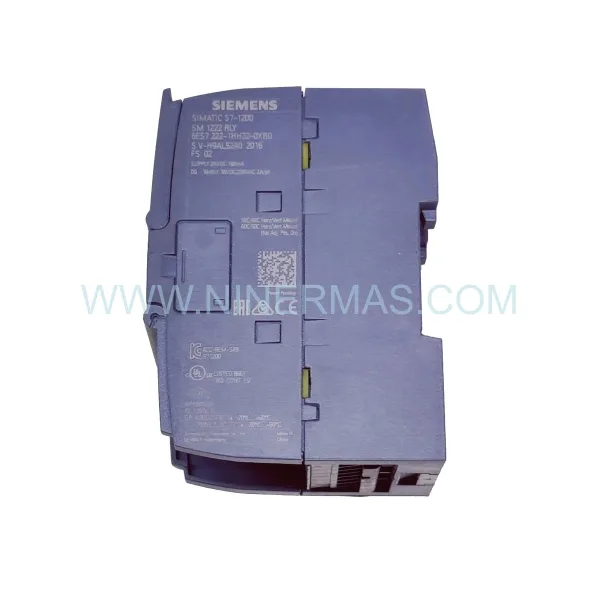

Siemens 6ES7222-1HH32-0XB0 SM 1222 16DO Relay Output Module | Original & New Spare Parts

Siemens 6ES7222-1HH32-0XB0 SM 1222 Digital Output Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, few components carry as much operational weight as a high-density relay output module in a distributed control system. The Siemens 6ES7222-1HH32-0XB0 is precisely that kind of mission-critical DCS Hardware — a 16-channel relay output expansion module engineered for the SIMATIC S7-1200 platform, where Process Control reliability is non-negotiable. Whether you are managing a petrochemical reactor loop or coordinating actuator sequences on a packaging line, this module serves as the decisive link between controller logic and field devices.

What sets the Siemens 6ES7222-1HH32-0XB0 apart from generic Legacy Components is its seamless compatibility with the entire S7-1200 ecosystem — from CPU 1211C to CPU 1215C — without requiring firmware patches or hardware adapters. Its galvanically isolated relay contacts support both 24V DC and 230V AC loads, making it a universal switching solution across Fieldbus-integrated architectures and standalone machine panels alike. Engineers who have worked with Factory Sealed original units consistently report superior contact longevity compared to aftermarket alternatives.

In today’s global supply chain environment, sourcing a Factory Sealed, original Siemens SM 1222 module is increasingly difficult. Production cycles for Legacy Components like this one are subject to EOL (End-of-Life) pressures, and verified original stock is a finite resource. Our inventory is maintained in climate-controlled conditions, ensuring every unit ships in pristine, factory-original condition — a critical assurance for Safety Instrumented Systems (SIS) and high-availability process lines.

Key Technical Highlights

16 Independent Relay Outputs (NO Contacts): Each channel operates autonomously with 1500V AC galvanic isolation from the backplane — essential for Distributed Control System integrity.
Dual-Voltage Load Compatibility: Switches 24V DC and 230V AC loads on the same module, eliminating the need for separate relay banks in mixed-voltage panels.
2A Per Channel / 10A Total Current Rating: Handles inductive loads including solenoid valves, motor starters, and contactor coils without derating.
Redundancy-Ready Architecture: Supports hot-standby configurations when paired with S7-1200 redundancy CPUs, ensuring zero-downtime Process Control in critical applications.
Compact DIN-Rail Form Factor (45-100-75 mm): High channel density in minimal cabinet space — a decisive advantage in retrofit and Legacy Upgrade projects.
Per-Channel Diagnostic LEDs: Real-time status indication accelerates fault isolation during emergency repair scenarios, reducing MTTR (Mean Time to Repair) significantly.
CE / UL / cULus / FM / RCM Certified: Meets global safety standards for Factory Sealed industrial deployment across North America, Europe, and Asia-Pacific markets.

Vertical Industry Applications

Petrochemical & Refining: The 6ES7222-1HH32-0XB0 controls shutdown valves, pump motor starters, and flare ignition systems in hazardous-area process trains. Its galvanic isolation and FM certification make it suitable for Zone 2 panel installations, where a single relay failure can cascade into unplanned shutdowns costing tens of thousands per hour.

Mining & Mineral Processing: Conveyor belt interlocks, crusher motor controls, and slurry pump sequencing demand relay outputs that withstand vibration and electrical noise. This module’s rugged relay contacts — rated for 100,000 mechanical operations — deliver the operational lifespan required in continuous mining environments.

Marine & Offshore Automation: Ballast pump control, fire suppression valve actuation, and engine room automation systems rely on modules certified to international marine standards. The SM 1222’s wide operating temperature range (0°C to +60°C) and robust isolation suit shipboard electrical environments.

Water & Wastewater Treatment: Municipal SCADA systems use this module to operate submersible pump starters, UV disinfection units, and chemical dosing valves. Its compatibility with Fieldbus protocols via S7-1200 communication boards enables seamless integration into PROFINET and MODBUS RTU networks.

Food & Beverage Processing: Hygienic filling lines, CIP (Clean-in-Place) valve sequencing, and pasteurization control loops benefit from the module’s precise switching and diagnostic transparency — reducing unplanned downtime in high-throughput production environments.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the 6ES7222-1HH32-0XB0 supplied by our team is 100% original Siemens — sourced directly from authorized distribution channels and verified against Siemens’ global traceability database. We do not supply refurbished, reconditioned, or counterfeit components. Each module ships in its original Siemens packaging with intact factory seals, holographic authenticity labels, and full documentation including the CE Declaration of Conformity.

Our 12-Month Comprehensive Warranty covers all manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, we provide advance replacement to minimize your system downtime — a commitment that generic distributors rarely offer.

For emergency repair and unplanned shutdown scenarios, we offer Express Delivery via DHL Express, FedEx International Priority, and UPS Worldwide Express. Orders confirmed before 14:00 UTC ship same business day. We serve maintenance teams across 60+ countries, with customs documentation pre-prepared for smooth clearance in the EU, USA, Middle East, and Southeast Asia.

Buyer’s FAQ — Selection Guide

Q1: How do I verify that the 6ES7222-1HH32-0XB0 I receive is a genuine Siemens original and not a counterfeit?
A: Authentic units carry a Siemens holographic label on the module housing with a scannable QR code linked to Siemens’ product verification portal. The factory seal on the packaging should be unbroken, and the module’s firmware version should be verifiable via TIA Portal upon first connection. We provide the original Siemens product label photograph and serial number before shipment upon request.

Q2: Where can I obtain the official datasheet and wiring diagram for the 6ES7222-1HH32-0XB0?
A: The official Siemens datasheet (document number A5E02822339) is available through the Siemens Industry Online Support (SIOS) portal. We also provide a copy of the technical manual and wiring diagram with every order at no additional charge.

Q3: Is the 6ES7222-1HH32-0XB0 compatible with older S7-1200 firmware versions (V1.x, V2.x)?
A: The SM 1222 module is hardware-compatible with all S7-1200 CPU firmware versions from V1.0 onward. However, certain diagnostic features (relay contact wear monitoring, extended channel diagnostics) require CPU firmware V4.1 or higher and TIA Portal V14 SP1 or later. We recommend upgrading to the latest firmware for full feature access.

Q4: Can this module be used in a Safety Instrumented System (SIS) application?
A: The standard 6ES7222-1HH32-0XB0 is a standard (non-safety) module and is not certified for IEC 61508 SIL applications. For SIS requirements, Siemens offers the SIMATIC S7-1200F safety CPU range with dedicated F-I/O modules. However, this module is widely used in non-safety output layers adjacent to SIS architectures.

Q5: What is the lead time for emergency orders, and do you support partial shipments?
A: For in-stock units, same-day dispatch is available for orders confirmed before 14:00 UTC. We support partial shipments for large orders where immediate partial delivery is critical to your maintenance schedule. Emergency air freight with tracking is standard for all express orders.

Q6: Is the 6ES7222-1HH32-0XB0 suitable for a Legacy Upgrade from an older S5 or S7-300 system?
A: Yes. When migrating from SIMATIC S5 or S7-300 platforms to S7-1200, the SM 1222 provides equivalent relay output functionality with modern Fieldbus integration (PROFINET, MODBUS TCP) and TIA Portal programming support. Our application engineers can assist with I/O mapping and migration planning at no additional cost.
