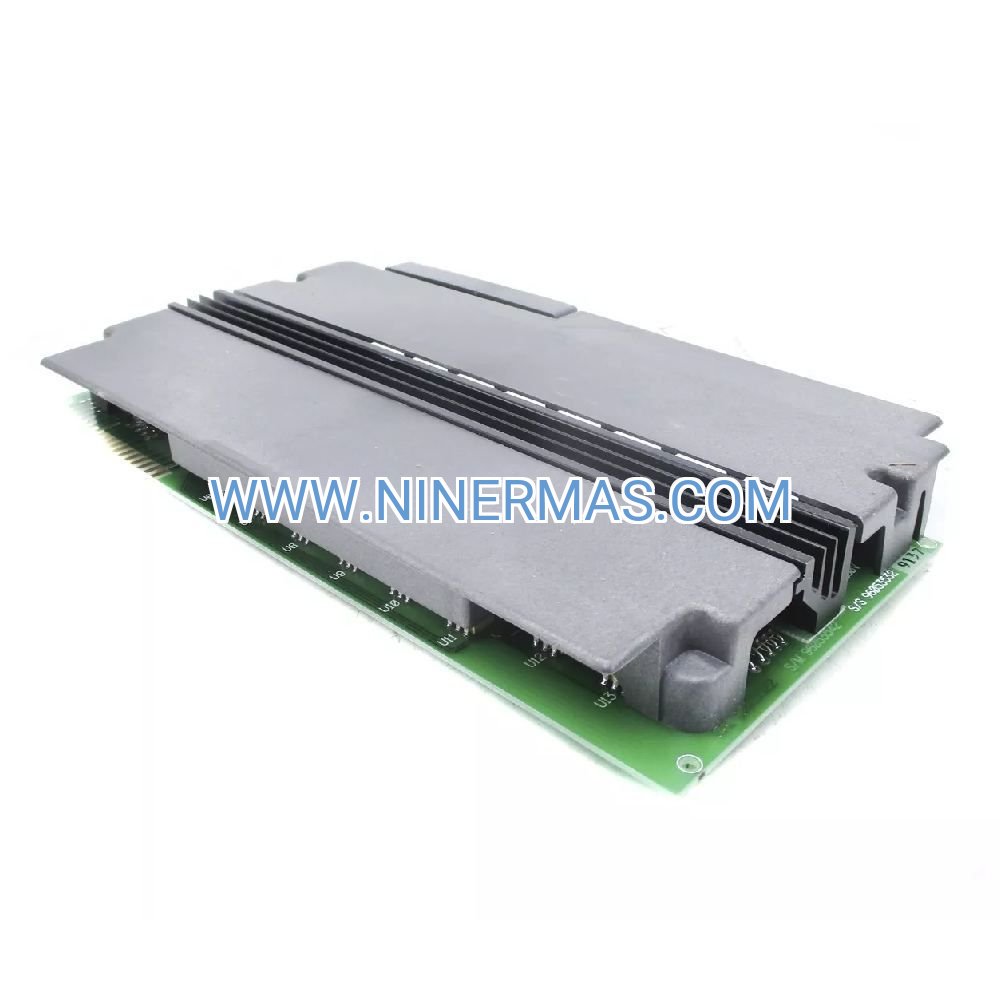

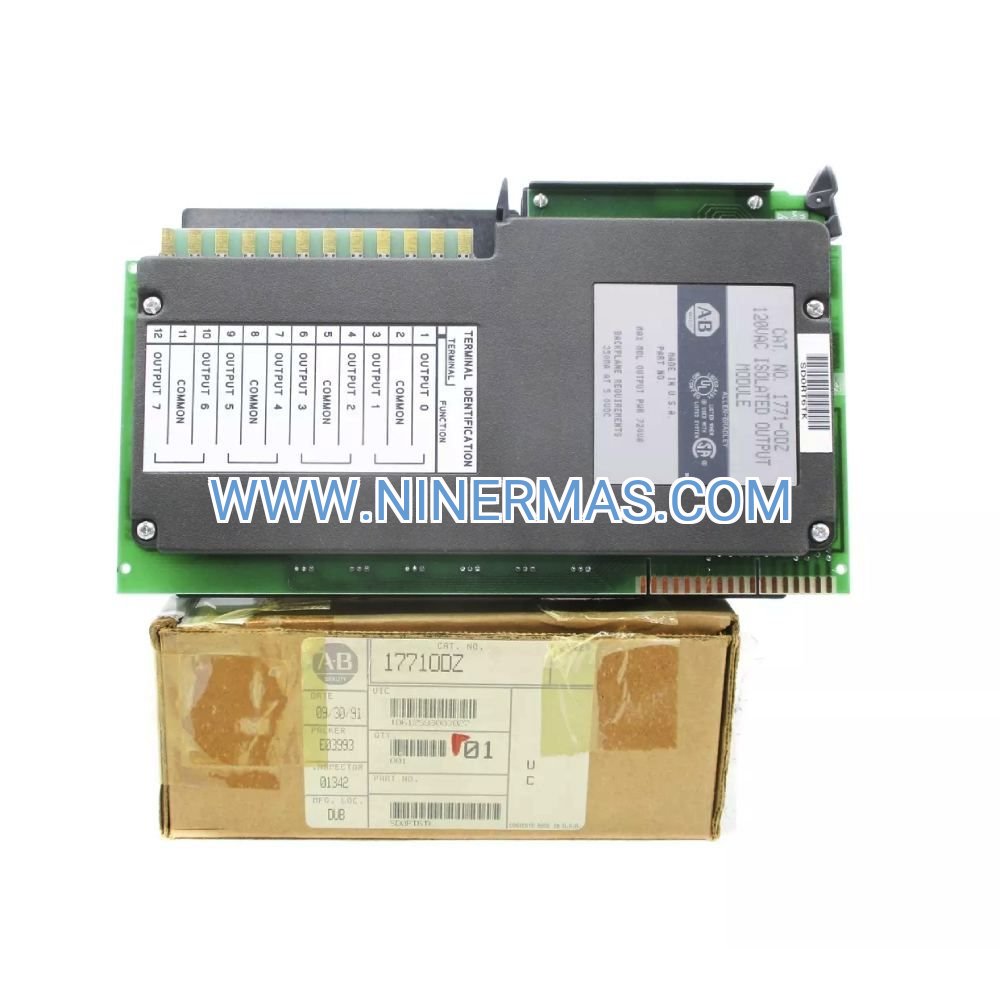

1771-ODZ 16-Point AC Output Module (Industrial-Grade Isolated Control)

The 1771-ODZ represents a proven solution for AC load switching in PLC-5 automation architectures. Engineered with 16 optically-isolated output channels, this module delivers dependable control for solenoid valves, contactors, indicator lamps, and relay coils across manufacturing, process control, and material handling installations. Each output provides 2A switching capacity at 120V AC nominal, eliminating the need for external amplification in most industrial applications.

Designed for environments where electrical noise and ground potential differences challenge system reliability, the 1771-ODZ employs channel-by-channel optical isolation to protect sensitive PLC logic from high-voltage transients and common-mode interference. Removable terminal blocks accelerate field wiring and module replacement, while individual LED indicators streamline commissioning and fault diagnosis.

Whether you're retrofitting legacy PLC-5 systems or maintaining critical production lines, the 1771-ODZ combines robust construction, straightforward integration, and field-proven performance to keep your operations running smoothly.

Core Features & Benefits

✓ Optical Isolation on Every Channel
Each of the 16 outputs features dedicated optical coupling between logic and load circuits, preventing ground loops and shielding your PLC processor from voltage spikes, inductive kickback, and EMI common in industrial power distribution.

✓ 2A Per-Point Current Capacity
Direct drive capability for standard industrial AC loads—solenoid valves, pilot relays, annunciator lamps, and small contactors—without intermediate relay stages, reducing panel complexity and potential failure points.

✓ Real-Time Diagnostic Feedback
Individual green LEDs illuminate when outputs energize, providing instant visual confirmation during startup, troubleshooting, and routine maintenance without requiring external test equipment.

✓ Tool-Free Terminal Block Removal
Field wiring terminates on removable screw-terminal blocks that disconnect without tools, enabling rapid module swaps during emergency repairs or planned upgrades with minimal downtime.

✓ Seamless PLC-5 Chassis Integration
Drop-in compatibility with all 1771 I/O chassis configurations, automatic slot-based addressing via RSLogix software, and standard backplane power draw simplify system design and expansion.

→ Enhanced System Reliability
Factory-calibrated circuitry and thermal-tested components ensure consistent performance across 0-60°C operating ranges, meeting the demands of foundries, chemical plants, and outdoor enclosures.

Typical Application Scenarios

Pneumatic & Hydraulic Valve Control
Manufacturing cells and assembly lines rely on the 1771-ODZ to sequence solenoid valves controlling air cylinders, grippers, and hydraulic actuators. Optical isolation prevents voltage transients from valve coil de-energization from corrupting PLC scan cycles or damaging processor cards.

Conveyor Motor Starter Switching
Material handling systems use the module to energize contactor coils for belt conveyors, roller tables, and sortation equipment. The 2A output rating handles standard 120V AC coils directly, while LED feedback confirms proper sequencing during multi-zone conveyor coordination.

Process Heating Element Control
Food processing, plastics extrusion, and chemical reactors employ the 1771-ODZ for on/off control of electric heating zones. Isolated outputs protect temperature control logic from power supply noise and ground faults common in high-current heating circuits.

Safety Interlock & Annunciator Circuits
Machine guarding systems and operator alarm panels leverage the module's isolated outputs to drive warning lamps, audible alarms, and safety relay coils. Channel independence ensures a single output fault won't compromise adjacent safety functions.

HVAC Fan & Pump Sequencing
Building automation and environmental control systems utilize the 1771-ODZ to stage ventilation fans, circulation pumps, and damper actuators based on temperature, pressure, or occupancy schedules, with isolation preventing HVAC power disturbances from affecting control logic.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1771-ODZ when your application requires 120V AC output control with electrical isolation. For 240V AC loads, consider the 1771-OAD module. If you need DC output switching, evaluate the 1771-OBD (24V DC) or 1771-OD (12-48V DC) alternatives. Verify that your total backplane current budget accommodates the 800mA draw when planning multi-module configurations.

Extended Functions

Load Compatibility Optimization
While the 1771-ODZ handles resistive loads up to 2A directly, inductive loads (solenoid coils, relay coils, motor starters) may require external RC snubber networks to suppress voltage transients and extend output device life. Consult load manufacturer datasheets for recommended snubber values.

Redundant Output Configurations
Critical control functions can parallel two outputs to drive a single load, providing fault tolerance if one output channel fails. Configure RSLogix logic to monitor both output status bits and trigger alarms on mismatch conditions.

Integration with SCADA/HMI Systems
Output status data maps directly to PLC data tables accessible via DH+, ControlNet, or Ethernet/IP communication modules, enabling real-time visualization on operator workstations, historical trending in SCADA databases, and remote diagnostics through VPN connections.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-3 business days via express courier (DHL, FedEx, UPS). Custom configurations or bulk orders may require 5-10 business days—contact our sales team for expedited scheduling.

Warranty Coverage: Every 1771-ODZ module includes a comprehensive 12-month warranty against manufacturing defects and component failures under normal operating conditions. Warranty service includes free replacement or repair, with return shipping covered.

Technical Support: Our application engineers provide pre-sale consultation on module selection, wiring diagrams, and RSLogix configuration examples. Post-sale support includes troubleshooting assistance, firmware guidance, and integration advice via email, phone, or remote desktop sessions.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and links to downloadable PDF manuals including full specifications, programming examples, and maintenance procedures.

Frequently Asked Questions

Can the 1771-ODZ control 240V AC industrial equipment?
No, this module is rated for 92-138V AC operation only (120V nominal). For 240V AC applications, specify the 1771-OAD module which supports 187-265V AC voltage ranges. Using the 1771-ODZ beyond its rated voltage will void warranty and create safety hazards.

What is the maximum switching frequency for AC output modules?
The 1771-ODZ supports switching rates up to 1 Hz (one cycle per second) for resistive loads. Inductive loads should be switched at lower frequencies (0.1-0.5 Hz) to prevent premature output device wear. High-frequency switching applications require solid-state relay modules instead.

Does the 1771-ODZ support hot-swap replacement in energized chassis?
While the 1771 chassis architecture permits module insertion/removal with backplane power applied, best practice recommends de-energizing the chassis and disconnecting field wiring before module replacement to prevent arc flash, data corruption, or damage to adjacent modules.

What wire gauge should I use for field connections to the terminal blocks?
The removable terminal blocks accept 14-22 AWG copper wire. For typical 2A loads with wire runs under 30 meters (100 feet), use 16 AWG stranded copper. Longer runs or higher ambient temperatures may require 14 AWG to minimize voltage drop and heat buildup.

How do I configure output addressing in RSLogix software?
Output addressing is automatically assigned based on chassis slot position. A module in slot 3 of a 1771 chassis typically maps to output image table O:003. Use the I/O Configuration tool in RSLogix to verify addressing and configure output fault detection parameters.

Can I mix 1771-ODZ modules with other I/O types in the same chassis?
Yes, the 1771 chassis supports heterogeneous I/O configurations. You can combine AC output, DC input, analog, and specialty modules in any slot arrangement, provided total backplane current draw does not exceed chassis power supply capacity (typically 8-10A @ 5V DC).

Ready to Optimize Your PLC-5 Control System?

Contact our industrial automation specialists today for technical consultation, volume pricing, or custom integration support. We're here to help you select the right I/O configuration for your application and ensure seamless deployment.
