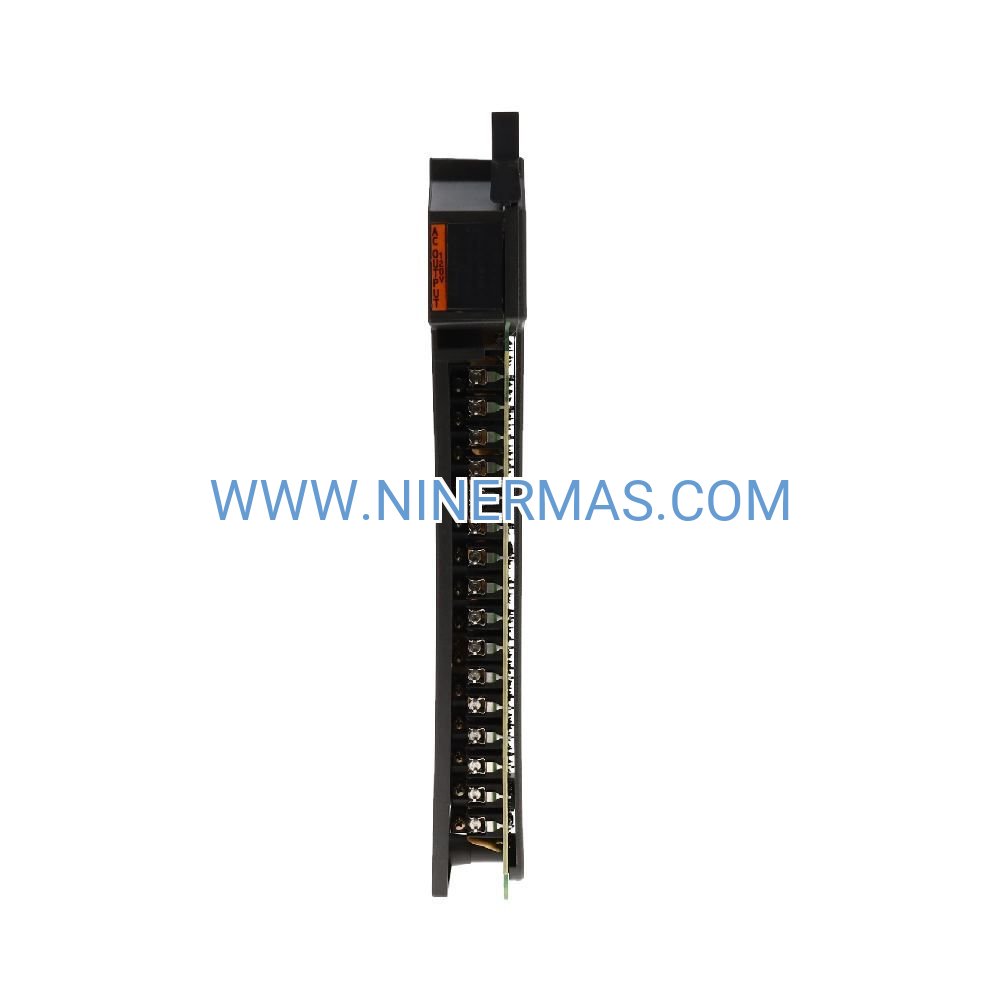

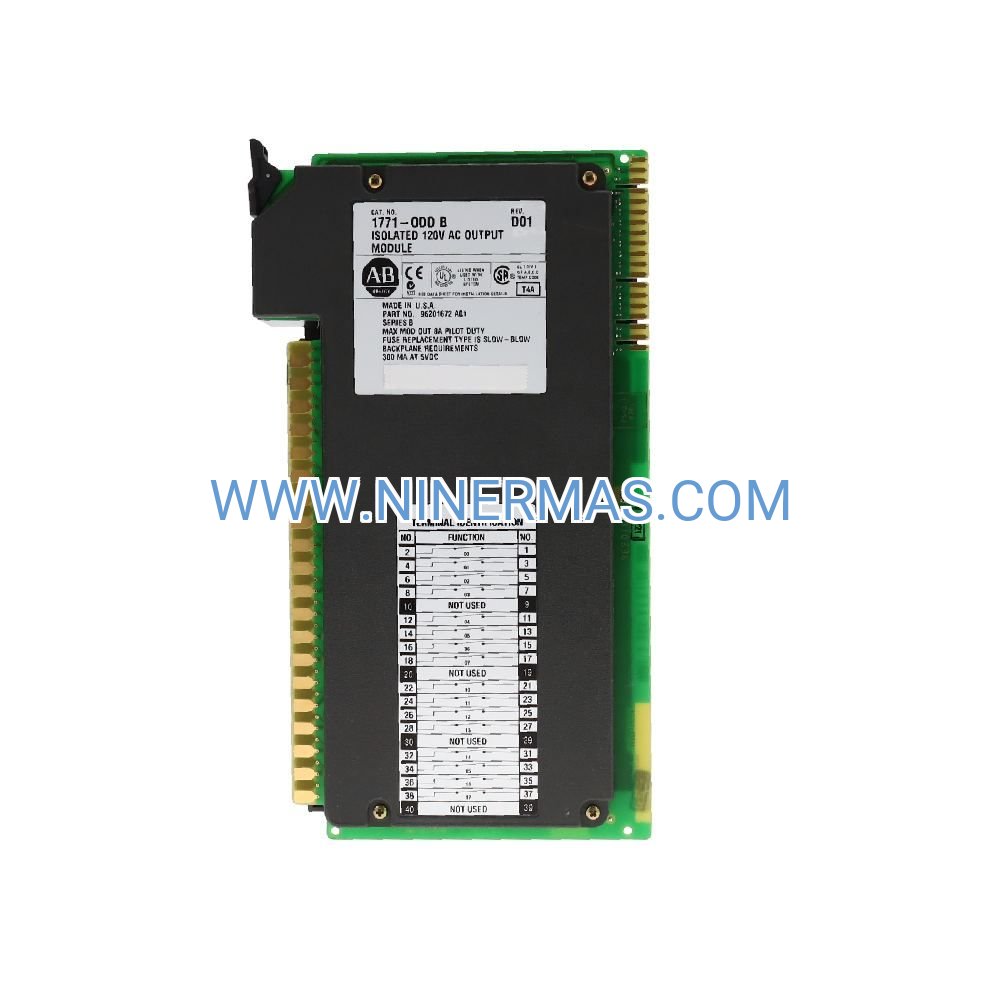

1771-ODD 16-Point AC Output Module (Industrial-Grade Isolated Control)

The Allen-Bradley 1771-ODD represents a proven solution for demanding AC switching applications within PLC-5 automation architectures. Engineered with 16 independently isolated output channels, this module enables precise control of AC-powered actuators, contactors, and solenoid valves while maintaining robust electrical separation between field devices and control logic circuits.

Designed for manufacturing facilities, process plants, and material handling systems requiring reliable AC load switching, the 1771-ODD addresses the critical need for noise immunity and transient protection in electrically harsh industrial environments. System integrators and maintenance teams benefit from simplified wiring, diagnostic LED indicators, and hot-swappable terminal blocks that minimize downtime during service operations.

With factory-calibrated performance specifications and comprehensive safety certifications, this module delivers consistent operation across temperature extremes while protecting sensitive PLC processors from high-voltage disturbances common in motor control and valve actuation circuits.

Core Capabilities & Technical Advantages

→ Optical Isolation Architecture
1500V AC isolation barrier between each output channel and backplane logic prevents ground loops and electrical noise propagation, ensuring stable PLC operation even during load switching transients or fault conditions.

→ High-Current Switching Capacity
Each of the 16 outputs handles continuous loads up to 2 amperes at 120V AC nominal (85-138V range), eliminating the need for external interposing relays in most contactor and solenoid valve applications.

→ Built-In Surge Protection
Integrated RC snubber networks and varistor suppression circuits absorb inductive kickback from motor starters and relay coils, extending contact life and reducing electromagnetic interference without external components.

✓ Removable Terminal Blocks
Field wiring remains intact during module replacement—simply disconnect the terminal assembly and transfer to the new unit, reducing commissioning time by up to 70% compared to hard-wired alternatives.

✓ Real-Time Status Indication
Dual-color LED arrays provide instant visual confirmation of output state and module health, accelerating troubleshooting and reducing mean time to repair during production emergencies.

✓ Universal Chassis Compatibility
Installs in any slot of standard 1771 I/O chassis with automatic addressing—no DIP switches or configuration tools required for basic operation with PLC-5 processors.

Industrial Application Scenarios

Conveyor & Material Handling Systems
Direct control of AC motor starter coils in multi-zone conveyor networks. The module's isolated outputs prevent cross-talk between adjacent zones while the 2A rating handles NEMA Size 0 and Size 1 starter coils without auxiliary relays. Typical deployment: automotive assembly lines, warehouse sortation systems, packaging equipment.

Pneumatic & Hydraulic Valve Banks
Precise sequencing of AC solenoid valve manifolds in automated machinery. Optical isolation eliminates false triggering from valve coil inrush currents, while the 1-second ON delay provides controlled energization that extends valve life. Common in injection molding, metal stamping presses, and robotic work cells.

Process Heating & Temperature Control
Switching of electric heating elements, infrared lamps, and thermal process equipment. The module's surge suppression handles resistive and inductive heating loads while maintaining accurate temperature setpoint control through PLC PID loops. Applications include plastic extrusion, food processing ovens, and chemical reactors.

Facility Lighting & HVAC Management
Zone-based control of industrial lighting contactors and ventilation damper actuators. The 16-point density reduces panel space requirements in building automation retrofits while providing individual circuit monitoring through PLC SCADA interfaces.

Pump & Agitator Control Networks
Reliable switching of centrifugal pump motors and mixing equipment in water treatment, chemical batching, and food production facilities. The module's UL 508 listing and conformal coating ensure long-term reliability in high-humidity environments.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 1771-ODD when your application requires isolated AC switching with current demands between 100mA and 2A per point. For loads exceeding 2A, cascade with external contactors. For 240V AC applications, specify the 1771-OAD high-voltage variant. When switching frequency exceeds 0.5 Hz, consider solid-state relay modules to avoid mechanical contact wear.

Advanced Integration Features

Diagnostic Capabilities: The module reports output short-circuit and open-load faults to the PLC processor through dedicated status bits, enabling predictive maintenance strategies and automated alarm generation before equipment failure occurs.

Wiring Flexibility: Supports both common-return and isolated-return wiring configurations. The removable terminal block accepts 14-22 AWG wire with captive screw terminals rated for 7 lb-in torque, ensuring vibration-resistant connections in mobile equipment applications.

Conformal Coating: Factory-applied protective coating resists moisture, dust, and chemical vapors in accordance with IEC 60721-3-3 Class 3C2 environmental specifications, extending operational life in paper mills, wastewater plants, and outdoor enclosures.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units via expedited courier service. Custom configurations and quantity orders ship within 10-15 business days.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures under normal operating conditions. Extended service plans available for critical infrastructure applications.

Technical Support: Unlimited access to application engineers for wiring diagrams, programming examples, and troubleshooting assistance. Remote diagnostic support available during commissioning and startup phases.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and digital access to full user manual, CAD drawings, and RSLogix programming samples.

Frequently Asked Questions

What is the maximum wire size for the terminal blocks on the 1771-ODD module?
The removable terminal blocks accept 14-22 AWG copper wire (solid or stranded). For optimal connection reliability, use ferrules on stranded wire and torque screws to 7 lb-in per manufacturer specifications.

Can this module control 240V AC devices in international installations?
No—the 1771-ODD is rated for 85-138V AC operation only. For 200-240V applications common in European and Asian facilities, specify the Allen-Bradley 1771-OAD high-voltage output module designed for international voltage standards.

How does the optical isolation protect my PLC processor during output faults?
Each output channel uses a photocoupler to create a 1500V electrical barrier between the PLC backplane and field wiring. During short-circuit or overvoltage events, the isolation prevents fault currents from reaching the processor, protecting your control system investment.

What is the recommended external circuit protection for motor loads?
While the module includes internal fusing, install branch circuit protection per NEC Article 430 requirements. Use Class CC or Class J fuses rated at 125% of motor full-load current for optimal coordination with the module's internal protection.

Does the 1771-ODD support hot-swapping during system operation?
No—always de-energize the I/O chassis before installing or removing any 1771 series module. Hot-swapping can damage the backplane connector and void the warranty. Use the removable terminal block feature for rapid module replacement without rewiring.

What diagnostic information does the module provide to the PLC program?
The module reports individual output status, blown fuse indicators, and module health through dedicated input image bits. Advanced diagnostics include load detection for open-circuit fault identification and thermal shutdown warnings.

Take the Next Step

Ready to integrate the 1771-ODD into your PLC-5 control system? Our application engineers are standing by to review your wiring diagrams, confirm compatibility with your existing chassis configuration, and provide custom programming examples for your specific automation requirements.

Contact our technical sales team today: Request a formal quotation, discuss volume pricing for multi-system projects, or schedule a remote consultation to evaluate your AC output control needs.
