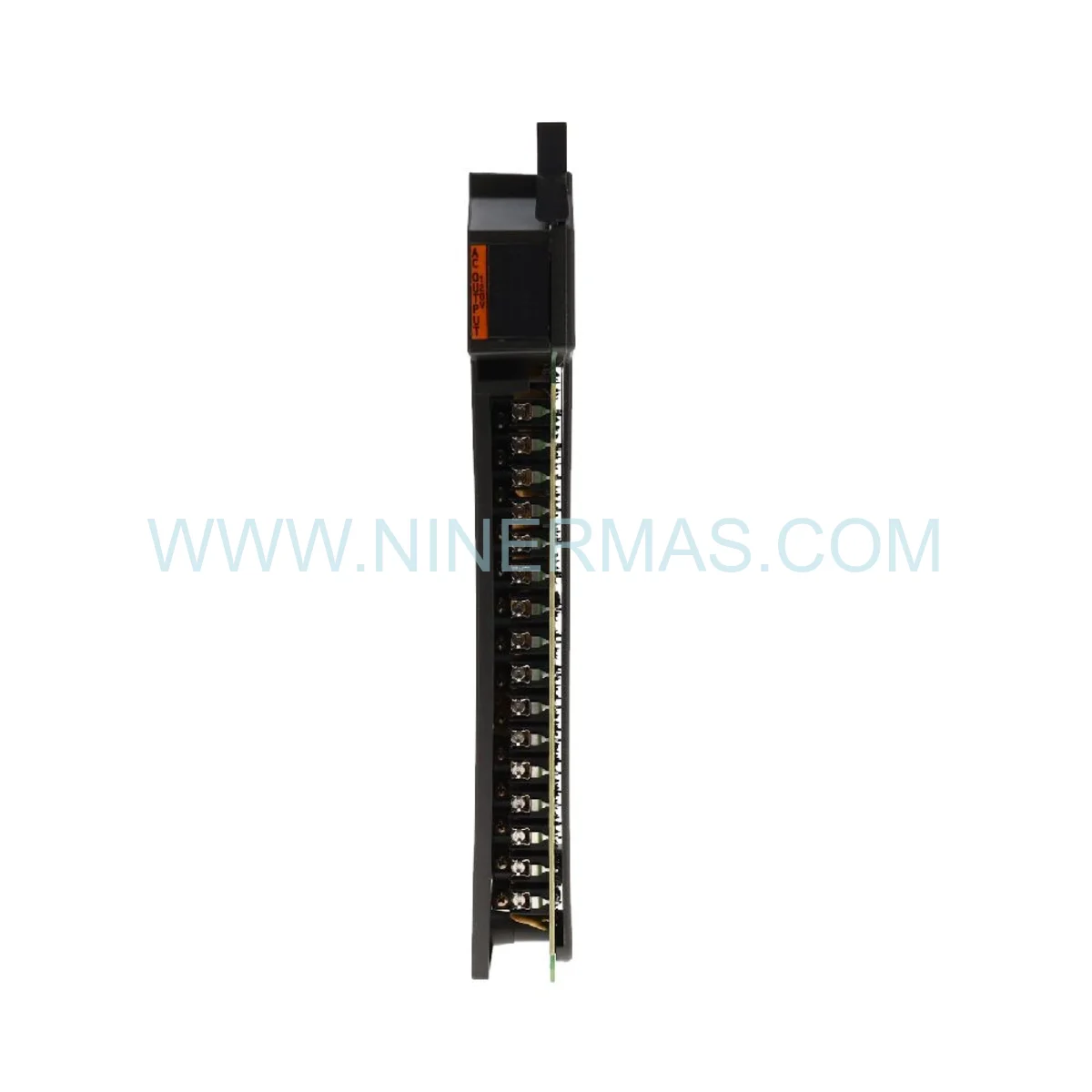

Allen-Bradley 1771-ODD AC Output Module | PLC-5 16-Point Isolated I/O

Allen-Bradley 1771-ODD | Reliable Automation Component for PLC-5 Systems

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous-process facilities, the Allen-Bradley 1771-ODD stands as a cornerstone I/O module for sustaining system availability in mission-critical automation environments. Its 16-point isolated AC output architecture enables deterministic switching control across PLC-5 platforms, directly reducing unplanned downtime by eliminating single-point electrical failures that cascade through non-isolated output banks. The 1771-ODD integrates seamlessly into existing 1771 I/O chassis without firmware reconfiguration, making it an indispensable asset for process optimization in legacy and hybrid control architectures.

Engineered for operational excellence in harsh industrial conditions, this module withstands ambient temperatures from 0°C to 60°C and delivers 1500V AC optical isolation between logic and field circuits — a specification that directly addresses the electrical noise and transient surge challenges common in heavy manufacturing, water treatment, and petrochemical environments. Field installation requires no special tooling; the removable terminal block design allows maintenance crews to swap wiring harnesses without disturbing adjacent modules, minimizing mean-time-to-repair (MTTR) during scheduled outages.

For facilities operating aging PLC-5 infrastructure, maintaining a certified stock of the 1771-ODD as a critical spare is not optional — it is a reliability strategy. End-of-life (EOL) designation for this series has tightened global supply, making sourcing from verified distributors with original factory packaging a non-negotiable procurement standard for any SRE-driven maintenance program.

Key Operational Features

16-Point Isolated AC Outputs — Independent optical isolation per channel prevents fault propagation across the output bank, supporting high-availability system design.
1500V AC Optical Isolation — Logic-to-field isolation eliminates ground loop interference and protects PLC backplane from field-side transients.
85-138V AC Operating Range — Accommodates nominal 120V AC industrial circuits with tolerance for voltage fluctuation common in plant environments.
2A Per Point Output Rating — Sufficient for direct switching of AC contactors, solenoid valves, and motor starters without intermediate relay stages.
Seamless Integration — Drop-in compatible with all 1771 I/O chassis slots; auto-recognized by PLC-5 processors without additional configuration files.
Redundancy-Ready Architecture — Supports redundant I/O chassis configurations for high-availability control loops in continuous-process industries.
Built-In Surge Suppression — Internal transient protection on each output eliminates the need for external MOV or RC snubber networks.
LED Status Indicators — Per-point output status LEDs enable rapid field diagnostics without laptop or programming terminal connection.

Maintenance & Performance Benchmarks

The 1771-ODD is architected to perform across a broad spectrum of industrial network scales — from standalone PLC-5 cells controlling a single production line to distributed I/O architectures spanning multi-zone process facilities. In small-scale deployments, the module’s auto-configuration capability reduces commissioning time to under 15 minutes per chassis slot. In large-scale system integration scenarios involving multiple 1771 chassis linked via Remote I/O (RIO) networks, the module maintains deterministic scan-cycle performance without introducing latency penalties.

Preventive maintenance intervals for this module class are typically aligned with annual plant turnarounds. Key benchmarks include: verifying optical isolator integrity via insulation resistance testing (>10MΩ at 500V DC), confirming terminal block torque specifications (0.5-0.6 N·m), and validating LED indicator response against known output states. Modules exhibiting intermittent output faults — often caused by terminal oxidation in humid environments — should be replaced rather than repaired, as field-level component replacement is not supported for this module series.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Allen-Bradley 1771-ODD unit shipped from our inventory is sourced directly from authorized distribution channels and arrives in original factory packaging with full Allen-Bradley labeling, serial number traceability, and anti-static protection. We maintain dedicated stock of EOL and legacy PLC-5 I/O modules to support facilities that cannot migrate to newer ControlLogix or CompactLogix platforms without significant capital expenditure.

For urgent production-line recovery scenarios, same-day dispatch is available on confirmed in-stock units (order cutoff times apply by region). Our global logistics network covers North America, Europe, Southeast Asia, and the Middle East, with DHL Express, FedEx International Priority, and UPS Worldwide Expedited as standard carrier options. All shipments include commercial invoice, packing list, and certificate of conformance documentation required for customs clearance in regulated industries.

Global supply for discontinued and hard-to-source automation components is a core competency of our sourcing team. If the 1771-ODD is not immediately available, our procurement specialists can locate verified units from our international partner network within 24-72 hours.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 1771-ODD in a 1771 I/O chassis?
A: Power down the entire 1771 chassis before insertion. Align the module with the chassis slot guides and press firmly until the backplane connector seats fully. Secure the module locking tab, then restore chassis power. The PLC-5 processor will automatically recognize the module during the next I/O scan cycle — no manual address configuration is required if the chassis slot addressing is pre-defined in the processor’s I/O configuration table.

Q2: Which PLC-5 firmware versions are compatible with the 1771-ODD?
A: The 1771-ODD is compatible with all PLC-5 processor firmware revisions that support the 1771 I/O platform, including Series A through Series E processors. No firmware-specific configuration files are required. Compatibility with PLC-5/11, PLC-5/20, PLC-5/30, PLC-5/40, and PLC-5/60 processors has been validated across all production firmware releases.

Q3: Can the 1771-ODD be used in a redundant I/O chassis configuration?
A: Yes. The module is fully compatible with 1771 redundant I/O chassis configurations when paired with appropriate chassis adapters and redundancy modules. Ensure that both primary and secondary chassis slots are populated with identical module revisions to maintain synchronization integrity during switchover events.

Q4: What is the warranty claim process for this module?
A: Units exhibiting defects in materials or workmanship within the 1-year warranty period are eligible for replacement or repair at no charge. To initiate a warranty claim, contact our technical support team with the module serial number, purchase order reference, and a description of the observed fault condition. Return Material Authorization (RMA) will be issued within one business day, and replacement units are dispatched upon receipt of the defective module.

Q5: How do I distinguish genuine Allen-Bradley 1771-ODD units from counterfeit modules?
A: Authentic units feature Allen-Bradley holographic labeling, laser-etched serial numbers traceable to Rockwell Automation’s manufacturing records, and UL/CSA certification marks embossed on the module housing. All units supplied by us include a certificate of conformance and can be cross-referenced against Rockwell Automation’s product authentication database using the module serial number.

Q6: What are the recommended storage conditions for spare 1771-ODD modules?
A: Store in original anti-static packaging in a climate-controlled environment: temperature 0°C to 70°C, relative humidity 5% to 95% non-condensing. Avoid storage near strong electromagnetic fields or corrosive atmospheres. Annual inspection of stored spares is recommended to verify packaging integrity and terminal block condition.
