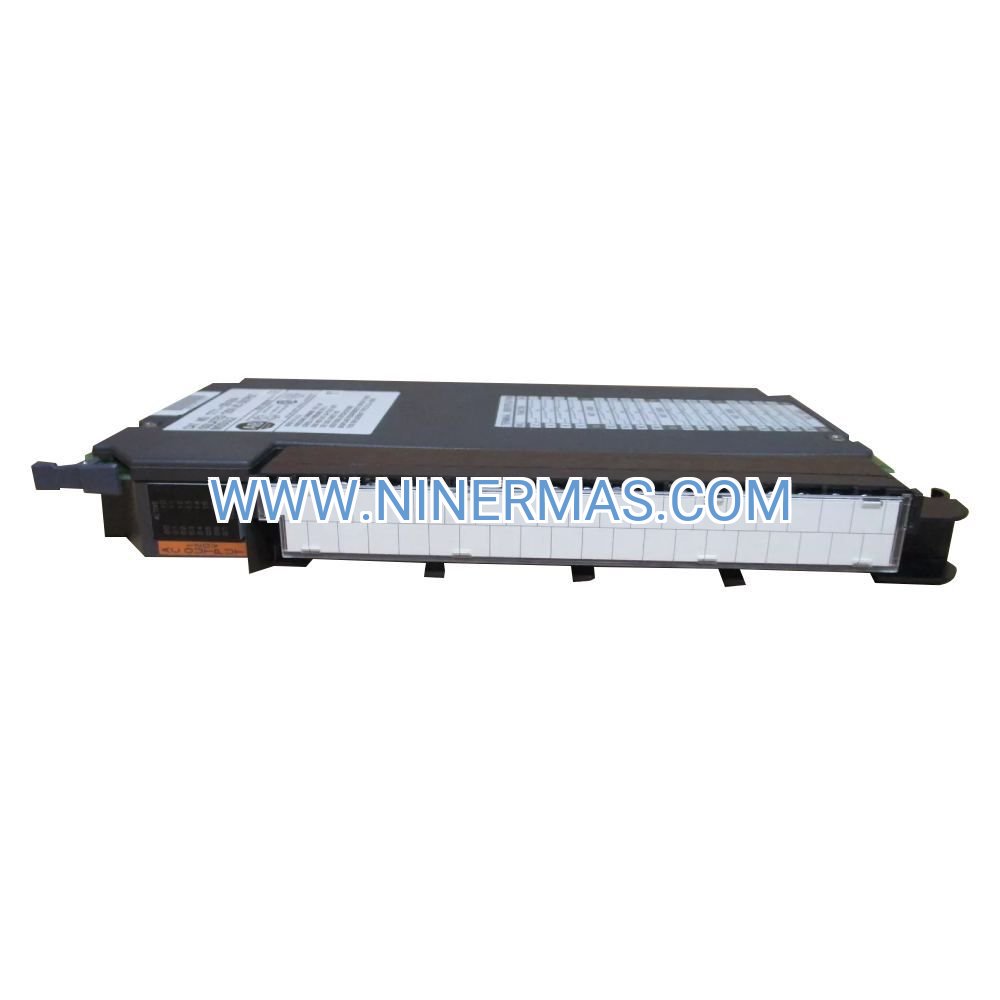

1771-OD16 AC Output Module (Industrial-Grade Isolated Switching)

The 1771-OD16 represents a proven solution for industrial AC output control, delivering 16 independently isolated channels designed for demanding automation environments. Built on Allen-Bradley's PLC-5 architecture, this module provides reliable switching performance for solenoid valves, contactors, motor starters, and relay interfaces where electrical isolation is non-negotiable.

Engineered for manufacturers, system integrators, and facility operators managing legacy PLC-5 installations, the 1771-OD16 solves critical challenges: eliminating ground loops, reducing electromagnetic interference, and maintaining signal integrity across high-voltage switching applications. Whether you're controlling process equipment in chemical plants or managing safety interlocks in power generation facilities, this module delivers consistent, fail-safe operation.

Key advantages include channel-to-channel isolation that prevents cross-talk, wide voltage compatibility (74-138V AC), and robust construction rated for 0-60°C operation. Each output handles up to 2A continuous current, while diagnostic LEDs accelerate troubleshooting and minimize downtime. The result: a field-proven component that extends equipment lifespan and reduces maintenance costs.

Core Features & Benefits

✓ 16 Isolated AC Outputs
Independent channel isolation eliminates ground loops and electrical noise, protecting sensitive control circuits while enabling safe operation in electrically noisy environments.

✓ Wide Voltage Range (74-138V AC)
Accommodates global voltage standards and fluctuating power conditions without external transformers, reducing installation complexity and component count.

✓ High Current Capacity (2A per Point)
Directly drives industrial solenoids, contactors, and pilot relays without external amplification, simplifying panel design and reducing wiring costs.

✓ Channel-to-Backplane Isolation
Protects PLC processor and other I/O modules from voltage spikes and fault conditions, enhancing system reliability and preventing cascading failures.

✓ Fast Response Time
Precise switching control for time-critical applications including synchronized motion control, batch processing, and safety shutdown sequences.

✓ Visual Diagnostics
Per-channel LED indicators provide instant status feedback, enabling rapid fault identification and reducing mean time to repair (MTTR) by up to 40%.

Application Scenarios

→ Chemical Processing & Batch Control
Manage valve sequencing for ingredient dosing, reactor temperature control, and product transfer operations. Isolation prevents contamination of control signals in corrosive atmospheres while maintaining precise timing for recipe execution.

→ Oil & Gas Production Facilities
Control wellhead equipment, pipeline valves, and compressor stations in hazardous classified areas. Robust isolation meets API 670 vibration monitoring standards and withstands extreme temperature cycling.

→ Water & Wastewater Treatment
Operate pump motors, chemical feed systems, and aeration blowers across distributed lift stations. Isolation protects against ground potential differences in geographically dispersed installations.

→ Manufacturing Assembly Lines
Drive pneumatic actuators, part ejectors, and conveyor diverters in high-speed production environments. Fast switching enables cycle times under 100ms for automotive and electronics assembly.

→ Building Automation & HVAC
Switch damper actuators, chiller contactors, and boiler controls in commercial facilities. Wide voltage tolerance accommodates aging electrical infrastructure without costly panel upgrades.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1771-OD16 when your application requires isolated AC outputs for controlling inductive loads (solenoids, contactors) in electrically noisy environments. For DC output requirements, consider the 1771-OBD series. For higher current capacity (>2A), specify external relay interfaces. Verify your PLC-5 chassis has available backplane power budget (8W per module).

Extended Functions

IoT Integration Capability
When paired with 1771-NET or 1771-VHSC communication modules, output status can be monitored remotely via Ethernet/IP or ControlNet networks, enabling predictive maintenance and real-time performance analytics.

Advanced Diagnostics
Built-in short-circuit detection and thermal overload protection automatically disable faulty channels while maintaining operation of healthy outputs, preventing total system shutdown.

Customization Options
Factory configuration services available for pre-programmed output patterns, custom LED labeling, and conformal coating for harsh chemical or marine environments (consult factory for MOQ).

Delivery & Service Assurance

Lead Time
• Standard stock items: 3-5 business days (express shipping available)
• Custom configurations: 2-3 weeks from order confirmation
• Bulk orders (>10 units): Contact for expedited production scheduling

Warranty Coverage
12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty plans available for critical applications.

Technical Support
Direct access to application engineers for integration assistance, troubleshooting guidance, and configuration optimization. Phone, email, and remote desktop support included at no additional cost.

Documentation Package
Every module ships with installation manual, wiring diagrams, ladder logic examples, and calibration certificates. CAD drawings and 3D STEP files available for download.

Frequently Asked Questions

Q: How does isolated output architecture improve system reliability compared to non-isolated modules?
A: Isolation prevents ground loops that cause erratic behavior in distributed control systems. When controlling equipment across multiple electrical panels or buildings, ground potential differences can introduce noise currents. The 1771-OD16's 1500V isolation barrier blocks these currents, ensuring clean switching signals and protecting your PLC processor from voltage transients.

Q: What is the maximum cable length between the module and field devices?
A: For AC output applications, cable runs up to 300 meters (1000 feet) are achievable using 18 AWG shielded cable. Longer distances may require external relay amplification to compensate for voltage drop and maintain adequate switching current.

Q: Can this module control three-phase motor starters directly?
A: Yes, when interfacing with motor starter coils rated 110V AC and drawing less than 2A inrush current. For larger starters, use the module to drive intermediate control relays rated for higher coil currents. Always verify starter coil specifications before connection.

Q: Is the 1771-OD16 suitable for safety-rated emergency shutdown systems?
A: While the module meets SIL 2 requirements when properly configured, safety-critical applications should incorporate redundant output channels and external safety relays certified to IEC 61508. Consult your safety engineer for application-specific guidance.

Q: How do I monitor output status remotely for predictive maintenance?
A: Integrate a 1771-NET Ethernet module or ControlNet scanner into your chassis. Map the output status bits to your SCADA system or cloud platform. Set up alerts for abnormal switching patterns that indicate coil degradation or wiring faults.

Q: What energy efficiency improvements can I expect versus older relay-based control panels?
A: Solid-state switching eliminates mechanical relay coil power consumption (typically 5-10W per relay). A 16-point system can reduce panel heat load by 80-160W, lowering cooling costs and extending component lifespan in enclosed cabinets.

Take the Next Step

Ready to upgrade your PLC-5 system with proven isolated output technology? Contact our application specialists for technical consultation, custom configuration quotes, or volume pricing. We support system integrators, OEMs, and end users with same-day quotations and engineering assistance.

Request a quote: Email your system specifications and quantity requirements
Technical questions: Speak with an engineer about integration challenges
Bulk procurement: Discuss stocking programs and consignment inventory options
