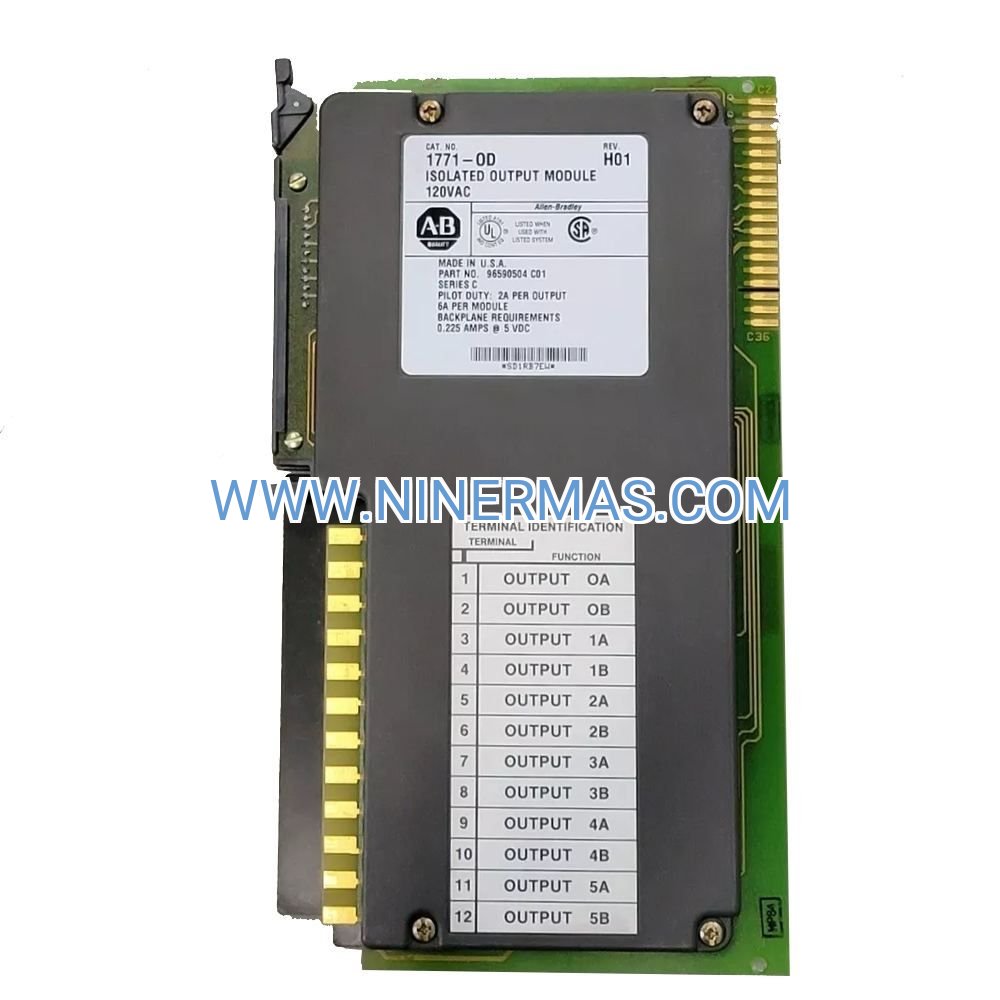

1771-OD Isolated AC Output Module (Industrial-Grade PLC-5 Component)

The 1771-OD represents a field-proven solution for AC load switching in mission-critical automation environments. Designed for Allen-Bradley PLC-5 architectures, this Series C module combines optical isolation technology with robust output circuitry to deliver dependable control of solenoids, contactors, and pilot devices across manufacturing, process, and infrastructure applications.

Built for system integrators and maintenance teams managing legacy PLC-5 installations, the 1771-OD addresses the dual challenges of electrical noise immunity and load protection. Its isolated output design prevents ground-loop interference while safeguarding upstream logic from field-side transients—critical for plants operating high-voltage equipment or sensitive instrumentation.

With UL recognition and CE conformity, this module meets international safety standards for industrial control products. Each output channel handles up to 2 amperes at 120V AC nominal, supporting direct control of medium-duty loads without external amplification. The module's hot-swappable architecture minimizes downtime during maintenance cycles, while diagnostic LEDs accelerate fault isolation in complex systems.

Core Features & Benefits

✓ Optical Isolation Technology
Each output circuit incorporates photocoupler isolation, creating a 2,500V RMS barrier between control logic and field wiring. This architecture eliminates common-mode noise, protects PLC backplane integrity, and enables safe operation in electrically harsh environments.

✓ 2A Per-Point Current Capacity
Direct switching of pilot relays, indicator lamps, and small solenoid valves without interposing relays. Reduces panel complexity, lowers installation costs, and improves system reliability by minimizing component count.

✓ Transient Suppression Circuitry
Integrated RC snubber networks and metal-oxide varistors clamp inductive kickback from motor starters and coil loads. Extends contact life, prevents false triggering, and maintains signal integrity in noisy industrial settings.

✓ Hot-Swap Capability
Replace modules under power in properly configured chassis without halting production. Supports predictive maintenance strategies and reduces mean time to repair (MTTR) during emergency service calls.

✓ Visual Diagnostics

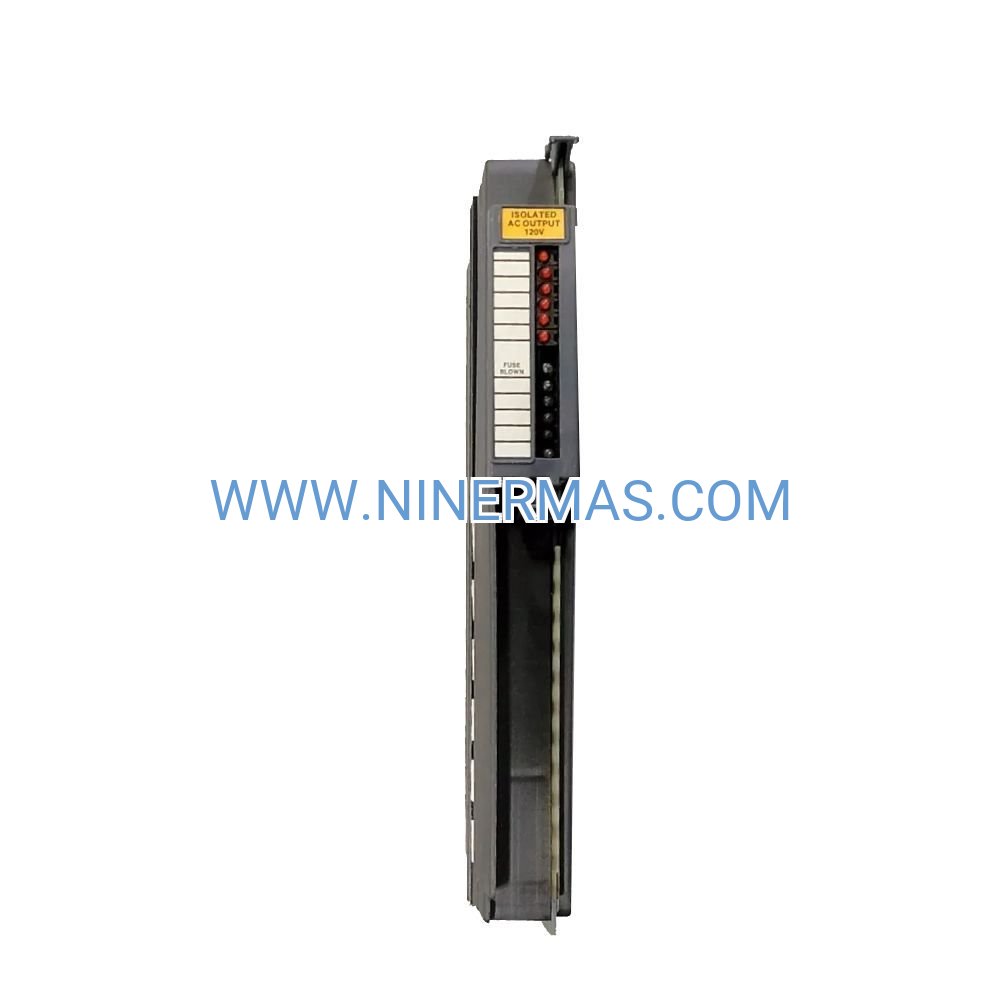

Dual-color LED indicators display module health and individual output states. Technicians can verify circuit operation at a glance, accelerating commissioning and troubleshooting workflows.

✓ Wide Operating Temperature Range
Rated for 0°C to 60°C ambient operation, accommodating non-climate-controlled enclosures in warehouses, utility substations, and outdoor equipment shelters.

Typical Application Scenarios

→ Chemical Processing & Batch Control
Activate pneumatic valve actuators in reactor feed systems, blending operations, and tank transfer sequences. The isolated design prevents ground loops in multi-zone grounding schemes common to hazardous area installations.

→ Water & Wastewater Treatment
Control pump motor starters, chlorination system solenoids, and aeration blower contactors. Withstands the corrosive atmospheres and electrical noise generated by VFD-driven equipment in lift stations and treatment plants.

→ Material Handling & Conveyor Systems
Switch diverter gates, brake solenoids, and zone control relays in automated distribution centers. Supports high-cycle applications with proven MTBF exceeding 500,000 operations under rated load.

→ Building Automation & HVAC
Operate damper actuators, chiller sequencing contactors, and boiler control valves in commercial facilities. Integrates with legacy PLC-5 building management systems requiring AC output control.

→ Machine Tool & CNC Integration
Drive coolant pump relays, tool changer solenoids, and safety interlock circuits. The module's deterministic response time (typically <10ms) meets the timing requirements of coordinated machine sequences.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1771-OD when your application requires AC load control with electrical isolation in PLC-5 systems. For DC loads, specify 1771-OBD (10-60V DC) or 1771-ODD (5-50V DC) modules instead. Verify that total module current does not exceed 6A—for higher aggregate loads, distribute outputs across multiple modules or use external contactors for load amplification.

Extended Functions

Fused Output Protection: While the module includes internal current limiting, external fusing (3A fast-blow per point) is recommended for installations subject to short-circuit hazards or where load fault isolation is required.

Remote Monitoring Integration: Output status can be read back via PLC-5 ladder logic for SCADA integration, enabling remote diagnostics and predictive maintenance analytics in networked control systems.

Customization Options: Field-configurable addressing via DIP switches or backplane keying allows flexible I/O mapping. Consult factory documentation for chassis slot restrictions and power budget calculations.

Delivery & Service Assurance

Lead Time: Stock items ship within 1-3 business days. Custom configurations or bulk orders (>10 units) typically require 7-14 days for preparation and testing.

Warranty Coverage: 12-month limited warranty against defects in materials and workmanship. Warranty includes free replacement or repair, with return shipping covered for confirmed manufacturing defects.

Technical Support: Access to application engineers for installation guidance, troubleshooting assistance, and system integration consulting. Support available via email, phone, and remote diagnostics.

Documentation Package: Each module ships with installation instructions, wiring diagrams, and dimensional drawings. Full technical manuals, firmware release notes, and CAD models available for download.

Frequently Asked Questions

Q: How do I wire the 1771-OD module to my field devices?
A: Use 14-22 AWG stranded copper wire with 600V insulation rating. Connect the AC hot wire to the output terminal, neutral to the common bus, and load device between output and neutral. Torque screws to 7-9 lb-in. Always de-energize circuits before wiring.

Q: What is the maximum cable length for output wiring?
A: For 120V AC loads, cable runs up to 300 meters (1,000 feet) are acceptable with 16 AWG wire. Longer distances may require voltage drop compensation or local power distribution to maintain adequate load voltage.

Q: Can this module control three-phase motor starters?
A: Yes, when used to energize starter coils rated at 120V AC and drawing <2A. The module cannot directly switch three-phase power circuits—it controls the starter's control circuit only.

Q: Does the 1771-OD support energy monitoring or power metering?
A: No, this is a switching module only. For energy measurement, integrate separate power meters or current transducers with analog input modules in your PLC-5 system.

Q: Is the Series C revision backward-compatible with earlier 1771-OD versions?
A: Yes, Series C modules are form-fit-function compatible with Series A and B. Firmware and electrical characteristics are equivalent, allowing direct replacement without program modifications.

Q: What maintenance schedule is recommended for this module?
A: Inspect terminal connections annually for tightness and corrosion. Clean dust accumulation from ventilation slots semi-annually. Monitor output status LEDs during routine rounds—erratic behavior may indicate failing output devices or wiring faults.
