Allen-Bradley 1771-OC DC Output Module | 16-Point Isolated Control for PLC-5 Systems

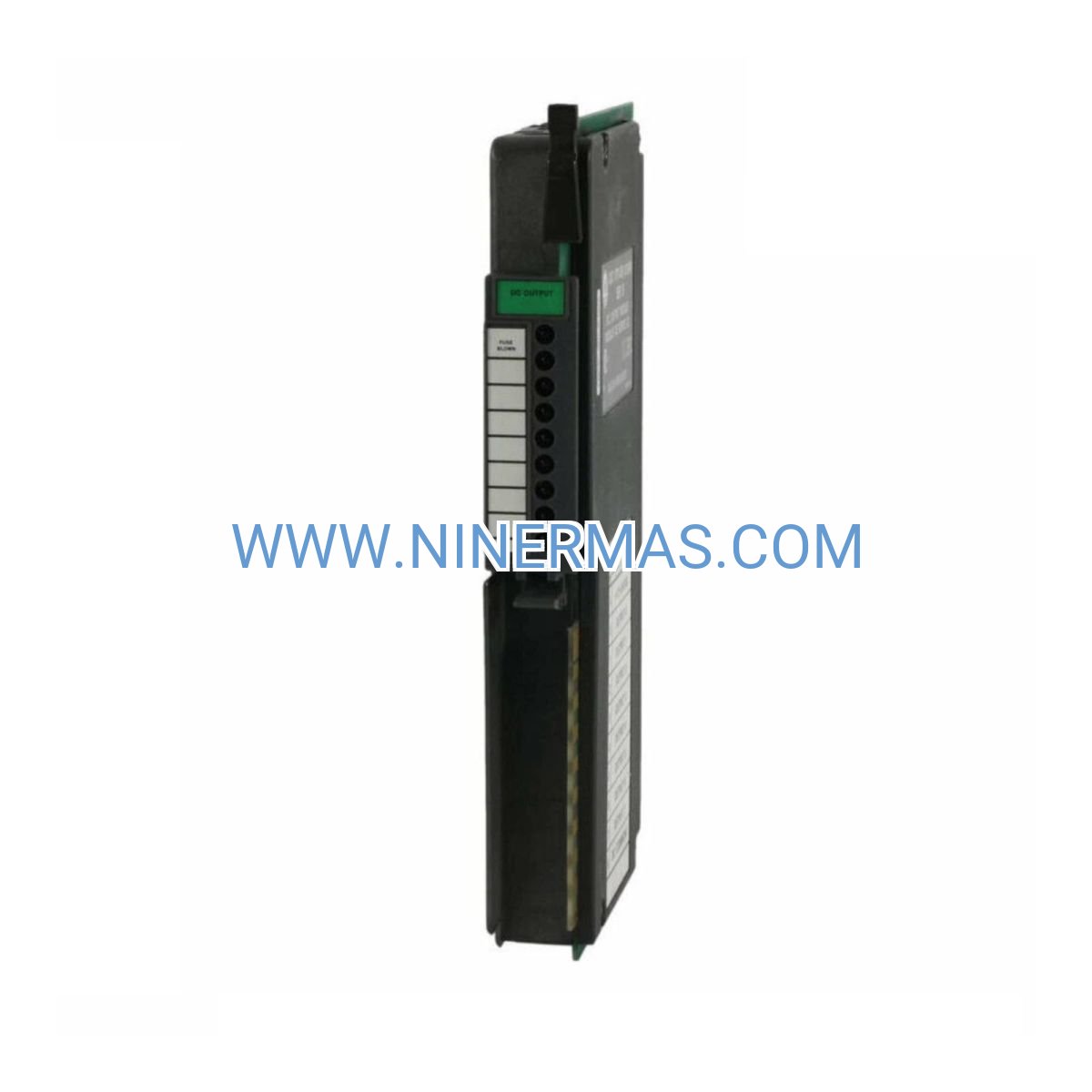

Allen-Bradley 1771-OC DC Output Module (Industrial-Grade Isolated Control System)

The Allen-Bradley 1771-OC is a high-performance DC output module designed for PLC-5 automation systems, delivering precise digital control through 16 isolated output points. Utilizing advanced optically-isolated circuitry and solid-state switching technology, this module enables reliable control of solenoids, motor starters, indicator lights, and other DC-powered field devices in demanding industrial environments.

Engineered for manufacturing automation, process control, and industrial machinery applications, the 1771-OC addresses critical challenges including electrical noise interference, ground loop issues, output circuit protection, and real-time diagnostic visibility. It serves system integrators, control engineers, OEM manufacturers, and plant maintenance teams requiring dependable I/O expansion for legacy and current PLC-5 installations.

Through standardized 1771 chassis compatibility and field-proven design, this module delivers electrical isolation protection, individual channel diagnostics, robust output drive capability, and simplified troubleshooting. Suitable for retrofits, capacity expansions, and new installations requiring certified industrial-grade components. Contact our application engineers for system integration guidance and technical specifications.

Core Functions & Technical Advantages

• Optical Isolation Protection
  Each output channel features 1500V AC optical isolation between logic and field circuits, eliminating ground loops and protecting sensitive PLC backplane electronics from voltage transients and electrical noise common in industrial power distribution systems.
• High Current Drive Capability
  Delivers 2 amperes continuous current per output point at 10-30V DC operating range, sufficient to directly drive industrial solenoid valves, contactors, and pilot relays without requiring external amplification or interface modules.
• Individual Channel Diagnostics
  Front-panel LED indicators provide real-time status monitoring for each output point, enabling rapid fault identification and reducing mean time to repair (MTTR) during troubleshooting and commissioning activities.
• Proven Reliability & Longevity
  Solid-state output design eliminates mechanical relay wear, extending operational lifespan beyond 100 million switching cycles while maintaining consistent performance in high-frequency switching applications typical of automated production lines.
• Flexible Output Configuration
  Supports both sourcing and sinking output modes through external wiring configuration, accommodating diverse field device requirements and simplifying integration with existing control panel designs and wiring standards.
• Comprehensive Circuit Protection
  Integrated overcurrent limiting, thermal shutdown, and reverse polarity protection safeguard both the module and connected field devices from wiring errors, short circuits, and abnormal operating conditions.

Typical Application Scenarios

This module excels in applications demanding electrical isolation, diagnostic visibility, and reliable DC output control, particularly in:

• Manufacturing Assembly Lines
  Controls pneumatic actuators, part ejectors, and conveyor diverters in automotive, electronics, and packaging production systems where cycle times demand fast, repeatable switching with minimal electrical interference to adjacent control circuits.
• Process Control & Chemical Plants
  Operates motorized valves, dosing pumps, and alarm annunciators in continuous process industries including water treatment, petrochemical refining, and pharmaceutical manufacturing where isolation prevents ground-referenced sensor circuits from corrupting output signals.
• Material Handling & Warehousing
  Drives sortation gates, lift table controls, and status indication towers in distribution centers and logistics facilities requiring coordinated multi-zone control with centralized PLC-5 architecture and distributed I/O placement.
• Machine Tool & Metalworking Equipment
  Interfaces with hydraulic valve manifolds, coolant pumps, and tool changer mechanisms in CNC machining centers, press brakes, and grinding machines where electrical noise from VFDs and servo drives necessitates isolated output circuits.
• Building Automation & HVAC Systems
  Manages damper actuators, circulation pumps, and alarm relays in commercial facility management systems integrating legacy PLC-5 controllers with modern BACnet or Modbus supervisory networks.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement decisions, we provide comprehensive electrical and mechanical specifications. Custom configurations available for specialized voltage ranges or mounting requirements.

Selection Considerations: When specifying this module, evaluate total output current requirements (sum of all active channels), field power supply voltage and capacity, required switching frequency, environmental conditions (temperature/humidity/vibration), and available chassis slot positions. For applications requiring higher current (>2A per point), faster response (<1ms), or AC output control, consult our engineering team for alternative module recommendations. Provide load type (inductive/resistive), duty cycle, and wiring distance for optimized application support.

Extended Capabilities & Integration Options

• Hot-Swap Capability: Supports online module replacement in redundant chassis configurations, minimizing process interruption during maintenance activities.
• Conformal Coating Available: Factory-applied protective coating option for harsh environments with airborne contaminants, moisture, or corrosive atmospheres.
• Spare Parts & Lifecycle Support: Maintained inventory for legacy PLC-5 systems with extended availability commitment and migration path consultation for obsolescence planning.
• Third-Party Integration: Compatible with RSLogix 5 programming software, FactoryTalk View HMI platforms, and standard Modbus/Ethernet gateways for SCADA connectivity.

Delivery, Service & Quality Assurance

Standard catalog items ship within 3-5 business days from regional distribution centers. Custom-configured modules or bulk orders require 10-15 business days lead time. All products include minimum 12-month manufacturer warranty covering defects in materials and workmanship. Technical support available via phone and email for installation guidance, programming assistance, and troubleshooting consultation (remote diagnostics available for most scenarios).

Each module ships with complete documentation package including: electrical specifications datasheet, wiring diagrams with terminal assignments, installation instructions with torque specifications, and RSLogix 5 configuration examples. Modules undergo factory testing per Allen-Bradley quality standards with test certificates available upon request for critical applications.

Frequently Asked Questions (FAQ)

Q: How does the 1771-OC DC output module integrate with existing PLC-5 control systems?
A: The module installs directly into any available slot in a 1771 I/O chassis connected to your PLC-5 processor via the backplane. Configuration requires adding the module to your RSLogix 5 I/O configuration with appropriate slot address assignment. Field wiring connects to the 36-pin removable terminal block following the wiring diagram provided. No special interface cards or external power supplies required beyond standard 10-30V DC field power.

Q: What is the maximum number of outputs that can be energized simultaneously?
A: All 16 outputs can be energized concurrently provided total module current does not exceed 32A and individual channel current remains below 2A. Practical limitations depend on field power supply capacity and thermal management within the enclosure. For continuous high-duty applications, consider derating to 80% of maximum ratings.

Q: What energy savings or efficiency improvements does this module provide?
A: Solid-state outputs consume minimal holding power compared to electromagnetic relays, reducing panel heat generation and cooling requirements. Typical energy savings of 15-25% versus relay-based output systems in high-density installations. Elimination of relay coil power and reduced HVAC load contribute to lower operational costs over the module's 10+ year service life.

Q: What environmental protection rating does this module have, and are there installation restrictions?
A: The module is designed for open-type installation and must be mounted inside a NEMA 12 (IP54) or higher-rated enclosure to meet industrial environmental standards. Operating temperature range is 0-60°C with 5-95% non-condensing humidity. For harsh environments (chemical exposure, extreme temperatures, high vibration), conformal-coated versions are available. Ensure adequate ventilation and maintain minimum clearances per installation manual.

Q: Does the module support remote monitoring and data acquisition protocols?
A: Output status is accessible through the PLC-5 processor's data table and can be monitored via any HMI or SCADA system communicating with the PLC (DH+, Ethernet, ControlNet). The module itself does not have native Ethernet or fieldbus connectivity—network integration occurs through the PLC-5 processor. For direct Ethernet I/O, consider migrating to ControlLogix or CompactLogix platforms with our application engineering support.

Q: What is the typical lifespan and what maintenance is required?
A: Solid-state design provides 100+ million switching cycles with no scheduled maintenance required. Recommended annual inspection includes: visual check for terminal tightness, LED functionality verification, and dust removal from ventilation areas. Module replacement typically occurs during system upgrades rather than component failure. Spare module inventory recommended for critical processes to minimize downtime risk.

Request Technical Support & Custom Solutions

For detailed application engineering, system integration consultation, or volume pricing, please provide the following project information: application description and control objectives, required number of output points and load specifications, existing PLC-5 processor model and chassis configuration, field power supply voltage and available current, environmental conditions and enclosure type, project timeline and delivery requirements. Our engineering team will respond within one business day with tailored recommendations, wiring examples, and formal quotations.
